• B2ccf-04 Passenger Door Mirror Control Module
• Power Supply and Ground Circuit (smart Rear View Mirror)
• Passenger Door Mirror Control Module
• Smart Rear View Mirror Circuit
• Door Mirror Remote Control Switch (mirror/select Switch)
• Door Mirror Remote Control Switch (retractor Switch)

B2ccf-04 Passenger Door Mirror Control Module Nissan Pathfinder

DTC Description

DTC DETECTION LOGIC

DTC No.	CONSULT screen terms (Trouble diagnosis content)	DTC detection condition
B2CCF-04	Passenger door mirror control module	Diagnosis condition	Ignition switch is ON or OFF (auto ACC status).
		Signal (terminal)	LIN communication (door mirror) signal
		Threshold	BCM detects communication error with passenger door mirror control module.
		Diagnosis delay time	1 second or less

POSSIBLE CAUSE

• Passenger door mirror control module

• LIN communication line

• BCM

FAIL SAFE

—

PERFORM DTC CONFIRMATION PROCEDURE

CONSULT

1. Ignition switch ON.

2. Select “Self Diagnostic Result” mode of “BCM”.

3. Check DTC.

Is DTC detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO>>

Confirmation after repair: Inspection End.

DTC Diagnosis Procedure

CHECK LIN COMMUNICATION SIGNAL

1. Ignition switch ON.

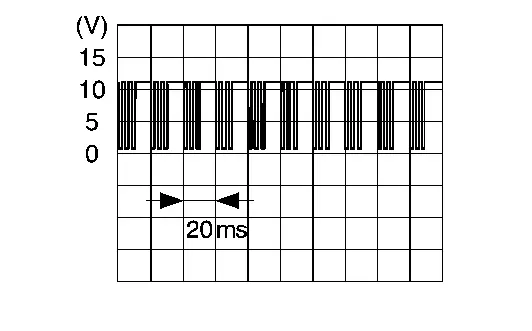

2. Check signal between passenger door mirror control module harness connector and ground using an oscilloscope.

   (+)		(−)	Signal (Reference value)
   Passenger door mirror control module
   Connector	Terminal
   D108	7	Ground

Is the inspection result normal?

YES>>

GO TO 3.

NO>>

GO TO 2.

CHECK PASSENGER DOOR MIRROR CONTROL MODULE CIRCUIT

1. Ignition switch OFF.

2. Disconnect passenger door mirror control module connector and BCM connector.

3. Check continuity between passenger door mirror control module harness connector and BCM harness connector.

   Passenger door mirror control module		BCM		Continuity
   Connector	Terminal	Connector	Terminal
   D108	7	M18	24	Yes

4. Check continuity between passenger door mirror control module harness connector and ground.

   Passenger door mirror control module		—		Continuity
   Connector	Terminal
   D108	7	Ground		No

Is the inspection result normal?

YES>>

GO TO 3.

NO>>

Repair or replace harness.

REPLACE PASSENGER DOOR MIRROR CONTROL MODULE

Replace passenger door mirror control module. Refer to Removal and Installation.

Is the inspection result normal?

YES>>

Inspection End.

NO>>

GO TO 4.

REPLACE BCM

Replace BCM. Refer to Removal and Installation.

>>

Inspection End.

Power Supply and Ground Circuit (smart Rear View Mirror) Nissan Pathfinder Fifth generation

Diagnosis Procedure

CHECK FUSE

1. Ignition switch OFF.

2. Check that the following fuses are not blown (open):

   Signal name	Fuse No.	Capacity
   Ignition power supply	4	10 A
   	40	10 A

Is the fuse blown (open)?

YES>>

Replace the blown fuse after repairing the affected circuit.

NO>>

GO TO 2.

CHECK SMART REAR VIEW MIRROR POWER SUPPLY CIRCUIT

1. Disconnect smart rear view mirror connector.

2. Ignition switch ON.

3. Check voltage between smart rear view mirror harness connector and ground.

   +		—	Voltage (Approx.)
   Smart rear view mirror
   Connector	Terminal
   R8	1	Ground	Battery voltage
   	7

Is the inspection result normal?

YES>>

GO TO 3.

NO>>

Repair or replace harness.

CHECK SMART REAR VIEW MIRROR GROUND CIRCUIT

1. Ignition switch OFF.

2. Check continuity between smart rear view mirror harness connector and ground.

   Smart rear view mirror		—	Continuity
   Connector	Terminal
   R8	2	Ground	Yes

Is the inspection result normal?

YES>>

Inspection End.

NO>>

Repair or replace harness.

Passenger Door Mirror Control Module Nissan Pathfinder Fifth generation

Diagnosis Procedure

CHECK FUSE

1. Ignition switch OFF.

2. Check that the following fuse is not blown (open):

Signal name	Fuse No.	Capacity
Ignition power supply	45	10 A

Is the fuse blown (open) ?

YES>>

Replace the blown fuse after repairing the affected circuit.

NO>>

GO TO 2.

CHECK PASSENGER DOOR MIRROR CONTROL MODULE POWER SUPPLY

1. Disconnect passenger door mirror control module connector.

2. Ignition switch ON.

3. Check voltage between passenger door mirror control module harness connector and ground.

   (+)		(−)	Voltage (Approx.)
   Passenger door mirror control module
   Connector	Terminal
   D108	4	Ground	Battery voltage

Is the inspection result normal?

YES>>

GO TO 3.

NO>>

Repair or replace harness and check fuse.

CHECK LIN COMMUNICATION SIGNAL

1. Ignition switch OFF.

2. Connect passenger door mirror control module connector.

3. Ignition switch ON.

4. Check signal between passenger door mirror control module harness connector and ground using an oscilloscope.

   (+)		(−)	Signal (Reference value)
   Passenger door mirror control module
   Connector	Terminal
   D108	7	Ground

Is the inspection result normal?

YES>>

GO TO 4.

NO>>

Repair or replace harness.

CHECK PASSENGER DOOR MIRROR CONTROL MODULE CIRCUIT

1. Ignition switch OFF.

2. Disconnect passenger door mirror control module connector and door mirror RH connector.

3. Check continuity between passenger door mirror control module harness connector and door mirror RH harness connector.

   Passenger door mirror control module		Door mirror RH		Continuity
   Connector	Terminal	Connector	Terminal
   D108	8	D128	9	Yes
   	9		10

4. Check continuity between passenger door mirror control module harness connector and ground.

   Passenger door mirror control module		—		Continuity
   Connector	Terminal
   D108	8	Ground		No
   	9

Is the inspection result normal?

YES>>

GO TO 5.

NO>>

Repair or replace harness.

CHECK PASSENGER DOOR MIRROR CONTROL MODULE GROUND CIRCUIT

Check continuity between passenger door mirror control module harness connector and ground.

Passenger door mirror control module		—		Continuity
Connector	Terminal
D108	12	Ground		Yes

Is the inspection result normal?

YES>>

GO TO 6.

NO>>

Repair or replace harness.

REPLACE DOOR MIRROR RH

Replace door mirror RH. Refer to Removal and Installation.

Is the inspection result normal?

YES>>

Inspection End.

NO>>

GO TO 7.

REPLACE PASSENGER DOOR MIRROR CONTROL MODULE

Replace passenger door mirror control module. Refer to Removal and Installation.

Is the inspection result normal?

YES>>

Inspection End.

NO>>

GO TO 8.

REPLACE BCM

Replace BCM. Refer to Removal and Installation.

Is the inspection result normal?

YES>>

Inspection End.

NO>>

GO TO 9.

CHECK INTERMITTENT INCIDENT

Check intermittent incident. Refer to Intermittent Incident..

>>

Inspection End.

Smart Rear View Mirror Circuit Nissan Pathfinder 5th Gen

Component Function Check

CHECK SMART REAR VIEW MIRROR OPERATION

1. Ignition switch ON.

2. Turn ON the power lever located at the bottom of the smart rear view mirror, and check that the image from the smart rear view mirror camera is displayed on the LCD monitor integrated in the smart rear view mirror.

Is the inspection result normal?

YES>>

Inspection End.

NO>>

Check smart rear view mirror circuit. Refer to Diagnosis Procedure.

Diagnosis Procedure

CHECK SMART REAR VIEW MIRROR CAMERA CIRCUIT

1. Ignition switch OFF.

2. Disconnect smart rear view mirror harness connector and smart rear view mirror camera harness connector.

3. Check continuity between smart rear view mirror harness connector and smart rear view mirror camera harness connector.

   Smart rear view mirror		Smart rear view mirror camera		Continuity
   Connector	Terminal	Connector	Terminal
   R6	13	D503	1	Yes

Is the inspection result normal?

YES>>

GO TO 2.

NO>>

Repair or replace harness or connector.

CHECK SMART REAR VIEW MIRROR CAMERA GROUND CIRCUIT

Check continuity between smart rear view mirror camera harness connector and ground.

Smart rear view mirror camera		(-)	Continuity
Connector	Terminal
D503	2	Ground	Yes

Is the inspection result normal?

YES>>

GO TO 3.

NO>>

Repair or replace harness or connector.

REPLACE SMART REAR VIEW MIRROR CAMERA

1. Replace smart rear view mirror camera.

2. Check smart rear view mirror system. Refer to Component Function Check.

Is the inspection result normal?

YES>>

Inspection End.

NO>>

GO TO 4.

REPLACE SMART REAR VIEW MIRROR

1. Replace smart rear view mirror. Refer to Removal and Installation.

2. Check smart rear view mirror system. Refer to Component Function Check.

Is the inspection result normal?

YES>>

Inspection End.

NO>>

To check malfunction symptom before repair. Refer to Intermittent Incident.

Door Mirror Remote Control Switch (mirror/select Switch) Nissan Pathfinder 2022

Component Inspection

CHECK MIRROR SWITCH & SELECT SWITCH

1. Ignition switch OFF.

2. Disconnect door mirror remote control switch connector.

3. Check door mirror remote control switch.

   Door mirror remote control switch			Condition		Continuity
   Terminals			Select switch	Mirror switch
   Door mirror LH	21	10	LEFT	RIGHT	Yes
   	10	21		LEFT
   	6	21		UP
   	21	6		DOWN
   Door mirror RH	7	9	RIGHT	RIGHT
   	9	7		LEFT
   	8	7		UP
   	7	8		DOWN

Is the inspection result normal?

YES>>

Inspection End.

NO>>

Replace main power window and door mirror switch. Refer to Removal and Installation.

Door Mirror Remote Control Switch (retractor Switch) Nissan Pathfinder Fifth generation

Component Inspection

CHECK RETRACTOR SWITCH

1. Ignition switch OFF.

2. Disconnect door mirror remote control switch connector.

3. Check door mirror remote control switch.

   WITHOUT ADP

   Door mirror remote control switch			Condition		Continuity
   Terminals
   LH side	17	18	Retractor switch	OPEN	Yes
   	18	17		CLOSE
   RH side	19	20		OPEN
   	20	19		CLOSE

Is the inspection result normal?

YES>>

Inspection End.

NO>>

Replace main power window and door mirror switch. Refer to Removal and Installation.
