Nissan Pathfinder: Instrument Panel - Unit Disassembly and Assembly

• Center Console Assembly
• Rear Center Console Assembly

Center Console Assembly Nissan Pathfinder 2022

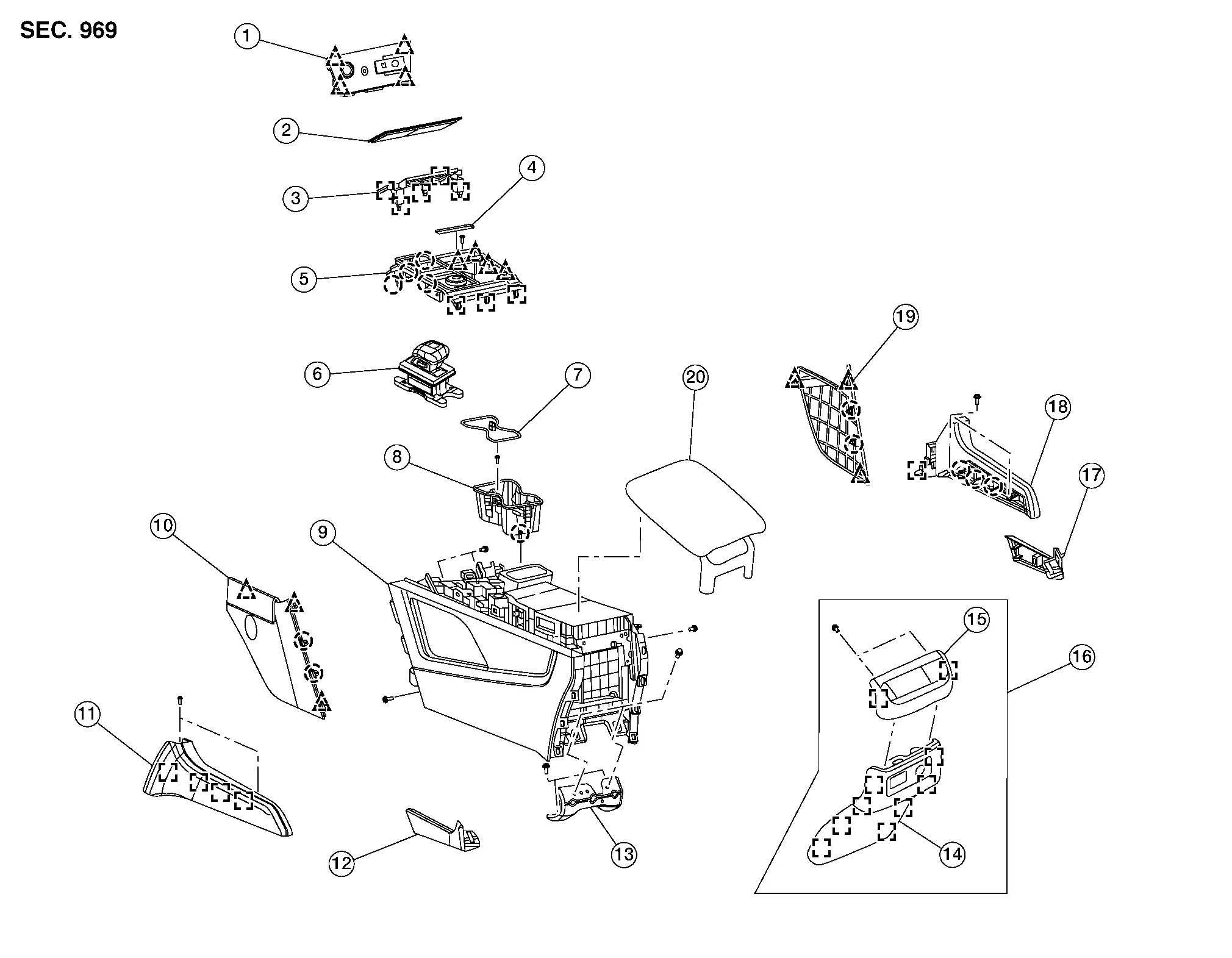

Exploded View

Exploded View

1.	Cluster lid C lower	2.	Wireless charger mat (if so equipped)	3.	Wireless charger unit (if so equipped)
4.	Front console tray	5.	Shift selector finisher	6.	Electric shift selector
7.	Cup holder mat	8.	Cup holder finisher	9.	Front center console assembly
10.	Center console front finisher (LH)	11.	Center console side finisher (LH)	12.	Center console brace (LH)
13.	Center console bracket	14.	Center console rear finisher lower	15.	Rear A/C switch assembly
16.	Center console rear finisher	17.	Center console brace (RH)	18.	Center console side finisher (RH)
19.	Center console front finisher (RH)	20.	Center console lid		Metal clip
	Clip		Pawl

Disassembly and Assembly

DISASSEMBLY

Remove center console assembly. Refer to Removal and Installation.

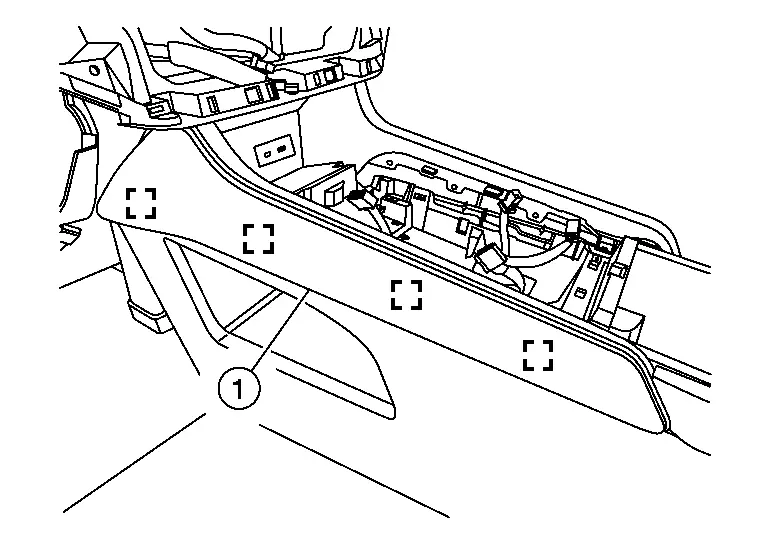

Using a suitable tool, release clips and remove center console side finisher [1 (LH/RH)].

NOTE:

LH shown; RH similar.

: Metal clip

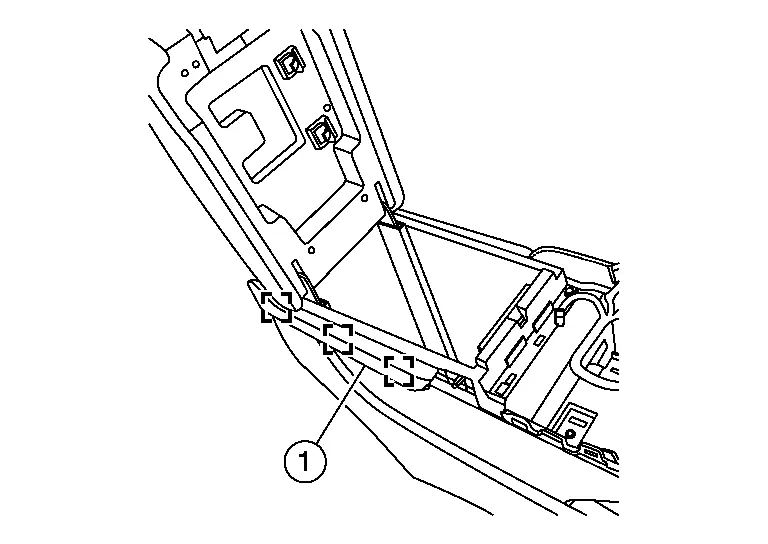

Using a suitable tool, release clips and remove center console brace [1 (RH/LH)].

NOTE:

RH shown; LH similar.

: Metal clip

ASSEMBLY

Assembly is in the reverse order of disassembly.

Rear Center Console Assembly Nissan Pathfinder

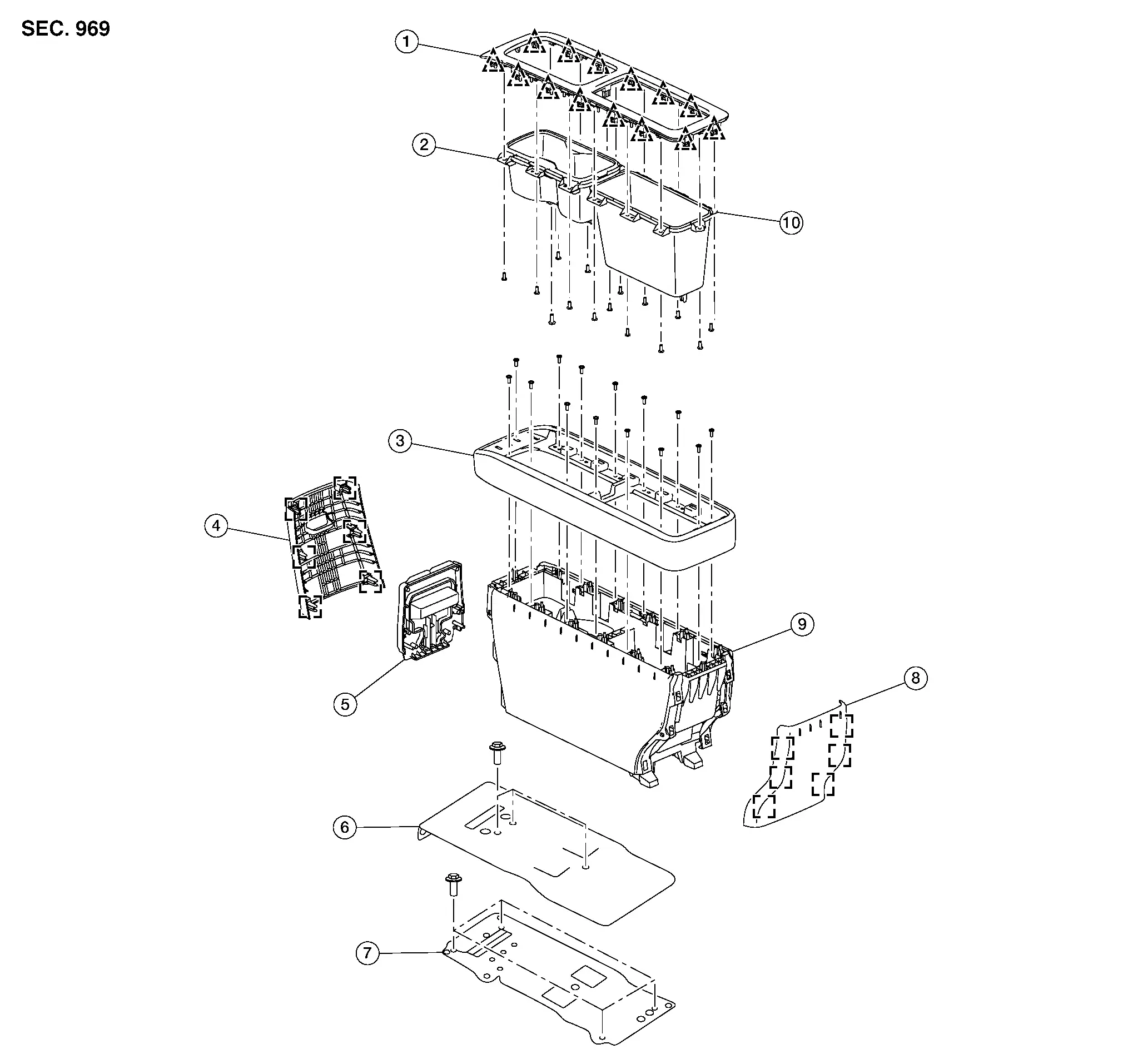

Exploded View

Exploded View

1.	Cup holder finisher	2.	Cup holder	3.	Rear center console trim
4.	Pull handle finisher	5.	Pull handle release	6.	Rear center console base
7.	Rear center console brace	8.	Rear center console finisher	9.	Rear center console assembly
10.	Rear center console storage		Metal clip		Clip

Disassembly and Assembly

Remove rear center console assembly. Refer to Removal and Installation.

Using a suitable tool, release clips and remove cup holder finisher.

Using a suitable tool, remove screws and remove cup holder.

Using a suitable tool, remove screws and remove rear center console storage.

Using a suitable tool, remove screws and remove rear center console trim.

Using a suitable tool, release clips and remove rear center console finisher.

Using a suitable tool, remove bolts and remove rear center console base.

Using a suitable tool, remove screws and remove rear center console brace.

ASSEMBLY

Assembly is in the reverse order of disassembly.
