Nissan Pathfinder: Warning Chime System - System Description
Component Parts. Warning Chime System Nissan Pathfinder

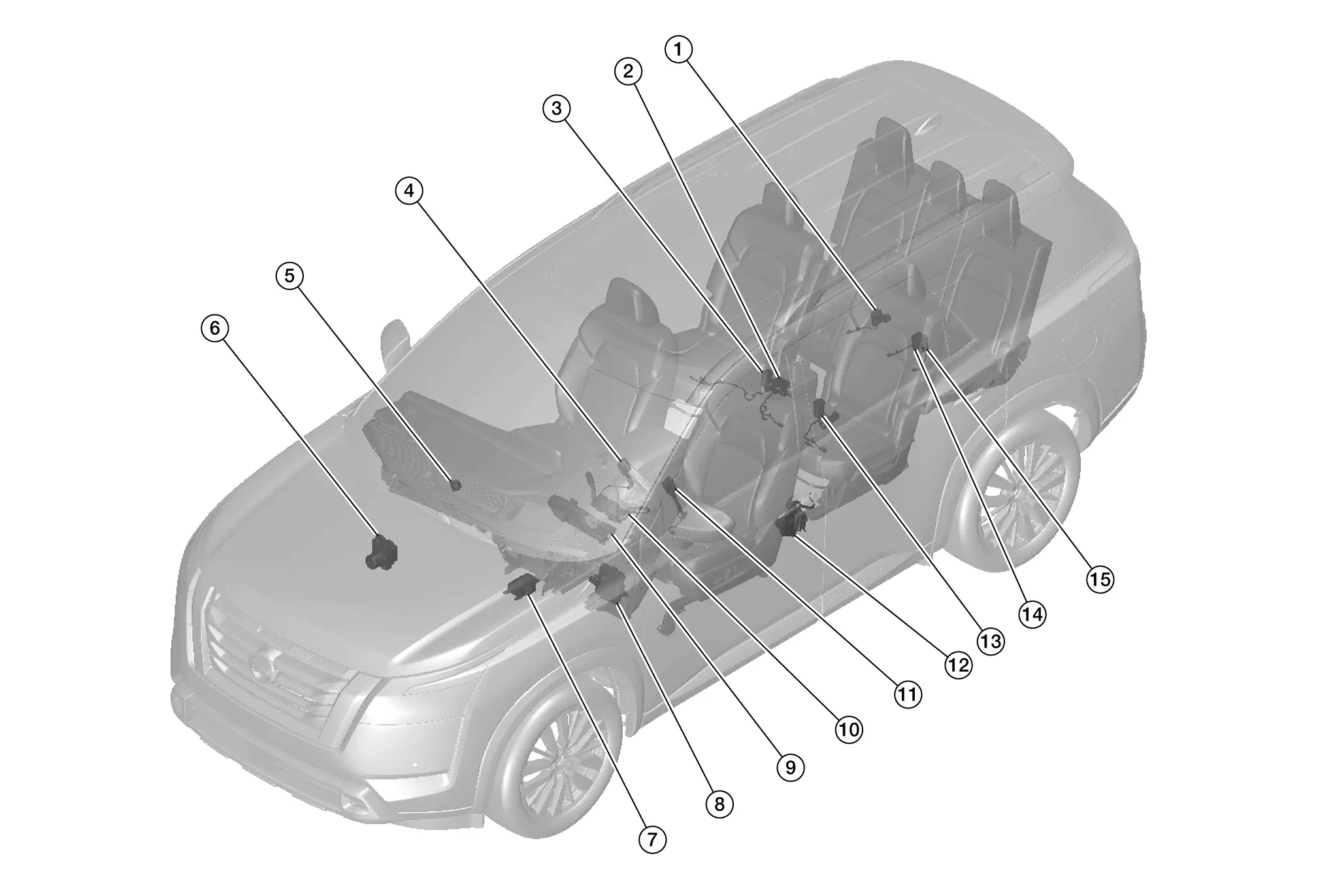

Component Parts Location
| No. | Component | Function |
|---|---|---|
| 1. | 3rd row seat belt buckle switch RH | Transmits the 3rd row seat belt buckle switch RH signal to the air bag diagnosis sensor unit. |
| 2. | 2nd row seat belt buckle switch CTR (if equipped) | Transmits the 2nd row seat belt buckle switch CTR signal to the air bag diagnosis sensor unit. |
| 3. | 2nd row seat belt buckle switch RH | Transmits the 2nd row seat belt buckle switch RH signal to the air bag diagnosis sensor unit. |
| 4. | Front seat belt buckle switch RH | Transmits the front seat belt buckle switch RH signal to the air bag diagnosis sensor unit. |
| 5. | Master speaker | Refer to Master Speaker. |
| 6. | ABS (Anti-lock Braking System) actuator and electric unit (control unit) |
Transmits the Nissan Pathfinder vehicle speed signal to the combination meter via CAN communication. Refer to Component Parts Location for detailed component location. |
| 7. | Air bag diagnosis sensor unit |
Transmits the front seat belt buckle switch RH signal to the combination meter via CAN communication. Refer to Component Parts Location for detailed component location. |
| 8. | BCM (Body Control Module) |
Based on the signals received from various units and switches, transmits the buzzer output signal to the combination meter via CAN communication. Refer to Component Part Location for detailed component location. |
| 9. | Combination meter | Refer to Combination Meter. |
| 10. | Combination switch (lighting and turn signal switch) | Transmits the status of the combination switch (lighting and turn signal switch) to the BCM. |
| 11. | Front seat belt buckle switch LH | Transmits the front seat belt buckle switch LH signal to the BCM. |
| 12. | Front door lock assembly LH (door switch) | Transmits front door switch LH signal to the BCM. |
| 13. | 2nd row seat belt buckle switch LH | Transmits the 2nd row seat belt buckle switch LH signal to the air bag diagnosis sensor unit. |
| 14. | 3rd row seat belt buckle switch CTR | Transmits the 3rd row seat belt buckle switch CTR signal to the air bag diagnosis sensor unit. |
| 15. | 3rd row seat belt buckle switch LH | Transmits the 3rd row seat belt buckle switch LH signal to the air bag diagnosis sensor unit. |
Combination Meter
The combination meter transmits the following warnings to the master speaker when receiving the buzzer output signal transmitted from each unit:
-
Light reminder chime
-
Seat belt warning light and chime

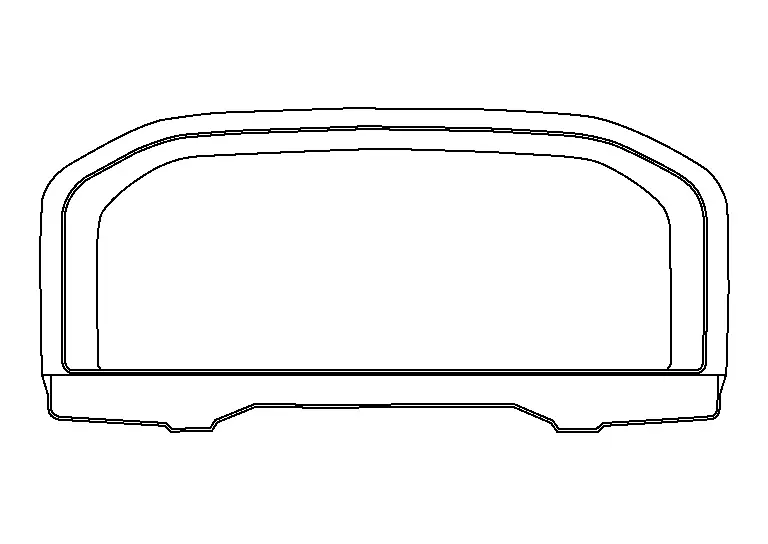

Full TFT Meter

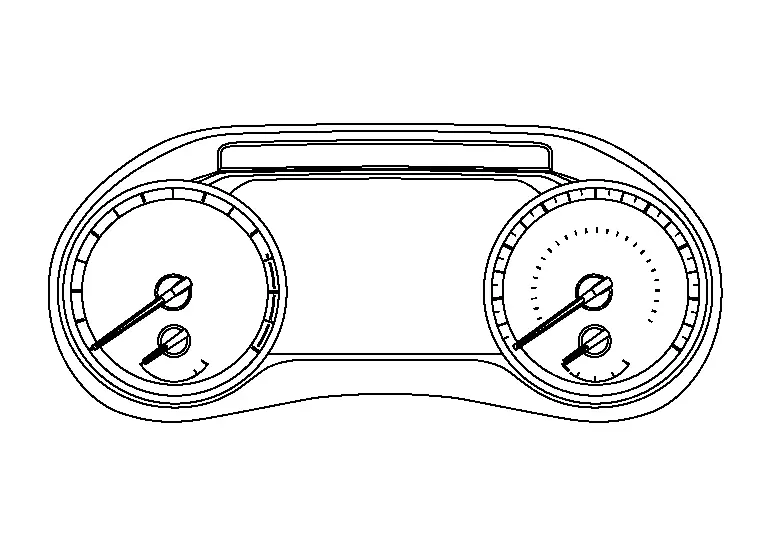

7 Inch Information Display Meter

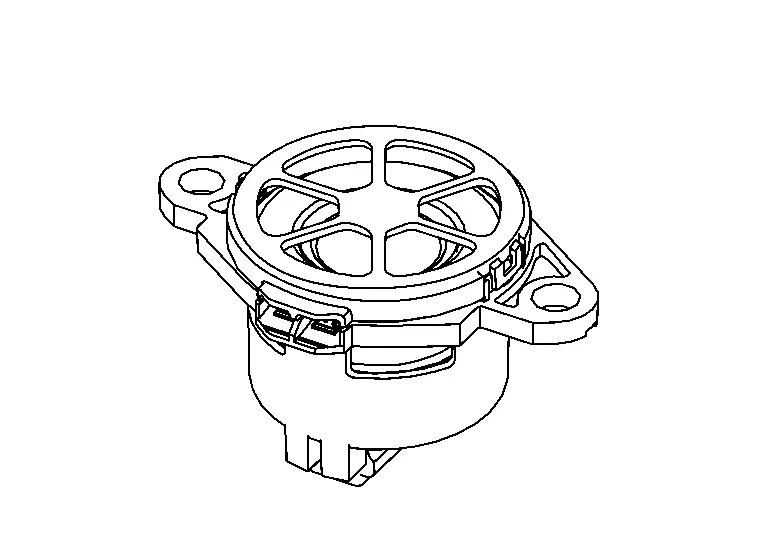

Master Speaker
The buzzer sounds with the signal from the combination meter.
Diagnosis System (bcm). Common Item Nissan Pathfinder 2022
CONSULT Function (BCM - COMMON ITEM)
| BCM | Refer to CONSULT Function (BCM- COMMON ITEM). |
