Nissan Pathfinder: Defogger - System Description

Nissan Pathfinder (R53) 2022-2025 Service Manual / Driver Controls :: Defogger / System Description

Component Parts. Defogger System Nissan Pathfinder SUV

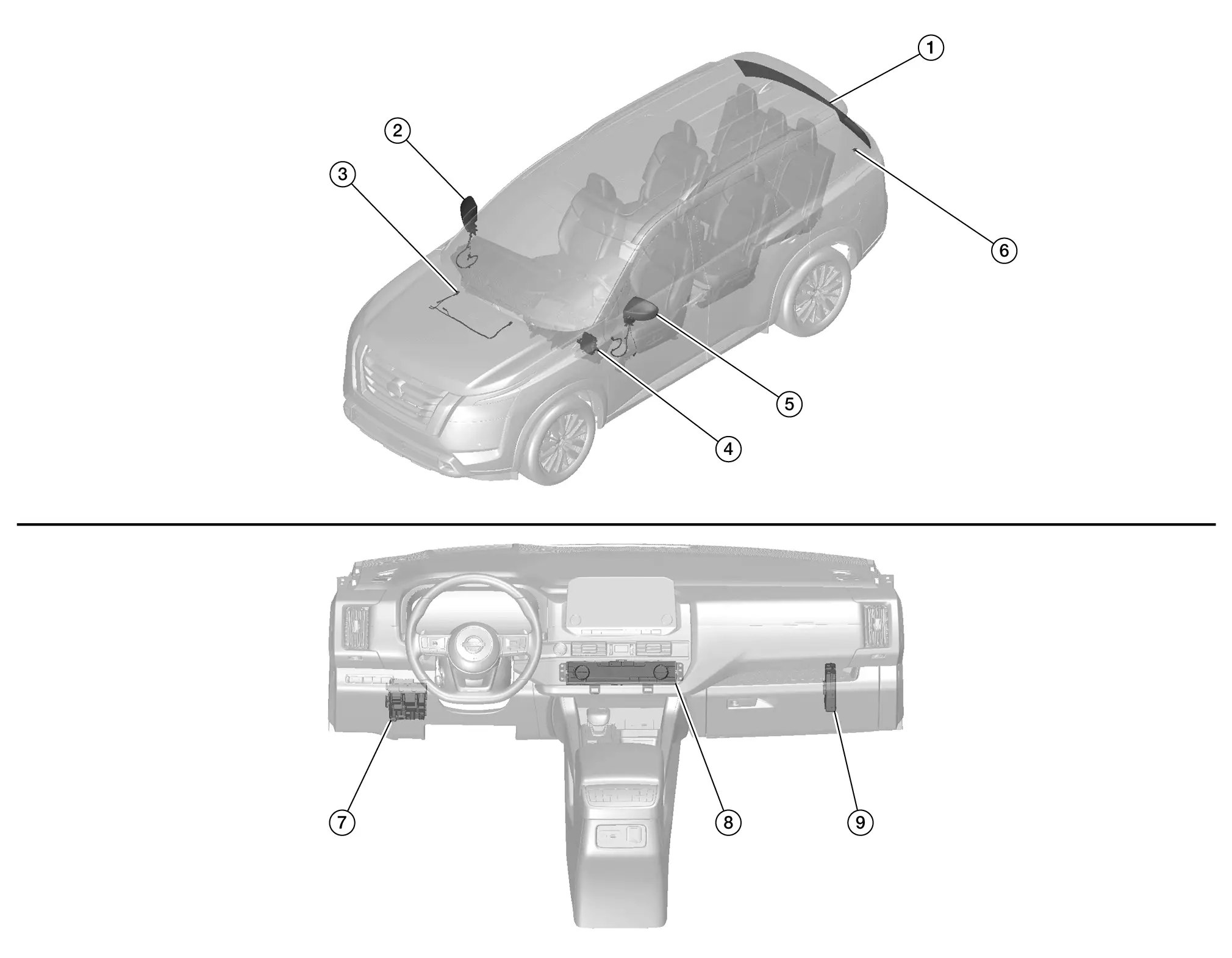

Component Parts Location

No. Component Function
1. Rear window defogger

Heats the heating wire with the power supply from the rear window defogger relay to prevent the rear window from fogging up.

Refer to Rear Window Defogger.
2. Door mirror RH defogger (if equipped) Refer to Door Mirror Defogger.
3. Heated washer nozzles (if equipped) Refer to Heated Washer Nozzle.
4. BCM (Body Control Module)
  • Operates the rear window defogger relay with the operation of rear window defogger switch.

  • Performs the timer control of rear window defogger.

Refer to System Description.
5. Door mirror LH defogger (if equipped) Refer to Door Mirror Defogger.
6. Rear window defogger condenser Condenser reduces the noise of rear window defogger operation.
7. Fuse block (J/B) (rear window defogger relay) Rear window defogger supplied power to rear window defogger, door mirror defogger, and heated washer nozzles.
8. Front A/C switch assembly
  • Rear window defogger switch is installed.

  • Turns the indicator lamp ON when detecting the operation of rear window defogger.

Refer to Component Parts Location for detailed component location.
9. A/C auto amp.
  • A/C auto amp. transmits rear window defogger switch signal to BCM via CAN communication.

  • A/C auto amp. receives rear window defogger feedback signal from BCM via CAN communication.

  • Turns the indicator lamp ON when detecting the operation of rear window defogger.

Refer to Component Parts Location for detailed component location.

Rear Window Defogger

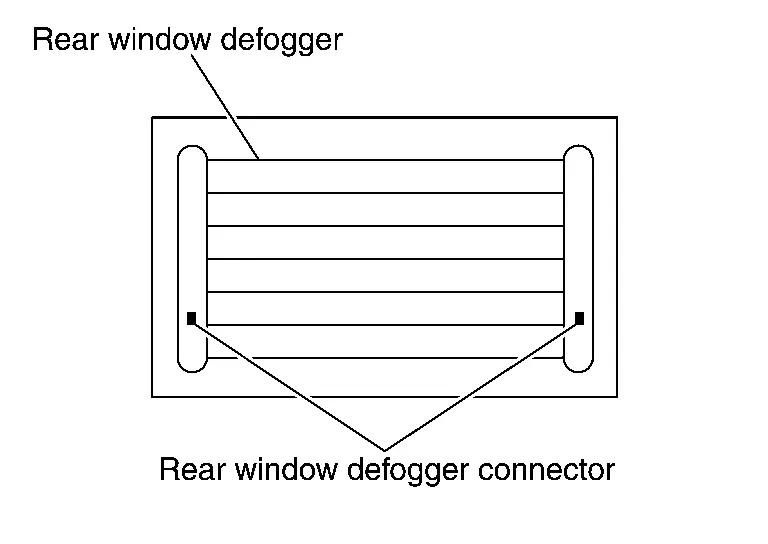

  • The rear window defogger is installed onto the rear window glass. When the rear window defogger switch is turned ON, current flows to the rear window defogger, heating the heat wires.

  • Electricity flows to the heat wire (rear window defogger) contained inside the back door window glass, and the back door window glass is heated to eliminated the fogging.

Door Mirror Defogger

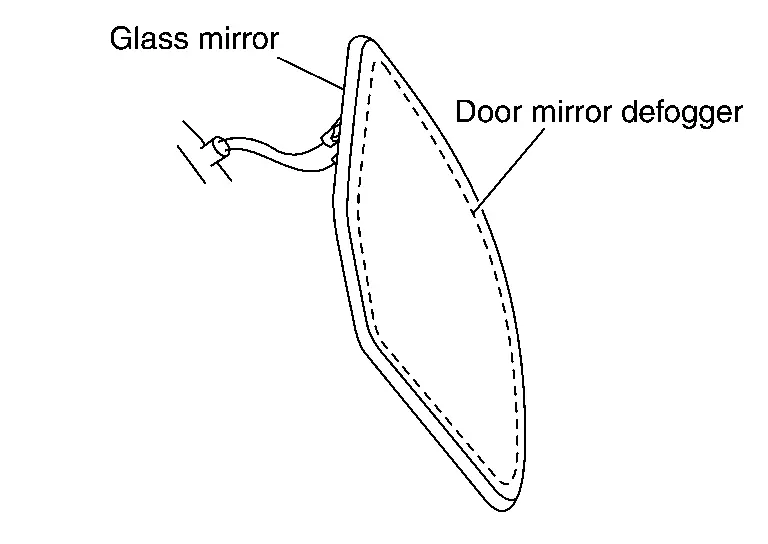

  • Door mirror defogger are installed in door mirror glass. When the rear window defogger switch is turned ON, current flows to the mirror defogger, heating the heat wires.

  • Electricity flows to the heat wire (mirror defogger) contained inside the glass mirror, and the glass mirror is heated to eliminated the fogging.

Heated Washer Nozzle

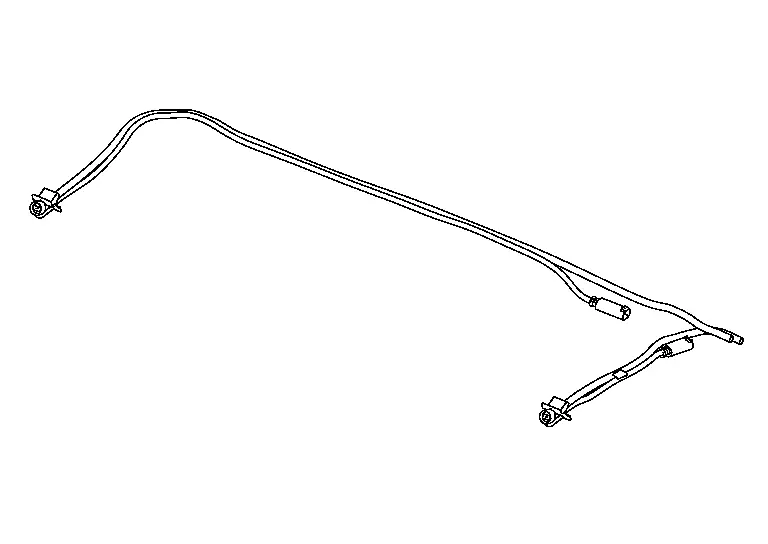

  • When the rear window defogger switch is turned ON, current flows to the heated washer nozzle, heating the heat wires.

  • Electricity flows to the heat wire (washer nozzle) contained inside the heated washer nozzle, and the washer nozzle is heated to eliminated ice buildup.

System Nissan Pathfinder Fifth generation

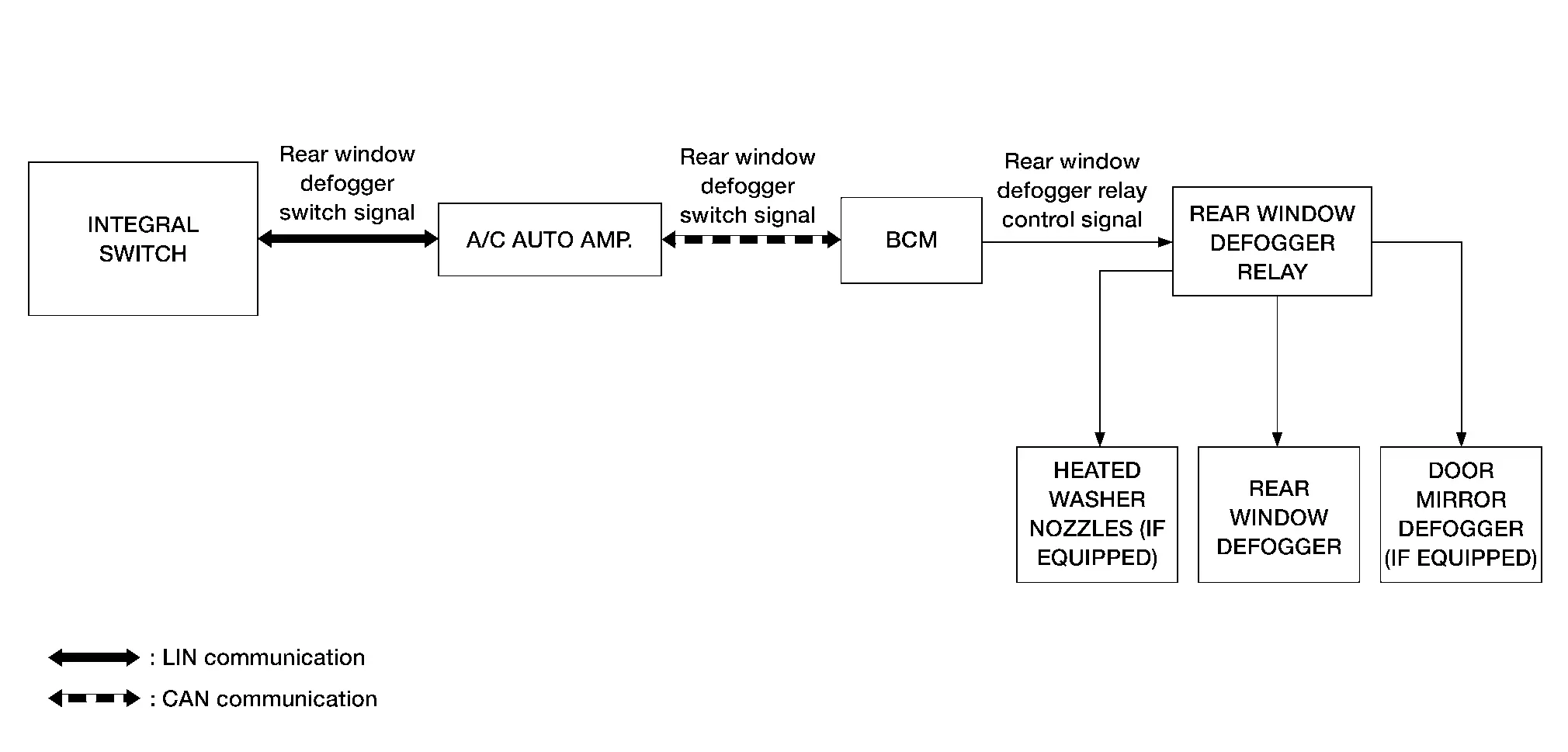

System Diagram

System Description

Operation Description

  • When rear window defogger switch is turned ON while ignition switch is ON, the rear window defogger switch signal is transmitted to the BCM.

  • BCM turns rear window defogger relay ON when rear window defogger switch signal is received.

  • Rear window defogger , door mirror defogger, and heated washer nozzles are supplied with power and operate when rear window defogger relay turns ON.

  • Rear window defogger ON is displayed when signal is received.

  • BCM transmits rear window defogger control signal to A/C auto amp. via CAN communication when rear window defogger operates.

Timer Function

  • BCM turns rear window defogger relay ON for approximately 15 minutes when rear window defogger switch is turned ON while ignition switch is ON. It makes rear window defogger, door mirror defogger, and heated washer nozzles operate.

  • Timer is canceled after pressing rear window defogger switch again during timer operation. Then BCM turns rear window defogger relay OFF. The same reaction also occurs during timer operation, if the ignition switch is placed OFF.

INPUT/OUTPUT SIGNAL CHART

Switch Input signal to BCM BCM function Actuator
Rear window defogger switch Defogger switch signal Rear window defogger, door mirror defogger control, and heated washer nozzles

Rear window defogger

Door mirror defogger
Ignition switch Ignition signal
