Nissan Pathfinder: Road Wheels & Tires - System Description
Component Parts. Tire Pressure Monitoring System Nissan Pathfinder R53

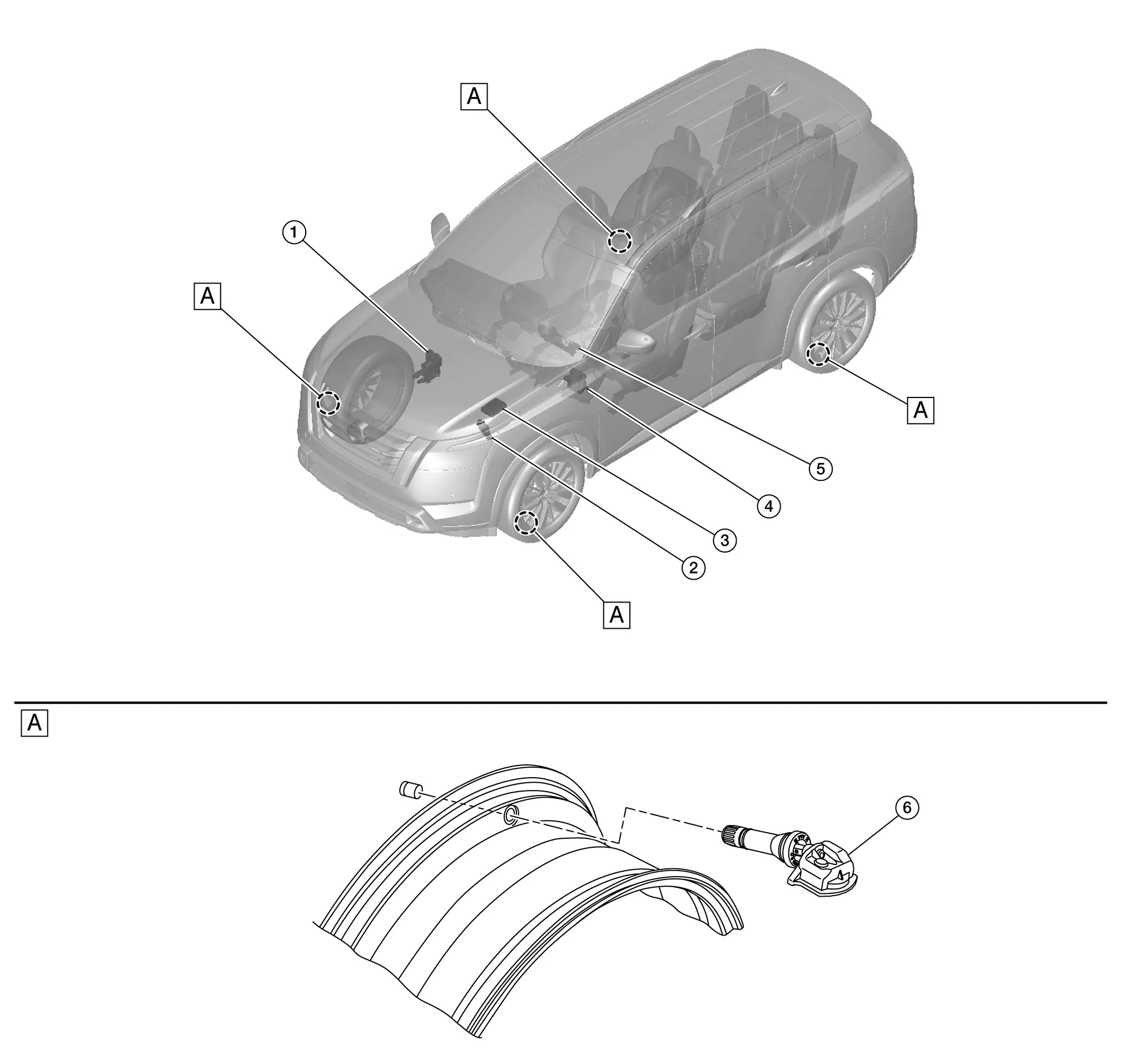

Component Parts Location
| A. |
Wheel (view with wheel and tire removed) |
| No. | Component | Function |
|---|---|---|
| 1. | ABS (Anti-lock Braking System) actuator and electric unit (control unit) |
Mainly transmits the following signal to the BCM via CAN communication:
|
| 2. | TCM (Transmission Control Module) |
Mainly transmits the P position signal to BCM via CAN communication. Refer to TCM for detailed component location. |
| 3. | IPDM E/R (Intelligent Power Distribution Module Engine Room) |
Mainly receives horn operation signal from the BCM via CAN communication. Refer to System Description. |
| 4. | BCM (Body Control Module) |
Mainly receives the following signals from the tire pressure sensors:
|
| 5. | Combination meter |
The combination meter receives tire pressure status from the BCM via CAN communication. The combination meter will display the low tire pressure warning lamp when a low tire pressure or system malfunction is detected by the BCM. Refer to Component Parts Location (Full TFT Meter) or Component Parts Location (7 Inch Information Display). |
| 6. | Tire pressure sensor | Refer to Tire Pressure Sensor. |

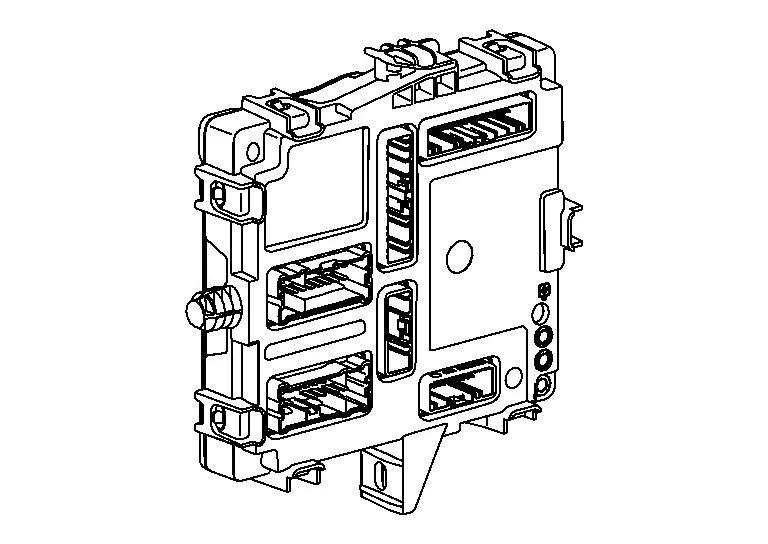

BCM
-
The BCM is installed in the LH side of the instrument panel.
-
The tire pressure receiver is integrated in BCM.
-
The BCM receives the signals of tire air pressure and tire temperature as an input from the tire pressure sensor in each wheel through a radio signal and controls tire pressure monitoring system.
-
The BCM Illuminates the low tire pressure warning light in the combination meter when tire pressure is lowered to less than the specified value or a system malfunction exists via CAN communication.

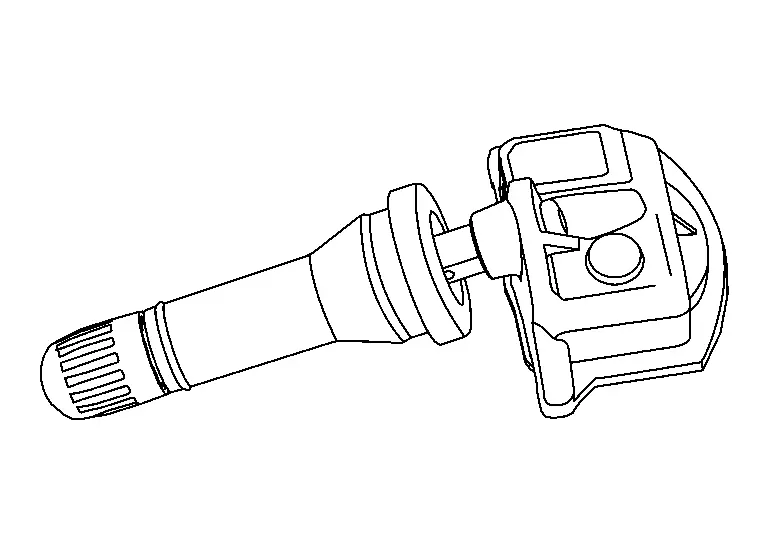

Tire Pressure Sensor
-
The tire pressure sensor is integrated with a valve and installed in each wheel.
-
The tire pressure sensor detects tire air pressure and tire temperature.
-
The tire pressure sensor transmits the detected air pressure and tire temperature in the form of a radio signal to the BCM.
Diagnosis System (bcm). Air Pressure Monitor Nissan Pathfinder Fifth generation
CONSULT Function (BCM - AIR PRESSURE MONITOR)
| BCM | Refer to CONSULT Function (BCM - AIR PRESSURE MONITOR). |
