Vehicle Information. Body Exterior Paint Color Nissan Pathfinder 2022

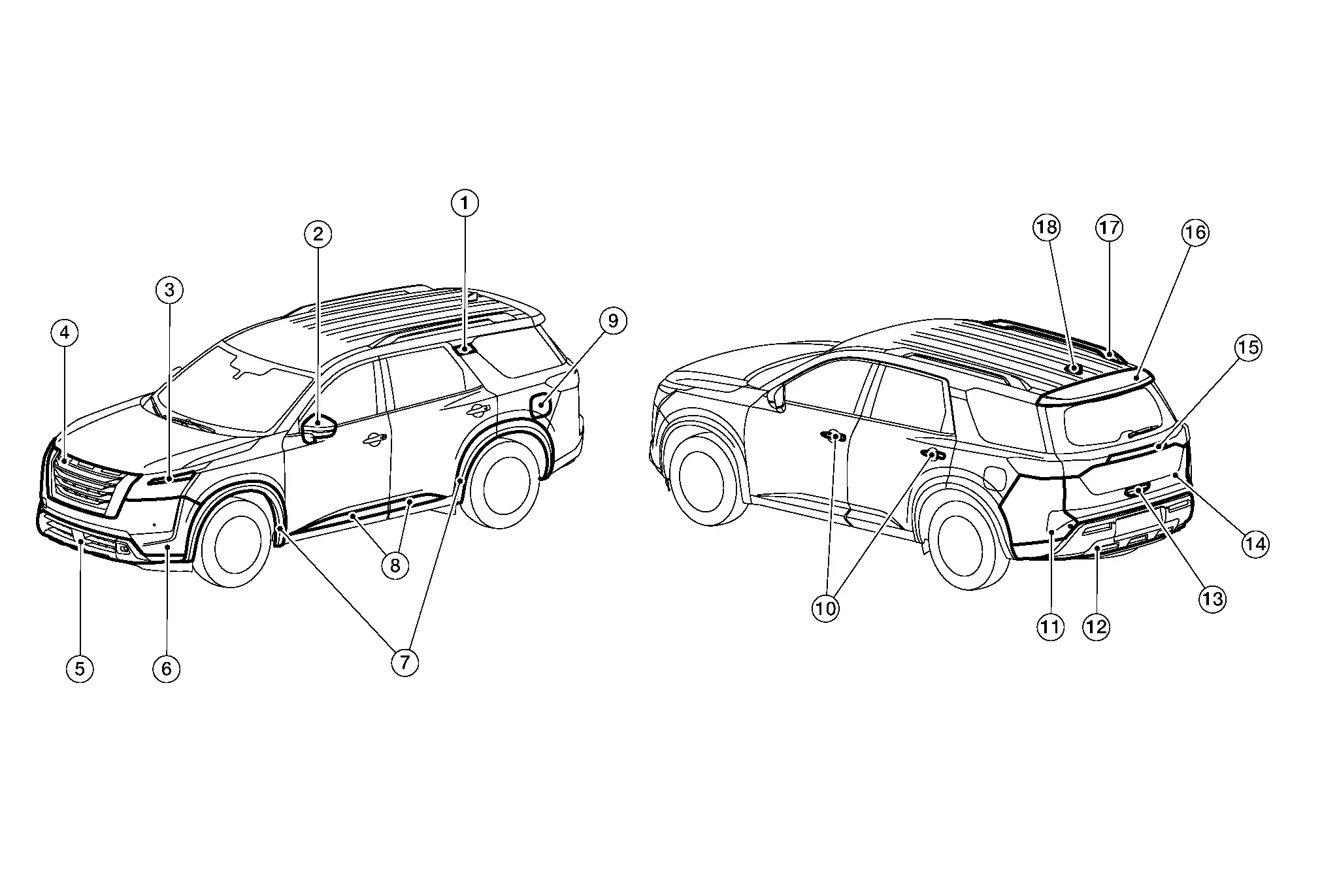

Body Exterior Paint Color
| Component | Color code | QAK | QBE | K23 | KAD | KH3 | NBL | RCJ | KBY | DAN | HAL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Description | White | White | Silver | Dark Gray | Black | Red | Dark Blue | Gray | Green | Beige | ||||
| Paint type | 2S | 3P | 2M | 2M | 2S | 2CPM | 2P | 2P | 2P | 2PM | ||||
| Hard clear coat | x | x | x | x | x | x | x | x | x | x | ||||
| 1. | Rear pillar finisher (outer) | Black | — | — | — | — | — | — | — | — | — | — | ||
| 2. | Door mirror | Rear finisher | Body color | QAK | QBE | K23 | KAD | KH3 | NBL | RCJ | KBY | DAN | HAL | |
| Housing | Material color | — | — | — | — | — | — | — | — | — | — | |||
| Finisher | Material color | — | — | — | — | — | — | — | — | — | — | |||
| 3. | Grille molding | Body color | QAK | QBE | K23 | KAD | KH3 | NBL | RCJ | KBY | DAN | HAL | ||
| 4. | Front grille | Inner | Black | — | — | — | — | — | — | — | — | — | — | |
| Outer | Chrome | Cr | Cr | Cr | Cr | Cr | Cr | Cr | Cr | Cr | — | |||
| 5. | Front air spoiler (upper) | Material color | — | — | — | — | — | — | — | — | — | — | ||
| 6. | Front bumper fascia | Body color | QAK | QBE | K23 | KAD | KH3 | NBL | RCJ | KBY | DAN | HAL | ||
| 7. | Over Fender | Material color | — | — | — | — | — | — | — | — | — | — | ||
| 8. | Door outside lower molding | Body | Material color | — | — | — | — | — | — | — | — | — | — | |
| Insert (if equipped) | Chrome | Cr | Cr | Cr | Cr | Cr | Cr | Cr | Cr | Cr | — | |||
| 9. | Fuel filler lid | Body color | QAK | QBE | K23 | KAD | KH3 | NBL | RCJ | KBY | DAN | HAL | ||
| 10. | Door outside handle | Body color | QAK | QBE | K23 | KAD | KH3 | NBL | RCJ | KBY | DAN | HAL | ||
| 11. | Rear bumper fascia | Body color | QAK | QBE | K23 | KAD | KH3 | NBL | RCJ | KBY | DAN | HAL | ||
| 12. | Rear bumper finisher (lower) | Material color | — | — | — | — | — | — | — | — | — | — | ||
| Body color | QAK | QBE | K23 | KAD | KH3 | NBL | RCJ | KBY | DAN | HAL | ||||
| 13. | Back door outside handle | Body color | QAK | QBE | K23 | KAD | KH3 | NBL | RCJ | KBY | DAN | HAL | ||
| 14. | Back door | Body color | QAK | QBE | K23 | KAD | KH3 | NBL | RCJ | KBY | DAN | HAL | ||
| 15. | Back door outer finisher | Black | — | — | — | — | — | — | — | — | — | — | ||
| 16. | Rear spoiler | Body color | QAK | QBE | K23 | KAD | KH3 | NBL | RCJ | KBY | DAN | HAL | ||
| 17. | Roof rack | Silver | — | — | — | — | — | — | — | — | — | — | ||
| 18. | Antenna base | Body color | QAK | QBE | K23 | KAD | KH3 | NBL | RCJ | KBY | DAN | HAL | ||
NOTE:
-
2S: 2 coat solid
-
2M: 2 coat metallic
-
2P: 2 coat pearl
-
2PM: 2 coat pearl metallic
-
2CPM: 2 coat color clear pearl metallic
-
3P: 3 coat pearl
| 2 TONE COLOR | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Component | 2 Tone color code | XKJ | GAQ | XDU | XEX | XFN | XKV | |||||||
| Portion | Body | Roof | Body | Roof | Body | Roof | Body | Roof | Body | Roof | Body | Roof | ||
| Color code | QBE | KH3 | KAD | KH3 | NBL | KH3 | KBY | KH3 | DAN | KH3 | HAL | KH3 | ||
| Description | White | Black | Dark Gray | Black | Red | Black | Gray | Black | Green | Black | Beige | Black | ||
| Paint type | 3P | 2S | 2M | 2S | 2CPM | 2S | 2P | 2S | 2P | 2S | 2PM | 2S | ||
| Hard clear coat | x | x | x | x | x | x | ||||||||
| Roof rack | Black | KH3 | KH3 | KH3 | KH3 | KH3 | KH3 | |||||||
NOTE:
-
2S: 2 coat solid
-
2M: 2 coat metallic
-
2P: 2 coat pearl
-
2PM: 2 coat pearl metallic
-
2CPM: 2 coat color clear pearl metallic
-
3P: 3 coat pearl
Service Data and Specifications (sds). Body Alignment Nissan Pathfinder 2025

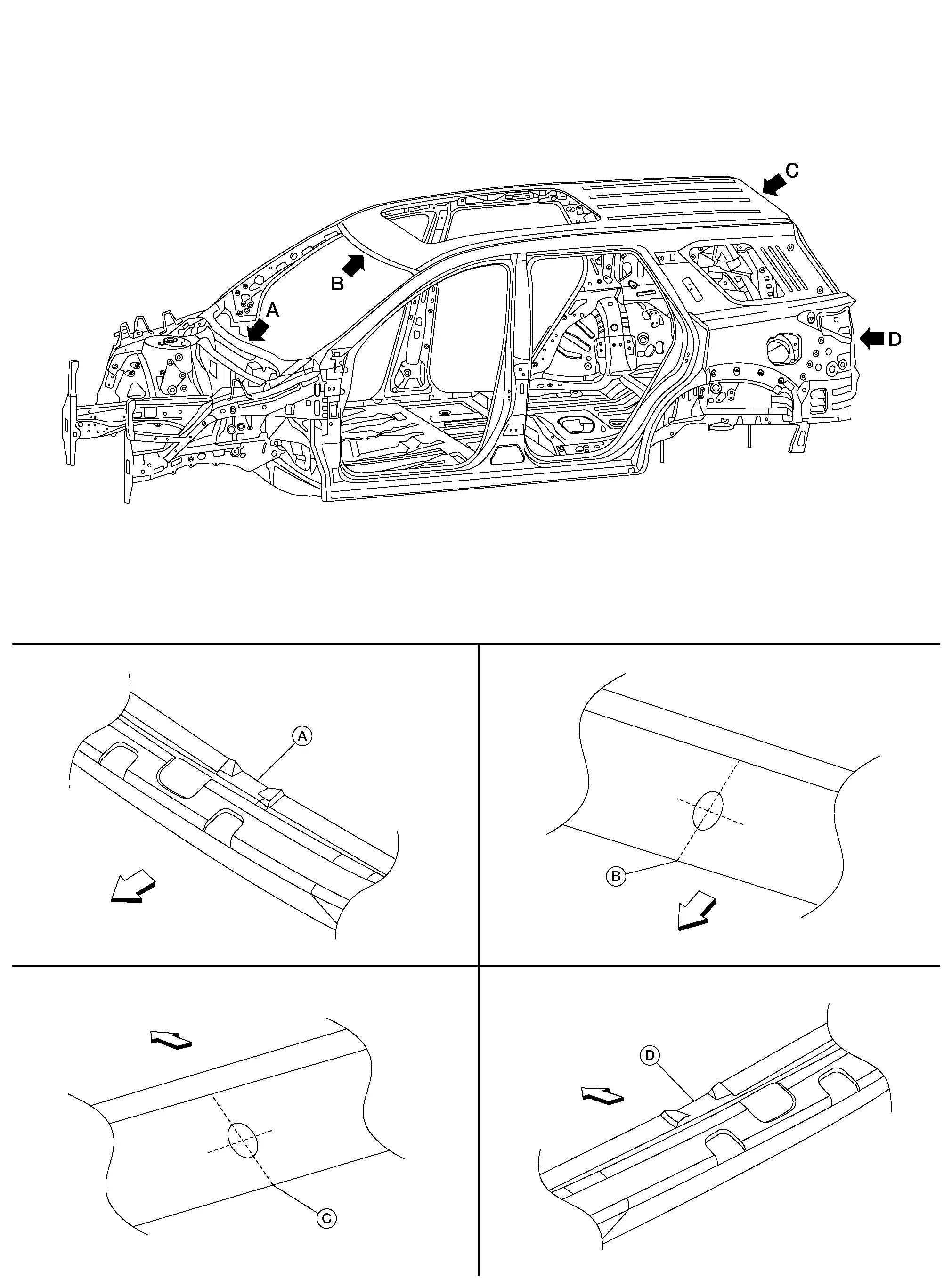

Body Center Marks

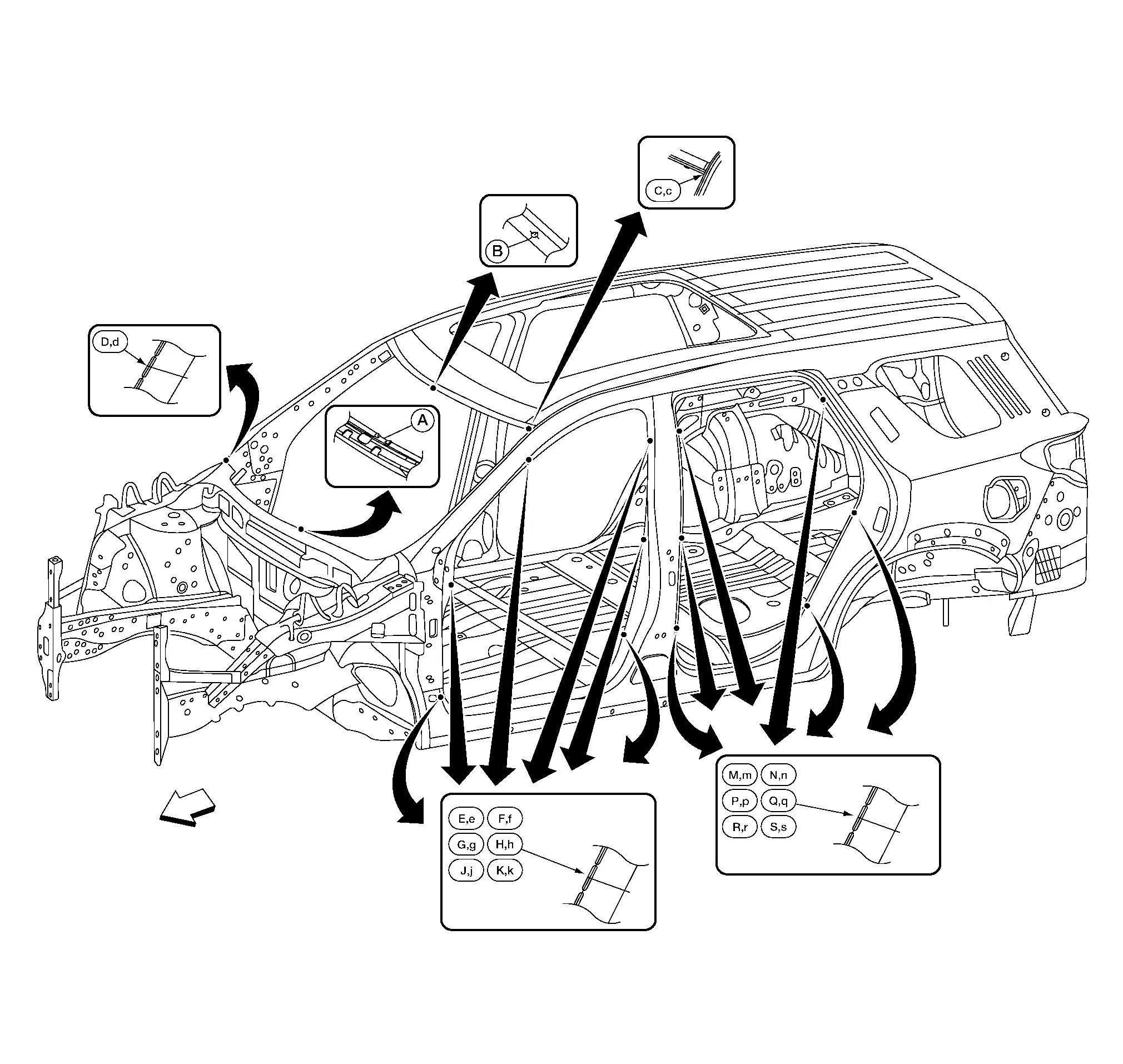

Factory marks exist on certain parts of the body to indicate the vehicle center. When repairing the Nissan Pathfinder vehicle frame (members, pillars, etc.) damaged in an accident the most accurate and effective repair will be achieved by using these marks together with body alignment specifications.
 |
Front |
| Points | Portion | Marks |
|---|---|---|
| A | Center cowl top | Flange end |
| B | Front roof flange top | Position Mark |
| C | Rear roof flange top | Position Mark |
| D | Rear panel flange top | Flange end |
Description
-
All dimensions indicated in the figures are actual.
-
When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself to make sure there is no free play.
-
When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
-
Measurements should be taken at the center of the mounting holes.
-
An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side is symmetrically the same value.
-

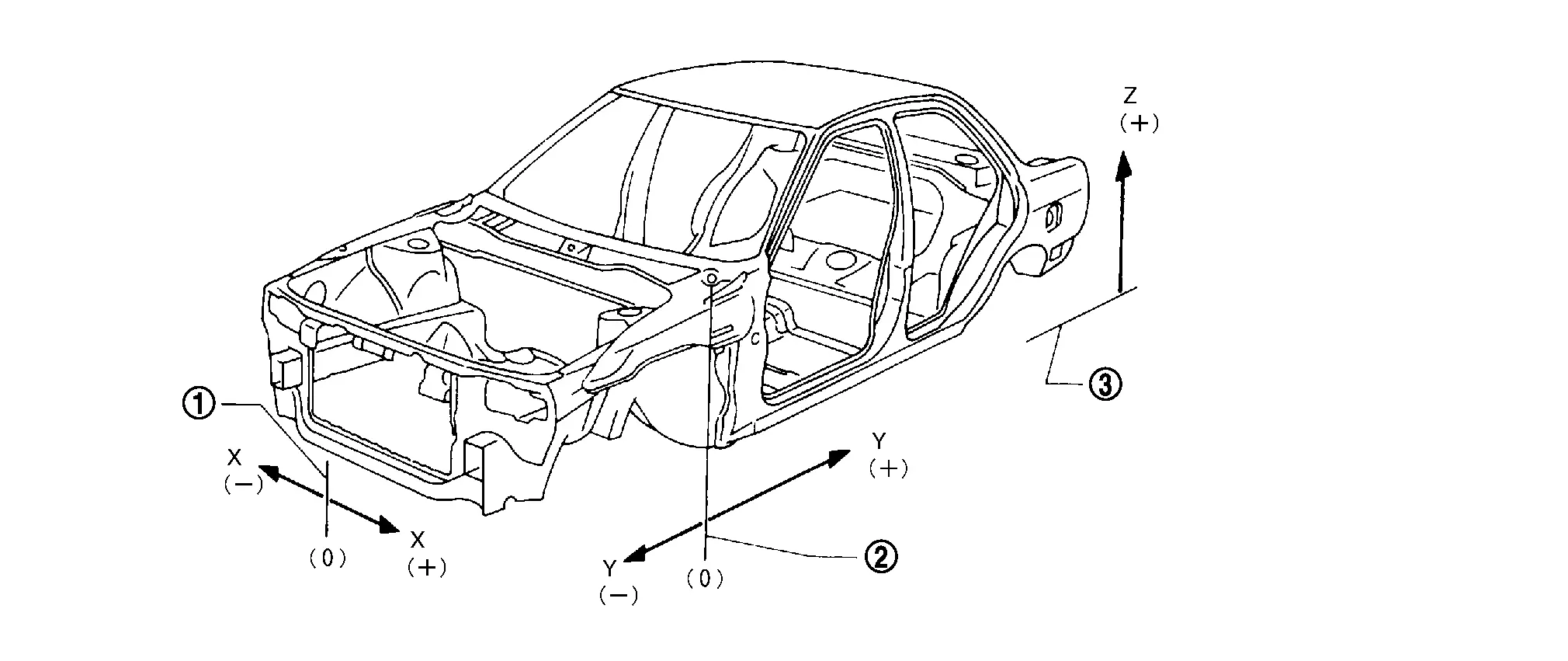

The coordinates of the measurement points are the distances measured from the standard line of ″X″, ″Y″ and ″Z″.
-
″Z″: Imaginary base line [200 mm (7.87 in) below datum line (″0Z″ at design plan)]
| 1. | Nissan Pathfinder Vehicle center | 2. | Front axle center | 3. | Imaginary base line |
Engine Compartment
MEASUREMENT
Dimensions marked with ″*″ indicate symmetrically identical dimensions on both the RH and LH sides of the Nissan Pathfinder vehicle.
Unit: mm (in)
 |
Front |

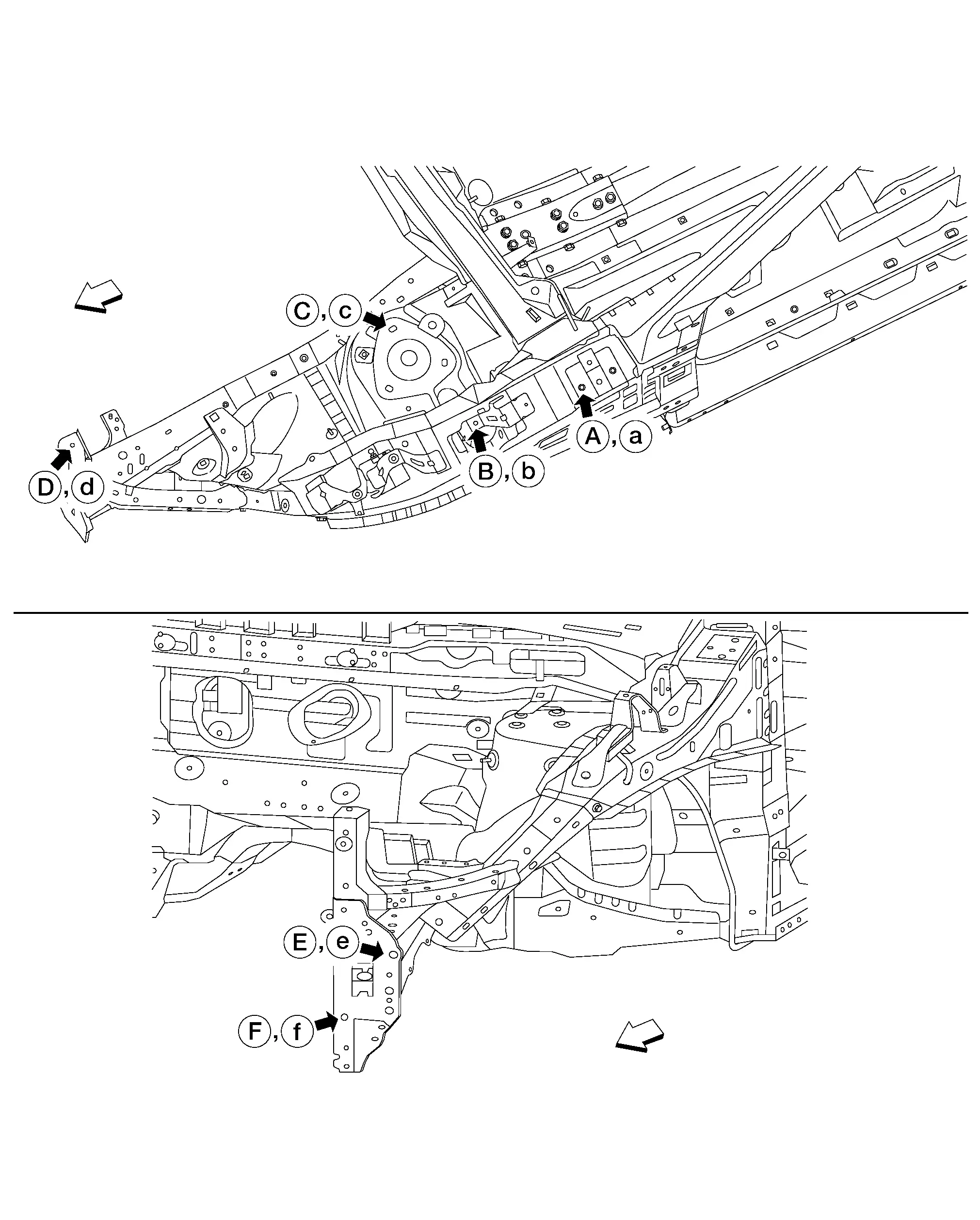

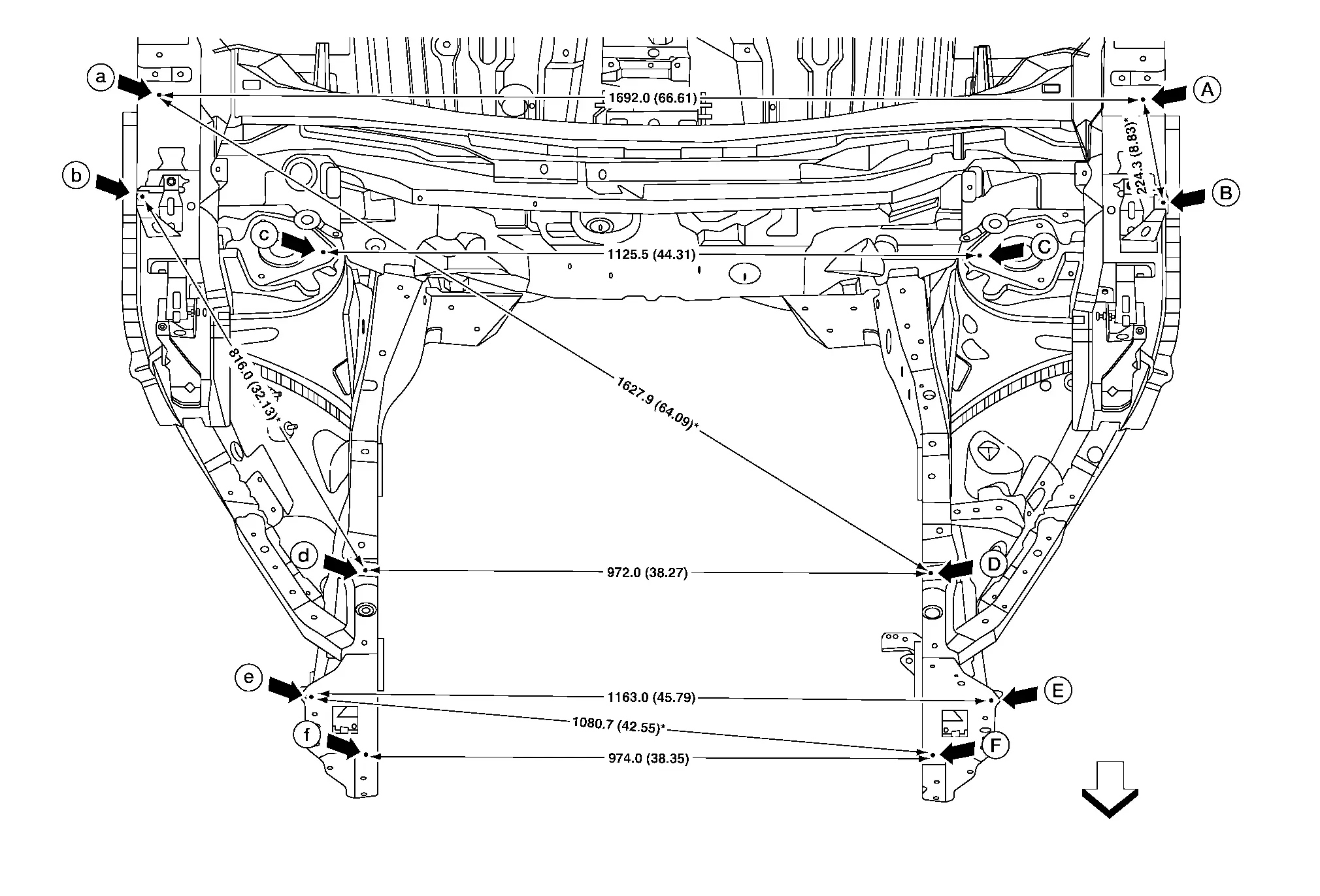

MEASUREMENT POINTS
 |
Front |
Unit: mm (in.)
| Point | Coordinates | Remarks | ||
|---|---|---|---|---|
| X | Y | Z | ||
| A, a | 322.4 (12.69) | ± 846.0 (±33.31) | 719.5 (28.33) | Hood mounting bracket hole 9.0 (0.35) |
| B, b | 100.3 (3.95) | ± 877.0 (±34.53) | 718.4 (28.28) | Front fender mounting hole 9.1 (0.36) |
| C, c | 52.9 (2.08) | ± 562.7 (±22.15) | 624.2 (24.57) | Front strut mounting hole 16.0 (0.63) x 10.4 (0.41) |
| D, d | -605.0 (-23.82) | ± 486.0 (±19.13) | 594.0 (23.39) | Radiator core support upper center mounting hole 9.0 (0.35) |
| E | -629.3 (-24.78) | -581.5 (-22.89) | 265.2 (10.44) | Bumper mounting stay hole 16.0 (0.63) |
| e | -629.9 (-24.80) | 581.5 (22.89) | 265.2 (10.44) | Bumper mounting stay hole 16.0 (0.63) |
| F | -629.3 (-24.78) | -487.0 (-19.17) | 103.5 (4.07) | Bumper mounting stay hole 16.0 (0.63) |
| f | -629.9 (-24.80) | 487.0 (19.17) | 103.5 (4.07) | Bumper mounting stay hole 16.0 (0.63) |
Passenger Compartment
MEASUREMENT
Dimensions marked with ″*″ indicate symmetrically identical dimensions on both the LH and RH side of the Nissan Pathfinder vehicle.
Unit: mm (in)

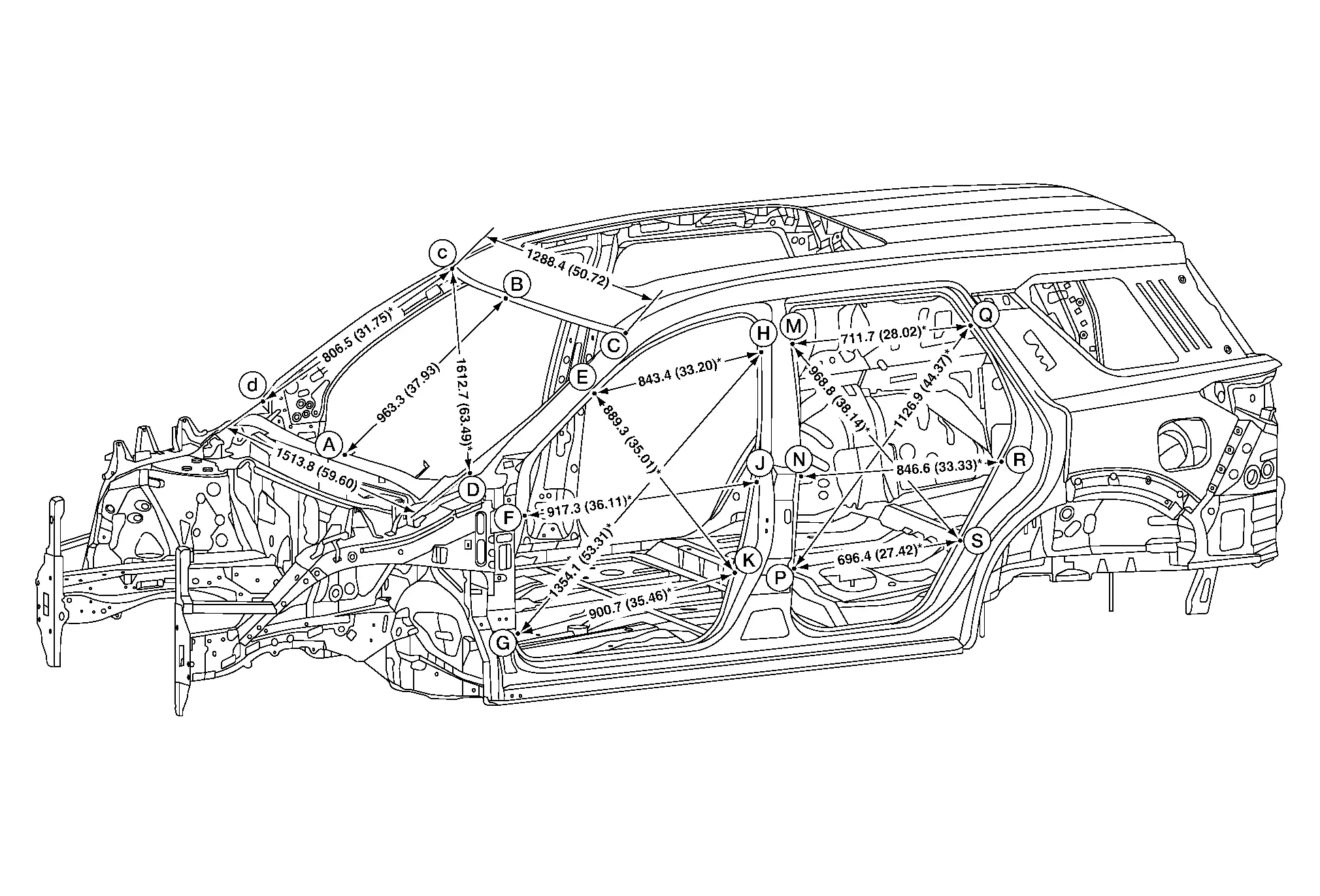

MEASUREMENT POINTS
 |
Front |
| Point | Description | Point | Description |
|---|---|---|---|
| A | Center cowl top | D, d | Body side outer positioning notch |
| B | Front roof flange top | E, e F, f G, g H, h J, j K, k | Body side outer location notch front door opening |
| C, c | Body side outer joggle corner | M, m N, n P, p Q, q R, r S, s | Body side outer location notch rear door opening |
Underbody
MEASUREMENT
Dimensions marked with ″*″ indicate symmetrically identical dimensions on both the LH and RH side of the Nissan Pathfinder vehicle.
Unit: mm (in)
 |
Front | ||||

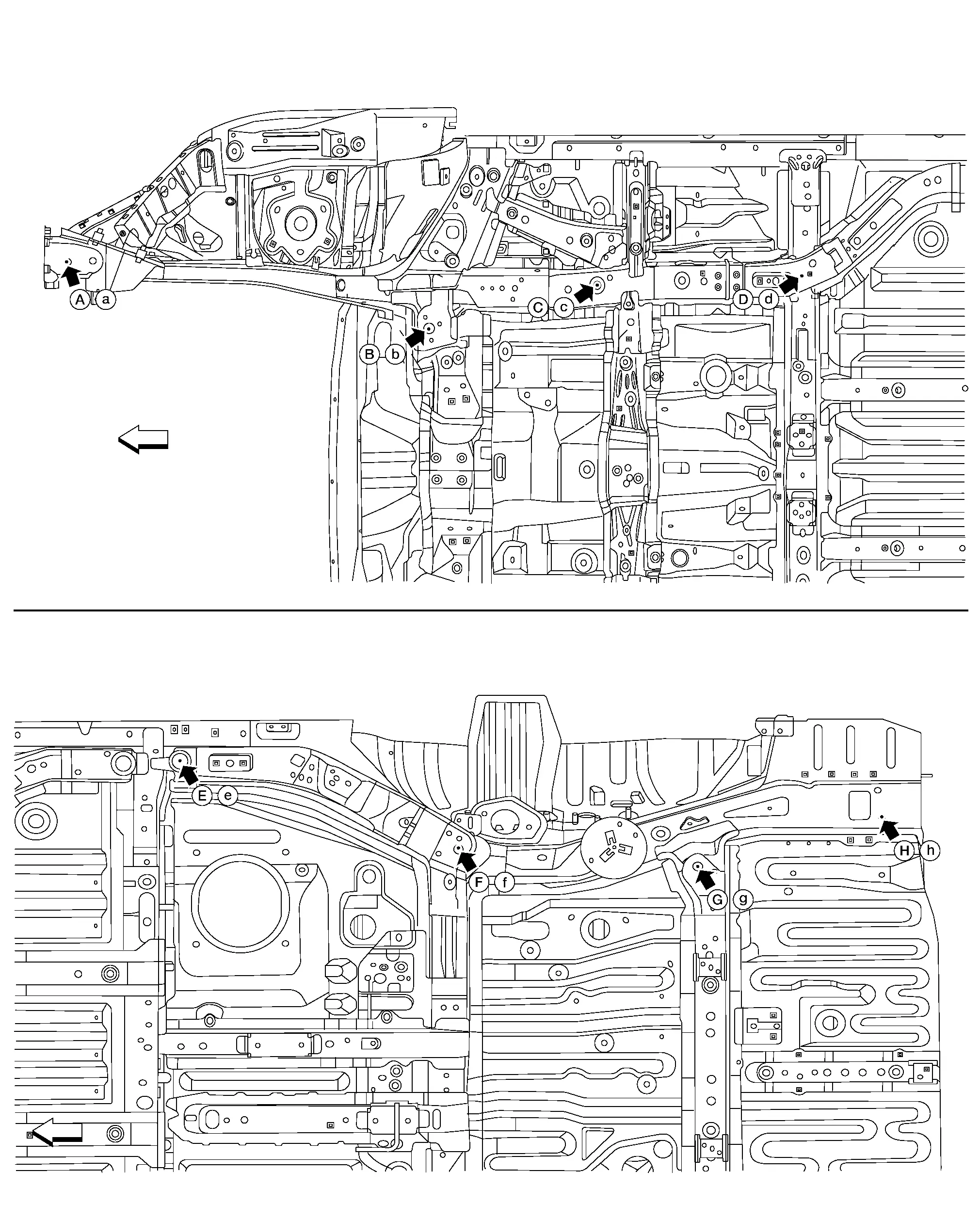

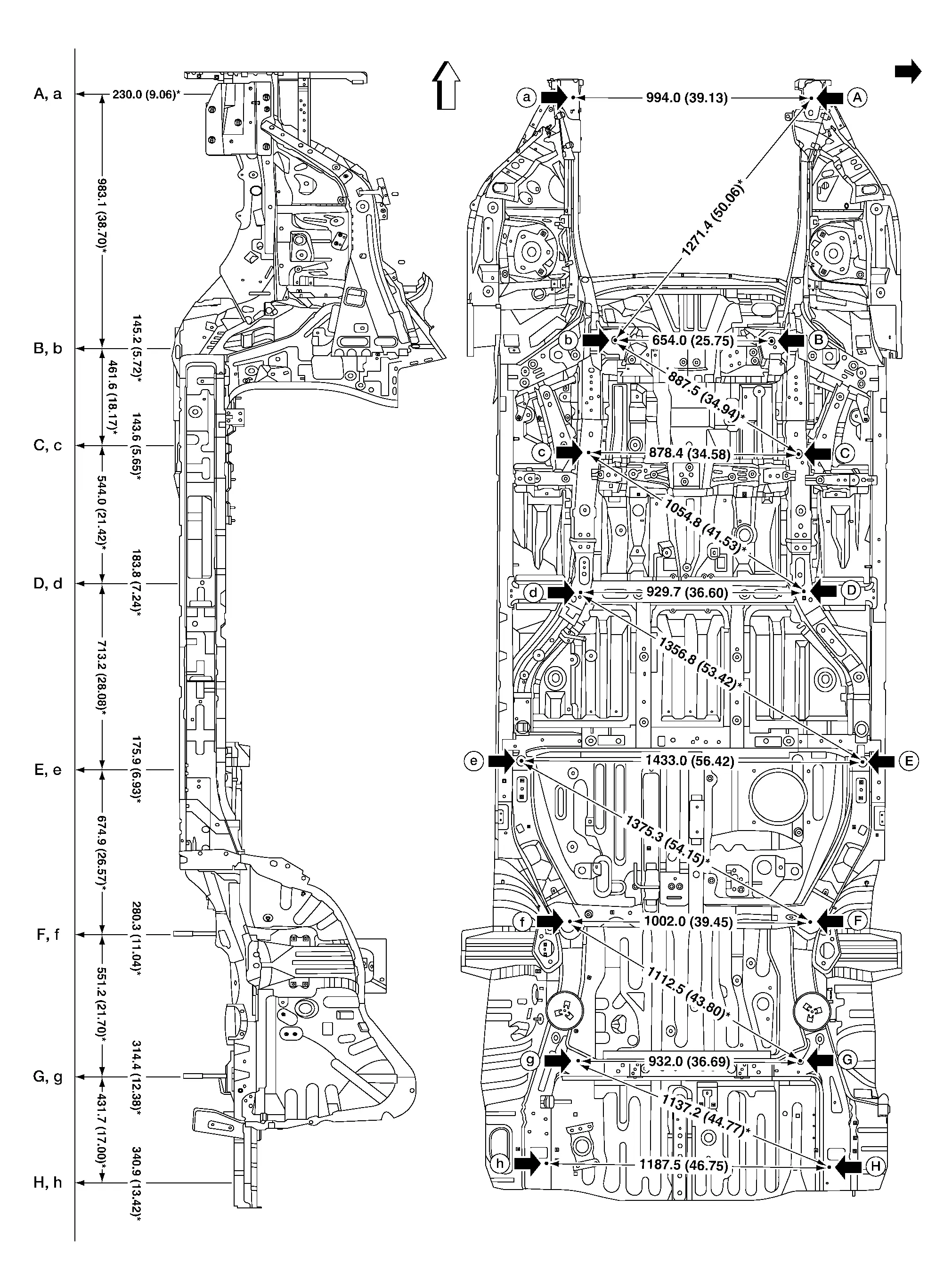

MEASUREMENT POINTS
 |
Front | ||||
Unit: mm (in)
| Points | Coordinates | Remarks | ||
|---|---|---|---|---|
| X | Y | Z | ||
| A, a | -555.5 (-21.87) | ±497.0 (±19.57) | 130.0 (5.12) | Front suspension mounting hole 17.0 (0.67) |
| B, b | 395.0 (15.55) | ±327.0 (±12.87) | -54.8 (-2.16) | Front suspension bracket hole 26.3 (1.04) |
| C, c | 842.8 (33.18)) | ±439.2 (±17.29) | -56.4 (-2.22) | Locator hole 16.0 (0.63) |
| D, d | 1384.7 (54.52) | ±464.8 (±18.30) | -16.1 (-0.63) | Locator hole 10.0 (0.39) x 8.0 (0.31) |
| E, e | 2052.0 (80.79) | ±716.5 (±28.21) | -24.1 (-0.95) | Locator hole 16.0 (0.63) |
| F, f | 2683.0 (105.63) | ±501.0 (±19.72) | 80.3 (3.16) | Rear suspension front stud center 20.3 (0.80) |
| G, g | 3232.0 (127.24) | ±466.0 (±18.35) | 114.4 (4.50) | Rear suspension rear stud center 20.3 (0.80) |
| H, h | 3643.5 (143.44) | ±59.7 (±2.35) | 140.9 (5.55) | Trailer hitch mounting hole 13.0 (0.51) |
Rear Body
MEASUREMENT
Dimensions marked with ″*″ indicate symmetrically identical dimensions on both the LH and RH side of the Nissan Pathfinder vehicle.
Unit: mm (in)
 |
Front |

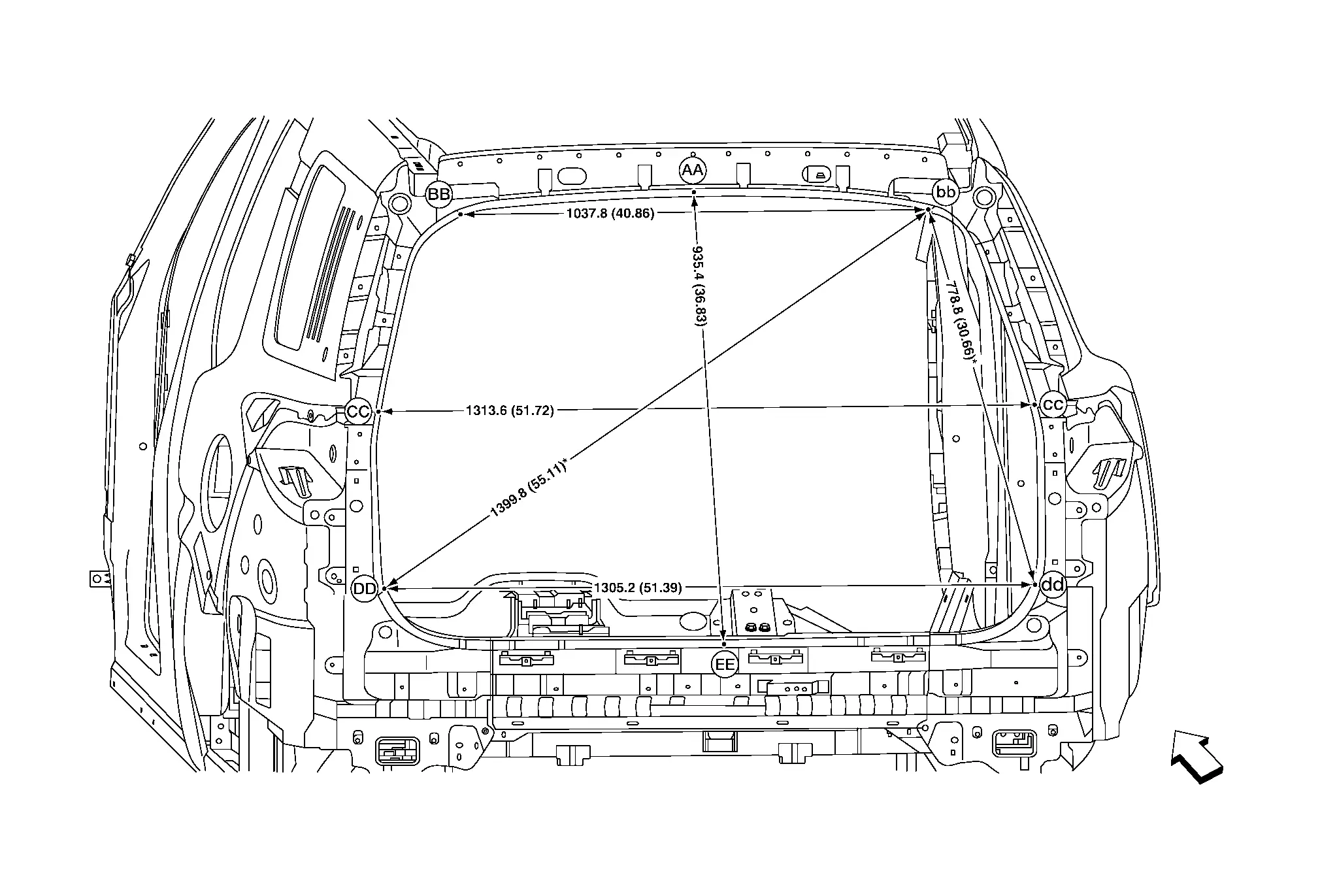

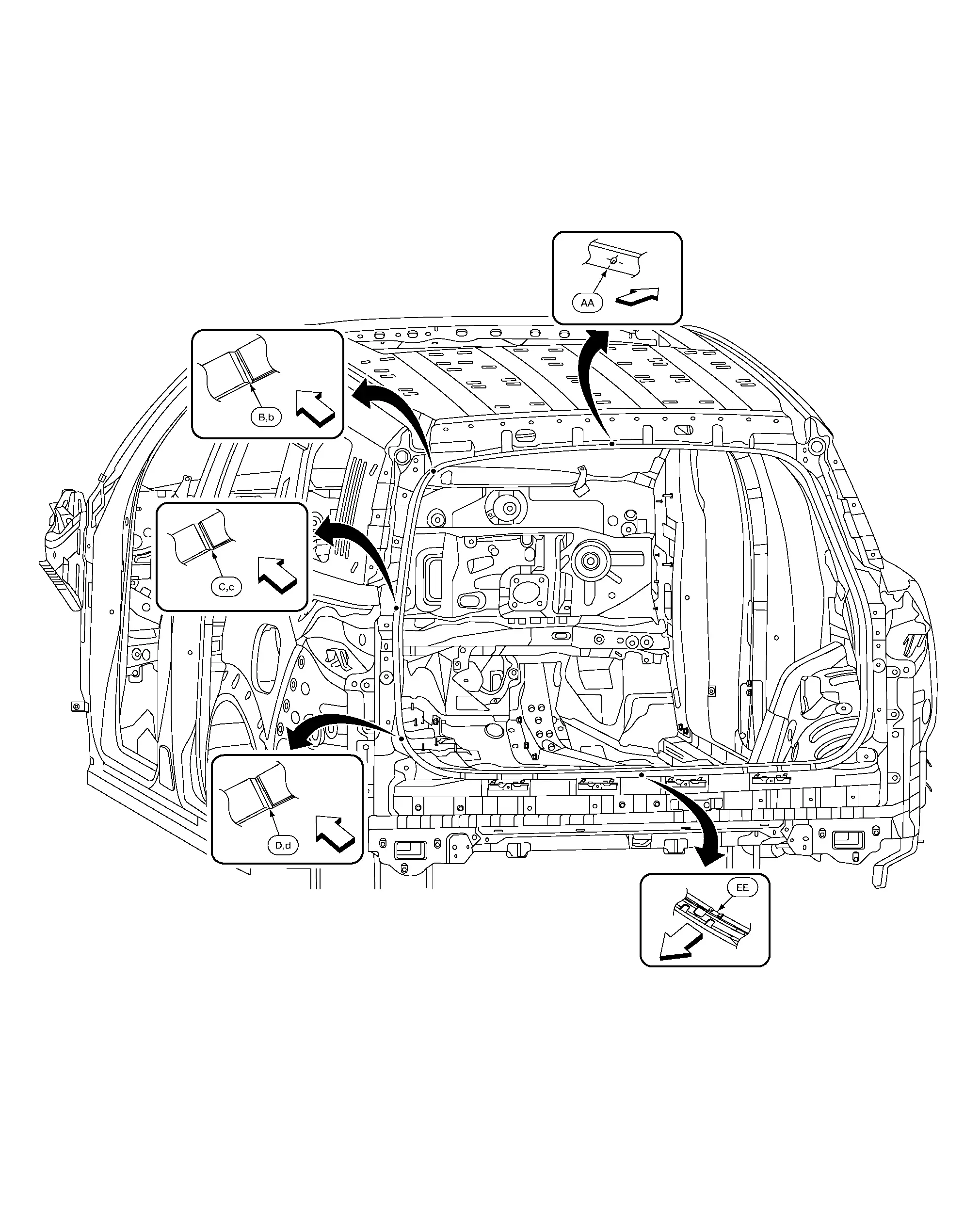

MEASUREMENT POINTS
 |
Front |
| Point | Description | Point | Description |
|---|---|---|---|
| A A | Rear roof flange top | D, d | Combination lamp joggle corner |
| B, b | Upper rear panel joggle | E E | Rear panel flange top |
| C, c | Combination lamp joggle corner |
Rear Fascia Center Brackets
MEASUREMENT
NOTE:
Clip rear fascia center brackets into rear bumper fascia to help with alignment.
Unit: mm (in)
 |
Front |
| Point | Description | ||
|---|---|---|---|
| A | Edge of rear panel between back door striker mounting holes | ||

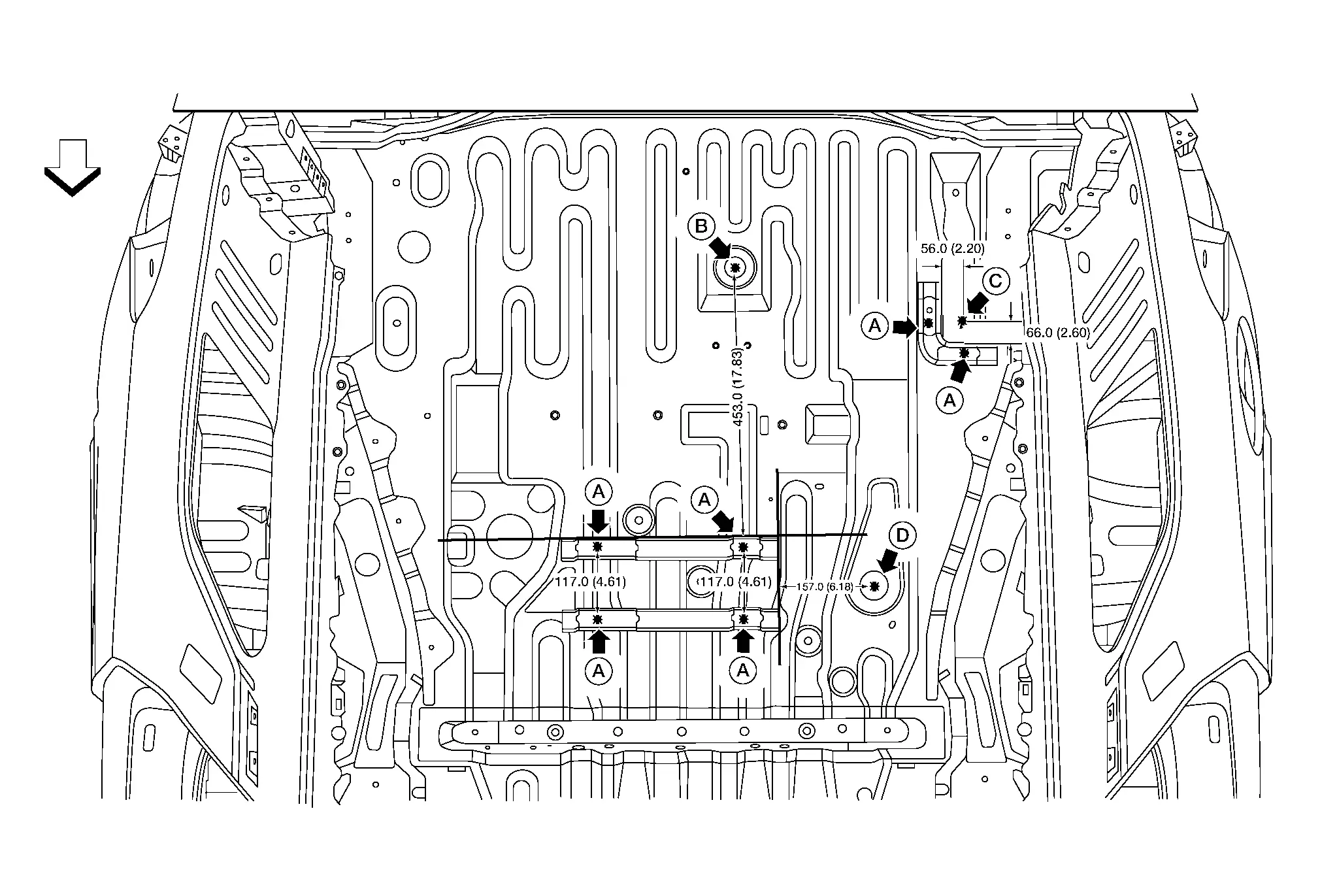

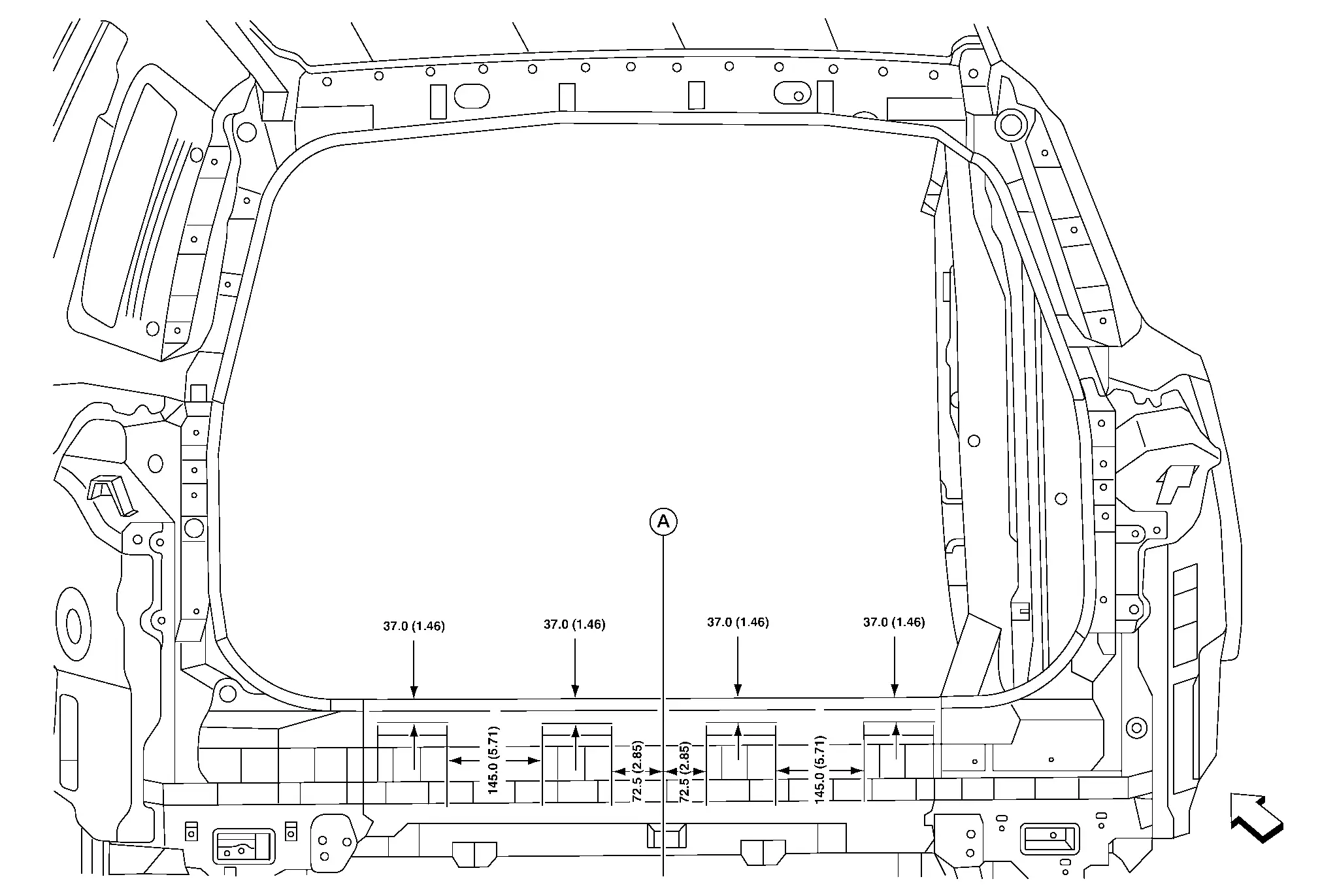

Rear Floor Brackets
MEASUREMENT
NOTE:
For proper fit, dimensions shown should be used in conjunction with fitting of the woofer brackets and amplifier bracket before welding.
Unit: mm (in)
 |
Front |
| Point | Description | ||
|---|---|---|---|
| A | 7.0 (0.28) hole | ||
| B | 36.0 (1.42) hole | ||
| C | 11.0 (0.43) square hole | ||
| D | 51.0 (2.01) hole | ||
