Nissan Pathfinder: Drive Mode System - Removal and Installation

• Drive Mode Select Switch
• Chassis Control Module

Drive Mode Select Switch Nissan Pathfinder 2022

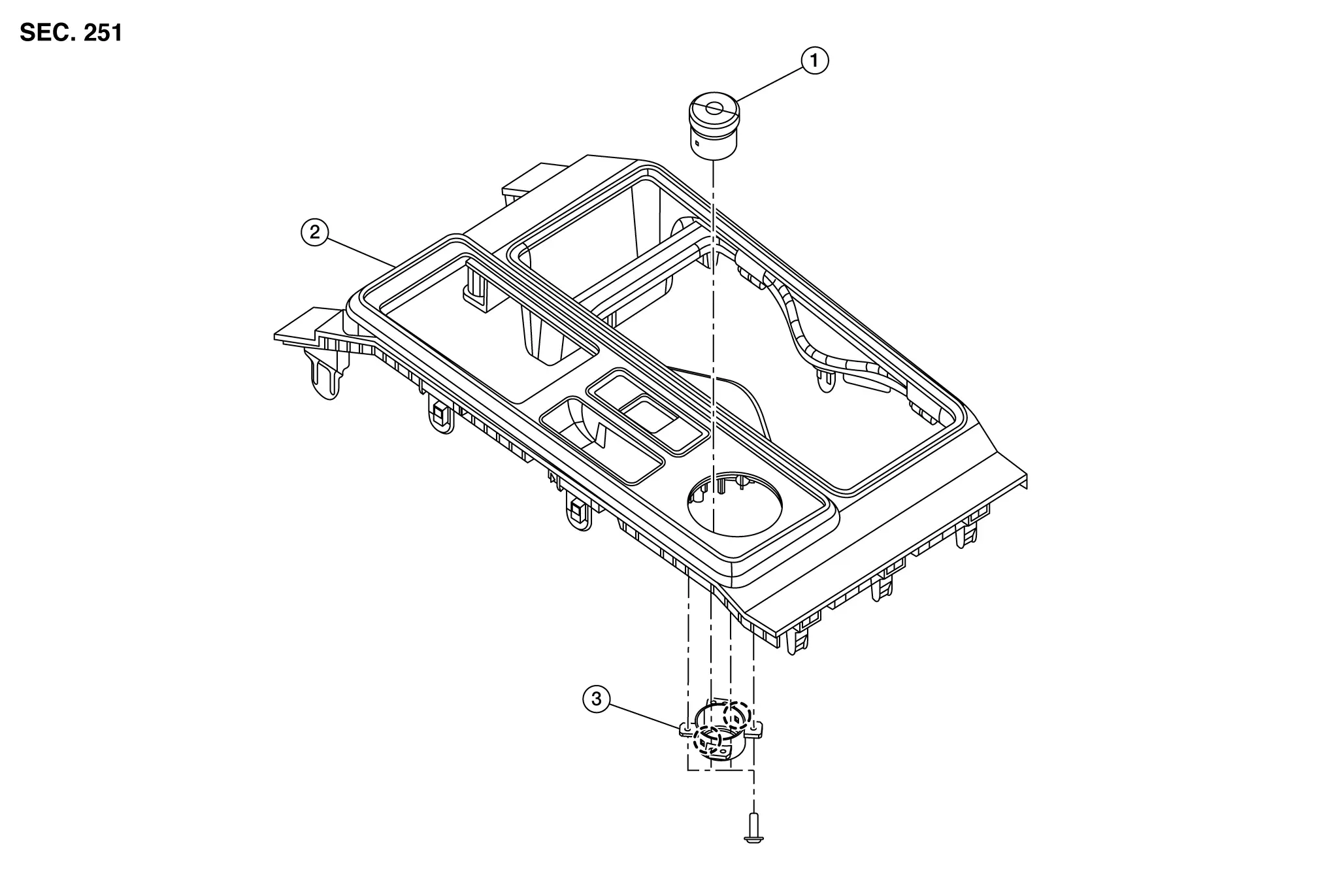

Exploded View

2WD MODELS

1.

Shift selector finisher

2.

Drive mode select switch

3.

Drive mode select switch carrier

Pawl

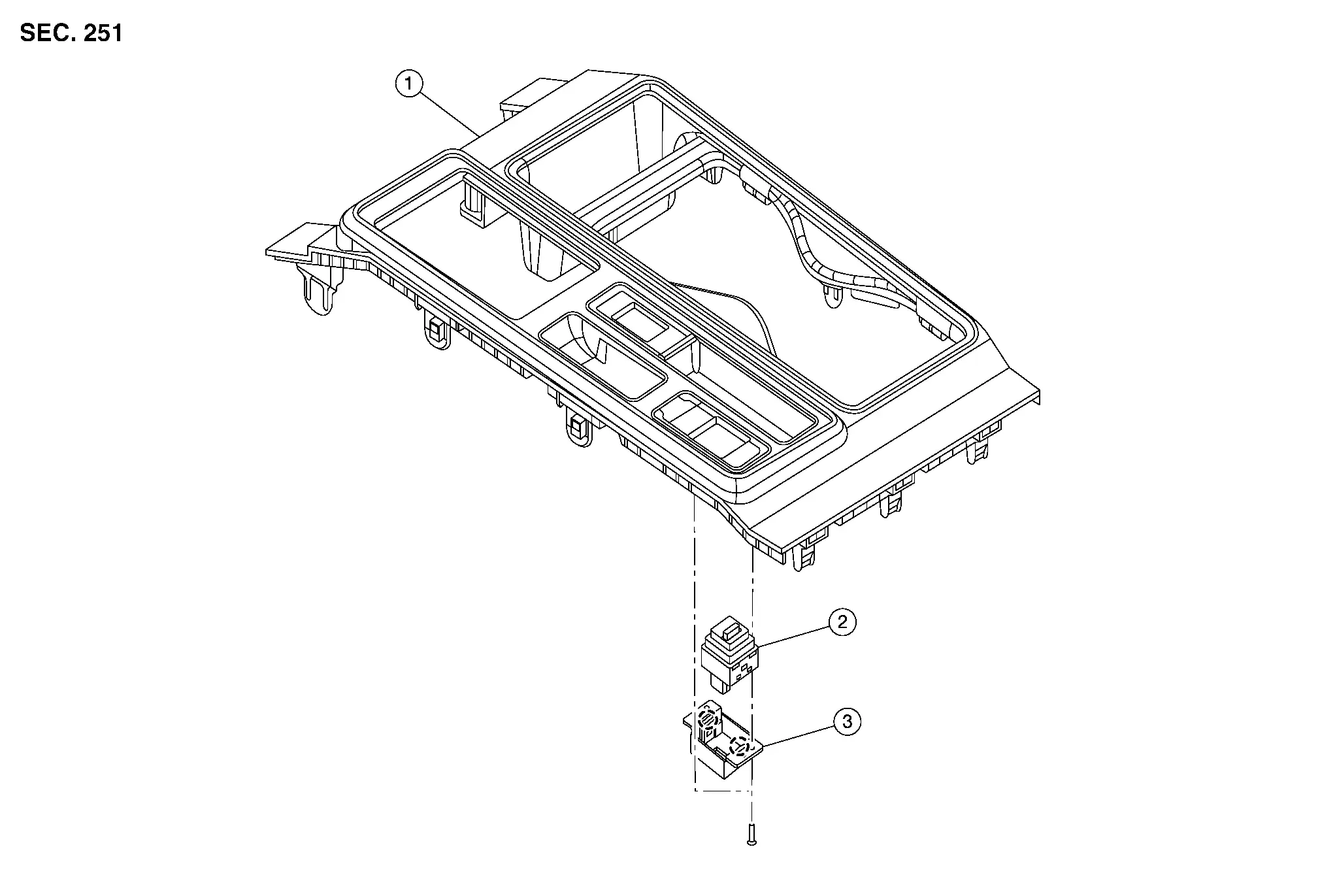

4WD MODELS

1.

Drive mode select switch

2.

Shift selector finisher

3.

Drive mode select switch carrier

Pawl

Removal and Installation

REMOVAL 2WD

Disconnect the negative terminal from the battery. Refer to Battery Disconnect.

Remove shift selector finisher. Refer to Exploded View.

Disconnect the harness connectors from the switches on the shift selector finisher.

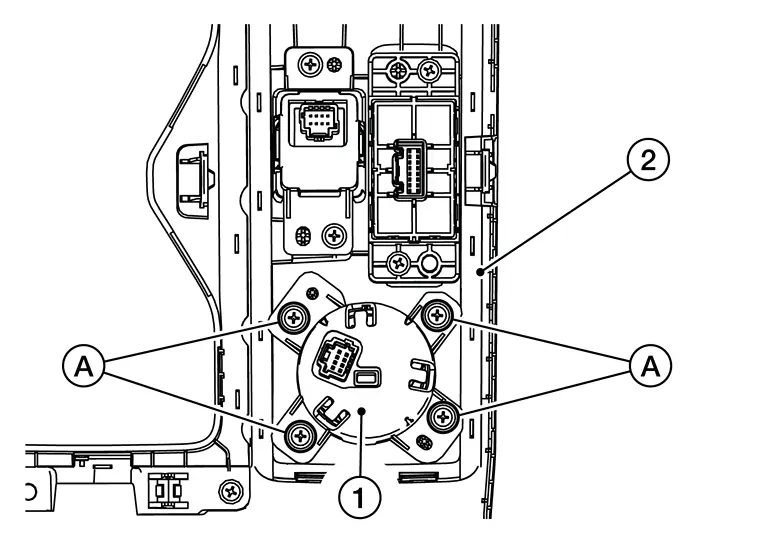

Remove screws (A) and remove drive mode select switch (1) from shift selector finisher (2).

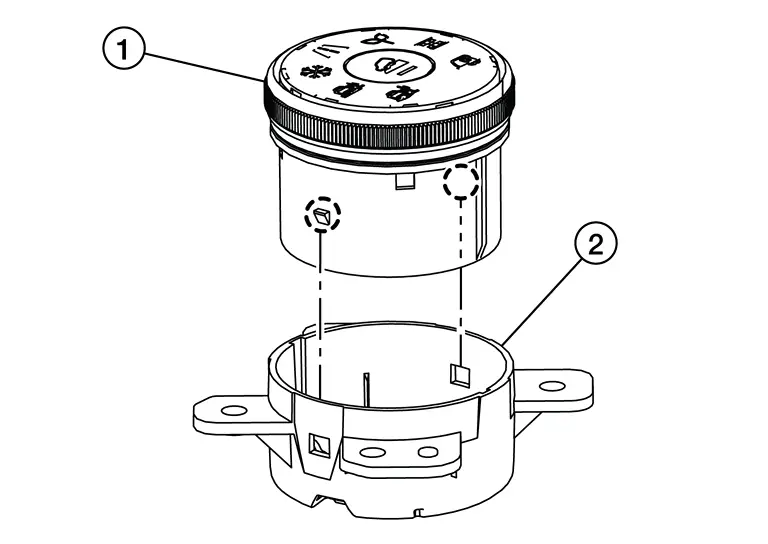

Using a suitable tool, release pawls and remove drive mode select switch (1) from drive mode select switch carrier (2).

: Pawl

REMOVAL 4WD

Disconnect the negative terminal from the battery. Refer to Battery Disconnect.

Remove shift selector finisher. Refer to Exploded View.

Disconnect the harness connectors from the switches on the shift selector finisher.

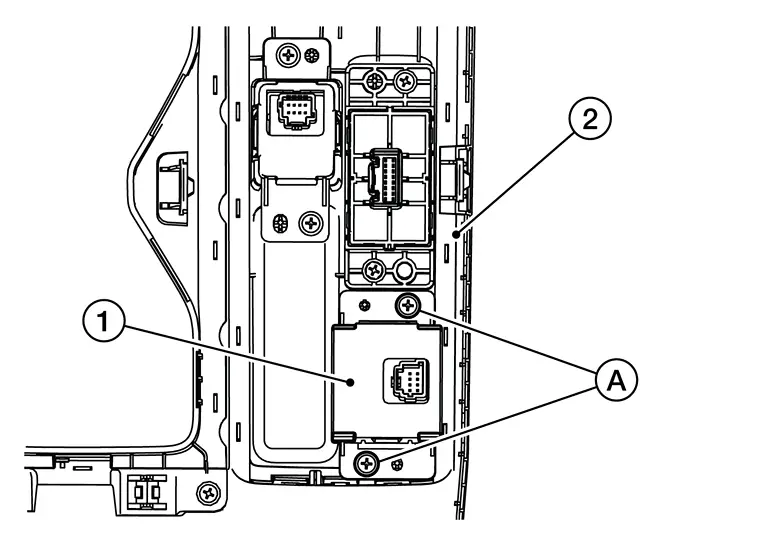

Remove screws (A) and remove drive mode select switch (1) from shift selector finisher (2).

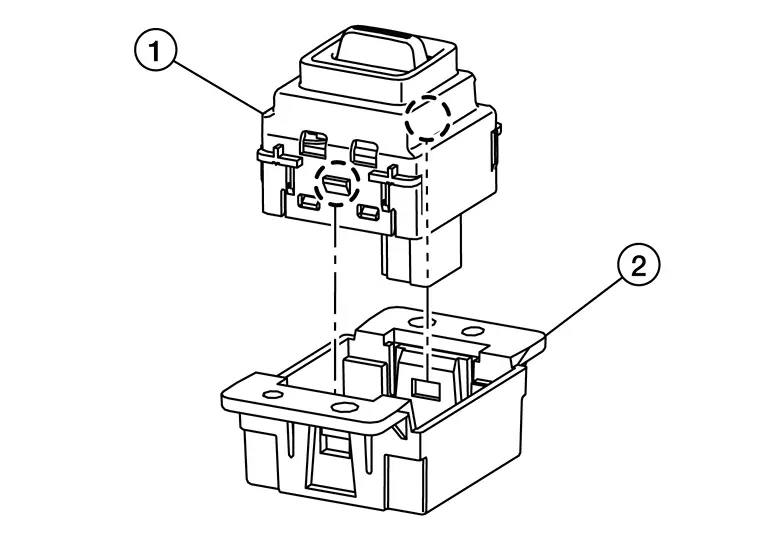

Using a suitable tool, release pawls and remove drive mode select switch from drive mode select switch carrier (2).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

Chassis Control Module Nissan Pathfinder Fifth generation

Removal and Installation

For Removal and installation procedure of chassis control module. Refer to Removal and Installation.
