Nissan Pathfinder: Horn - Removal and Installation
Nissan Pathfinder (R53) 2022-2025 Service Manual / Driver Controls :: Horn / Removal and Installation

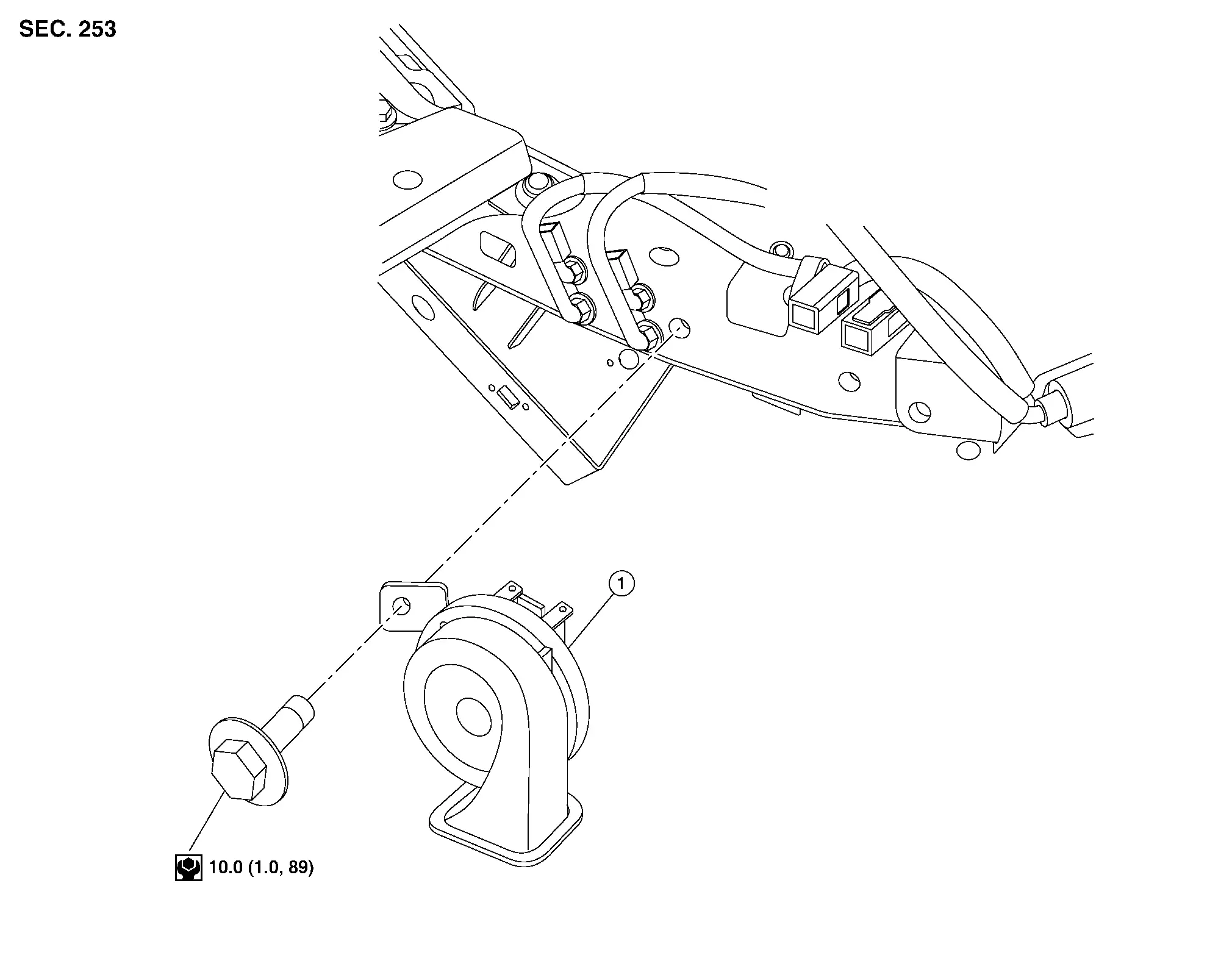

Low Horn Nissan Pathfinder SUV
Exploded View
| 1. | Horn (LOW) |
Removal and Installation
REMOVAL
Disconnect the harness connectors from the horn (LOW).
Remove the horn bolt and the horn (LOW).
INSTALLATION
Installation is in the reverse order of removal.

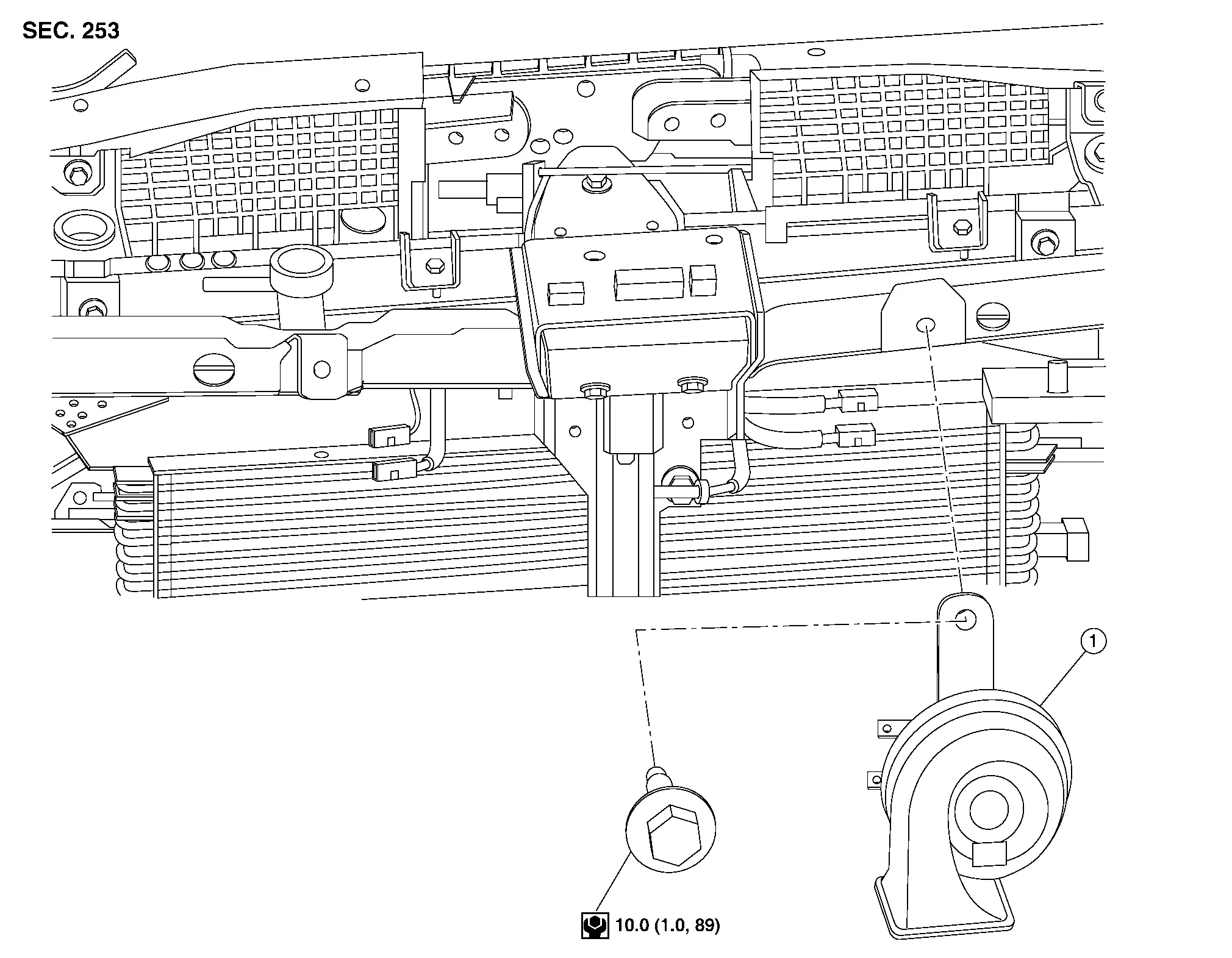

High Horn Nissan Pathfinder Fifth generation
Exploded View
| 1. | Horn (HIGH) |
Removal and Installation
REMOVAL
Remove the front grille. Refer to Removal and Installation.
Disconnect the harness connectors from the horn (HIGH).
Remove the horn bolt and the horn (HIGH).
INSTALLATION
Installation is in the reverse order of removal.
