Nissan Pathfinder: Power Window Control System - Removal and Installation

• Main Power Window and Door Mirror Switch
• Front Power Window Switch (rh)
• Rear Power Window Switch

Main Power Window and Door Mirror Switch Nissan Pathfinder 2022

Removal and Installation

REMOVAL

Remove front door finisher. Refer to Removal and Installation.

Disconnect the harness connector from the main power window switch and harness connector from the door lock switch.

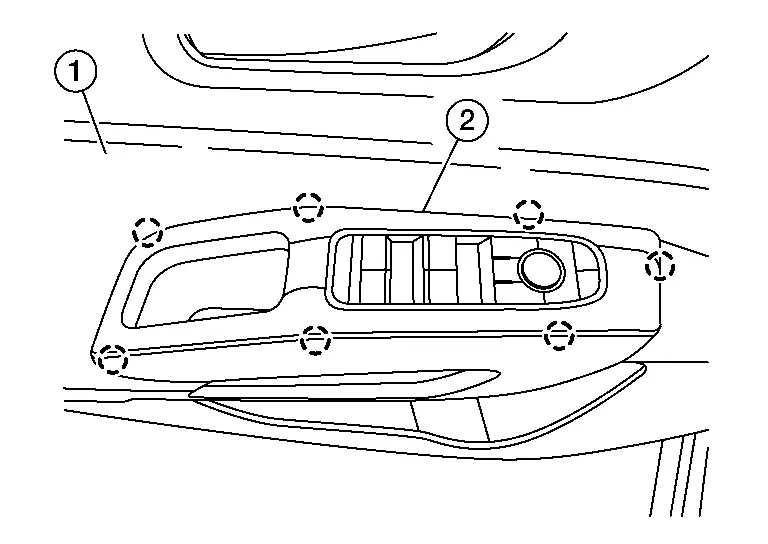

Using a suitable tool, release pawls and remove the main power window and door mirror switch (2) from front door finisher (1).

: Pawl

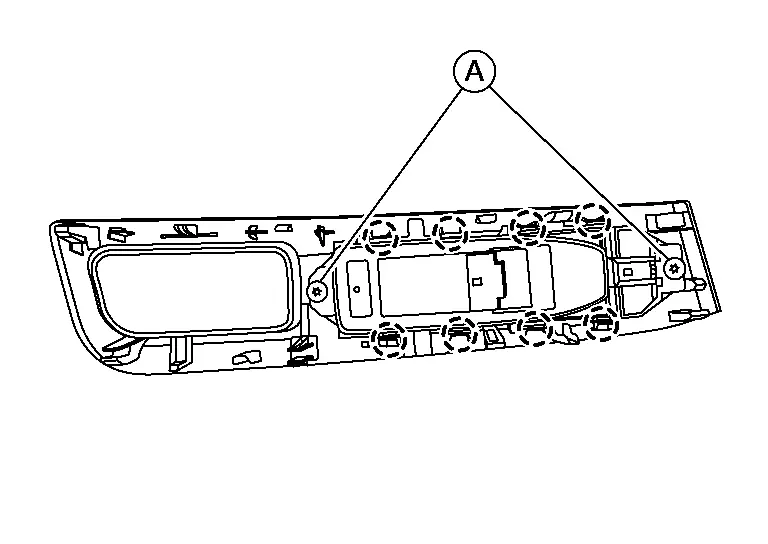

Remove screws (A), using suitable tool, release the pawls and separate the main power window and door mirror switch from the switch finisher.

: Pawl

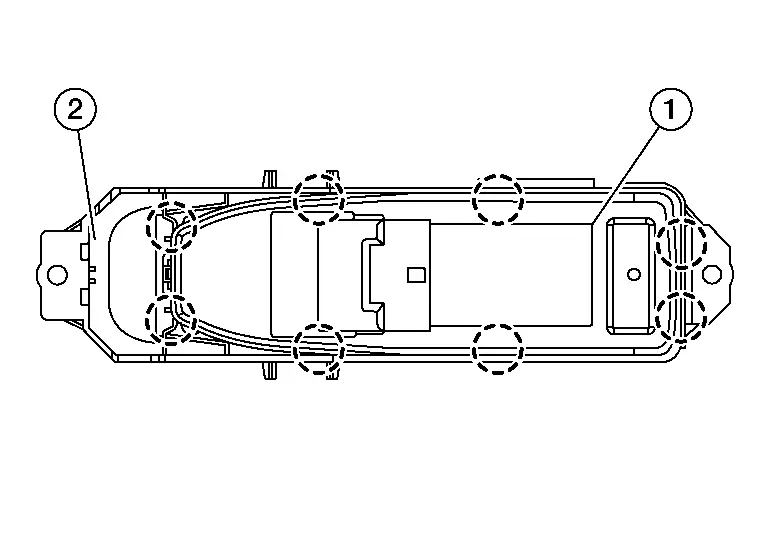

Using suitable tool release the pawls, then separate the main power window and door mirror switch (1) from the switch finisher (2).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When the main power window and mirror switch is removed or replaced, it is necessary to perform the initialization procedure. Refer to Description.

Front Power Window Switch (rh) Nissan Pathfinder SUV

Removal and Installation

REMOVAL

Remove front door finisher. Refer to Removal and Installation.

Disconnect the harness connector from the front power window switch (RH).

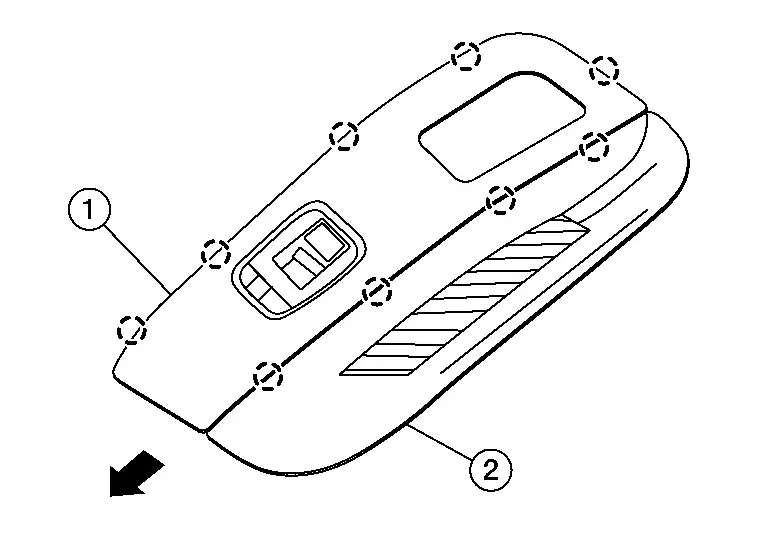

Using a suitable tool, release pawls and remove the front power window switch [RH (1)] from front door finisher (2).

	: Pawl
	: Front

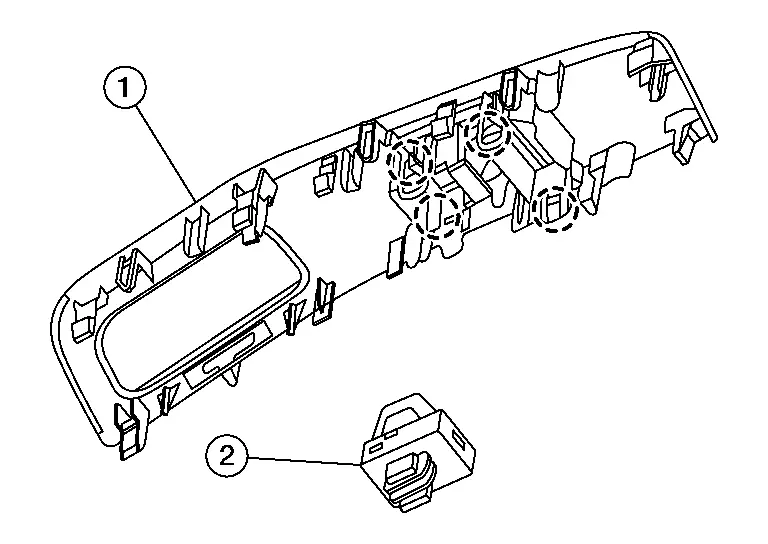

Using suitable tool, release pawls, then separate front power window switch [RH (2)] from switch finisher (1).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When the power window switch (RH) is removed or replaced, it is necessary to perform the initialization procedure. Refer to Description.

Rear Power Window Switch Nissan Pathfinder SUV

Removal and Installation

REMOVAL

Remove the rear door cup holder mat. Refer to Exploded View.

Remove rear door finisher. Refer to Removal and Installation.

Disconnect the harness connector from the rear power window switch.

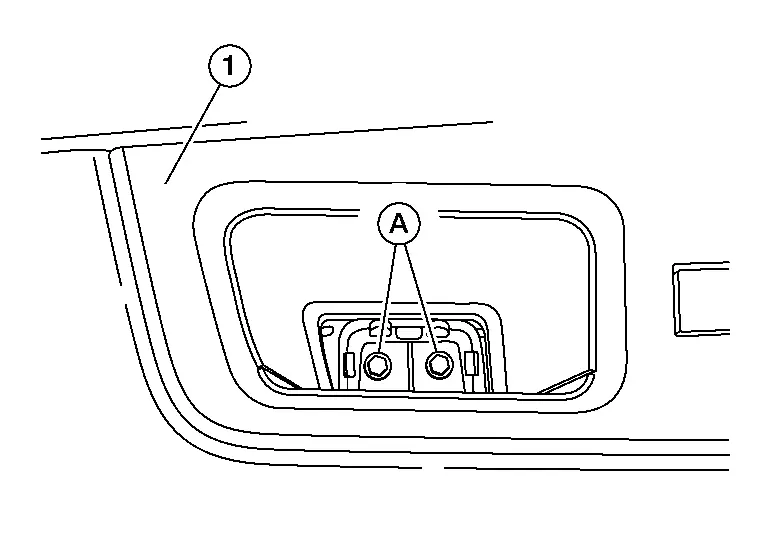

Remove the rear power window switch finisher screws (A) and the rear power window switch finisher (1) from the rear door finisher using a suitable tool.

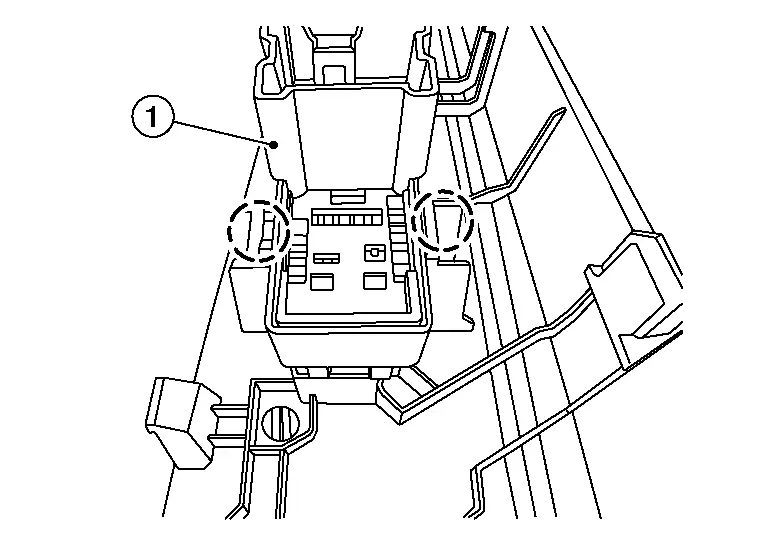

Using suitable tool, release pawls, then separate the rear power window switch (1) from the switch finisher.

: Pawl

INSTALLATION

Installation is in the reverse order of removal.
