Nissan Pathfinder: Glass & Window System - Removal and Installation

• Windshield Glass
• Front Door Glass
• Front Door Regulator
• Front Power Window Motor
• Rear Door Glass
• Rear Door Regulator
• Quarter Window Glass

Windshield Glass Nissan Pathfinder R53

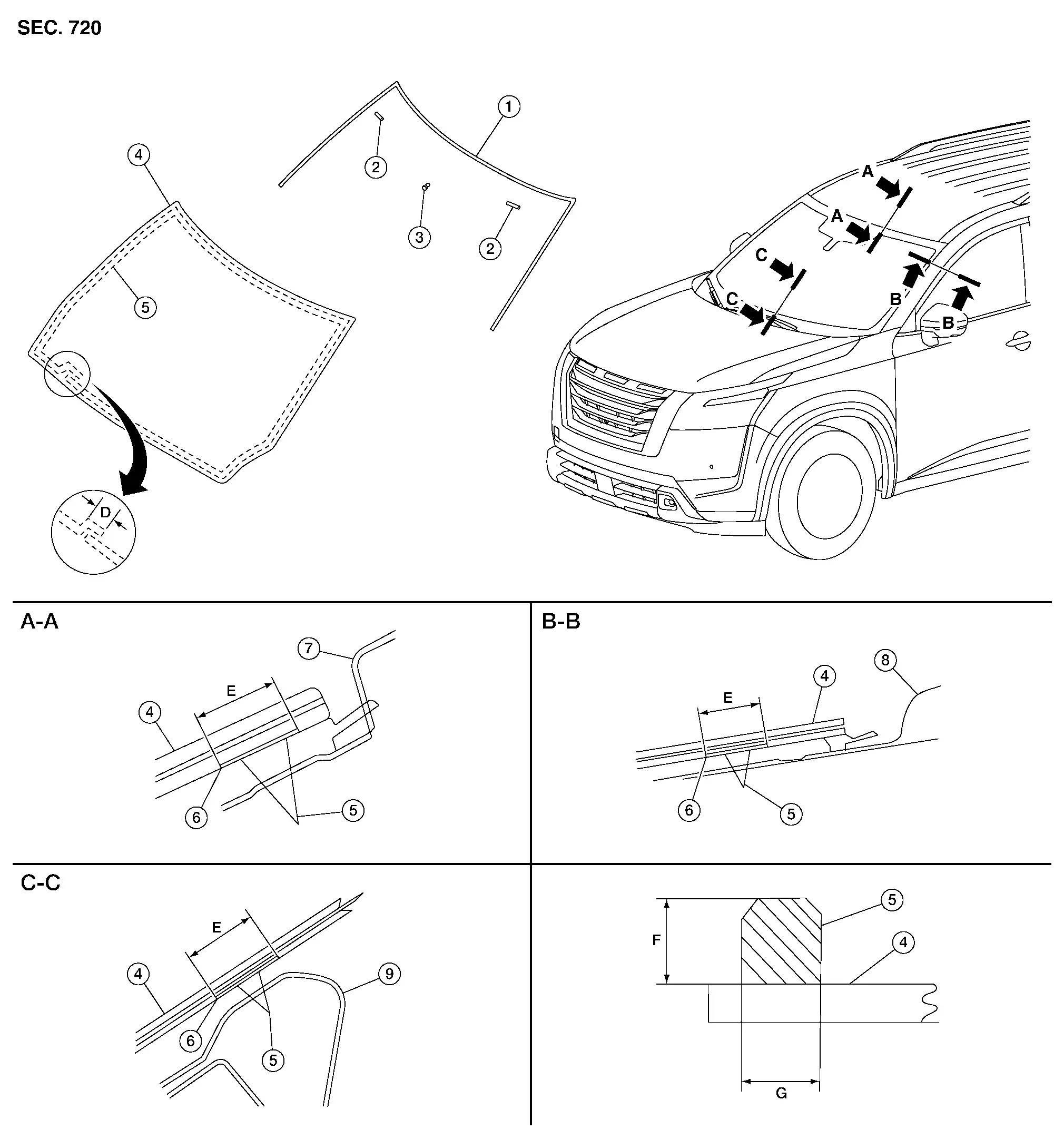

Exploded View

Removal and Installation

REMOVAL

Remove inside mirror. Refer to Removal and Installation.

Partially remove headlining (front edge). Refer to Removal and Installation.

Remove cowl top cover. Refer to Removal and Installation.

Remove windshield side finisher (LH/RH).

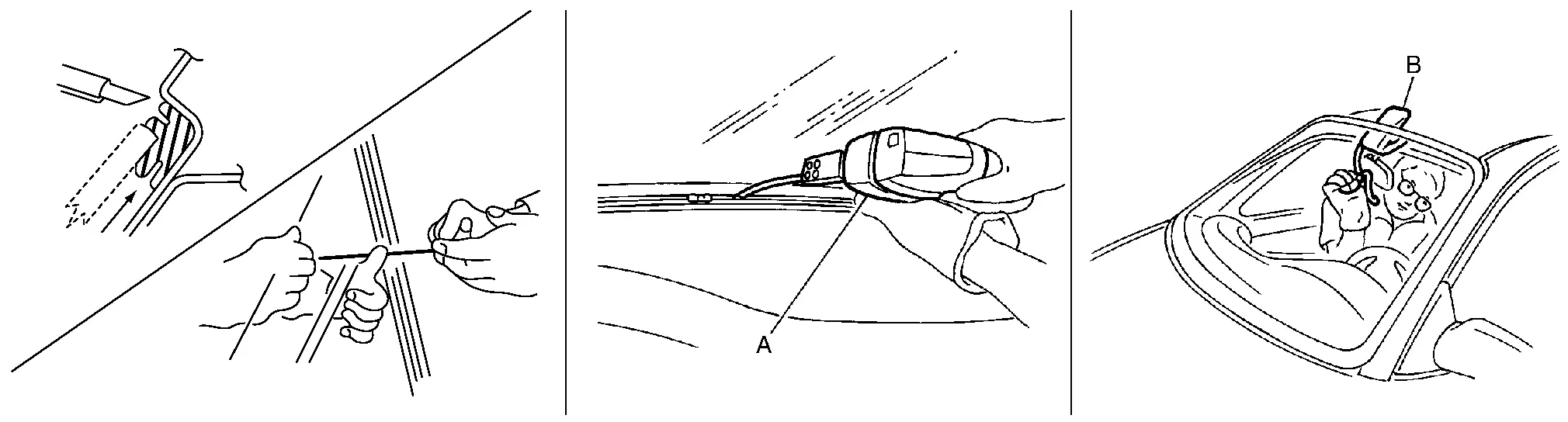

Remove windshield glass using piano wire or power cutting tool (A) and an inflatable pump bag (B).

• Apply protective tape around the windshield glass to protect the painted surface from damage.

• If the windshield glass is to be reused, mark the body and the glass with matching marks.

WARNING:

When cutting the glass from the Nissan Pathfinder vehicle, always wear safety glasses and heavy gloves to help prevent glass splinters from entering your eyes or cutting your hands.

CAUTION:

• Be careful not to scratch the glass when removing.

• Do not set or stand glass on its edge. Small chips may develop into cracks.

• Apply protective tape around the windshield glass to protect the painted surface from damage.

INSTALLATION

Installation is in the reverse order of removal.

• Use a Genuine NISSAN Urethane Adhesive Kit (if available) or equivalent and follow the instructions furnished with it.

• Adhesive shall be continuously applied to assure watertightness. Glass installation shall be finished within five minutes after applying the adhesive.

• While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced out by passenger compartment air pressure when a door is closed.

• The molding must be installed securely so that it is in position and leaves no gap.

• Inform the customer that the Nissan Pathfinder vehicle should remain stationary until the urethane adhesive has completely cured (preferably 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.

• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid contact with the skin and eyes.

• Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if inhaled. If affected by vapor inhalation, immediately move to an area with fresh air.

• Driving the Nissan Pathfinder vehicle before the urethane adhesive has completely cured may affect the performance of the windshield in case of an accident.

CAUTION:

• Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six months after the date of manufacture. Carefully adhere to the expiration or manufacture date printed on the box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

• Do not leave primers or adhesive cartridge unattended with their caps open or off.

• The Nissan Pathfinder vehicle should not be driven for at least 24 hours or until the urethane adhesive has completely cured. Curing time varies depending on temperature and humidity. The curing time will increase under lower temperatures and lower humidity.

REPAIRING WATER LEAKS FOR WINDSHIELD

• Leaks can be repaired without removing and reinstalling glass.

• If water is leaking between the urethane adhesive material and body or glass, determine the extent of leak.

• This can be done by applying water to the windshield area while pushing glass outward.

• To stop the leak, apply primer (if necessary) and then urethane adhesive to the leak point.

Front Door Glass Nissan Pathfinder

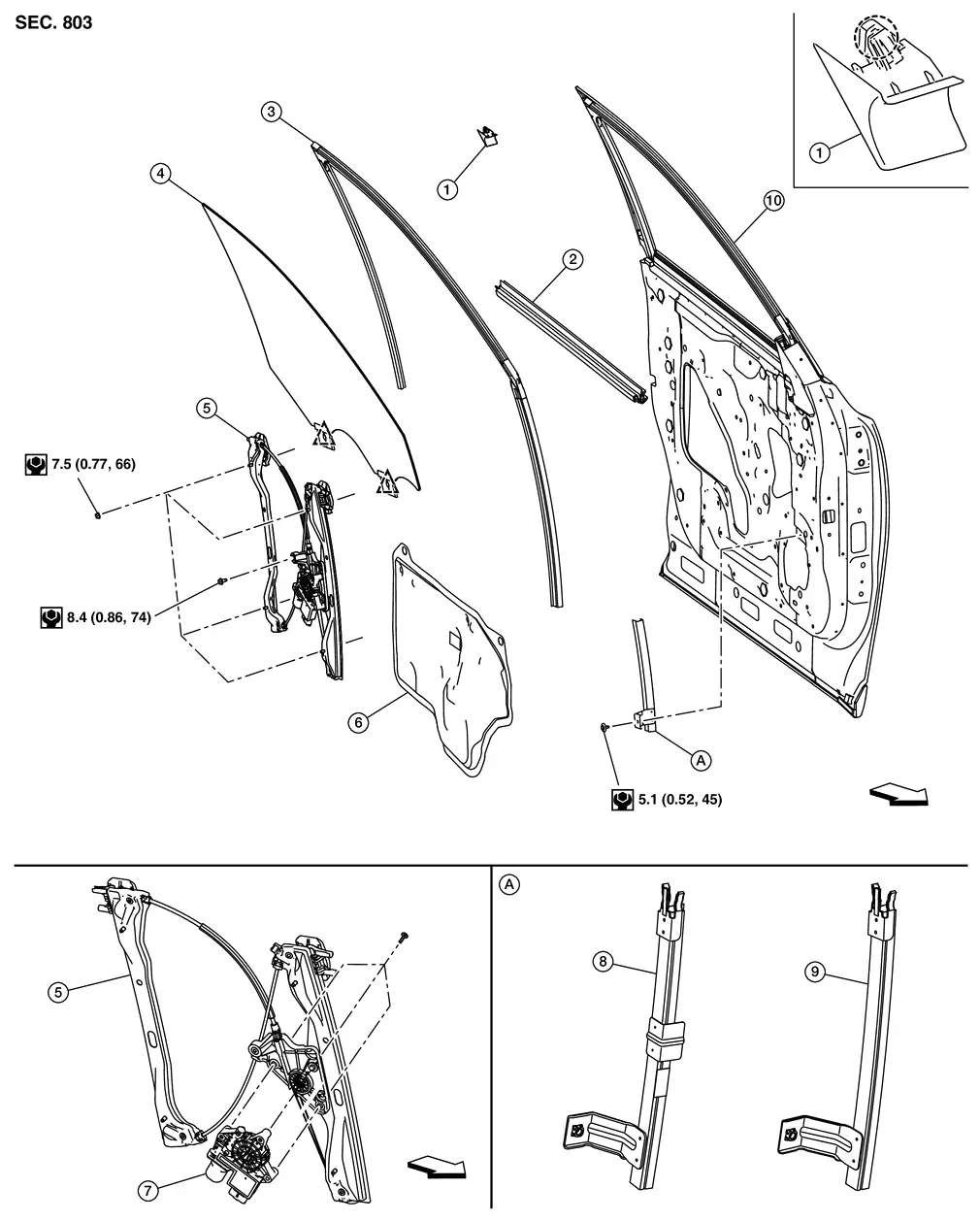

Exploded View

1.	Front door sash cover inner (LH)	2.	Door inside seal	3.	Door glass rubber run
4.	Front door glass	5.	Front door regulator	6.	Vapor barrier
7.	Front power window motor	8.	Door glass front run (Except for SL and Platinum)	9.	Door glass front run (For SL and Platinum)
10.	Door panel	A.	View A		Pawl
	Clip		Front

Removal and Installation

FRONT DOOR GLASS

Removal

Remove the front door finisher. Refer to Removal and Installation.

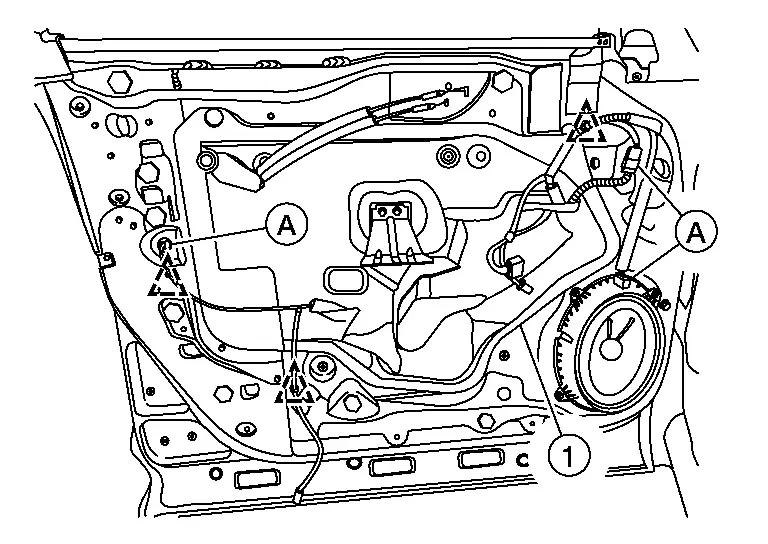

Remove clips then disconnect the harness connectors (A).

NOTE:

LH front door panel shown; RH similar.

: Clip

Remove vapor barrier from front door panel.

Temporarily reconnect the main power window and door mirror switch (LH door) or power window and door lock/unlock switch RH (RH door).

Operate the main power window and door mirror switch (LH door) or power window and door lock/unlock switch RH (RH door) to raise/lower the front door glass until the front door regulator to glass clips can be seen.

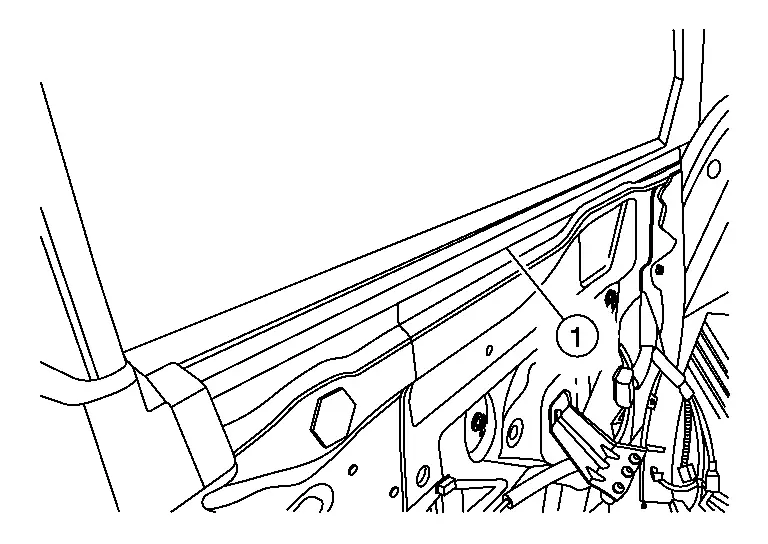

Remove the front door inside seal (1).

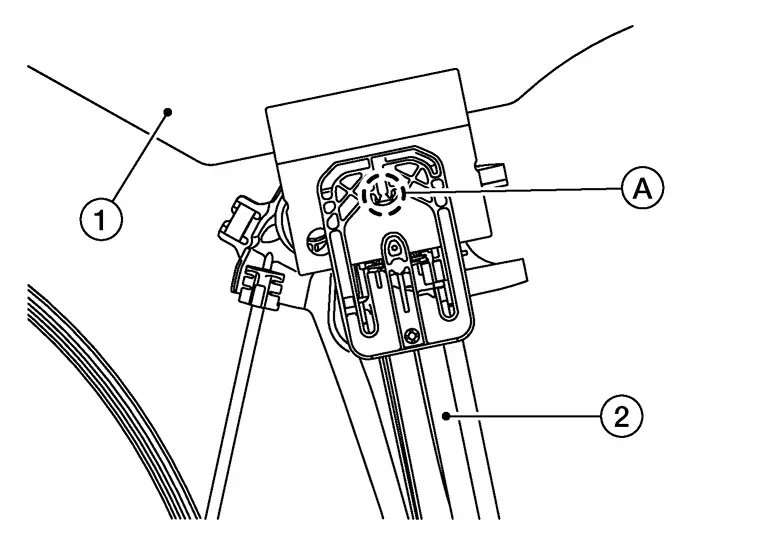

Using a suitable tool, release pawl (A) holding front door glass (1) to front door regulator (2).

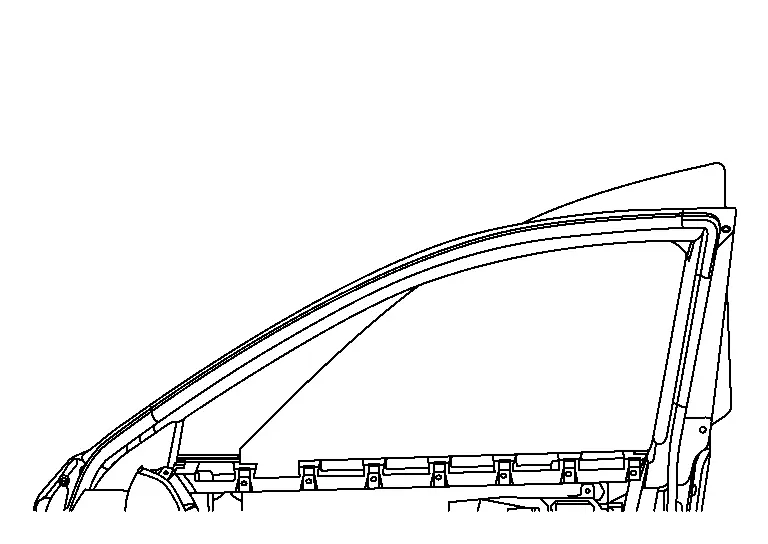

While holding front door glass, raise it at the rear end and pull front door glass out of the door glass front run toward the outside of the door.

Installation

Installation is in the reverse order of removal.

CAUTION:

After door glass installation is complete:

Fitting Inspection

• Check that the glass is fit securely into the glass run groove.

• Lower the front door glass slightly [approximately 10 to 20 mm (0.39 to 0.79 in)] and check that the clearance to the sash is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator bolts, guide rail bolts, and glass and guide rail bolts to correct the glass position.

Front Door Regulator Nissan Pathfinder Fifth generation

Exploded View

1.	Front door sash cover inner (LH)	2.	Door inside seal	3.	Door glass rubber run
4.	Front door glass	5.	Front door regulator	6.	Vapor barrier
7.	Front power window motor	8.	Door glass front run (Except for SL and Platinum)	9.	Door glass front run (For SL and Platinum)
10.	Door panel	A.	View A		Pawl
	Clip		Front

Removal and Installation

Removal

Remove the front door finisher. Refer to Removal and Installation.

Remove clips then disconnect the harness connectors (A).

: Clip

Remove vapor barrier from front door panel.

Temporarily reconnect the main power window and door mirror switch (LH door) or power window and door lock/unlock switch RH (RH door).

Operate the main power window and door mirror switch (LH door) or power window and door lock/unlock switch RH (RH door) to raise/lower the front door glass until the front door regulator to glass clips can be seen.

Using a suitable tool, un-clip the front door glass from the front door glass regulator.

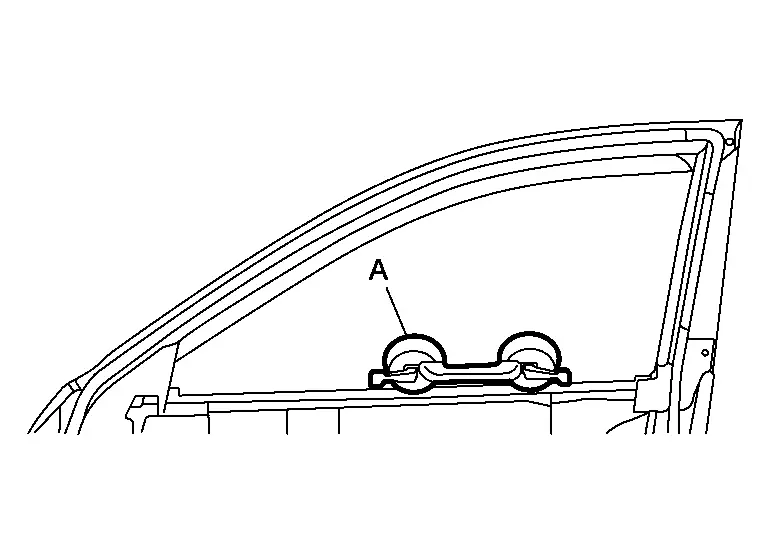

Raise front door glass and hold in place using a suitable tool (A).

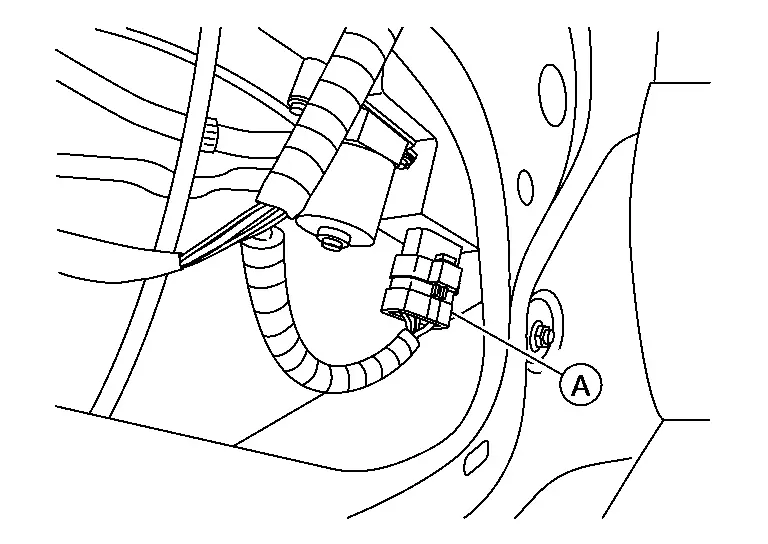

Disconnect harness connector (A) from front door glass regulator motor.

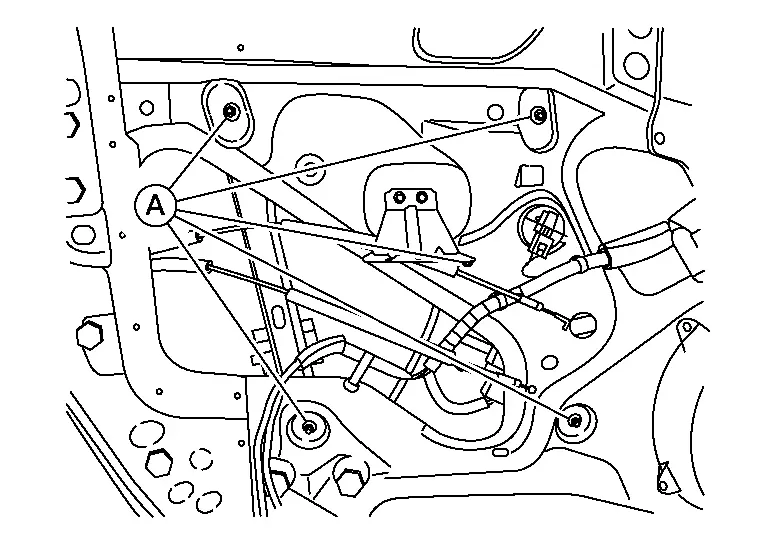

Remove nuts (A), then front door regulator.

Inspection After Removal

Check the front door glass regulator for the following items:

• Wire wear

• Regulator deformation

• Grease condition for each sliding part

If a malfunction is detected, replace or grease it.

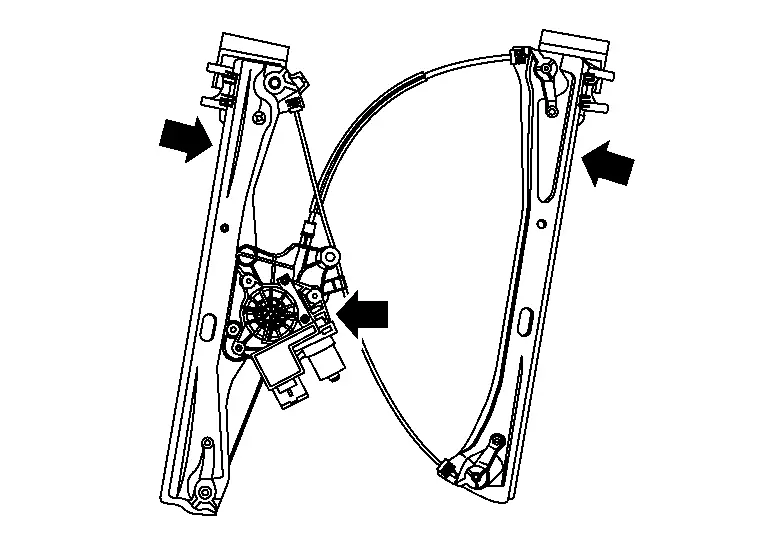

The arrows in the figure show the application points of the suitable multi-purpose grease, if needed.

Installation

Installation is in the reverse order of removal.

CAUTION:

After door glass installation is complete:

Fitting Inspection

• Check that the door glass is securely fit into the door glass run.

• Lower the door glass slightly [approximately 10 to 20 mm (0.39 to 0.79 in)], and check that the clearance to the rubber run is parallel. If the clearance between the door glass and rubber run is not parallel, loosen the door regulator to glass bolts, door glass run bolts, and door glass regulator bolts to correct the door glass position.

Front Power Window Motor Nissan Pathfinder

Removal and Installation

REMOVAL

Remove front door glass regulator. Refer to Removal and Installation.

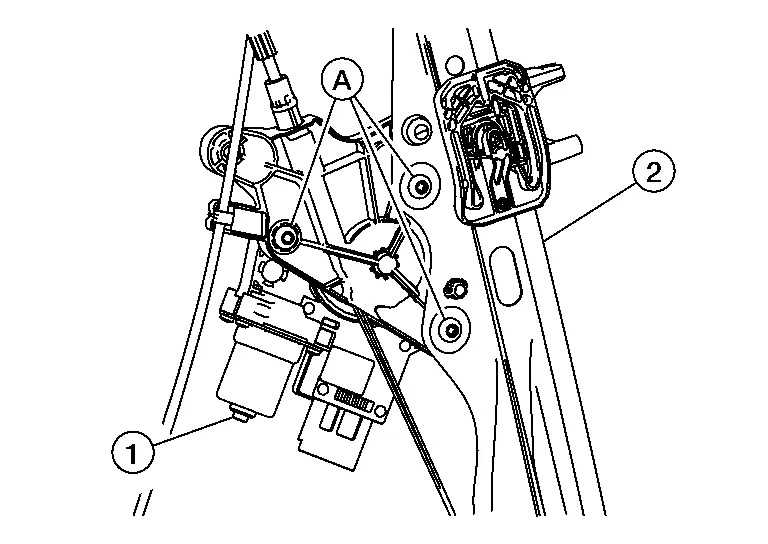

Remove screws (A) and front power window motor (1) from front door glass regulator (2).

INSTALLATION

Installation is in the reverse order of removal.

Rear Door Glass Nissan Pathfinder

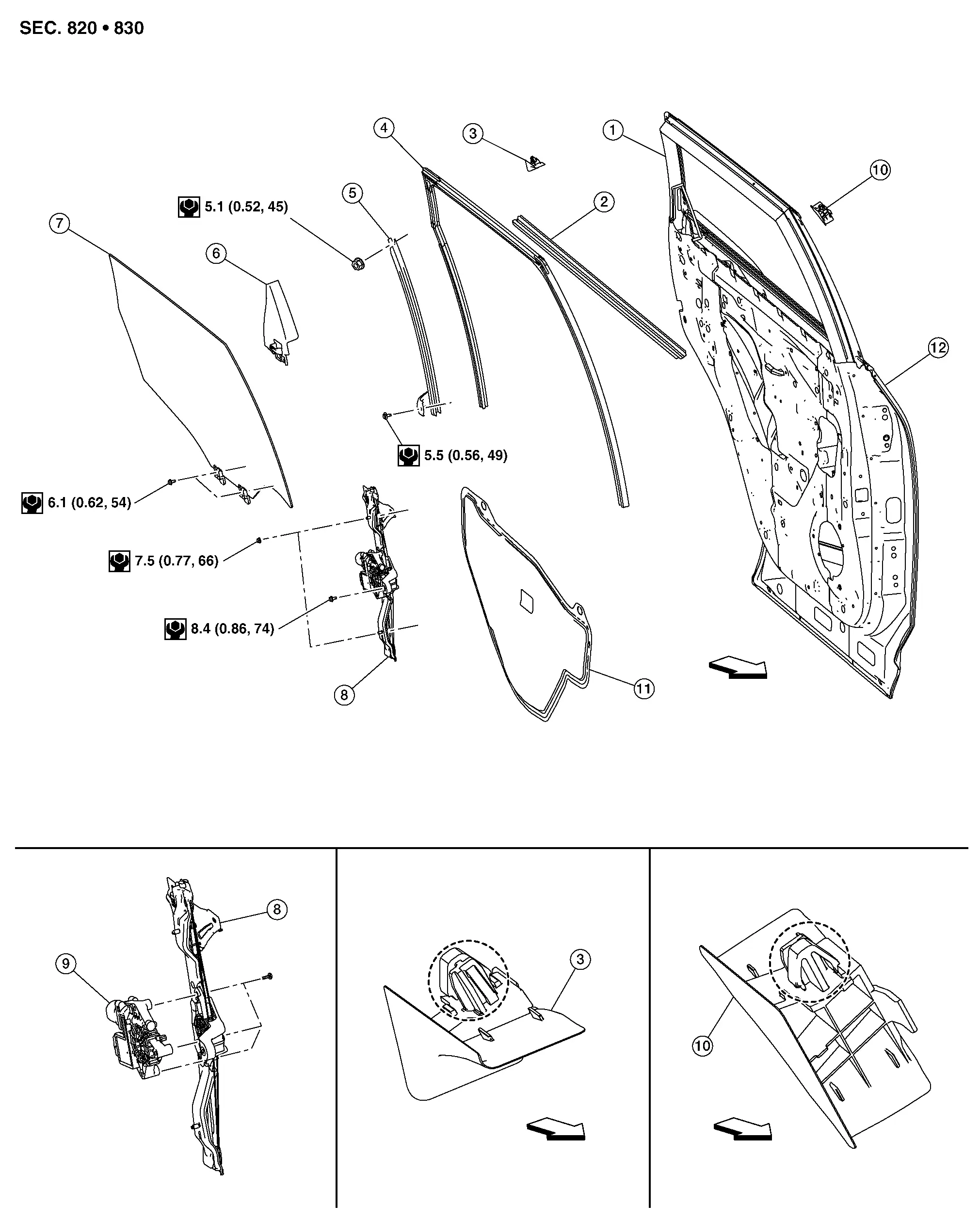

Exploded View

1.	Rear door panel	2.	Door inside seal	3.	Rear door sash cover inner
4.	Door glass run rubber	5.	Door glass rear run	6.	Rear door corner cover inner (LH)
7.	Rear door glass	8.	Rear door regulator	9.	Rear power window motor
10.	Rear door sash cover inner	11.	Vapor barrier	12.	Rear door outside main molding (LH)
	Front		Pawl

Removal and Installation

REAR DOOR GLASS

Removal

Remove the rear door finisher. Refer to Removal and Installation.

Remove rear door vapor barrier from rear door panel.

Temporarily reconnect the rear power window switch.

Operate the rear power window switch to raise/lower the rear door glass until the rear door regulator to glass bolts can be seen and remove.

Remove rear door inside seal.

Remove the rear door glass rear run channel.

Remove the rear door glass from the bottom of the door.

Installation

Installation is in the reverse order of removal.

CAUTION:

After door glass installation is complete:

Fitting Inspection

• Check that the rear door glass is securely fit into the rear door glass run channel.

• Lower the rear door glass slightly [approximately 10 to 20 mm (0.39 to 0.79 in)], and check that the clearance to the sash is parallel. If the clearance between the rear door glass and sash is not parallel, loosen the rear door regulator to glass bolts, guide rail bolts, and rear door glass and carrier plate bolts to correct the rear door glass position.

Rear Door Regulator Nissan Pathfinder Fifth generation

Exploded View

1.	Rear door panel	2.	Door inside seal	3.	Rear door sash cover inner
4.	Door glass run rubber	5.	Door glass rear run	6.	Rear door corner cover inner (LH)
7.	Rear door glass	8.	Rear door regulator	9.	Rear power window motor
10.	Rear door sash cover inner	11.	Vapor barrier	12.	Rear door outside main molding (LH)
	Front		Pawl

Removal and Installation

REAR DOOR GLASS REGULATOR

Removal

Remove the rear door finisher. Refer to Removal and Installation.

Remove the rear door vapor barrier from the rear door panel.

Temporarily reconnect the rear power window switch.

Operate the rear power window switch to raise/lower the rear door glass until the rear door regulator to glass bolts can be seen and remove.

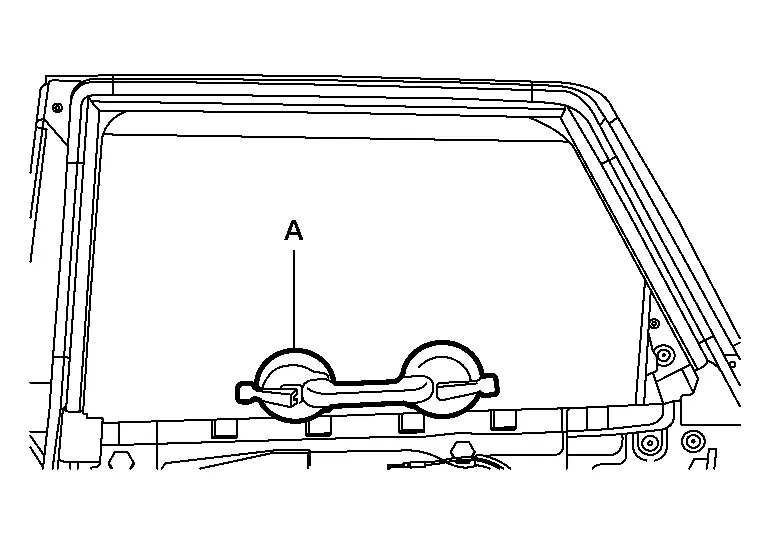

Raise rear door glass and hold in place using a suitable tool (A).

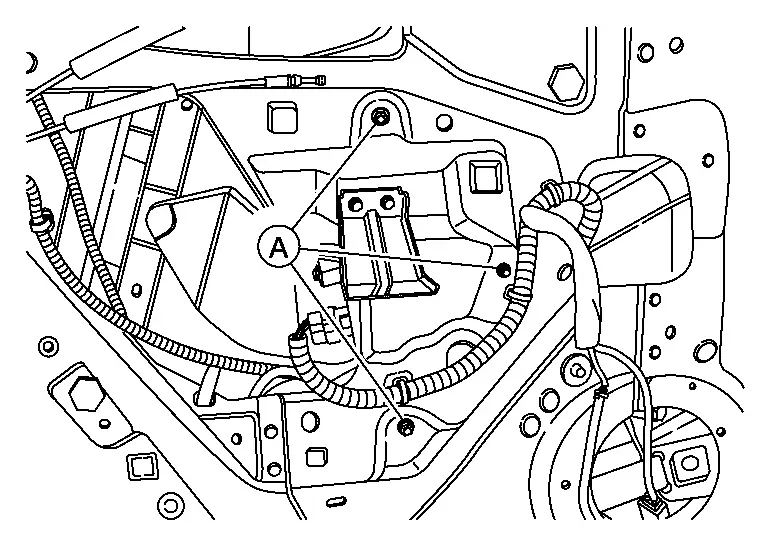

Remove the rear door glass regulator bolts (A).

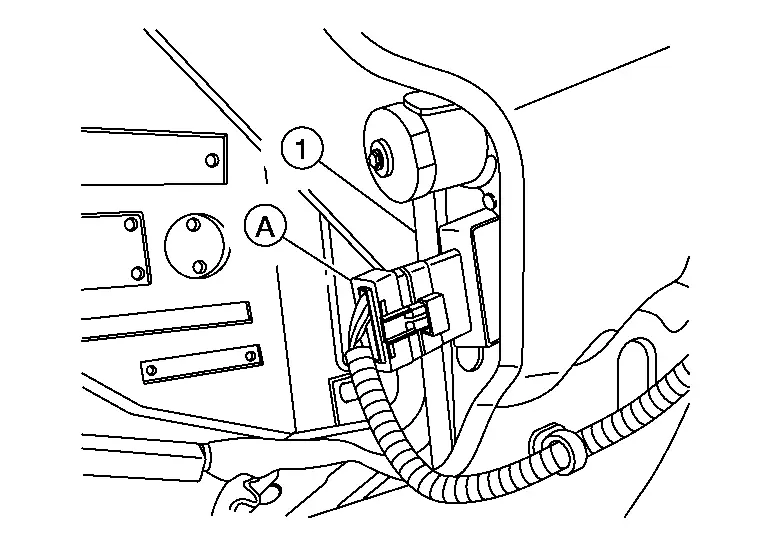

Disconnect harness connector (A) from the rear door glass regulator (1).

Remove the rear door glass regulator from door.

Inspection after removal

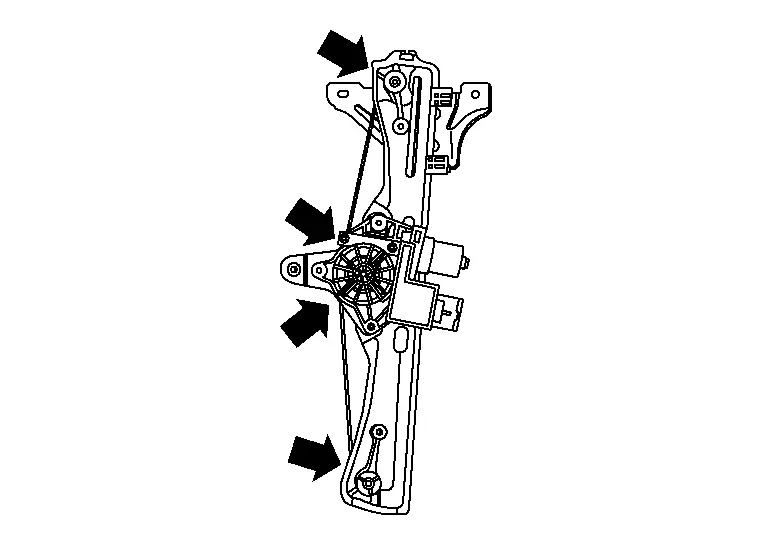

Check the rear door glass regulator for the following items:

• Gear wear

• Regulator deformation

• Grease condition for each sliding part

If a malfunction is detected, replace or grease it using multi-purpose grease as shown.

Installation

Installation is in the reverse order of removal.

CAUTION:

After door glass installation is complete:

Fitting Inspection

• Check that the rear door glass is securely fit into the rear door glass run channel.

• Lower the rear door glass slightly [approximately 10 to 20 mm (0.39 to 0.79 in)], and check that the clearance to the sash is parallel. If the clearance between the rear door glass and sash is not parallel, loosen the rear door regulator to glass bolts, guide rail bolts, and rear door glass and carrier plate bolts to correct the rear door glass position.

Quarter Window Glass Nissan Pathfinder 2022

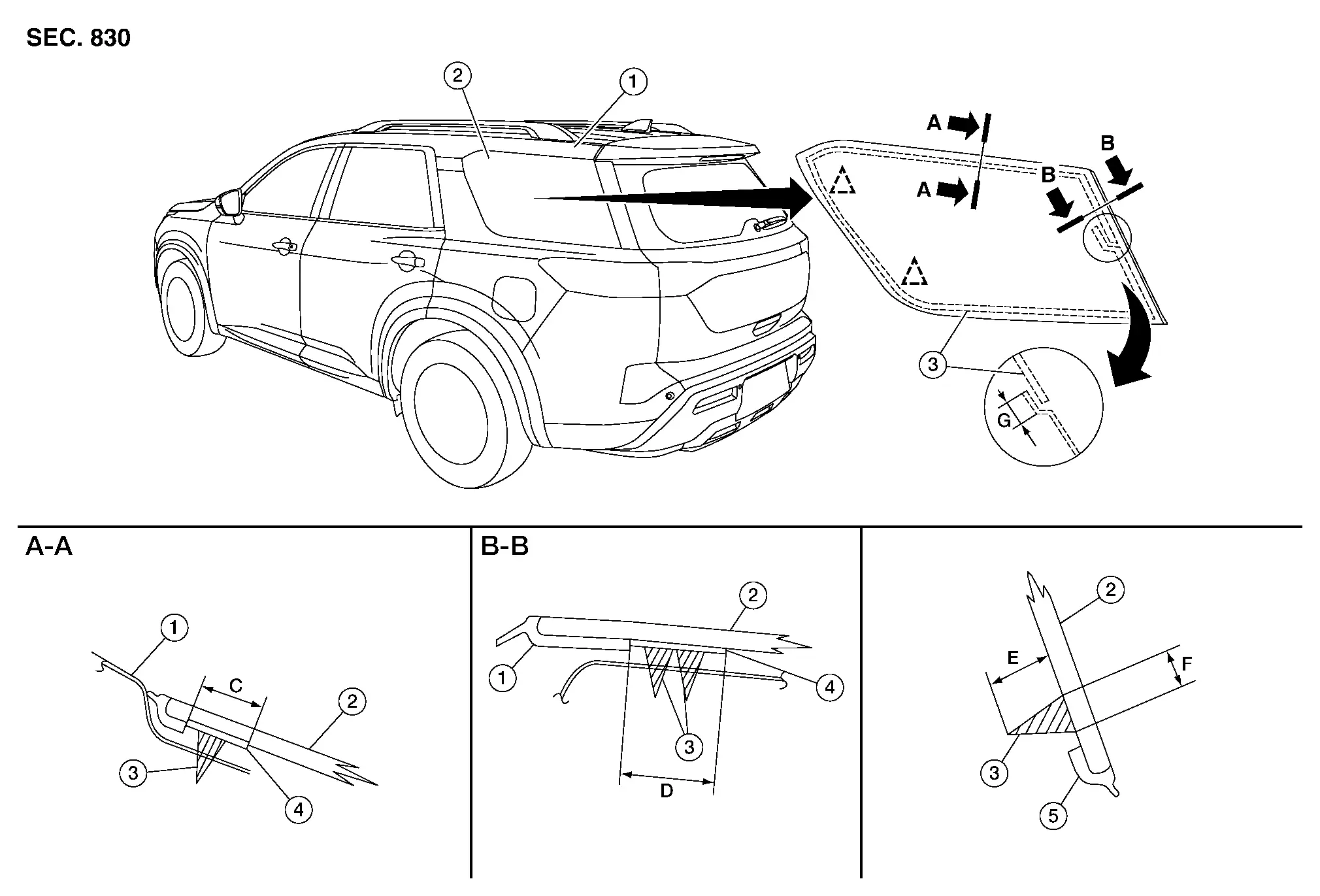

Exploded View

1.	Quarter window glass molding	2.	Quarter window glass	3.	Adhesive
4.	Primer	5.	Quarter window glass molding	C.	15 mm (0.59 in)
D.	21 mm (0.83 in)	E.	12 + 2, — 0 mm (0.47 + 0.08, — 0 in)	F.	7 + 2, — 0 mm (0.27 + 0.08, — 0 in)
G.	30 mm (1.18 in)		Clip

Removal and Installation

REMOVAL

Remove the luggage side upper finisher. Refer to Removal and Installation.

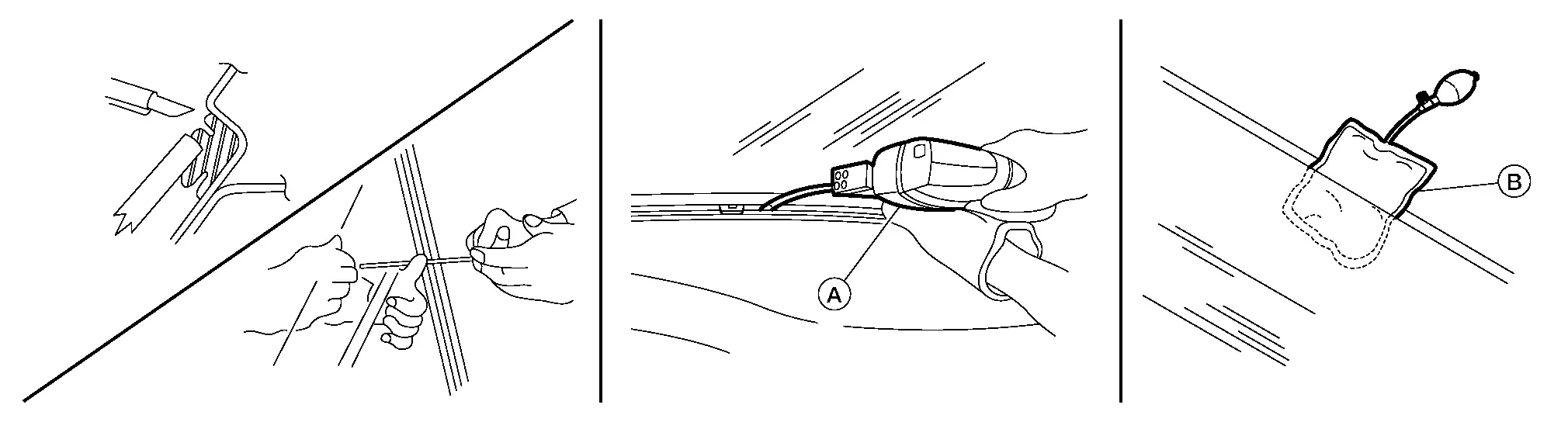

Remove quarter glass using piano wire or power cutting tool (A) and an inflatable pump bag (B).

WARNING:

When cutting the quarter window from the Nissan Pathfinder vehicle, always wear safety glasses and heavy gloves to help prevent glass splinters from entering your eyes or cutting your hands.

CAUTION:

• Apply protective tape around the quarter glass to protect the painted surface.

• Be careful not to scratch the quarter window glass when removing.

• Do not set or stand the quarter window glass on its edge. Small chips may develop into cracks.

Remove quarter window glass from outside of Nissan Pathfinder vehicle.

INSTALLATION

Installation is in the reverse order of removal.

• Install the quarter glass from outside the vehicle to ensure that it is even around the top, bottom and sides of the opening.

• Use a Genuine NISSAN Urethane Adhesive Kit (if available) or equivalent and follow the instructions furnished with it.

• While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced out by passenger compartment air pressure when a door is closed.

• Check gap along bottom to confirm that glass does not contact sheet metal.

• Inform the customer that the Nissan Pathfinder vehicle should remain stationary until the urethane adhesive has completely cured (preferably 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.

• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid contact with the skin and eyes.

• Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if inhaled. If affected by vapor inhalation, immediately move to an area with fresh air.

• Driving the Nissan Pathfinder vehicle before the urethane adhesive has completely cured may affect the performance of the glass in case of an accident.

CAUTION:

• Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six months after the date of manufacture. Carefully adhere to the expiration or manufacture date printed on the box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

• Do not leave primers or adhesive cartridge unattended with their caps open or off.

• The Nissan Pathfinder vehicle should not be driven for at least 24 hours or until the urethane adhesive has completely cured. Curing time varies depending on temperature and humidity. The curing time will increase under lower temperatures and lower humidity.

REPAIRING WATER LEAKS FOR QUARTER WINDOW GLASS

• Leaks can be repaired without removing or reinstalling glass.

• If water is leaking between urethane adhesive material and body or glass, determine the extent of leakage.

• This can be done by applying water to the quarter window glass area while pushing glass outward.

• To stop leak, apply primer (if necessary) and then urethane adhesive to the leak point.
