Nissan Pathfinder: Automatic Drive Positioner - Removal and Installation

• Driver Seat Control Unit
• Automatic Drive Positioner Control Unit
• Seat Memory Switch
• Power Seat Switch
• Adp Steering Switch

Driver Seat Control Unit Nissan Pathfinder R53

Removal and Installation

REMOVAL

Remove the driver seat. Refer to Removal and Installation.

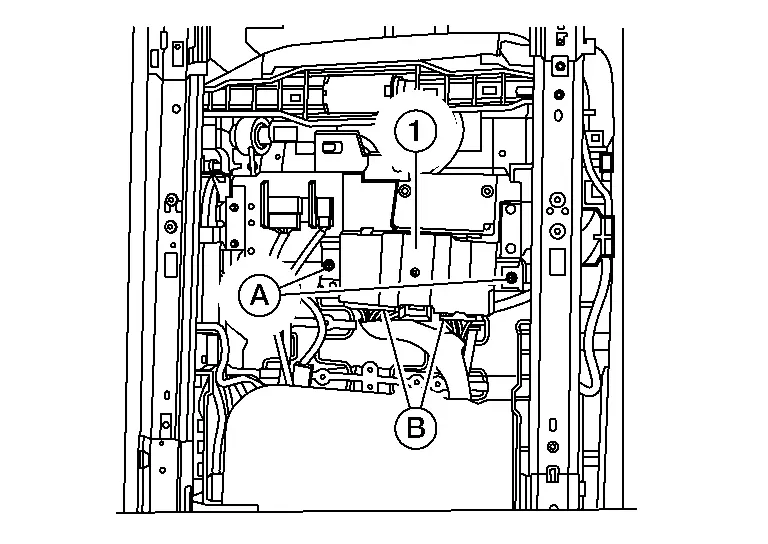

Remove driver seat control unit screws (A).

Disconnect the two harness connectors (B) from driver seat control unit (1).

Remove the driver seat control unit.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

If replacing driver seat control unit, perform ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT. Refer to Description.

Automatic Drive Positioner Control Unit Nissan Pathfinder 2025

Removal and Installation

REMOVAL

Disconnect the negative battery terminal. Refer to Removal and Installation.

Remove the glove box assembly. Refer to Removal and Installation.

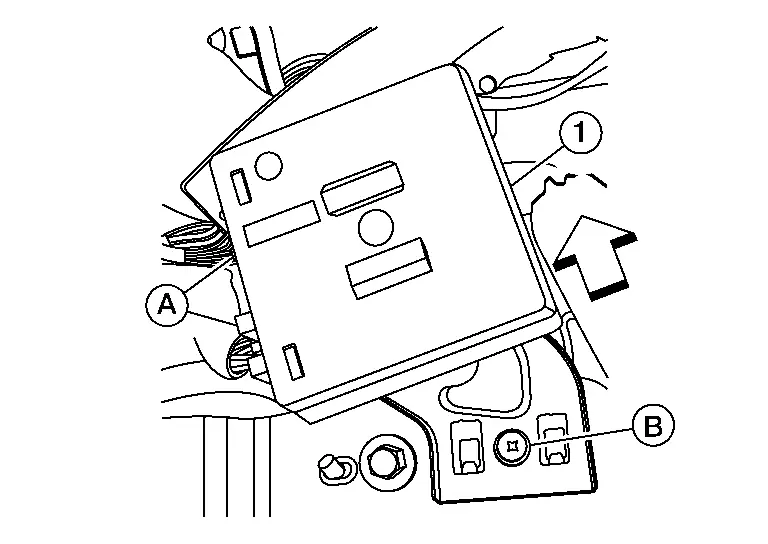

Remove the automatic drive positioner control unit screw (B).

: Nissan Pathfinder Vehicle upward

Disconnect connectors (A) from the automatic drive positioner control unit (1).

Remove automatic drive positioner control unit.

INSTALLATION

Installation is in the reverse order of removal.

Seat Memory Switch Nissan Pathfinder SUV

Removal and Installation

REMOVAL

Remove front door finisher (LH). Refer to Removal and Installation.

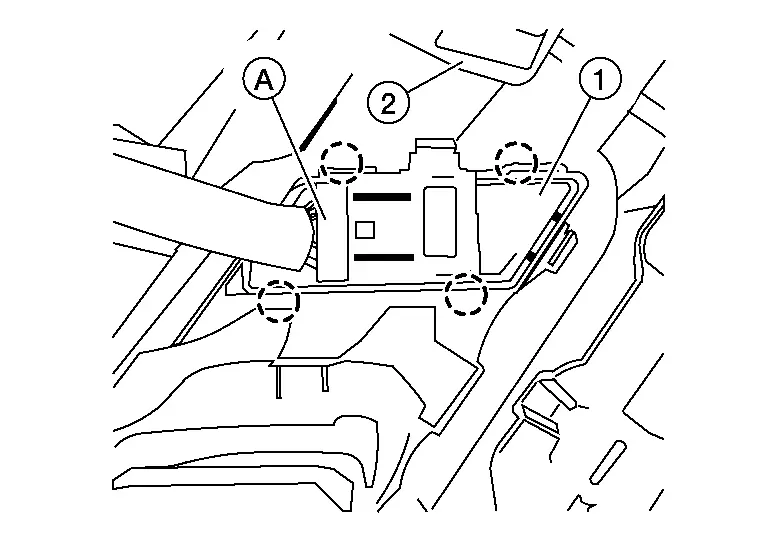

Using a suitable tool, release the pawls to remove seat memory switch (1) from switch finisher (2).

: Pawl

Disconnect the harness connector (A) from the seat memory switch.

INSTALLATION

Installation is in the reverse order of removal.

Power Seat Switch Nissan Pathfinder Fifth generation

Removal and Installation

For removal and installation of the power seat switch, refer to Removal and Installation.

Adp Steering Switch Nissan Pathfinder

Removal and Installation

REMOVAL

Remove steering column lower cover. Refer to Removal and Installation.

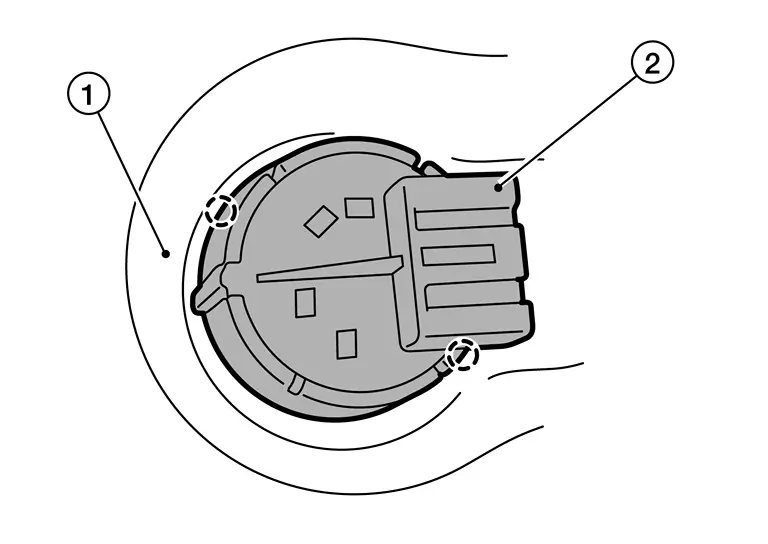

Using suitable tool, release the pawls and remove ADP steering switch (2) from the steering column lower cover (1).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.
