Precautions Nissan Pathfinder 5th Gen

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER"

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collisions.

Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” sections of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation:

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation:

Precaution for Trouble Diagnosis

AV COMMUNICATION SYSTEM

• Do not apply voltage of 7.0 V or higher to the measurement terminals.

• Use the tester with its open terminal voltage being 7.0 V or less.

• Be sure to place ignition switch OFF and disconnect the battery cable from the negative terminal before checking the circuit.

Precaution for Harness Repair

AV COMMUNICATION SYSTEM

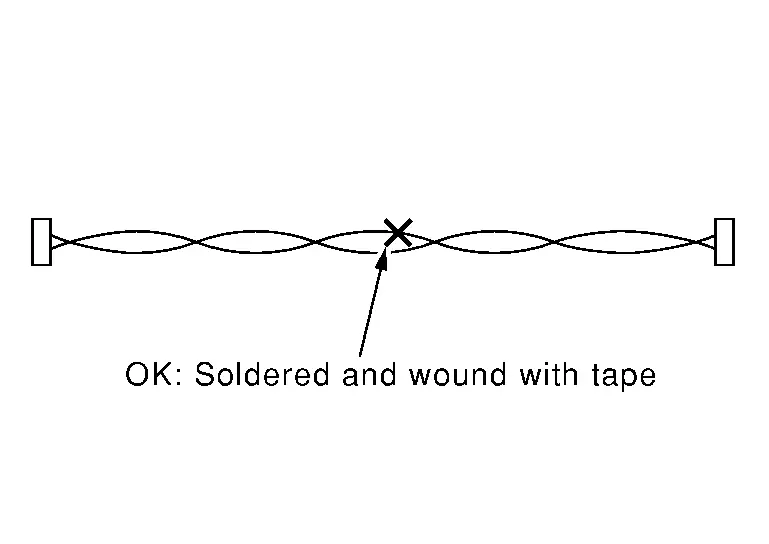

• Solder the repaired parts, and wrap with tape. [Frays of twisted line must be within 110 mm (4.33 in).]

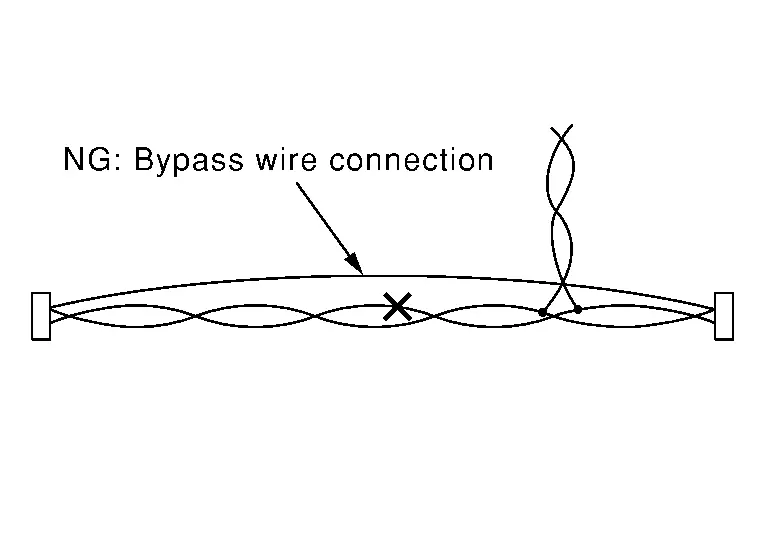

• Do not perform bypass wire connections for the repair parts. (The spliced wire will become separated and the characteristics of twisted line will be lost.)



Precautions for Work

• When removing or disassembling each component, be careful not to damage or deform it. If a component may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with a new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components:

  • Water soluble dirt:

    1. Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.

    2. Then rub with a soft, dry cloth.

  • Oily dirt:

    1. Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty area.

    2. Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.

    3. Then rub with a soft, dry cloth.

  • Do not use organic solvent such as thinner, benzene, alcohol or gasoline.

  • For genuine leather seats, use a genuine leather seat cleaner.

Preparation Nissan Pathfinder SUV

Special Service Tools

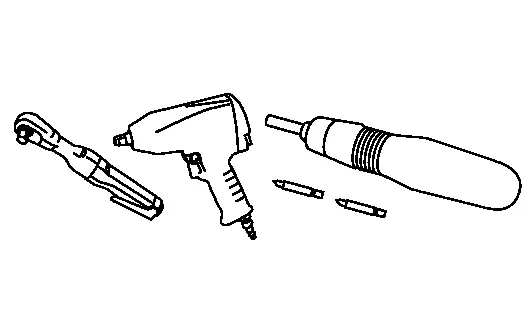

The actual shape of the tools may differ from those illustrated here.

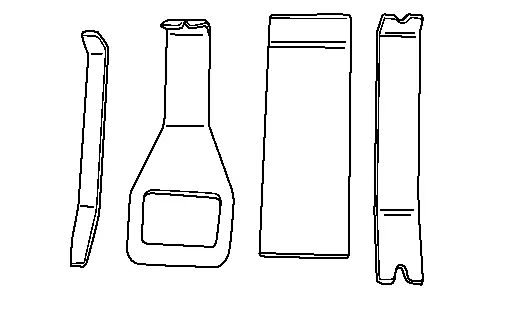

Commercial Service Tools

Ecu Diagnosis Information. Av Control Unit Nissan Pathfinder Fifth generation

List of ECU Reference

B2720 Corner Sensor [rl] ++++
