Nissan Pathfinder: Front Suspension - Precautions. Preparation
Precautions Nissan Pathfinder Fifth generation
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER"
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collisions.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” sections of this Service Manual.
WARNING:
Always observe the following items for preventing accidental activation:
-
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in the event of a collision that would result in air bag inflation, it is recommended that all maintenance and repair be performed by an authorized NISSAN/INFINITI dealer.
-
Improper repair, including incorrect removal and installation of the SRS, can lead to personal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module, see “SRS AIR BAG”.
-
Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
Always observe the following items for preventing accidental activation:
-
When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the ignition/power switch ON or engine running, never use air or electric power tools or strike near the sensor(s) with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing serious injury.
-
When using air or electric power tools or hammers, always switch the ignition/power switch OFF, disconnect the 12V battery or batteries, and wait at least 3 minutes before performing any service.

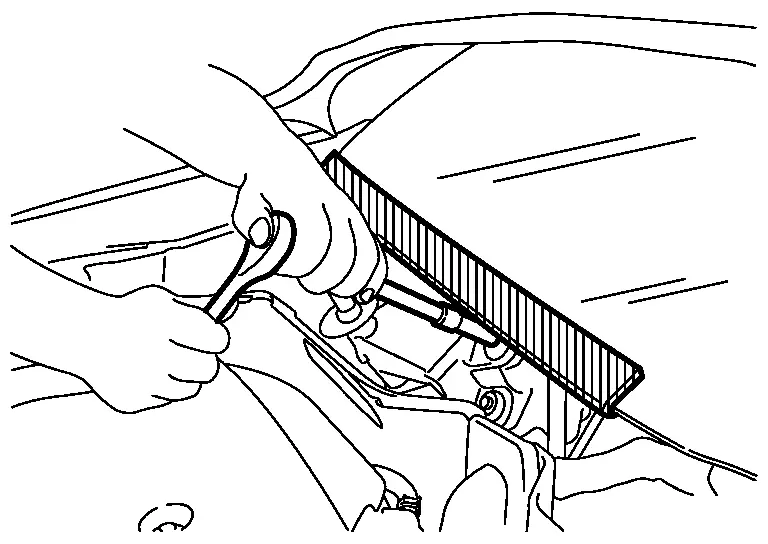

Precaution for Procedure without Cowl Top Cover
When performing the procedure after removing cowl top cover, cover the lower end of windshield with urethane, etc to prevent damage to windshield.
Precautions for Suspension
-
When installing rubber bushings, the final tightening must be carried out under unladen conditions with tires on ground. Spilled oil might shorten the life of rubber bushings. Be sure to wipe off any spilled oil.
-
Unladen conditions mean that fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.
-
-
After servicing suspension parts, be sure to check wheel alignment.
-
Self-lock nuts are not reusable. Always use new ones when installing. Since new self-lock nuts are pre-oiled, tighten as they are.
Preparation Nissan Pathfinder 2025
Special Service Tool
The actual shape of the tools may differ from those illustrated here.
|
Tool number (TechMate No.) Tool name | Description | |
|---|---|---|
|

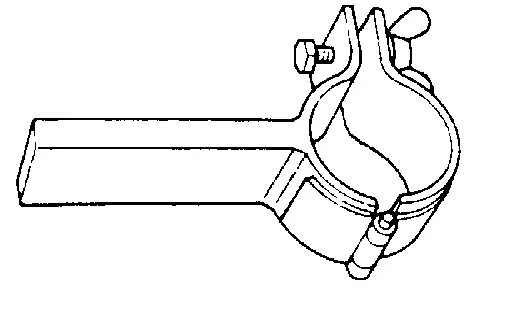

ST35652000 ( — ) Strut attachment |
|
Disassembling and assembling strut |
|

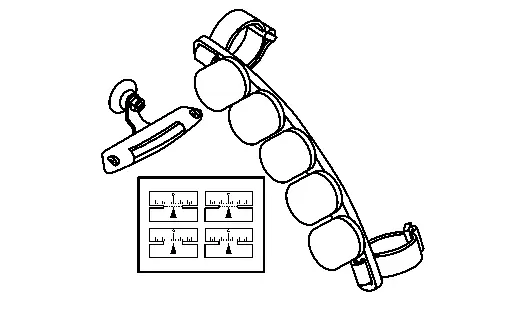

— (NI-49286) Drift and Pull gauge |
|
Measuring drift and pull |
|

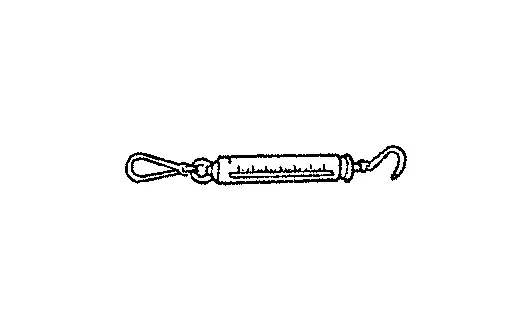

— (NI-44372) Pull gauge |
|
Measuring ball joint swinging force |
Commercial Service Tool
| Tool name | Description | |

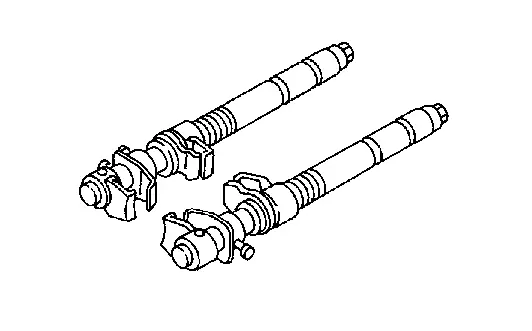

| Spring compressor |
|
Removing and installing coil spring |

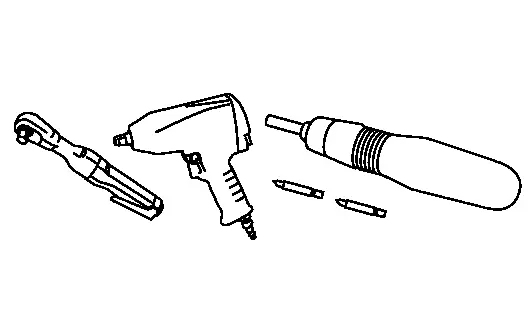

| Power tool |
|
Loosening nuts, screws and bolts |
Always Replace with New Parts
| Do not Reuse These Parts | Part Code | For additional information: |
|---|---|---|
| Nut - Slock | 54040BA | FRONT COIL SPRING AND STRUT EXPLODED VIEW |
| Nut – Self lock | 54040B | FRONT COIL SPRING AND STRUT EXPLODED VIEW |
| Nut lock | 54080B | TRANSVERSE LINK EXPLODED VIEW |
| Nut – Self lock | 54060B | FRONT STABILIZER EXPLODED VIEW |
| Nut – Self lock | 54040BA | FRONT STABILIZER EXPLODED VIEW |
| Nut-Lock, Wheel Bearing | 40262 | STEERING KNUCKLE EXPLODED VIEW |
| Nut-Hex,slock | 40040B | STEERING KNUCKLE EXPLODED VIEW |
| Bolt - hub | 40222 | STEERING KNUCKLE EXPLODED VIEW |
