Nissan Pathfinder: Roof - Ecu Diagnosis Information
Nissan Pathfinder (R53) 2022-2025 Service Manual / Body Exterior, Doors, Roof & Vehicle Security :: Roof / Ecu Diagnosis Information
Bcm Nissan Pathfinder Fifth generation
List of ECU Reference
| ECU | Reference |
|---|---|
| BCM | Values on the Diagnosis Tool |
| Reference Value | |
| Fail-safe | |
| DTC Inspection Priority Chart | |
| DTC Index |
Moonroof Motor Assembly Nissan Pathfinder R53
Reference Value

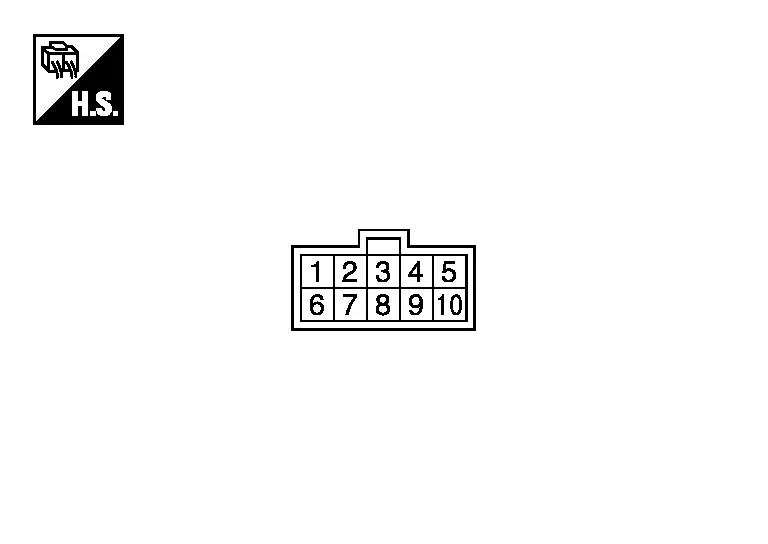

TERMINAL LAYOUT
PHYSICAL VALUES
|
Terminal No. (Wire color) | Description | Condition |
Value (Approx.) | |||
|---|---|---|---|---|---|---|
| + | – | Signal name | Input/Output | |||
|
1 (B) |
Ground | Ground | — | — | 0 V | |
|
4 (W) |
Ground | Moonroof Tilt UP signal | Input | Moonroof switch |
Operate (PUSH) |
0 V |
| Other than above | Battery voltage | |||||
|
5 (SB) |
Ground | Moonroof OPEN signal | Input | Moonroof switch |
Operate (OPEN) |
0 V |
| Other than above | Battery voltage | |||||
|
6 (R) |
Ground | Auto ACC power supply | Input | Ignition switch OFF (auto ACC status) or ON | Battery voltage | |
|
7 (GR) |
Ground | Communication line | Input/Output | Ignition switch ON |
|
|
|
9 (G) |
Ground | LIN communication signal | Input/Output | Ignition switch ON |
|
|
|
10 (LG) |
Ground | Moonroof CLOSE signal | Input | Moonroof switch | Operate (CLOSE) | 0 V |
| Other than above | Battery voltage | |||||
Sunshade Motor Assembly Nissan Pathfinder 5th Gen
Reference Value
TERMINAL LAYOUT
PHYSICAL VALUES
|
Terminal No. (Wire color) | Description | Condition |
Value (Approx.) | |||
|---|---|---|---|---|---|---|
| + | – | Signal name | Input/Output | |||
|
1 (P) |
Ground | Ground | — | — | 0 V | |
|
5 (BR) |
Ground | Sunshade open signal | Input | Sunshade switch |
Operate (OPEN) |
0 V |
| Other than above | Battery voltage | |||||
|
6 (V) |
Ground | AUTO ACC power supply | Input | Ignition switch OFF (auto ACC status) or ON | Battery voltage | |
|
7 (GR) |

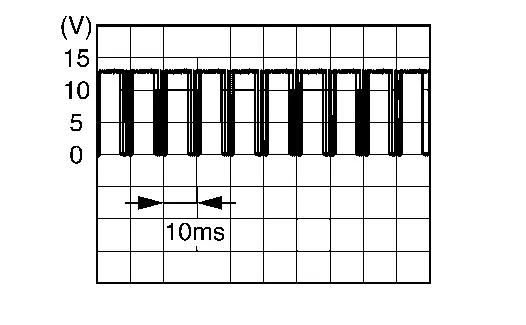

Ground | Communication line | Input/Output | Ignition switch ON |
|
|
|
9 (G) |

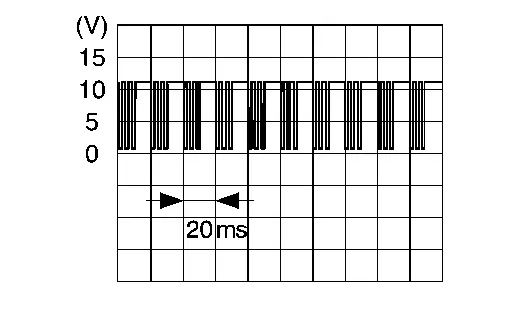

Ground | LIN communication signal | Input/Output | Ignition switch ON |
|
|
|
10 (O) |
Ground | Sunshade close signal | Input | Sunshade switch | Operate (CLOSE) | 0 V |
| Other than above | Battery voltage | |||||
