Nissan Pathfinder: Power Window Control System - Dtc/circuit Diagnosis

• B2c40-04 Power Window Main Switch
• B2c41-04 Power Window Motor Fl
• Main Power Window and Door Mirror Switch Circuit
• Rear Power Window Switch Lh Circuit
• Lin Communication Circuit

B2c40-04 Power Window Main Switch Nissan Pathfinder SUV

DTC Description

DTC DETECTION LOGIC

DTC No.	CONSULT screen terms (Trouble diagnosis content)	DTC detection condition
B2C40-04	Power window main switch (Main power window and door mirror switch)	Diagnosis condition	Ignition switch OFF (auto ACC status) or ON.
		Signal (terminal)	—
		Threshold	CPU in power window main switch detects internal malfunction.
		Diagnosis delay time	1 seconds or less

POSSIBLE CAUSE

Main power window and door mirror switch

FAIL SAFE

—

DTC CONFIRMATION PROCEDURE

PERFORM DTC CONFIRMATION PROCEDURE

CONSULT

1. Ignition switch ON.

2. Select “Self Diagnostic Result” mode of “BCM”.

3. Check DTC.

Is DTC detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO>>

Confirmation after repair: Inspection End.

DTC Diagnosis Procedure

REPLACE MAIN POWER WINDOW AND DOOR MIRROR SWITCH

Replace main power window and door mirror switch. Refer to Removal and Installation.

>>

Inspection End.

B2c41-04 Power Window Motor Fl Nissan Pathfinder R53

DTC Description

DTC DETECTION LOGIC

DTC No.	CONSULT screen terms (Trouble diagnosis content)	DTC detection condition
B2C41-04	Power window motor FL (Front power window motor LH)	Diagnosis condition	When ignition switch ON or power window timer operates.
		Signal (terminal)	—
		Threshold	CPU in front power window motor LH detect internal malfunction.
		Diagnosis delay time	10 seconds

POSSIBLE CAUSE

Front power window motor LH

FAIL SAFE

Front power window motor LH operation is stop or inching.

DTC CONFIRMATION PROCEDURE

PERFORM DTC CONFIRMATION PROCEDURE

CONSULT

1. Ignition switch ON.

2. Keep pulling the power window switch AUTO-UP for 5 seconds or more.

3. Keep pressing the power window switch AUTO-DOWN for 5 seconds or more.

4. Select “Self Diagnostic Result” mode of “BCM”.

5. Check DTC.

Is DTC detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO>>

Confirmation after repair: Inspection End.

DTC Diagnosis Procedure

REPLACE FRONT POWER WINDOW MOTOR LH

Replace front power window motor LH. Refer to Removal and Installation.

>>

Inspection End.

Main Power Window and Door Mirror Switch Circuit Nissan Pathfinder R53

Component Function Check

CHECK MAIN POWER WINDOW AND DOOR MIRROR SWITCH FUNCTION

Check front power window motor LH operation using main power window and door mirror switch.

Is the inspection result normal?

YES>>

Inspection End.

NO>>

Refer to Diagnosis Procedure.

Diagnosis Procedure

CHECK MAIN POWER WINDOW AND DOOR MIRROR SWITCH CIRCUIT

1. Ignition switch OFF, and then wait for 3 minutes with driver door open.

   NOTE:

   • Even after ignition switch is OFF, power is supplied to accessories for a certain amount of timer by the AUTO ACC function.

   • When Nissan Pathfinder vehicle is operated while on standby, power may be supplied to accessories.

2. Disconnect front power window motor LH connector and main power window and door mirror switch connector.

3. Check continuity between front power window motor LH harness connector and main power window and door mirror switch harness connector.

   Main power window and door mirror switch		Front power window motor LH		Continuity
   Connector	Terminal	Connector	Terminal
   D24	1	D9	2	Yes
   	13		1

4. Check continuity between main power window and door mirror switch harness connector and ground.

   Main power window and door mirror switch		—	Continuity
   Connector	Terminal
   D24	1	Ground	No
   	13

Is the inspection result normal?

YES>>

Inspection End.

NO>>

Repair or replace harness.

Rear Power Window Switch Lh Circuit Nissan Pathfinder Fifth generation

Component Function Check

CHECK FUNCTION

Check rear power window motor LH operation.

Is the inspection result normal?

YES>>

Inspection End.

NO>>

Refer to Diagnosis Procedure.

Diagnosis Procedure

CHECK REAR POWER WINDOW SWITCH LH CIRCUIT

1. Ignition switch OFF.

2. Disconnect rear power window motor LH connector and rear power window switch LH connector.

3. Check continuity between rear power window motor LH harness connector and rear power window switch LH harness connector.

   Rear power window motor LH		Rear power window switch LH		Continuity
   Connector	Terminal	Connector	Terminal
   D204	1	D208	2	Yes
   	2		3

4. Check continuity between rear power window switch LH harness connector and ground.

   Rear power window switch LH		—	Continuity
   Connector	Terminal
   D208	2	Ground	No
   	3

Is the inspection result normal?

YES>>

GO TO 2.

NO>>

Repair or replace harness.

CHECK REAR POWER WINDOW SWITCH LH

Check rear power window switch LH.

Refer to Component Inspection.

Is the inspection result normal?

YES>>

Inspection End.

NO>>

Replace rear power window switch LH. Refer to Removal and Installation.

Component Inspection

CHECK REAR POWER WINDOW SWITCH LH

1. Disconnect rear power window switch LH connector.

2. Check continuity between rear power window switch LH terminals under the following conditions:

   Rear power window switch LH		Condition	Continuity
   Terminals
   (+)	(-)
   3	5	NEUTRAL	No
   		UP	Yes
   2		NEUTRAL	No
   		DOWN	Yes

Is the inspection result normal?

YES>>

Inspection End.

NO>>

Replace rear power window switch LH. Refer to Removal and Installation.

Lin Communication Circuit Nissan Pathfinder R53

Diagnosis Procedure

CHECK BCM OUTPUT SIGNAL

1. Ignition switch ON.

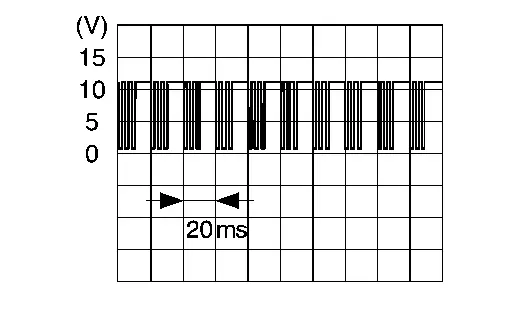

2. Check signal between BCM harness connector and ground using an oscilloscope.

   (+)		(−)	Signal (Reference value)
   BCM
   Connector	Terminal
   M18	24	Ground

Is the inspection result normal?

YES>>

GO TO 3.

NO>>

GO TO 2.

CHECK LIN COMMUNICATION CIRCUIT

1. Ignition switch OFF, and then wait for 3 minutes with driver door open.

   NOTE:

   • Even after ignition switch OFF, power is supplied to accessories for a certain amount of time by the AUTO ACC function.

   • When Nissan Pathfinder vehicle is operated while on standby, power may be supplied to accessories.

2. Disconnect following connectors:

   • BCM

   • Main power window and door mirror switch

   • Front power window motor LH

   • Front power window motor RH

   • Rear power window motors

   • Passenger door mirror control module (if equipped)

   • Moonroof motor assembly (if equipped)

   • Sunshade motor assembly (if equipped)

   Connecting parts other than power window, refer to Wiring Diagram.

3. Check continuity between BCM harness connector and ground.

   BCM		—	Continuity
   Connector	Terminal
   M18	24	Ground	No

Is the inspection result normal?

YES>>

Replace BCM. Refer to Removal and Installation.

NO>>

Repair or replace harness.

CHECK LIN COMMUNICATION SIGNAL

1. Ignition switch OFF, and then wait for 3 minutes with driver door open.

   NOTE:

   • Even after ignition switch OFF, power is supplied to accessories for a certain amount of time by the AUTO ACC function.

   • When Nissan Pathfinder vehicle is operated while on standby, power may be supplied to accessories.

2. Disconnect following connectors:

   • Main power window and door mirror switch

   • Front power window motor LH

   • Front power window motor RH

   • Rear power window motors

3. Ignition switch ON.

4. Check signal between main power window and door mirror switch harness connector, front power window motor LH harness connector, front power window motor RH harness connector, and rear power window motors harness connectors and ground using an oscilloscope.

   (+)			(−)	Signal (Reference value)
   Connector		Terminal
   Main power window and door mirror switch	D24	4	Ground
   Front power window motor LH	D9	6
   Front power window motor RH	D105	6
   Rear power window motor LH	D204	6
   Rear power window motor RH	D304	6

Is the inspection result normal?

YES>>

Inspection End.

NO>>

Main power window and door mirror switch: GO TO 4.

NO>>

Front power window motor LH: GO TO 5.

NO>>

Front power window motor RH: GO TO 6.

NO>>

Rear power window motors: GO TO 7.

CHECK LIN COMMUNICATION CIRCUIT (MAIN POWER WINDOW AND DOOR MIRROR SWITCH)

1. Ignition switch OFF.

2. Disconnect BCM connector.

3. Check continuity between BCM harness connector and main power window and door mirror switch harness connector.

   BCM		Main power window and door mirror switch		Continuity
   Connector	Terminal	Connector	Terminal
   M18	24	D24	4	Yes

Is the inspection result normal?

YES>>

Inspection End.

NO>>

Repair or replace harness.

CHECK LIN COMMUNICATION CIRCUIT (FRONT POWER WINDOW MOTOR LH)

1. Ignition switch OFF.

2. Disconnect BCM connector.

3. Check continuity between BCM harness connector and front power window motor LH harness connector.

   BCM		Front power window motor LH		Continuity
   Connector	Terminal	Connector	Terminal
   M18	24	D9	6	Yes

Is the inspection result normal?

YES>>

Inspection End.

NO>>

Repair or replace harness.

CHECK LIN COMMUNICATION CIRCUIT (FRONT POWER WINDOW MOTOR RH)

1. Ignition switch OFF.

2. Disconnect BCM connector.

3. Check continuity between BCM harness connector and front power window motor RH harness connector.

   BCM		Front power window motor RH		Continuity
   Connector	Terminal	Connector	Terminal
   M18	24	D105	6	Yes

Is the inspection result normal?

YES>>

Inspection End.

NO>>

Repair or replace harness.

CHECK LIN COMMUNICATION CIRCUIT (REAR POWER WINDOW MOTORS)

1. Ignition switch OFF.

2. Disconnect BCM connector.

3. Check continuity between BCM harness connector and rear power window motors harness connector.

   BCM		Rear power window motors			Continuity
   Connector	Terminal	Connector		Terminal
   M18	24	LH	D204	6	Yes
   		RH	D304

Is the inspection result normal?

YES>>

Inspection End.

NO>>

Repair or replace harness.
