Nissan Pathfinder: Basic Inspection - Distance Sensor Alignment ++

Work Procedure

Always perform the radar alignment after removing and installing or replacing the distance sensor.

Application Notice

Type	Description
TYPE 1	When using KV99112700 for radar alignment. Refer to Description.
TYPE 2	When using 1-20-2851-1 for radar alignment. Refer to Description.

TYPE 1

Description

OUTLINE OF RADAR ALIGNMENT PROCEDURE

• A 4-wheel vehicle alignment must be performed before proceeding with radar alignment procedure.

• Always perform the radar alignment after removing and installing or replacing the distance sensor.

WARNING:

Radio waves could adversely affect electric medical equipment. Those who use a pacemaker should contact the electric medical equipment manufacturer for the possible influences before use.



CAUTION:

The system does not operate normally unless the radar alignment is performed. Always perform it.



1. Set the target board (SST: KV99112700) to the correct position in front of the vehicle.

2. Set the radar alignment mode (“MILLIWAVE RADAR ADJUST” on “Work support”) with CONSULT, and then perform the adjustment according to the display. (Distance sensor automatically adjusts.)

CAUTIONARY POINT FOR RADAR ALIGNMENT PROCEDURE

CAUTION:

• For radar alignment procedure, choose a level location with a few meter of working space in front and surrounding the Nissan Pathfinder vehicle.

• Vehicle must be stationary and unoccupied during the whole alignment procedure.

• Any slight vibration during the alignment procedure can cause the test to fail. If this happens, you will have to restart the alignment process.

• The ignition switch must be in the ON position.

• The battery voltage must not fall below 12 volts during the whole alignment procedure. Failure to maintain adequate battery voltage will cause the test to fail. If this happens, you will have to restart the alignment process.

• The target board must be set in front of the Nissan Pathfinder vehicle facing the sensor.

• Adjust the radar alignment with CONSULT. (The radar alignment procedure cannot be adjusted without CONSULT.)

• Never enter the Nissan Pathfinder vehicle during radar alignment.

• Never block the area between the radar and the target board at any time during the alignment process.

• Accurate steering wheel setting is crucial. Once set, do not disturb the steering wheel for the remainder of the alignment procedure.

• For proper system operation and adjustment, all Nissan Pathfinder vehicle wheels must be of the same size.



Preparation

CHECK EXTRIOR

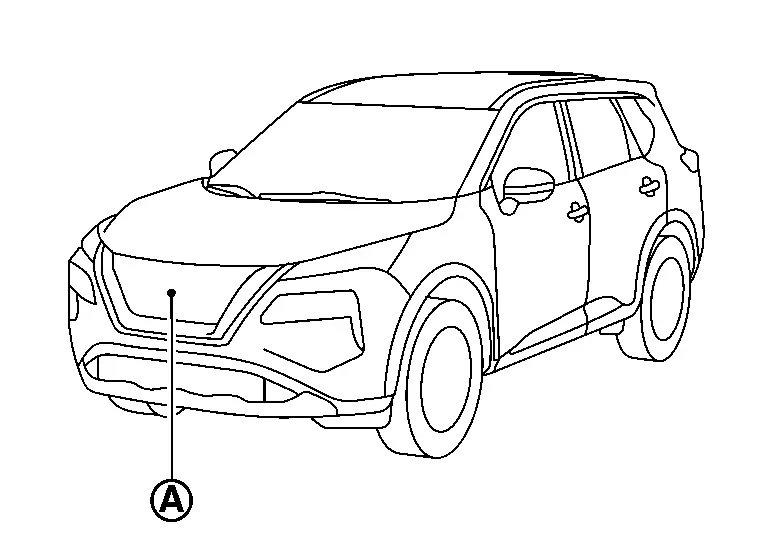

Check front bumper, front grille, and active grille shutter for damage.

Does damage exist?

YES>>

Repair or replace affected components. Refer to Removal and Installation (front bumper), Removal and Installation (front grille), or Removal and Installation (active grille shutter), and then GO TO 2.

NO>>

GO TO 2.

CHECK DISTANCE SENSOR

Check distance sensor and distance sensor sensor bracket for damage and installation condition (installation position, properly tightened).

Is the inspection result normal?

YES>>

Repair or replace the malfunctioning parts. Refer to Removal and Installation, and then GO TO 3.

NO>>

GO TO 3.

ADVANCE PREPARATION FOR RADAR ALIGNMENT

1. Adjust all tire pressure to the specified value.

2. Empty the Nissan Pathfinder vehicle. (Remove any luggage from the passenger compartment, trunk room, etc.)

3. Shift the selector lever to “P” position, and release the parking brake.

4. Fully fill the fuel tank, and then check that the coolant and oils are filled up to correct level.

5. Clean the distance sensor area of the front bumper grille.





>>

GO TO 4.

RADAR ALIGNMENT OPERATION AREA

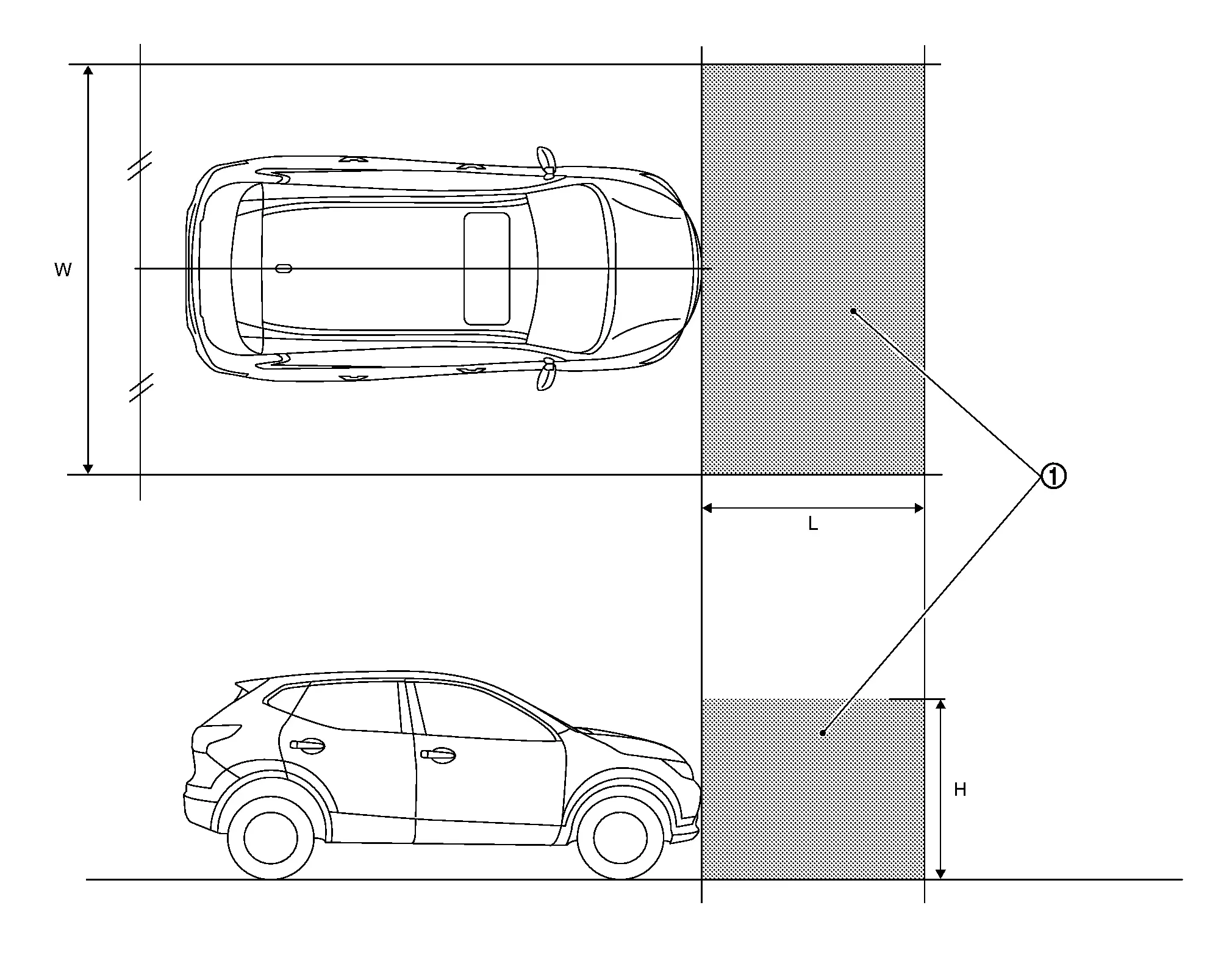

Position the Nissan Pathfinder vehicle in a place that is level and where area can be secured.

W	: 3000 mm (118.11 in)
L	: 2000 mm (78.74 in)
H	: 2000 mm (78.74 in)

NOTE:

is a no object zone.





>>

Go to Setting The Target Board.

Setting The Target Board

Accurate adjustment of the radar alignment requires that the target board be accurately positioned.

CAUTION:

If the radar alignment is adjusted with the target board in the incorrect position, the AEB/I-FCW systems do not function normally.



TARGET BOARD HEIGHT ADJUSTMENT

Adjust the base of ICC target board to approximately 410 mm (16.17 in) from the ground.



>>

GO TO 2.

PREPARATION OF SETTING TARGET BOARD (1)

“A”–“E” (“C”–“F”)

: 2000 mm (78.7 in)

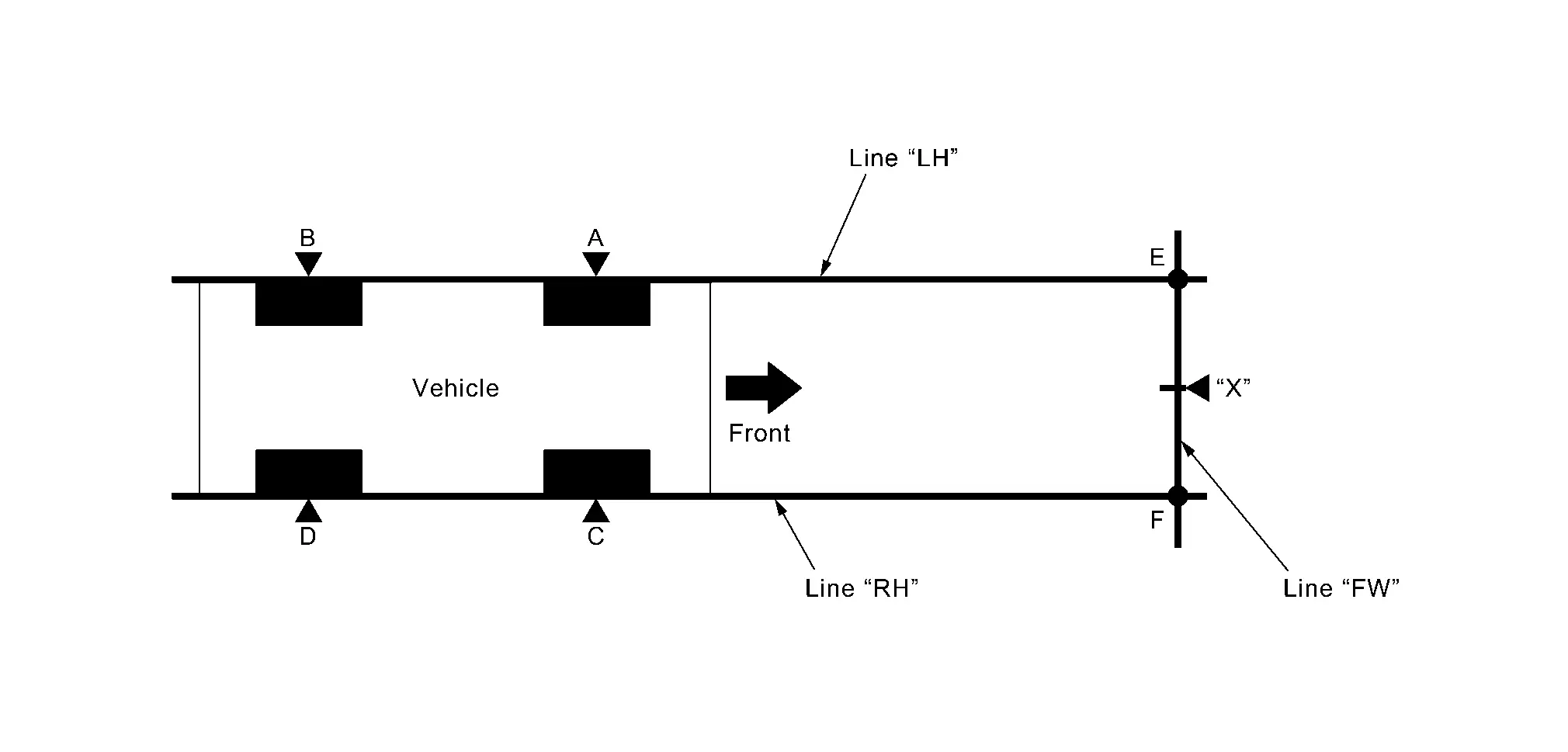

1. Mark points “A”, “B”, “C” and “D”at the center of the lateral surface of each wheels.



   NOTE:

   Hang a string with a cone from the fender so as to pass through the center of wheel, and then mark a point at the center of the lateral surface of the wheel.



2. Draw line “LH” passing through points “A” and “B” on the left side of Nissan Pathfinder vehicle.

   NOTE:

   Approximately 2 m (6.56 ft) or more from the front end of Nissan Pathfinder vehicle.



3. Mark point “E” on the line “LH” at the positions 2000 mm (78.7 in) from point “A”.

4. Draw line “RH” passing through points “C” and “D” on the right side of Nissan Pathfinder vehicle in the same way as step 2.

   NOTE:

   Approximately 2 m (6.56 ft) or more from the front end of Nissan Pathfinder vehicle.



5. Mark point “F” on the line “RH” at the positions 2000 mm (78.7 in) from point “C”.

6. Draw line “FW” passing through the points “E” and “F” on the front side of Nissan Pathfinder vehicle.

7. Mark point “X” at the center of point “E” and “F” on the line “FW”.

   CAUTION:

   Make sure that “E” to “X” is equal to “F” to “X”.





>>

GO TO 3.

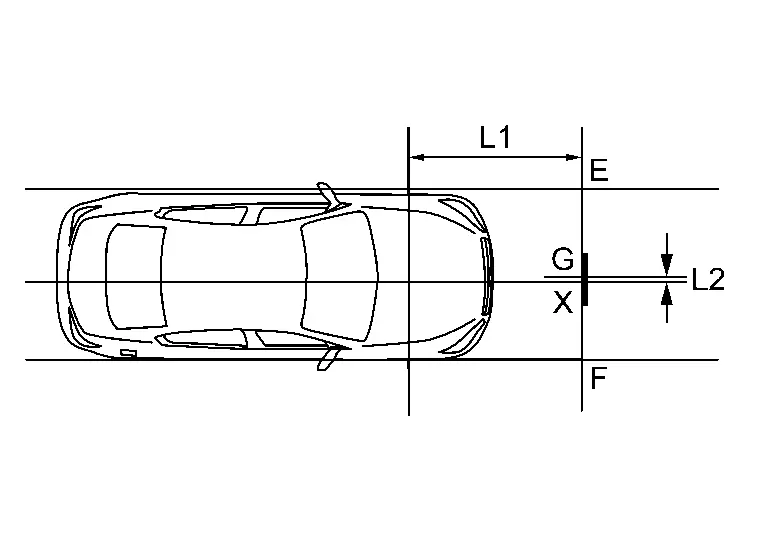

SETTING TARGET BOARD

Place the center of target board on point “G” at line “E-F” and install the target board.

CAUTION:

For performing the radar alignment correctly, securely install (target board) to be parallel with the “E-F” line.



L1	: 2000 mm (78.7 in)
L2	: 0 mm (0 in)



>>

GO TO 4.

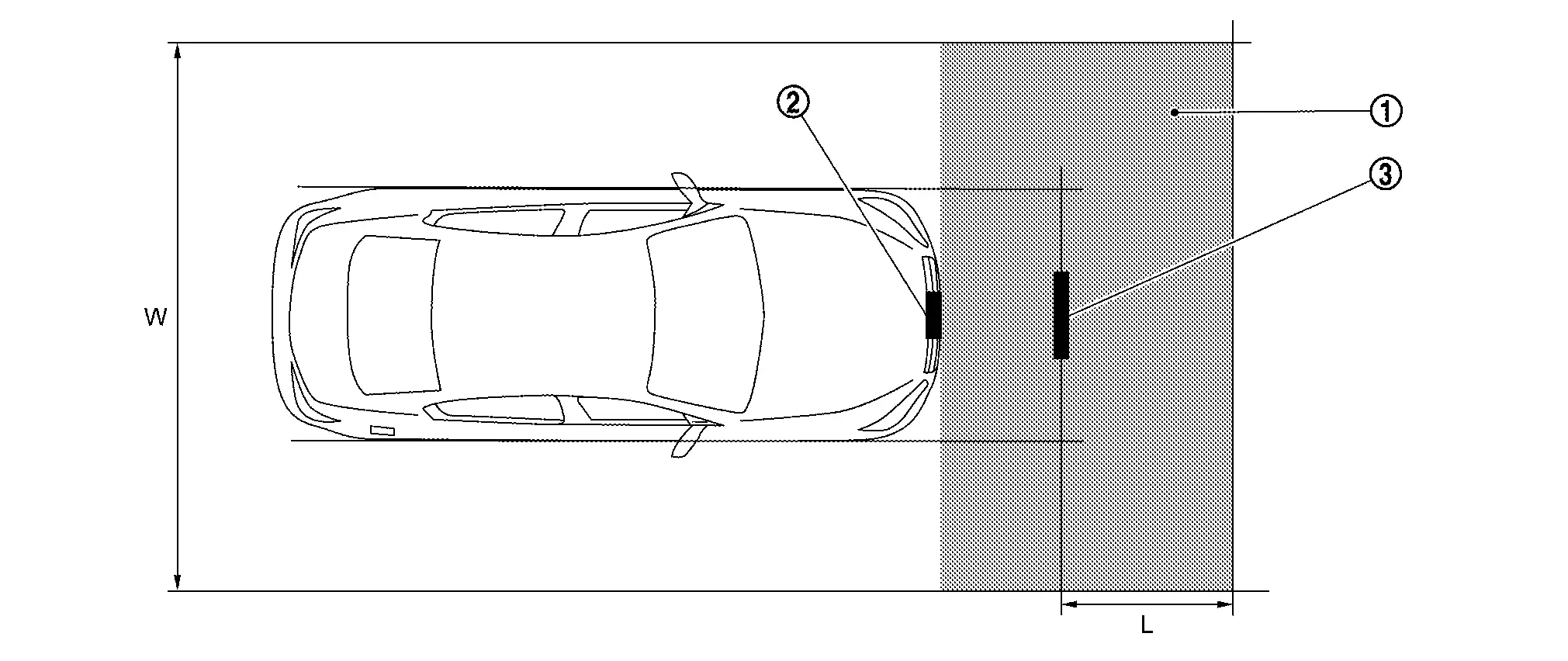

CHECK THE TARGET BOARD INSTALLATION AREA

Do not place anything other than target board in the space shown in the figure (view from top).

	No object zone		Distance sensor		Target board
W.	3000 mm (118.11 in)	L.	1500 mm (59.06 in)



>>

Go to Radar Alignment.

Radar Alignment

The radar alignment is performed automatically with CONSULT.

CAUTION:

Perform all necessary work for radar alignment until the adjustment completes as shown in the procedure. If the procedure does not complete, the AEB/ProPILOT Assist/I-FCW systems are inoperable.



SELECT WORK SUPPORT ITEM

1. Start the engine.

2. Connect CONSULT and select “Work support” of “LASER/RADAR”.

3. Select “MILLIWAVE RADAR ADJUST”.

NOTE:

Confirm the following items;

• The target should be accurately placed.

• The Nissan Pathfinder vehicle should be stopped.



Is the radar alignment start screen displayed?

YES>>

GO TO 2.

NO–1 (When "Nissan Pathfinder Vehicle is moving" is displayed)>>

Stop the vehicle and touch "Retry" to perform radar alignment again.

NO–2 (When "System malfunction is detected" is displayed)>>

GO TO 4.

NO–3 (When error message other than the above is displayed)>>

GO TO 3.

START RADAR ALIGNMENT

Select “Start” after the conditions displayed on CONSULT are satisfied.

CAUTION:

Never select “Start” when the target is not accurately placed.



NOTE:

It may take several 10s of seconds until the result is displayed.



Is the result normal?

YES>>

RADAR ALIGNMENT END

NO–1 (When "Nissan Pathfinder Vehicle is moving" is displayed)>>

Stop the vehicle and touch "Retry" to perform radar alignment again.

NO–2 (When "System malfunction is detected" is displayed)>>

GO TO 4.

NO–3 (When error message other than the above is displayed)>>

GO TO 3.

CHECK EXECUTION CONDITION

Check if the following conditions are satisfied.

• The target should be accurately placed.

• The Nissan Pathfinder vehicle should be stopped.

Is the result normal?

YES>>

GO TO 4.

NO>>

Check the condition and perform the radar alignment again.

CHECK SELF-DIAGNOSIS RESULTS OF LASER/RADAR

1. Perform "All DTC Reading".

2. Check if the DTC is detected on the self-diagnosis results of LASER/RADAR. Refer toDTC Index.

3. Perform trouble diagnosis for the detected DTC, and repair or replace the identified malfunctioning parts.

4. Ignition switch OFF to ON, and perform the radar alignment again.



>>

WORK END.

TYPE 2

Description

OUTLINE OF RADAR ALIGNMENT PROCEDURE

• A 4-wheel vehicle alignment must be performed before proceeding with radar alignment procedure.

• Always perform the radar alignment after removing and installing or replacing the distance sensor.

• Always perform the radar alignment if rear axle toe settings have been made.

WARNING:

Radio waves could adversely affect electric medical equipment. Those who use a pacemaker should contact the electric medical equipment manufacturer for the possible influences before use.



CAUTION:

The system does not operate normally unless the distance sensor is aligned properly.



1. Required tools, refer to Required Tools.

2. Preparation, refer to Preparation.

3. Nissan Pathfinder Vehicle set up, refer to Vehicle Set Up.

4. Setting the target board, refer to Setting The Target Board.

5. Distance sensor adjustment, refer to Distance Sensor Adjustment.

CAUTIONARY POINT FOR RADAR ALIGNMENT PROCEDURE

CAUTION:

• For radar alignment procedure, choose a level location with a few feet of working space in front and surrounding the Nissan Pathfinder vehicle.

• Vehicle must be stationary and unoccupied during the whole alignment procedure.

• Any slight vibration during the alignment procedure can cause the test to fail. If this happens, you will have to restart the alignment process.

• The battery voltage must not fall below 12 volts during the whole alignment procedure. Failure to maintain adequate battery voltage will cause the test to fail. If this happens, you will have to restart the alignment process.

• The target board must be set in front of the Nissan Pathfinder vehicle facing the sensor.

• Adjust the radar alignment with CONSULT. (The radar alignment procedure cannot be adjusted without CONSULT.)

• Never enter the Nissan Pathfinder vehicle during radar alignment.

• Never block the area between the radar and the target board at any time during the alignment process.

• Accurate steering wheel setting is crucial. Once set, do not disturb the steering wheel for the remainder of the alignment procedure.

• For proper system operation and adjustment, all Nissan Pathfinder vehicle wheels must be of the same size.



Required Tools

The following tools are necessary to perform distance sensor alignment:

• Radar Sensor Aiming Kit 1–20–2851–1 Kit includes the following:

a) Target Board (Fixture)

b) Laser assembly

c) Rear Stand

Use kit 1–20–2851–1 with a self-centering wheel adapter (e.g. 1–20–2722–1–IF, Hunter 20–3339–1 or equivalent).

NOTE:

Tools 1–20–2721–1–IF, 1–20–2722–1–IF and J-50808 have been superseded and are no longer available, but may still be used for distance sensor alignment.

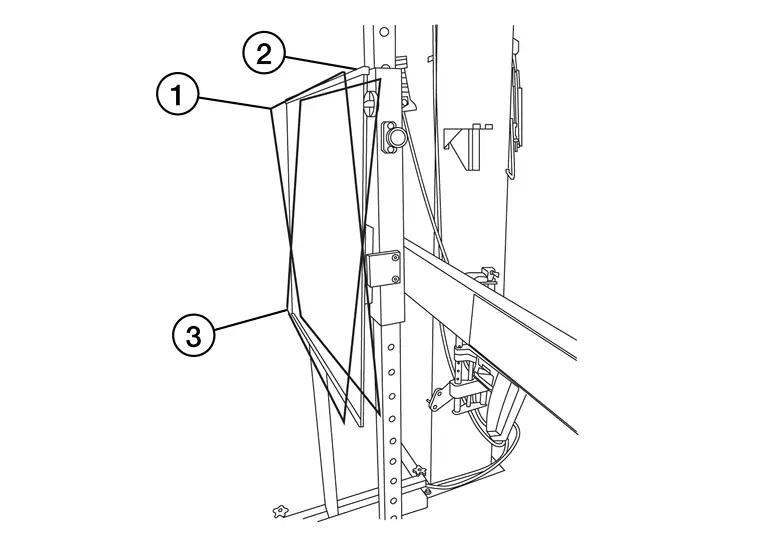

• Target board.



  1. : Position 1, with top tilted 2° toward Nissan Pathfinder vehicle (Not used).

  2. : Position 2, vertical.

  3. : Position 3, with top tilted 2° away from Nissan Pathfinder vehicle (Not used).

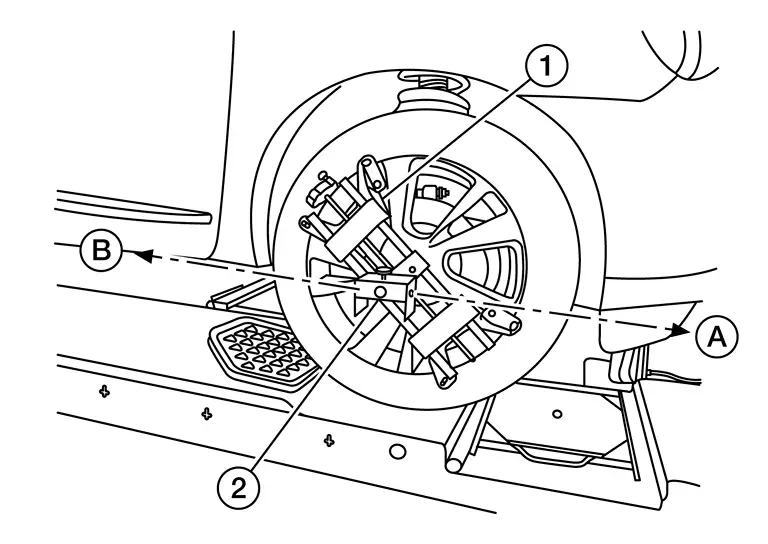

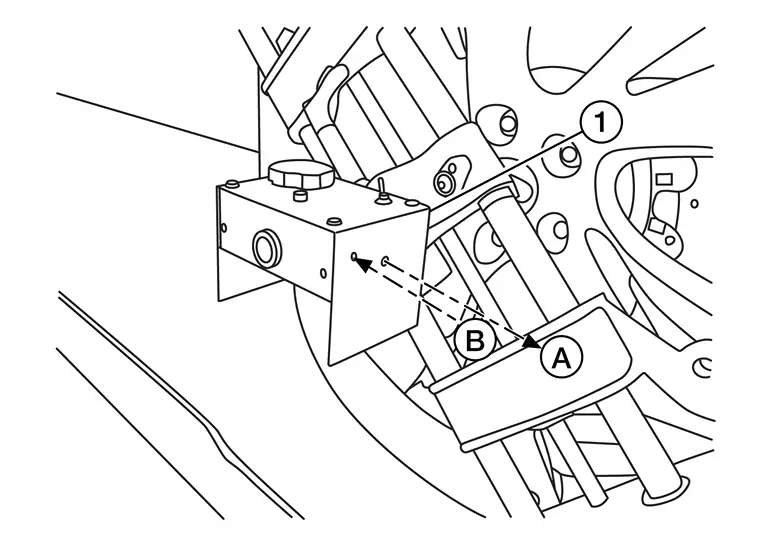

• Hunter self-centering wheel adapter [shown with laser assembly installed] (Hunter alignment rack head may be substituted).



  NOTE:

  Directional arrows and are shown to illustrate the direction of the laser assembly beams.

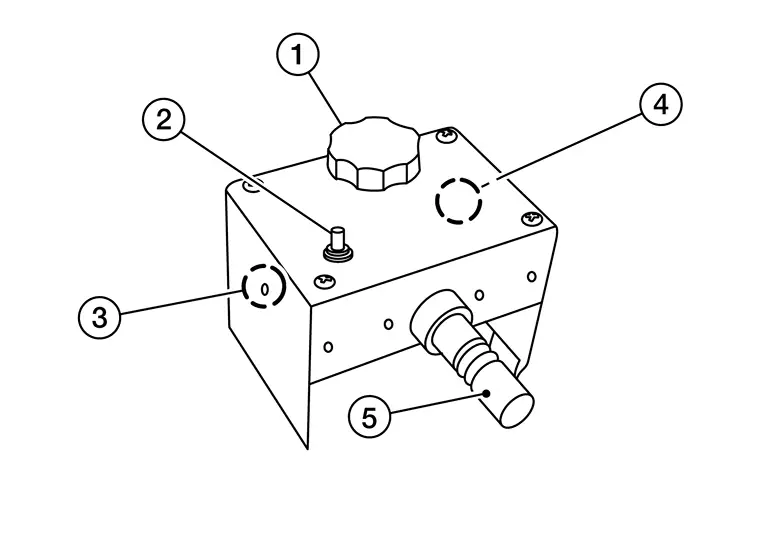

• Laser assembly (with bi-directional laser beam) as shown in the illustration.



  1. Tightening knob

  2. Power ON/OFF button

  3. Front laser beam opening

  4. Rear laser beam opening

  5. Attaching shaft

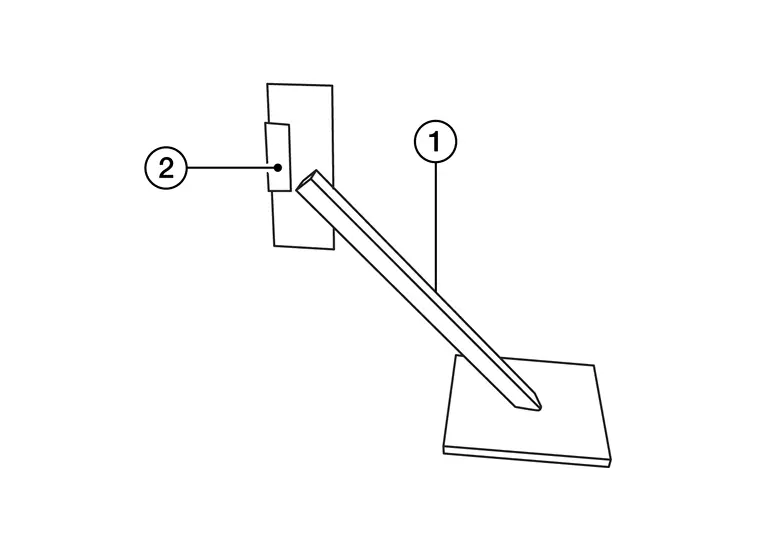

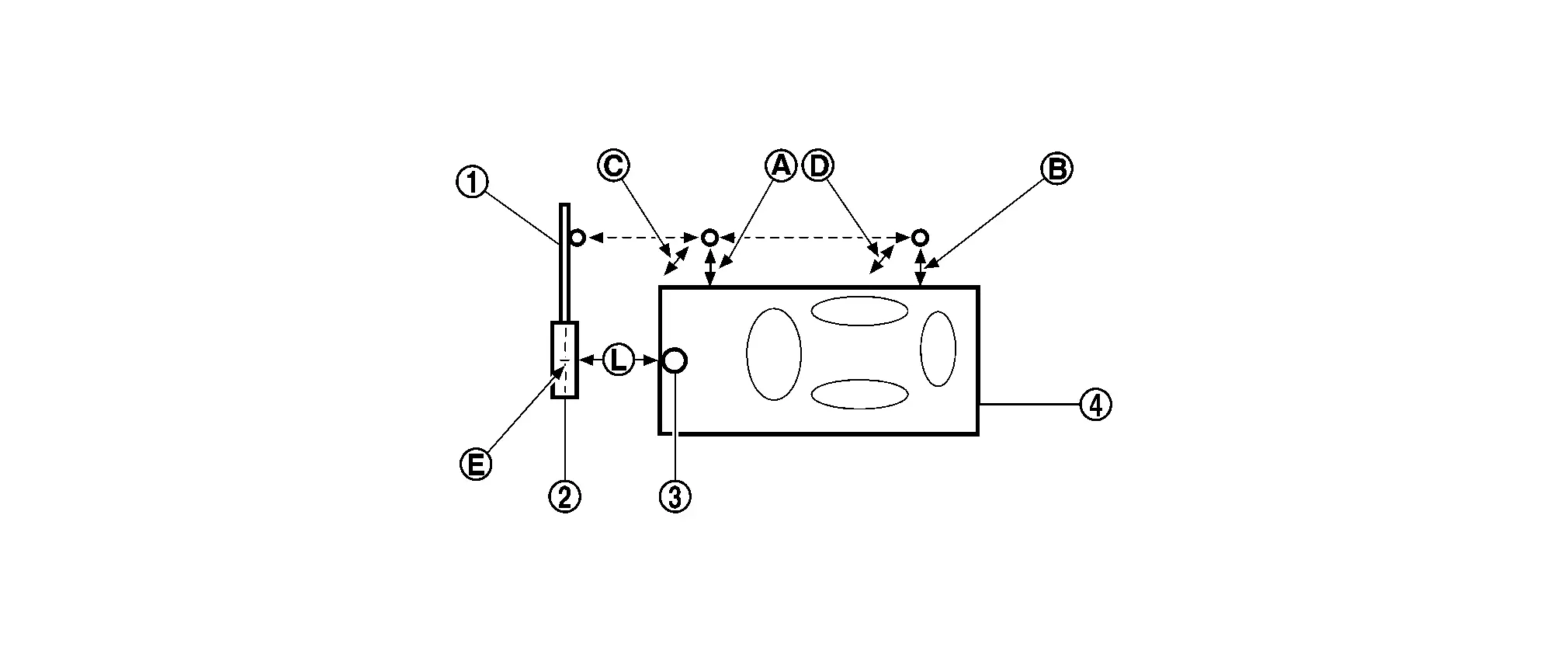

• Rear stand as shown in the illustration.



  1. Rear stand

  2. Laser signal reception plate

• Distance chain (not shown)

Preparation

CHECK EXTRIOR

Check front bumper, front grille, and active grille shutter for damage.

Does damage exist?

YES>>

Repair or replace affected components. Refer to Removal and Installation (front bumper), Removal and Installation (front grille), or Removal and Installation (active grille shutter), and then GO TO 2.

NO>>

GO TO 2.

CHECK DISTANCE SENSOR

Check distance sensor and distance sensor sensor bracket for damage and installation condition (installation position, properly tightened).

Is the inspection result normal?

YES>>

Repair or replace the malfunctioning parts. Refer to Removal and Installation, and then GO TO 3.

NO>>

GO TO 3.

ADVANCE PREPARATION FOR RADAR ALIGNMENT PROCEDURE

1. Adjust all tire pressure to the specified value.

2. Empty the Nissan Pathfinder vehicle. (Remove any luggage from the passenger compartment, luggage room, etc.)

3. Shift the selector lever to “P” position, and release the parking brake.

4. Fully fill the fuel tank, and then check that the coolant and oils are filled up to correct level.

5. Clean the distance sensor area of the front bumper grille.





>>

Refer to Nissan Pathfinder Vehicle Set Up.

Vehicle Set Up

Accurate adjustment of the radar alignment requires that the target board, wheel adapter, laser assembly, and rear stand be properly positioned.

CAUTION:

If the radar alignment is adjusted with the target board, wheel adapter, laser assembly, or rear stand in the incorrect position, the AEB/I-FCW systems will not function properly or the alignment procedure may not be completed successfully.



PREPOSITION TARGET BOARD

NOTE:

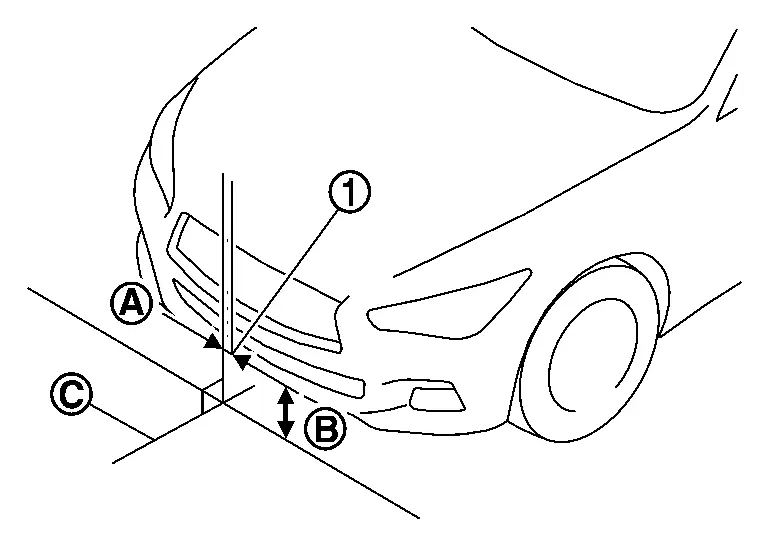

• To identify the sensor wave axis center, measure the point as shown in the illustration.



  A	: 0 mm (0 in)
  B	: 410 mm (16.17 in)
  C	: Nissan Pathfinder Vehicle center

• Target board setting must be in the center position. (Position 2)

• Attaching the distance sensor alignment kit attachment board to the target board.

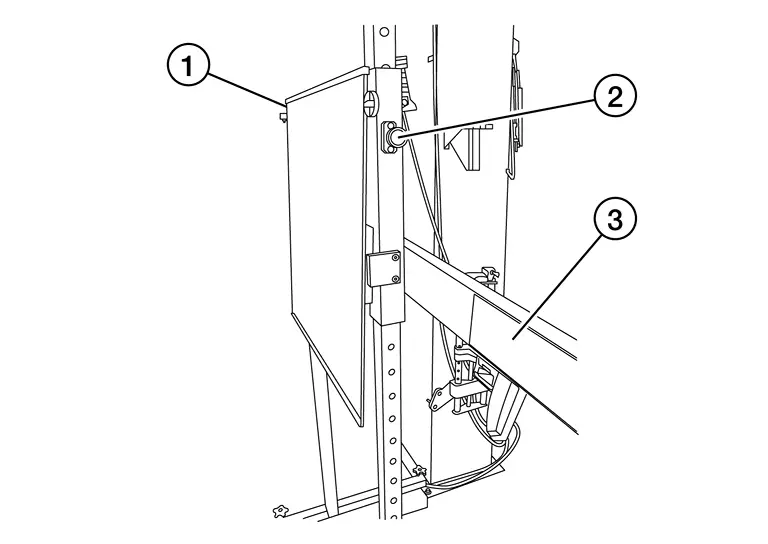

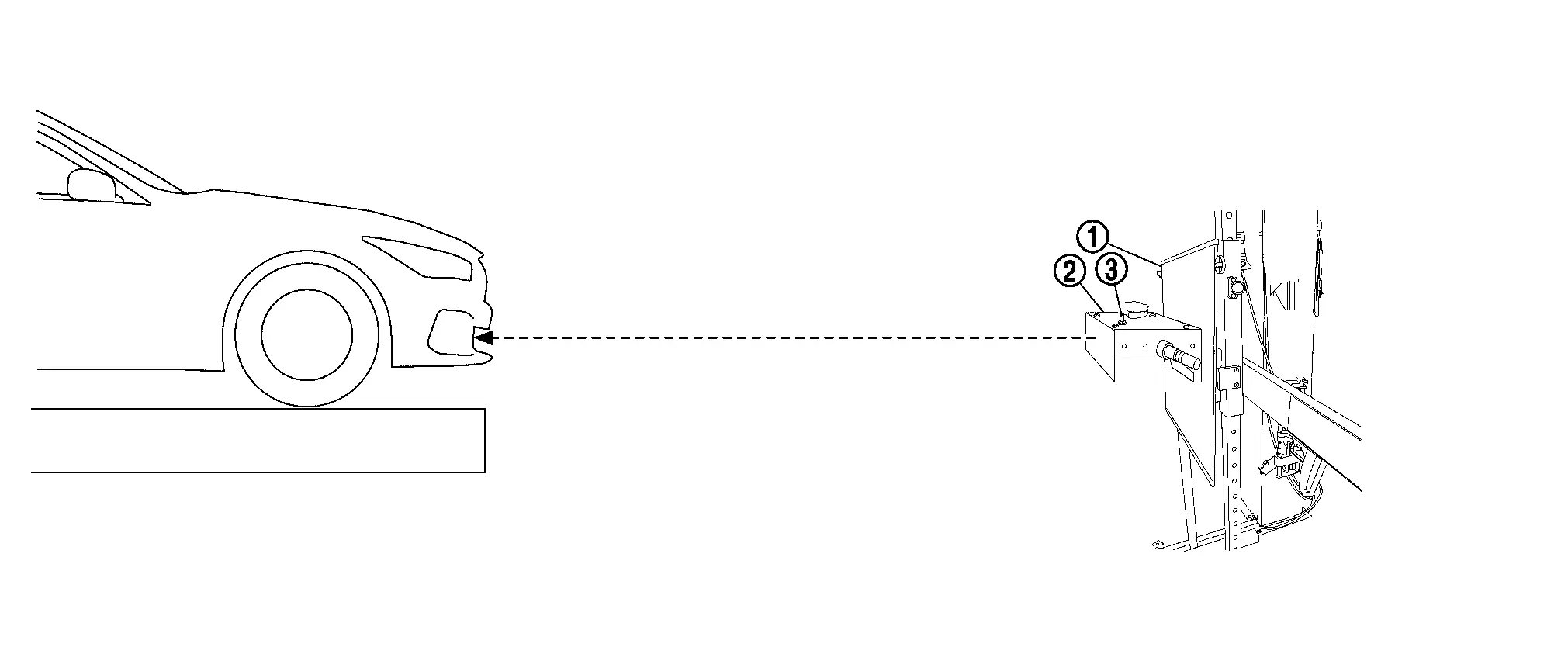

1. Position the target board in front facing the right front side of the Nissan Pathfinder vehicle:



   1. Place the marked center of the target board 813.6 mm (32.03 in) ± 50 mm (1.97 in) facing the distance sensor.

   2. Adjust the height of the target board using the adjustable nut to achieve the proper height. The up/down tolerance is ± 30 mm (1.18 in).

   3. Adjust the target board lateral position aligning the marked center of the board horizontally with the center of the distance sensor. The right/left tolerance is ± 80 mm (3.15 in).

2. Extend the machined arm of the target board exposing the reflective surface to the right front side of the Nissan Pathfinder vehicle.

3. Place one side of the laser assembly flush against the center of the target board to assist in the positioning.



4. Turn the laser assembly ON allowing the laser beam to emit through the opening of the laser assembly toward the center of the distance sensor.

5. Move the target board as necessary so that center of target board aligns with center of distance sensor.

6. Turn the laser assembly OFF when done.

Are using Hunter alignment equipment?

YES>>

Refer to Hunter’s equipment instructions for complete Nissan Pathfinder vehicle set up and target board setting. Then, refer to Distance Sensor Adjustment.

NO>>

GO TO 2.

INSTALLING LASER ASSEMBLY

NOTE:

• Insure the steering wheel is positioned in the center straight forward position.

• Insure all 4 Nissan Pathfinder vehicle wheels do not contain any physical damage.



1. Install the wheel adapter on the right front wheel.

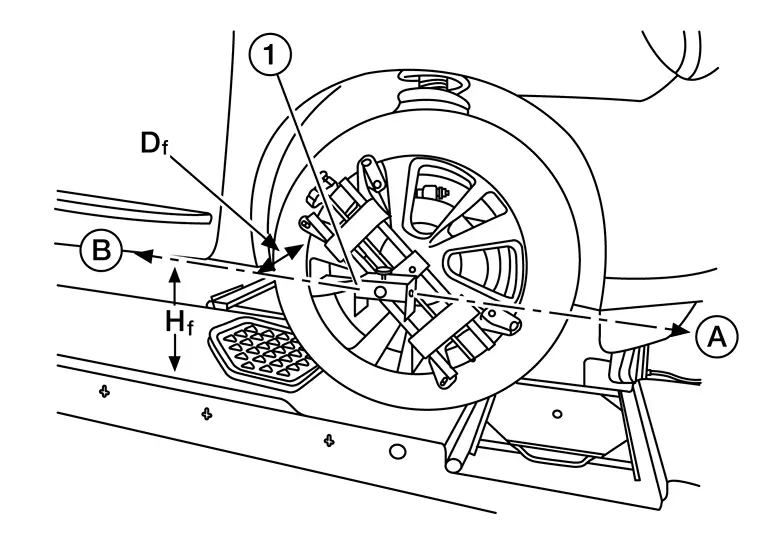

2. Mount the laser assembly to the wheel adapter as shown in the figure.

   NOTE:

   When the ignition switch is turned ON, the front laser signal will be emitted toward the front target board, and the rear laser signal will be emitted toward the rear of the Nissan Pathfinder vehicle.





>>

GO TO 3.

SETTING UP REAR STAND

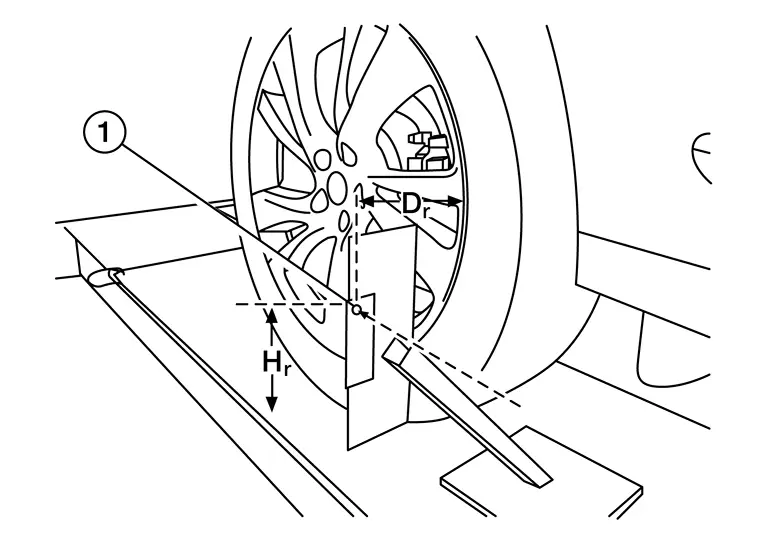

1. Place the rear stand next to the right rear tire as shown in the figure.



2. Turn the laser assembly ON allowing the laser beam to be emitted through the front and rear laser assembly openings.

3. Measure and record the distance (D_r) between the edge of the right rear wheel and the laser beam on the rear stand (horizontal line).

4. Measure and record the height (H_r) between the laser beam on the rear stand and ground level (vertical line).

5. Measure and record the distance (D_f) between the edge of the right front wheel and the laser beam signal/opening on the laser assembly (horizontal line).



6. Measure and record the height (H_f) between the laser beam signal/opening on the laser assembly and ground level (vertical line).

   NOTE:

   • Horizontal adjustment [front distance (D_f) and rear distance (D_r)] is accomplished by slowly turning the steering wheel until the 2 distances are the same.

   • Vertical adjustment [front height (H_f) and rear height (H_r)] is accomplished by rotating the laser assembly around its axis until the two heights are the same.

   • Directional arrows and are shown to illustrate the direction of the laser assembly beams.



7. Adjust laser beam as necessary until the two distances match and the two heights match.

   NOTE:

   Must be verify both horizontal and vertical adjustments anytime one adjustment is made.





>>

Refer to Setting The Target Board.

Setting The Target Board

Accurate adjustment of the radar alignment requires that the target board be accurately positioned.

CAUTION:

If the radar alignment is adjusted with the target board in the incorrect position, the AEB/I-FCW systems will not function properly or the alignment procedure may not be completed successfully.



TARGET BOARD FINAL SETTING

1. With the target board arm extended, the laser beam emitted by the laser assembly will be reflected back toward the laser assembly.



   NOTE:

   When adjusted properly, reflected laser beam must align with emitted laser beam and the two laser beams will be seen as one.



2. Rotate the target board to achieve the necessary horizontal adjustment.

3. Adjust the target board leveling screws to achieve the necessary vertical adjustment.

4. The figure shown illustrates the laser beam emitted by the laser assembly and its reflection off of the target board arm.





>>

GO TO 2.

CHECK THE POSITION OF THE TARGET BOARD

Do not place anything other than the target board in the space shown in front of the Nissan Pathfinder vehicle (view from top).

	Target board arm		Target board		Distance sensor
	Nissan Pathfinder Vehicle
	Distance between front wheel and laser beam (Df)		Distance between rear wheel and laser beam (Dr)		Height between front laser beam and ground (Hf)
	Height between rear laser beam and ground (Hr)		Target board center position		1010 - 1110 mm (39.76 - 43.7 in)



>>

Refer to Distance Sensor Adjustment.

Distance Sensor Adjustment

The radar alignment is performed automatically with CONSULT.

CAUTION:

Perform all necessary work for radar alignment until the adjustment completes as shown in the procedure. If the procedure does not complete, the AEB/ProPILOT Assist/I-FCW systems are inoperable.



SELECT WORK SUPPORT ITEM

1. Start the engine.

2. Connect CONSULT and select “Work support” of “LASER/RADAR”.

3. Select “MILLIWAVE RADAR ADJUST”.

NOTE:

Confirm the following items;

• The target should be accurately placed.

• The Nissan Pathfinder vehicle should be stopped.



Is the radar alignment start screen displayed?

YES>>

GO TO 2.

NO–1 (When "Nissan Pathfinder Vehicle is moving" is displayed)>>

Stop the vehicle and touch "Retry" to perform radar alignment again.

NO–2 (When "System malfunction is detected" is displayed)>>

GO TO 4.

NO–3 (When error message other than the above is displayed)>>

GO TO 3.

START RADAR ALIGNMENT

Select “Start” after the conditions displayed on CONSULT are satisfied.

CAUTION:

Never select “Start” when the target is not accurately placed.



NOTE:

It may take several 10s of seconds until the result is displayed.



Is the result normal?

YES>>

RADAR ALIGNMENT END

NO–1 (When "Nissan Pathfinder Vehicle is moving" is displayed)>>

Stop the vehicle and touch "Retry" to perform radar alignment again.

NO–2 (When "System malfunction is detected" is displayed)>>

GO TO 4.

NO–3 (When error message other than the above is displayed)>>

GO TO 3.

CHECK EXECUTION CONDITION

Check if the following conditions are satisfied.

• The target should be accurately placed.

• The Nissan Pathfinder vehicle should be stopped.

Is the result normal?

YES>>

GO TO 4.

NO>>

Check the condition and perform the radar alignment again.

CHECK SELF-DIAGNOSIS RESULTS OF LASER/RADAR

1. Perform "All DTC Reading".

2. Check if the DTC is detected on the self-diagnosis results of LASER/RADAR. Refer toDTC Index.

3. Perform trouble diagnosis for the detected DTC, and repair or replace the identified malfunctioning parts.

4. Ignition switch OFF to ON, and perform the radar alignment again.



>>

WORK END.
