Driver Assistance System

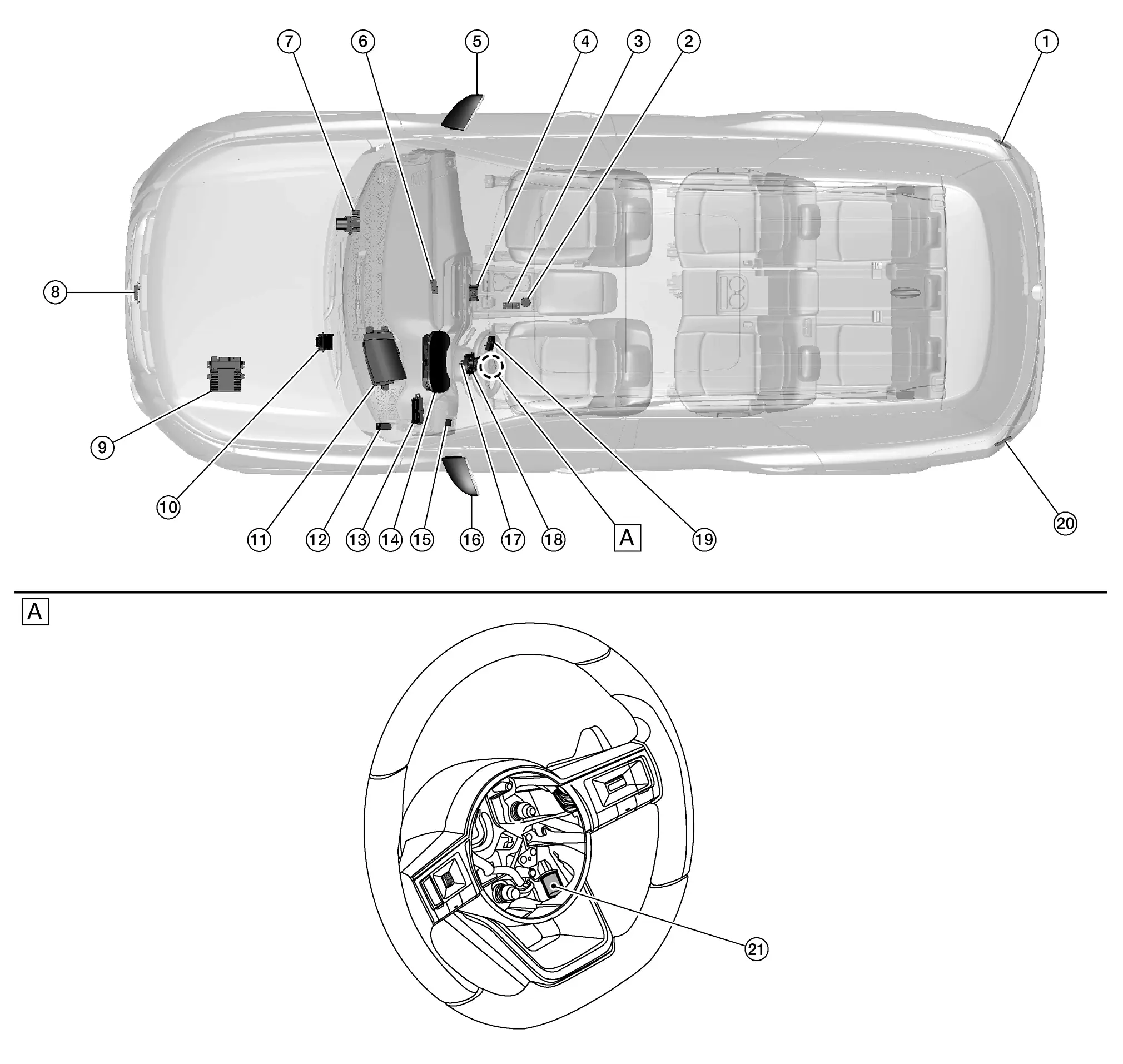

Component Parts Location

A.	View with steering wheel and driver air bag module removed

No.	Component	Description
1.	Side radar RH	Refer to Side Radar LH/RH.
2.	Drive mode select switch	Transmits the drive mode select switch status signal to BCM. BCM transmits the signal to ADAS control unit 2 via CAN communication. Refer to Component Parts Location detailed component location.
3.	Parking brake switch	Transmits parking brake switch operation signal to chassis control module. Refer to Component Parts Location for detailed component location.
4.	Front camera unit	Refer to Front Camera Unit.
5.	Door mirror RH [BSW (Blind Spot warning) indicator RH]	Refer to BSW Indicator LH/RH.
6.	ADAS (Advanced Driver Assistance System) control unit 2	Control each system, based on CAN communication and ITS communication signals received from each control unit. Transmits signals necessary for control between CAN communication and ITS communication. Refer to Component Parts Location for detailed component location.
7.	ABS (Anti-lock Braking System) actuator and electric unit (control unit)	Transmits the Nissan Pathfinder vehicle speed signal to ADAS control unit 2 via CAN communication. Refer to Component Parts Location for detailed component location.
8.	Distance sensor	Refer to Distance Sensor .
9.	ECM (Engine Control Module)	Transmits the accelerator pedal position signal, brake pedal position switch signal, stop lamp switch signal, ProPILOT Assist steering switch signal, etc. to ADAS control unit 2 via CAN communication. Refer to Component Parts Location for detailed component location.
10.	TCM (Transmission Control Module)	Transmits the shift position signal to ADAS control unit 2 via CAN communication. Refer to Component Parts Location for detailed component location.
11.	Head Up Display unit (if so equipped)	Refer to Component Parts Location (FULL TFT METER) or Component Parts Location (7 INCH INFORMATION DISPLAY) for detailed component location.
12.	Chassis control module	Transmits the drive mode signal to ADAS control unit 2 via CAN communication. Refer to Component Parts Location for detailed component location.
13.	BCM (Body Control Module)	Transmits the turn indicator signal and position light request signal to ADAS control unit 2 via CAN communication. Refer to Component Part Location for detailed component location.
14.	Combination meter	Refer to Component Parts Location (FULL TFT METER) or Component Parts Location (7 INCH INFORMATION DISPLAY) for detailed component location.
15.	Steering assist switch	Transmits steering assist switch signal to ADAS control unit 2. Refer to Component Parts Location for detailed component location.
16.	Door mirror LH [BSW (Blind Spot Warning) indicator LH]	Refer to BSW Indicator LH/RH.
17.	Steering angle sensor	Measures the rotation amount, rotation speed, and rotation direction of steering wheel, and then transmits them to ADAS control unit 2 via CAN communication. Refer to Component Parts Location for detailed component location.
18.	Combination switch (spiral cable)	Provides a pass-through for the ProPILOT Assist steering switch signal from the steering switch to the ECM.
19.	ProPILOT/ProPILOT Assist steering switch	ProPILOT/ProPILOT Assist steering switch allows the ON/OFF of the Intelligent cruise control an the settings of a Nissan Pathfinder vehicle speed and distance between vehicles. ProPILOT/ProPILOT Assist steering switch signal is transmitted to ECM. ECM transmits the signal to the ADAS control unit 2 via CAN communication. Refer to Component Parts Location for detailed component location.
20.	Side radar LH	Refer to Side Radar LH/RH.
21.	Steering vibration motor	Refer to Steering Vibration Motor.

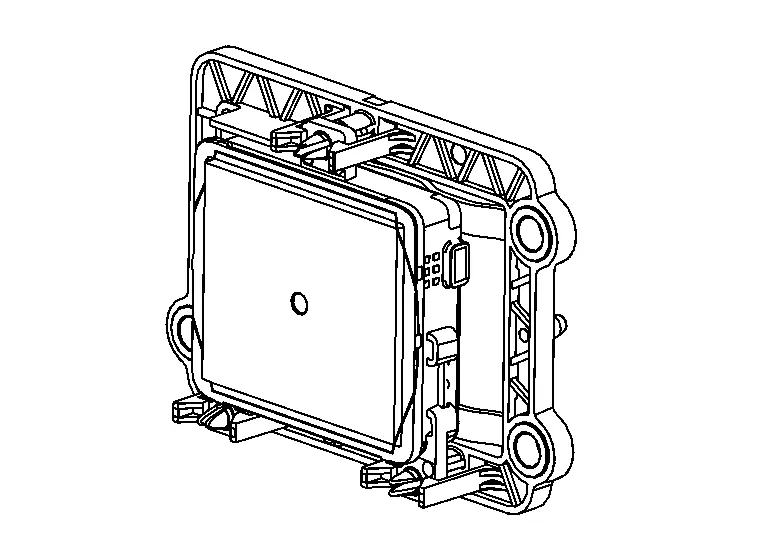

Distance Sensor

FUNCTIONS WITHIN THE SYSTEM

Distance sensor transmits the presence/absence of vehicle ahead and the distance from the Nissan Pathfinder vehicle to ADAS control unit 2 via CAN communication.

INDIVIDUAL FUNCTIONS WITHIN THE SYSTEM

Distance sensor detects a vehicle ahead by using millimeter waves.
Distance sensor detects radar reflected from a Nissan Pathfinder vehicle ahead by irradiating radar forward and calculates a distance from the vehicle ahead and relative speed, based on the detected signal.

INDIVIDUAL OPERATION

AEB: System Description
ProPILOT Assist: System Description
I-FCW: System Description
ICC: System Description

PARTS LOCATION

Refer to Component Parts Location.

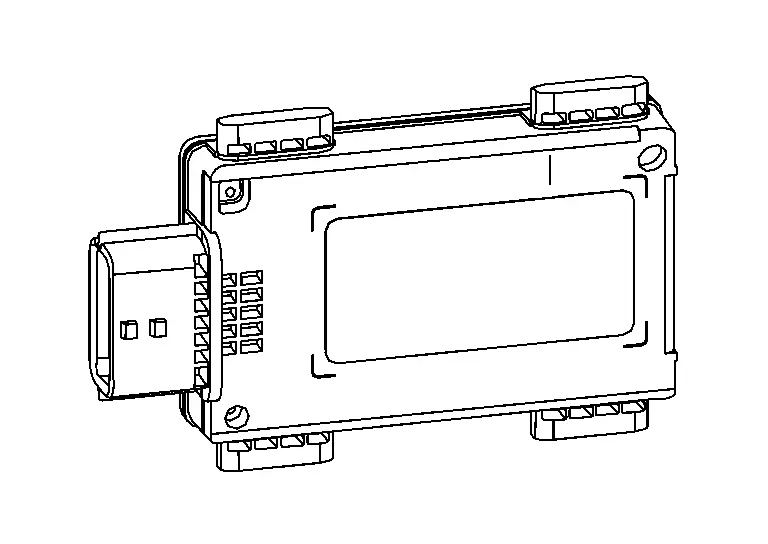

Side Radar LH/RH

FUNCTIONS WITHIN THE SYSTEM

Connected with the ADAS control unit 2 via CAN communication, the side radar transmits a Nissan Pathfinder vehicle detection signal.
Transmits an indicator operation signal to the BSW indicator LH/RH.
Side radar detects Nissan Pathfinder vehicle in the detection zone, and controls following systems.
- BSW
- I-BSI
- RCTA

INDIVIDUAL FUNCTIONS WITHIN THE SYSTEM

The side radar detects other vehicles beside own vehicle in an adjacent lane.
Since side radar RH and side radar LH have the same specifications, side radar RH has the right/left switching signal circuit for identification.

INDIVIDUAL OPERATION

BSW: Refer to System Description.
I-BSI: Refer to System Description.
RCTA: Refer to System Description.

PARTS LOCATION

Refer to Component Parts Location.

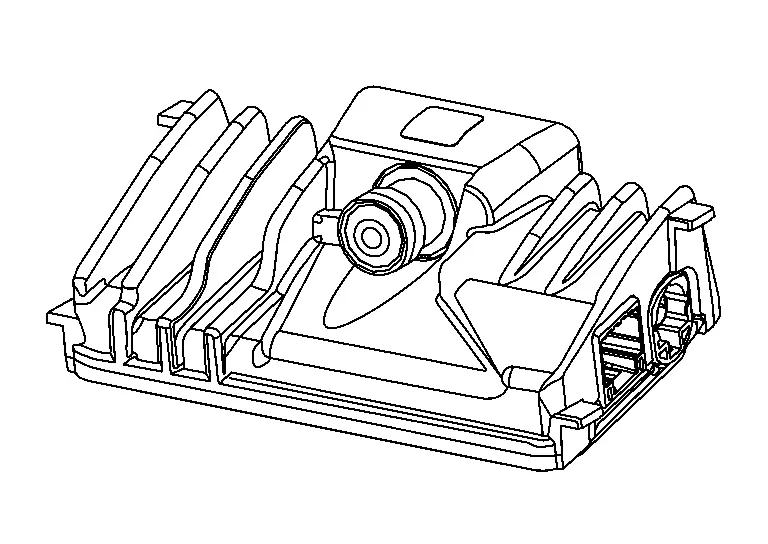

Front Camera Unit

FUNCTIONS WITHIN THE SYSTEM

Front camera unit the transmits the detected information to ADAS control unit 2 via CAN communication.

INDIVIDUAL FUNCTIONS WITHIN THE SYSTEM

The multi-sensing front camera that can avoid various risks lurking forward and sideward with one camera is adopted.
Front camera unit is installed to windshield, and detects the lane marker in travel lane and pedestrian ahead.
When there is Nissan Pathfinder vehicle or pedestrian, front camera unit measures the distance from them.

INDIVIDUAL OPERATION

AEB: Refer to System Description.
ProPILOT Assist: Refer to System Description.
LDW: Refer to System Description.
I-LI: Refer to System Description.
I-BSI: Refer to System Description.
TSR: Refer to System Description.

PARTS LOCATION

Refer to Component Parts Location.

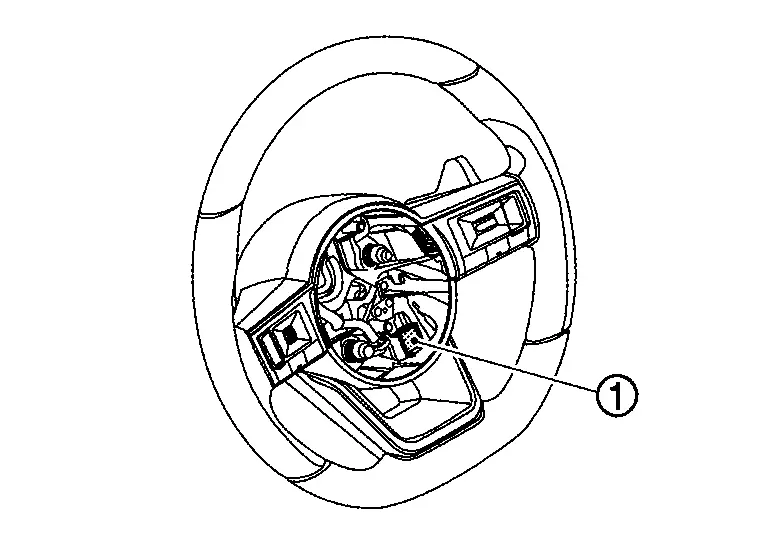

Steering Vibration Motor

FUNCTIONS WITHIN THE SYSTEM

When approaching the lane marker of the right side or the left side, the steering vibration motor vibrates the steering wheel and alerts the driver.
The steering vibration motor alerts the driver for the following systems.
- LDW
- I-LI
