Nissan Pathfinder: Power Window Control System - Basic Inspection

• Diagnosis and Repair Work Flow
• Additional Service When Removing Battery Negative Terminal
• System Initialization
• Check Anti-Pinch Function

Diagnosis and Repair Work Flow Nissan Pathfinder 2022

Work Flow

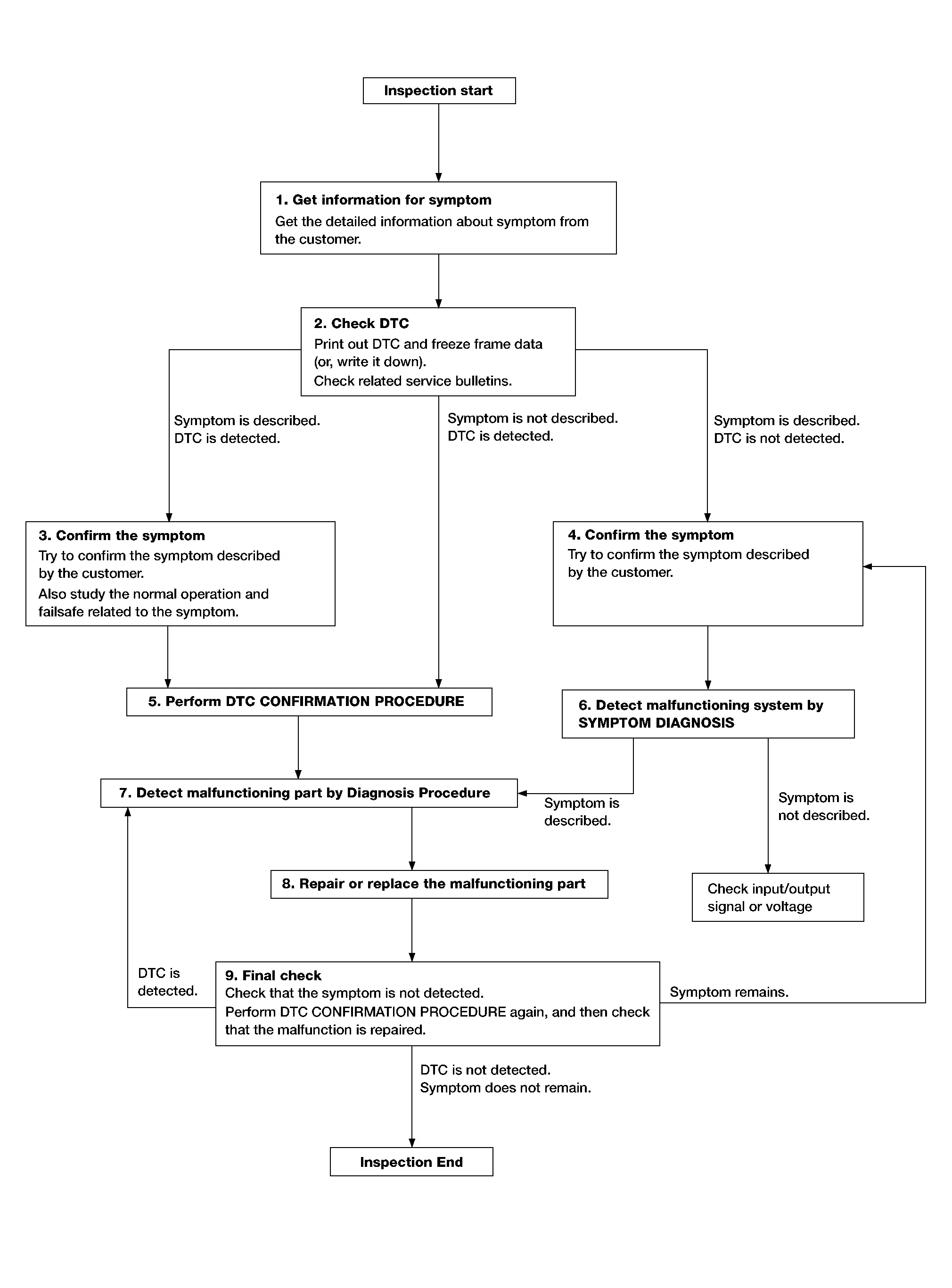

OVERALL SEQUENCE

DETAILED FLOW

GET INFORMATION FOR SYMPTOM

1. Get detailed information from the customer about the symptom (the condition and the environment when the incident/malfunction occurs).

2. Check operation condition of the function that is malfunctioning.

>>

GO TO 2.

CHECK DTC

1. Check DTC.

2. Perform the following procedure if DTC is detected.

   • Record DTC and freeze frame data. (Print them.)

   • Erase DTC.

   • Study the relationship between the cause detected by DTC and the symptom described by the customer.

3. Check related service bulletins for information.

Are any symptoms described and any DTC detected?

Symptom is described, DTC is detected>>

GO TO 3.

Symptom is described, DTC is not detected>>

GO TO 4.

Symptom is not described, DTC is detected>>

GO TO 5.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.

Also study the normal operation and fail-safe related to the symptom.

Verify relation between the symptom and the condition when the symptom is detected.

>>

GO TO 5.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.

Verify relation between the symptom and the condition when the symptom is detected.

>>

GO TO 6.

PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC CONFIRMATION PROCEDURE for the detected DTC, and then check that DTC is detected again. At this time, always connect CONSULT to the Nissan Pathfinder vehicle, and check self diagnostic results in real time.

If two or more DTCs are detected, refer to DTC INSPECTION PRIORITY CHART, and determine trouble diagnosis order.

NOTE:

• Freeze frame data is useful if the DTC is not detected.

• Perform Component Function Check if DTC CONFIRMATION PROCEDURE is not included on Service Manual. This simplified check procedure is an effective alternative though DTC cannot be detected during this check.

  If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC CONFIRMATION PROCEDURE.

Is DTC detected?

YES>>

GO TO 7.

NO>>

Check according to Intermittent Incident.

DETECT MALFUNCTIONING SYSTEM BY SYMPTOM DIAGNOSIS

Detect malfunctioning system according to SYMPTOM DIAGNOSIS based on the confirmed symptom in step 4, and determine the trouble diagnosis order based on possible causes and symptom.

Is the symptom described?

YES>>

GO TO 7.

NO>>

Monitor input data from related sensors or check voltage of related module terminals using CONSULT.

DETECT MALFUNCTIONING PART BY DIAGNOSIS PROCEDURE

Inspect according to Diagnosis Procedure of the system.

Is malfunctioning part detected?

YES>>

GO TO 8.

NO>>

Check according to Intermittent Incident.

REPAIR OR REPLACE THE MALFUNCTIONING PART

1. Repair or replace the malfunctioning part.

2. Reconnect parts or connectors disconnected during Diagnosis Procedure again after repair and replacement.

3. Check DTC. If DTC is detected, erase it.

>>

GO TO 9.

FINAL CHECK

When DTC is detected in step 2, perform DTC CONFIRMATION PROCEDURE again, and then check that the malfunction is repaired securely.

When symptom is described by the customer, refer to confirmed symptom in step 3 or 4, and check that the symptom is not detected.

Is DTC detected and does symptom remain?

YES>>

DTC is detected: GO TO 7.

YES>>

Symptom remains: GO TO 4.

NO>>

Before returning the Nissan Pathfinder vehicle to the customer, always erase DTC.

Additional Service When Removing Battery Negative Terminal Nissan Pathfinder Fifth generation

Description

When the negative battery terminal is disconnected, the initialization is necessary for normal operation of power window system.

CAUTION:

The following specified operations can not be performed under the non-initialized condition:

• Auto-up operation

• Anti-pinch function

Work Procedure

SYSTEM INITIALIZATION

Perform system initialization. Refer to Work Procedure.

>>

GO TO 2.

CHECK ANTI-PINCH FUNCTION

Check anti-pinch function. Refer to Work Procedure.

>>

Inspection End.

System Initialization Nissan Pathfinder 2022

Description

If any of the following operations are performed, the initialization is necessary for normal operation of power window system. Refer to Work Procedure:

• When power window motor is replaced.

• Power supply to the power window motor is not cut off properly.

• Removal and installation of regulator assembly.

• Removal and installation of power window motor from regulator assembly.

• Operation of regulator assembly as an independent unit.

• Removal and installation of door glass.

• Removal and installation of door glass run.

CAUTION:

The following specified operations cannot be performed under the non-initialized condition:

• Auto-up operation

• Anti-pinch function

Work Procedure

STEP 1

1. Close the door.

2. Ignition switch ON.

3. Continue pulling the power window switch UP until glass stops at fully closed position then release the switch. ¹

4. Keep pulling the switch for 5 seconds or more. ²

5. Continue pressing the power window switch DOWN until glass stops then release the switch.

6. Keep pressing the switch for 5 seconds or more. ²

   After glass moves again, keep pressing the switch until glass reaches the fully open position.

7. Continue pulling the power window switch UP (MANUAL-UP operation) until glass stops at fully closed position.

8. Check that AUTO-UP function operates normally.

NOTE:

1: If the power window stops before reaching the fully closed position: After the power window stops, release the switch then continue pulling the switch UP again and move the power window to the fully closed position.

2: After keep pulling or pressing 5 seconds or more, glass moves again.

>>

GO TO 2.

STEP 2

Check anti-pinch function. Refer to Description.

>>

Inspection End.

Check Anti-Pinch Function Nissan Pathfinder

Description

If any of the following operations are performed, the initialization is necessary for normal operation of power window system:

• When control unit is replaced.

• Electric power supply to power window switch or motor is interrupted by blown fuse or disconnection and connection of the negative battery terminal.

• Removal and installation of regulator assembly.

• Power supply to the main power window and door mirror switch or power window motor is cut off by the removal of battery terminal or if the battery fuse is blown.

• Disconnection and connection of main power window and door mirror switch harness connector.

• Removal and installation of motor from regulator assembly.

• Operation of regulator assembly as an independent unit.

• Removal and installation of door glass.

• Removal and installation of door glass run.

CAUTION:

The following specified operations cannot be performed under the non-initialized condition:

• Auto-up operation

• Anti-pinch function

Work Procedure

CHECK ANTI-PINCH FUNCTION

• Fully open the door window.

• Place a piece of wood near fully closed position.

• Close door glass completely with AUTO-UP.

• Check the following conditions:

  • Check that glass lowers for approximately 5.91 in (150 mm) without pinching piece of wood and stops.

  • Check that glass does not rise when operating the main power window and door mirror switch while lowering.

    CAUTION:

    • Perform initial setting when AUTO-UP operation or anti-pinch function does not operate normally.

    • Check that AUTO-UP operates before inspection when system initialization is performed.

    • Do not check with hands and other body parts because they may be pinched. Do not get pinched.

>>

Inspection End.
