Nissan Pathfinder: Basic Inspection - Action Test ++

Ldw

Work Procedure

• Perform action test to verify the customer's concern.

• Perform action test and check the system operation after system diagnosis.

WARNING:

Be careful of traffic conditions and safety around the vehicle when performing road test.



CAUTION:

• Fully understand the following items well before the road test;

  • System description: System Description

  • Handling precaution: Handling Precaution



CHECK LDW SYSTEM SETTING

1. Start the engine.

2. Check that the LDW system setting can be enabled/disabled on the information display.

3. Turn OFF the ignition switch and wait for 30 seconds or more.

4. Check that the previous setting is saved when the engine starts again.



>>

GO TO 2.

ACTION TEST FOR LDW

1. Enable the setting of the LDW system on the information display.

2. Turn LDW system ON.

3. Check the LDW operation according to the following table.

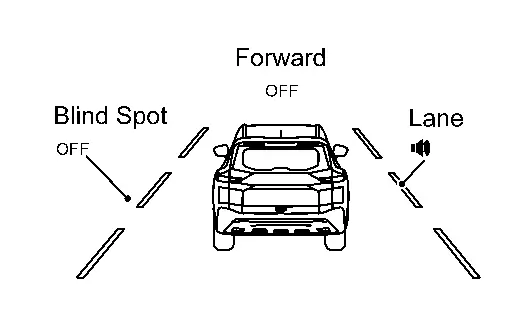

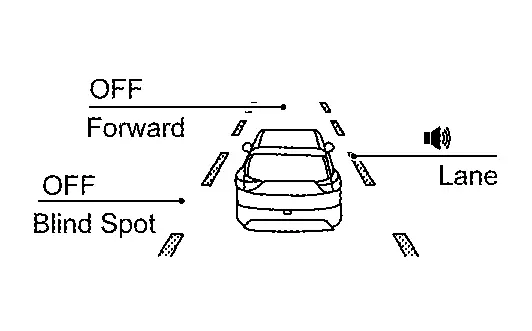

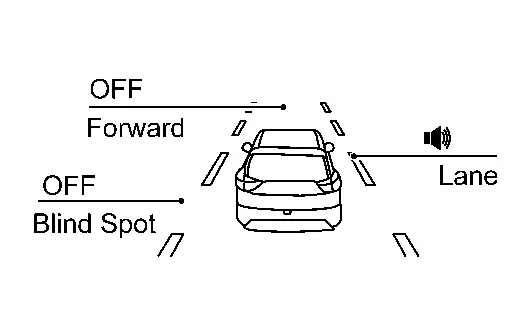

   7 inch Information Display

   Condition				Action	Display on information display	Steering vibration
   LDW OFF				—		OFF
   LDW ON	Nissan Pathfinder Vehicle speed is less than approx. 60 km/h (37 MPH)			—	LDW system indicator : White Speaker icon : White	OFF
   	Nissan Pathfinder Vehicle speed is approx. 60 km/h (37 MPH) or more	Vehicle closes to lane marker	Turn signal is OFF or ON (Opposite to the deviate side)	—	Yellow (Blink)	ON
   					LDW system indicator : Yellow (Blink) Speaker icon : White
   			Turn signal is ON(Deviate side)	—	LDW system indicator : White Speaker icon : White	OFF

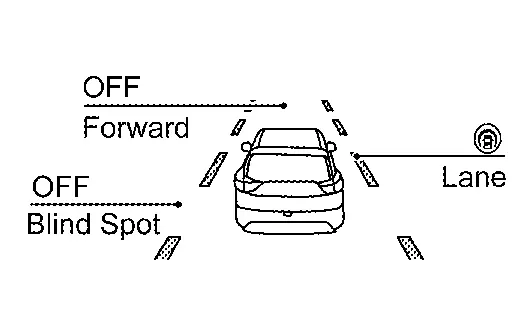

   FULL TFT METER

   Condition				Action	Display on information display	Steering vibration
   LDW OFF				—		OFF
   LDW ON	Nissan Pathfinder Vehicle speed is less than approx. 60 km/h (37 MPH)			—	LDW system indicator : White Speaker icon : White	OFF
   	Nissan Pathfinder Vehicle speed is approx. 60 km/h (37 MPH) or more	Vehicle closes to lane marker	Turn signal is OFF or ON (Opposite to the deviate side)	—	Yellow (Blink)	ON
   					LDW system indicator : Yellow (Blink) Speaker icon : White
   			Turn signal is ON(Deviate side)	—	LDW system indicator : White Speaker icon : White	OFF

   NOTE:

   After the operating conditions of warning are satisfied, the warning continues until the Nissan Pathfinder vehicle speed reaches approximately 55 km/h (34 MPH). Refer to System Description.





>>

INSPECTION END

I-Li

Work Procedure

• Perform action test to verify the customer's concern.

• Perform action test and check the system operation after system diagnosis.

WARNING:

Be careful of traffic conditions and safety around the vehicle when performing road test.



CAUTION:

• Fully understand the following items well before the road test;

  • System description: Refer to System Description.

  • Handling precaution: Refer to Precautions for Intelligent Lane Intervention.



CHECK I-LI SYSTEM SETTING

1. Start the engine.

2. Check that the I-LI system setting can be enabled/disabled on the information display.

3. Turn OFF the ignition switch and wait for 30 seconds or more.

4. Check that the previous setting is saved when the engine starts again.



>>

GO TO 2.

ACTION TEST FOR I-LI

1. Enable the setting of the I-LI system on the information display.

2. Turn I-LI system display ON.

3. Check the I-LI operation according to the following table.

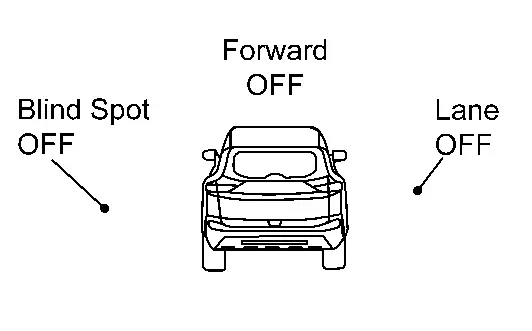

   7 inch Information Display

   Condition				Action	Display on information display	Steering vibration
   I-LI OFF				—		OFF
   I-LI ON	Nissan Pathfinder Vehicle speed is less than approx. 60 km/h (37 MPH)			—	White	OFF
   					I-LI system indicator: White Dynamic driver assistance icon: White
   	Nissan Pathfinder Vehicle speed is approx. 60 km/h (37 MPH) or more	Vehicle closes to lane marker	Turn signal is OFF or ON (Opposite to the deviate side)	Yawing control is ON	Yellow (Blink)	ON
   					I-LI system indicator: Yellow (Blink) Dynamic driver assistance icon: White
   			Turn signal is ON (Deviate side)	—	I-LI system indicator: White Dynamic driver assistance icon: White	OFF
   		Nissan Pathfinder Vehicle closes to lane marker with soft braking	—	Yawing control is ON	Yellow (Blink)	ON
   					I-LI system indicator: Yellow (Blink) Dynamic driver assistance icon: White

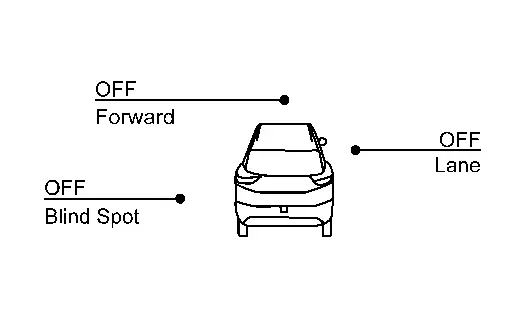

   FULL TFT METER

   Condition				Action	Display on information display	Steering vibration
   I-LI OFF				—		OFF
   I-LI ON	Nissan Pathfinder Vehicle speed is less than approx. 60 km/h (37 MPH)			—	I-LI system indicator: White Speaker icon : White	OFF
   	Nissan Pathfinder Vehicle speed is approx. 60 km/h (37 MPH) or more	Vehicle closes to lane marker	Turn signal is OFF or ON (Opposite to the deviate side)	Yawing control is ON	Yellow (Blink)	ON
   					I-LI system indicator: Yellow (Blink) Speaker icon : White
   			Turn signal is ON (Deviate side)	—	I-LI system indicator: White Speaker icon : White	OFF
   		Nissan Pathfinder Vehicle closes to lane marker with soft braking	—	Yawing control is ON	Yellow (Blink)	ON
   					I-LI system indicator: Yellow (Blink) Speaker icon : White

   NOTE:

   After the operating conditions of warning are satisfied, the warning continues until the Nissan Pathfinder vehicle speed reaches approximately 50 km/h (31 MPH). Refer to System Description.





>>

INSPECTION END

Bsw

Work Procedure

• Perform action test to verify the customer's concern.

• Perform action test and check the system operation after system diagnosis.

CAUTION:

Fully understand the following items well before the road test;

• System description: System Description

• Handling precaution: Handling Precaution



CHECK BSW SYSTEM SETTING

1. Start the engine.

2. Check that the BSW system setting can be enabled/disabled on the information display.

3. Turn OFF the ignition switch and wait for 5 seconds or more.

4. Check that the previous setting is saved when the engine starts again.



>>

GO TO 2.

BSW SYSTEM ACTION TEST

1. Enable the setting of the BSW system on the information display.

2. Turn BSW system ON.

3. Check BSW operation according to the following table.

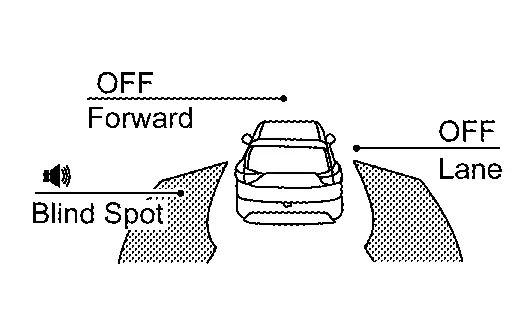

   7 inch Information Display

   Condition				Action	Indication on the BSW indicator	Display on information display	Buzzer
   BSW OFF				—	OFF		OFF
   BSW ON	Nissan Pathfinder Vehicle speed is less than approx. 32 km/h (20 MPH)			—	OFF	BSW system indicator : White Speaker icon : White	OFF
   	Nissan Pathfinder Vehicle speed is approx. 32 km/h (20 MPH) or more	Vehicle is not detected		—	OFF	BSW system indicator : White Speaker icon : White	OFF
   		Nissan Pathfinder Vehicle is detected	Turn signal is OFF	—	ON	BSW system indicator : White Speaker icon : White	OFF
   		Nissan Pathfinder Vehicle is detected before turn signal operates	Turn signal is ON (Nissan Pathfinder vehicle detected direction)	—	Blink	Yellow (Blink)	Short continuous beeps
   						BSW system indicator : Yellow (Blink) Speaker icon : White
   		Nissan Pathfinder Vehicle is detected after turn signal operates	Turn signal is ON (vehicle detected direction)	—	Blink	Yellow (Blink)	OFF
   						BSW system indicator : Yellow (Blink) Speaker icon : White

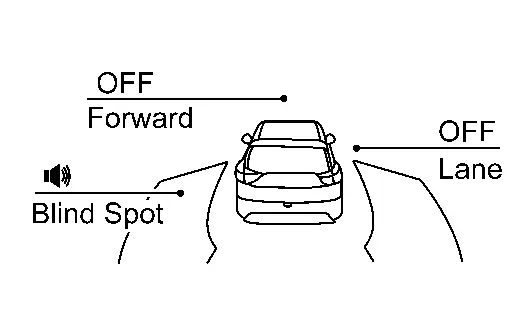

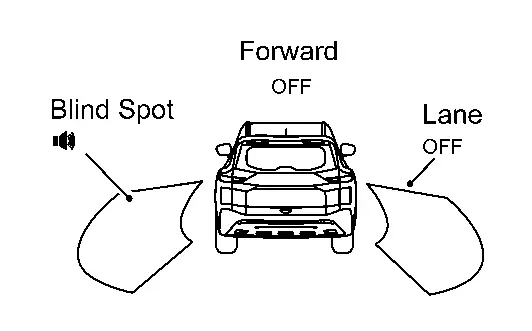

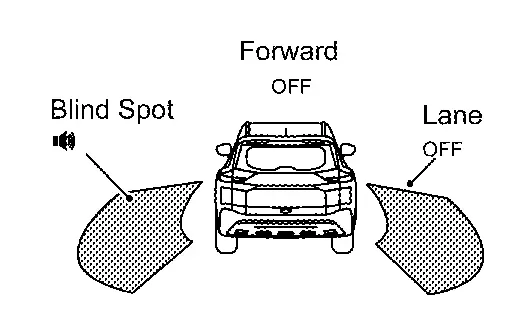

   FULL TFT METER

   Condition				Action	Indication on the BSW indicator	Display on information display	Buzzer
   BSW OFF				—	OFF		OFF
   BSW ON	Nissan Pathfinder Vehicle speed is less than approx. 32 km/h (20 MPH)			—	OFF	BSW system indicator : White Speaker icon : White	OFF
   	Nissan Pathfinder Vehicle speed is approx. 32 km/h (20 MPH) or more	Vehicle is not detected		—	OFF	BSW system indicator : White Speaker icon : White	OFF
   		Nissan Pathfinder Vehicle is detected	Turn signal is OFF	—	ON	BSW system indicator : White Speaker icon : White	OFF
   		Nissan Pathfinder Vehicle is detected before turn signal operates	Turn signal is ON (Nissan Pathfinder vehicle detected direction)	—	Blink	Yellow (Blink)	Short continuous beeps
   						BSW system indicator : Yellow (Blink) Speaker icon : White
   		Nissan Pathfinder Vehicle is detected after turn signal operates	Turn signal is ON (vehicle detected direction)	—	Blink	Yellow (Blink)	OFF
   						BSW system indicator : Yellow (Blink) Speaker icon : White

   NOTE:

   • If Nissan Pathfinder vehicle speed exceeds approximately 32 km/h (20 MPH), BSW function operates until the vehicle speed becomes lower than approximately 29 km/h (18 MPH).

   • Time shown in the figure is approximate time.





>>

INSPECTION END

I-Bsi

Work Procedure

• Perform action test to verify the customer's concern.

• Perform action test and check the system operation after system diagnosis.

NOTE:

Perform the I-BSI system action test after checking that the I-LI system operates normally because the I-BSI system shares components with the I-LI system.



WARNING:

Be careful of traffic conditions and safety around the vehicle when performing road test.



CAUTION:

Fully understand the following items well before the road test;

• System description: Refer to System Description.

• Handling precaution: Refer to Precautions for Intelligent Blind Spot Intervention.



LDW/I-LI SYSTEM ACTION TEST

Perform the LDW/I-LI system action test.

• LDW: Refer to System Description.

• I-LI: Refer to System Description.



>>

GO TO 2.

CHECK I-BSI SYSTEM SETTING

1.

   Start the engine.



2.

   Check that the I-BSI system setting can be enabled/disabled on the information display.



3.

   Turn OFF the ignition switch and wait for 5 seconds or more.



4.

   Check that the previous setting is saved when the engine starts again.





>>

INSPECTION END

Tsr

Work Procedure

• Perform action test to verify the customer's concern.

• Perform action test and check the system operation after system diagnosis.

WARNING:

Be careful of traffic conditions and safety around the vehicle when performing road test.



CAUTION:

• Fully understand the following items well before the road test;

  • System description for TSR: Refer to System Description.

  • Handling precaution: Refer to Precautions for Traffic Sign Recognition.



CHECK TSR SYSTEM SETTING

1. Start the engine.

2. After starting the engine wait for 30 seconds or more.

3. Enable the setting of the TSR system on the information display.

4. Turn OFF the ignition switch and wait for 5 seconds or more.

5. Check that the previous setting is saved when the engine starts again.



>>

GO TO 2.

ACTION TEST FOR TSR

1. Enable the setting of the TSR system on the information display.

2. Check the TSR operation according to the following table.

   7 inch Information Display

   System status	Condition	Display on information display
   TSR OFF	—	—
   TSR ON	Road sign not detected	—

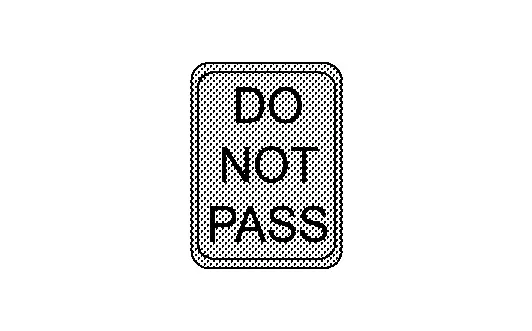

   	Road sign detected (except for speed limit signs)	This is an example. For details of displayed signs, Refer to System Description.
   	Road sign detected (Speed limit signs)	This is an example. For details of displayed signs, Refer to System Description.

   FULL TFT METER

   System status	Condition	Display on information display	Display on Head Up Display
   TSR OFF	—	—	—
   TSR ON	Road sign not detected	—	—
   	Road sign detected (except for speed limit signs)	This is an example. For details of displayed signs, Refer to System Description.	This is an example. For details of displayed signs, Refer to System Description.
   	Road sign detected (Speed limit signs)	This is an example. For details of displayed signs, Refer to System Description.	This is an example. For details of displayed signs, Refer to System Description.



>>

INSPECTION END

Rcta

Work Procedure

• Perform action test to verify the customer's concern.

• Perform action test and check the system operation after system diagnosis.

WARNING:

Be careful of traffic conditions and safety around the vehicle when performing road test.



CAUTION:

• Fully understand the following items well before the road test;

  • System description for RCTA: Refer to System Description.

  • Handling precaution: Refer to Precautions for Rear Cross Traffic Alert.



CHECK RCTA SYSTEM SETTING

1. Start the engine.

2. After start the engine wait for 30 seconds or more.

3. Enable the setting of the RCTA system on the information display.

4. Turn OFF the ignition switch and wait for 5 seconds or more.

5. Check that the previous setting is saved when the engine starts again.



>>

GO TO 2.

ACTION TEST FOR RCTA

1. Enable the setting of the RCTA system on the information display.

2. Check the RCTA operation according to the following table.

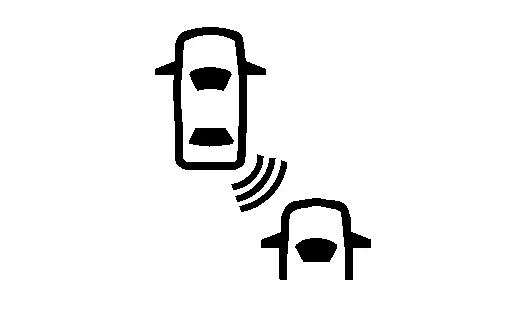

   Condition				Action	Indication on the BSW indicator	Display on information display	Buzzer
   RCTA OFF				—	OFF	—	OFF
   RCTA ON	Shift lever is in any position other than reverse			—	OFF	—	OFF
   	Shift lever is in reverse	Nissan Pathfinder Vehicle speed is less then approx. 8 km/h (5 MPH)	Vehicle is not detected	—	OFF	—	OFF
   			Nissan Pathfinder Vehicle is detected	—	Blink	—	ON
   		Nissan Pathfinder Vehicle speed is approx. 8 km/h (5 MPH) or more	Vehicle is detected	—	—	—	—



>>

INSPECTION END

I-Da

Work Procedure

• Perform action test to verify the customer's concern.

• Perform action test and check the system operation after system diagnosis.

WARNING:

Be careful of traffic conditions and safety around the vehicle when performing road test.



CAUTION:

• Fully understand the following items well before the road test;

  • System description for I-DA: Refer to System Description.

  • Handling precaution: Refer to Precautions for Intelligent Driver Alertness.



CHECK I-DA SYSTEM SETTING

1. Start the engine.

2. After starting the engine wait for 30 seconds or more.

3. Check that the I-DA system setting can be enabled/disabled on the information display.

4. Turn OFF the ignition switch and wait for 5 seconds or more.

5. Check that the previous setting is saved when the engine starts again.



>>

GO TO 2.

ACTION TEST FOR I-DA

1. Enable the setting of the I-DA system on the information display.

2. Check the I-DA operation according to the following table.

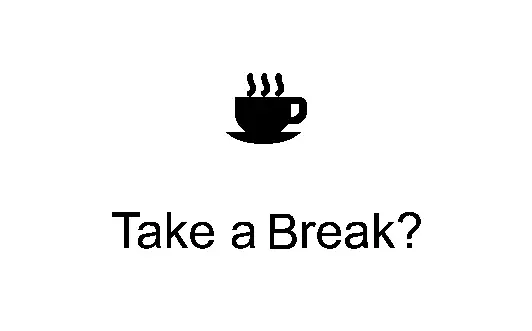

   Nissan Pathfinder Vehicle condition/ Driver’s operation				Display on combination meter
   I-DA OFF				—
   I-DA ON



>>

INSPECTION END
