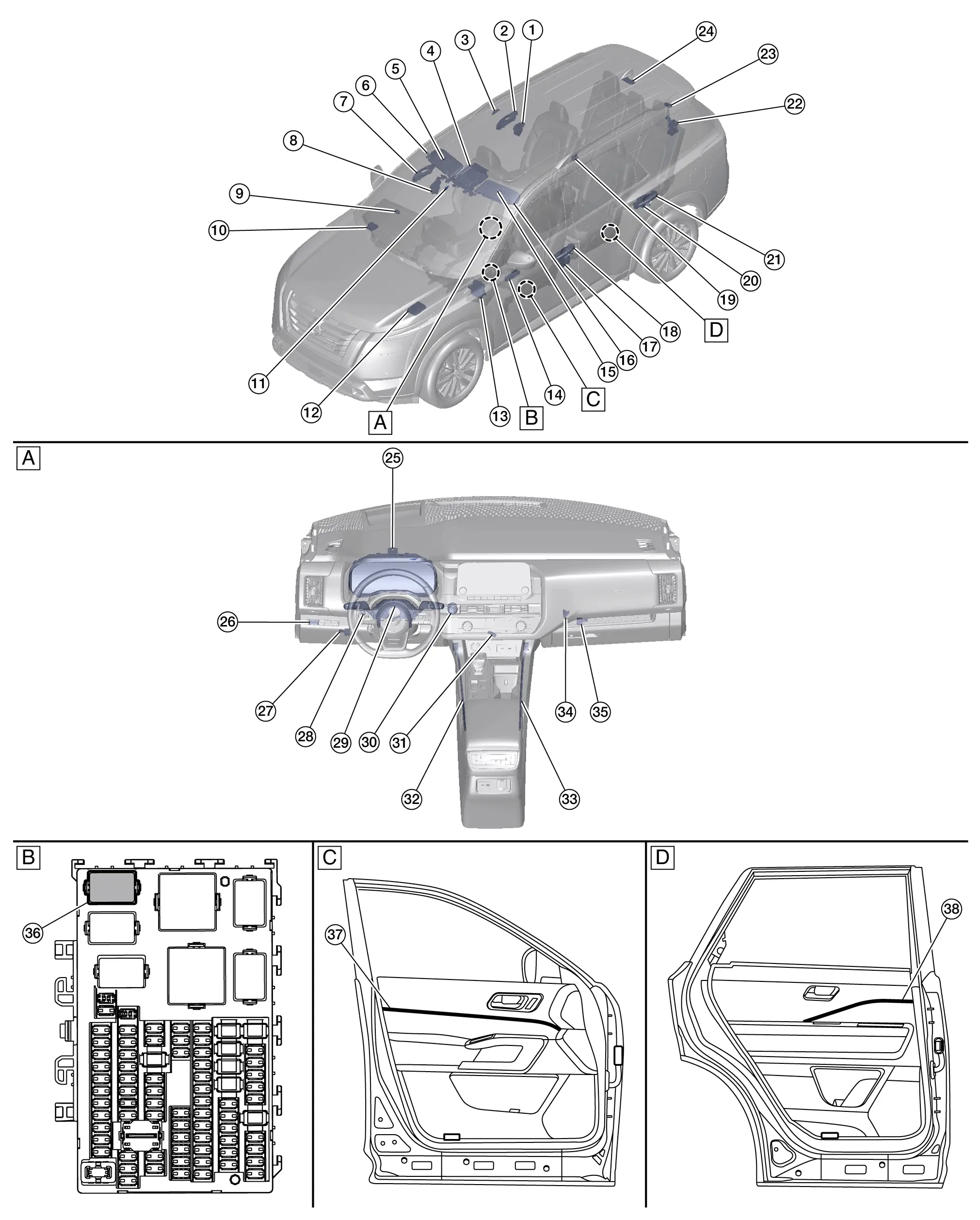

Component Parts Location

A.	Instrument panel assembly	B.	Fuse block (J/B) [view with fuse block (J/B) removed]
C.	Front door LH	D.	Rear door LH

No.	Component		Function
1.	Rear door lock assembly RH (door switch)	Door switch	Transmits the rear door switch RH signal to the BCM. Refer to Door Lock Assembly for detailed component location.
2.	Rear door request switch RH^*		Transmits the rear door request switch RH signal to the Intelligent Key unit. Refer to Door Request Switch for detailed component location.
3.	Personal lamp RH		Refer to Bulb Specifications.
4.	Front room/map lamp assembly		Refer to Bulb Specifications.
5.	Vanity mirror lamp RH^*		Refer to Bulb Specifications.
6.	Sunvisor RH (vanity mirror lamp switch)^*		Activates/deactivates the vanity mirror lamp RH.
7.	Front door request switch RH		Transmits the front door request switch RH signal to the Intelligent Key unit. Refer to Door Request Switch for detailed component location.
8.	Front door lock assembly RH	Door switch	Transmits the front door switch RH signal to the BCM. Refer to Door Lock Assembly for detailed component location.
9.	Door lock/unlock switch RH		Transmits the door lock/unlock switch RH signal to the BCM. Refer to Door Lock/Unlock Switch RH for detailed component location.
10.	Intelligent Key unit		Transmits the push-button ignition switch status to the BCM via CAN communication. Transmits the door lock/unlock request signal to the BCM via CAN communication. Refer to Intelligent Key Unit for detailed component location.
11.	Rain sensor		Transmits the light sensor signal to the BCM. Refer to Rain Sensor for detailed component location.
12.	IPDM E/R (Intelligent Power Distribution Module Engine Room)		Refer to System Description.
13.	BCM (Body Control Module)		Controls the interior room lamp relay using the interior room lamp timer function depending on Nissan Pathfinder vehicle conditions. Operates the room lamp battery saver feature depending on the vehicle conditions to turn interior lamps ON or OFF. Operates the interior room lamps by controlling the interior room lamp relay combined with controlling lamp grounds depending on input conditions. Refer to System Description.
14.	Door lock/unlock switch LH		Transmits the door lock/unlock switch LH signal to the BCM. Refer to Door Lock/Unlock Switch LH for detailed component location.
15.	Vanity mirror lamp LH^*		Refer to Bulb Specifications.
16.	Sunvisor LH (vanity mirror lamp switch)^*		Activates/deactivates the vanity mirror lamp LH.
17.	Front door lock assembly LH	Door switch	Transmits the front door switch LH signal to the BCM. Refer to Door Lock Assembly for detailed component location.
17.	Front door lock assembly LH	Door unlock sensor	Transmits the door unlock sensor signal to the BCM. Refer to Door Lock Assembly for detailed component location.
18.	Front door request switch LH		Transmits the front door request switch LH signal to the Intelligent Key unit. Refer to Door Request Switch for detailed component location.
19.	Personal lamp LH		Refer to Bulb Specifications.
20.	Rear door lock assembly LH	Door switch	Transmits the rear door switch LH signal to the BCM. Refer to Door Lock Assembly for detailed component location.
21.	Rear door request switch LH^*		Transmits the rear door request switch LH signal to the Intelligent Key unit. Refer to Door Request Switch for detailed component location.
22.	Back door lock assembly (ajar switch)		Transmits the ajar switch signal to the BCM Refer to Back Door Lock Assembly for detailed component location.
23.	Luggage room lamp		Refer to Bulb Specifications.
24.	Cargo lamp		Refer to Bulb Specifications.
25.	Combination meter		Controls illumination depending on Nissan Pathfinder vehicle conditions. Refer to Combination Meter (full TFT meter) or Combination Meter (7 inch information display) for detailed component location.
26.	Illumination control switch		Transmits the illumination control switch signal to the combination meter. Refer to Illumination Control Switch (full TFT meter) or Illumination Control Switch (7 inch information display) for detailed component location.
27.	Foot lamp LH^*		Refer to Bulb Specifications.
28.	Mood lamp (instrument panel LH)^*		Refer to Bulb Specifications.
29.	Combination switch (lighting and turn signal switch)		Transmits the combination switch signal to the BCM. Refer to System Description.
30.	Push-button ignition switch		Transmits the push-button ignition switch signal to the Intelligent Key unit. Push-button ignition switch illumination is controlled by the Intelligent Key unit. Refer to Push-Button Ignition Switch for detailed component location.
31.	Mood lamp (center console)^*		Refer to Bulb Specifications.
32.	Mood lamp (center console tray LH)^*		Refer to Bulb Specifications.
33.	Mood lamp (center console tray RH)^*		Refer to Bulb Specifications.
34.	Mood lamp (instrument panel RH)^*		Refer to Bulb Specifications.
35.	Foot lamp RH^*		Refer to Bulb Specifications.
36.	Interior room lamp relay		Activates the interior room lamps based on the control signal from the BCM and depending on Nissan Pathfinder vehicle conditions.
37	Mood lamp (front door LH) ^* (RH similar)		Refer to Bulb Specifications.
38.	Mood lamp (rear door LH) ^* (RH similar)		Refer to Bulb Specifications.
