Nissan Pathfinder: Exterior - Under Cover
Nissan Pathfinder (R53) 2022-2025 Service Manual / Body Exterior, Doors, Roof & Vehicle Security :: Exterior / Removal and Installation / Under Cover

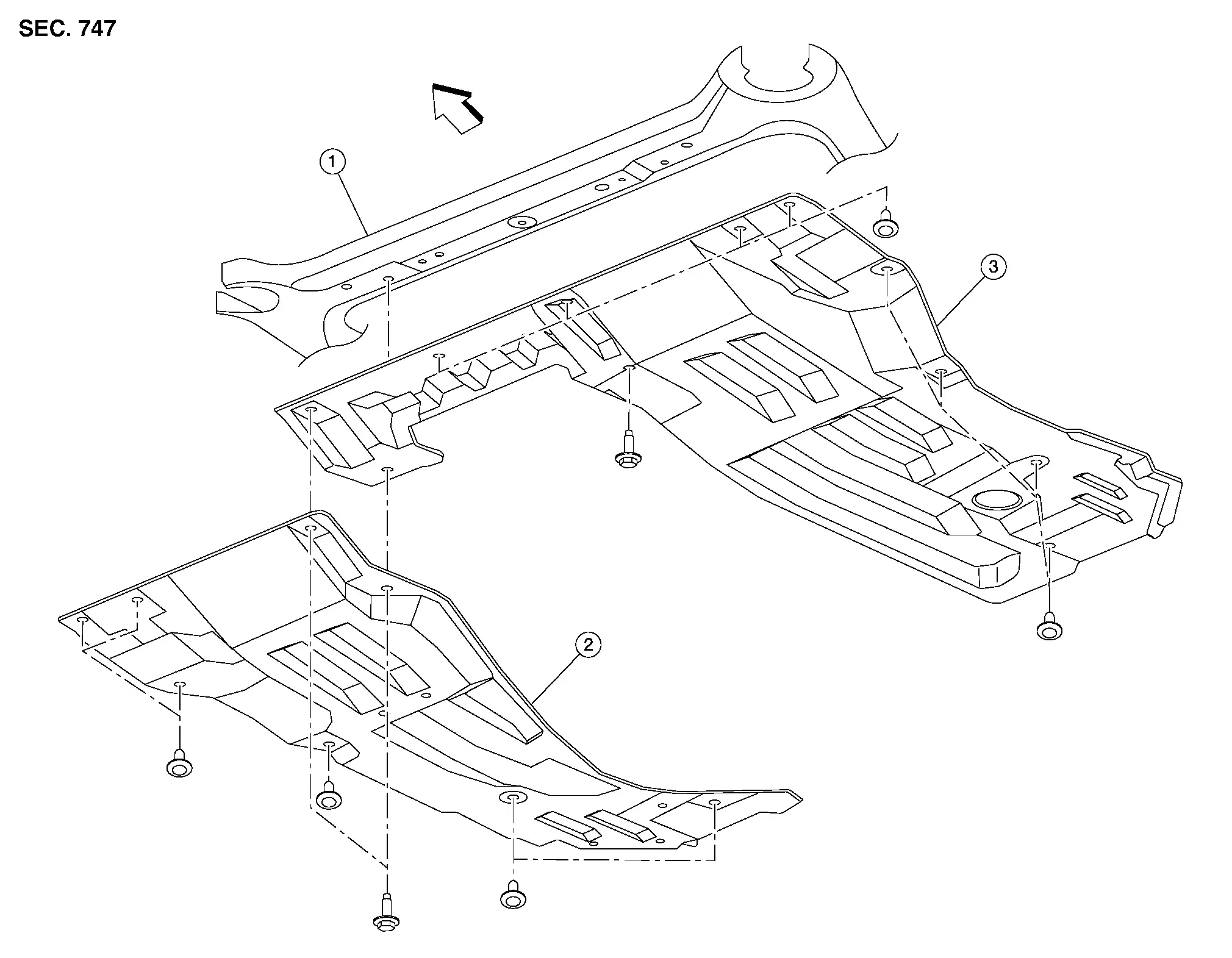

Front Under Cover Nissan Pathfinder 2025
Exploded View
| 1. | Front suspension member | 2. | Front under cover (RH) | 3. | Front under cover (LH) |
 |
Front |
Removal and Installation
REMOVAL
Remove under cover bolts and clips.
Remove under cover.
INSTALLATION
Installation is in the reverse order of removal.

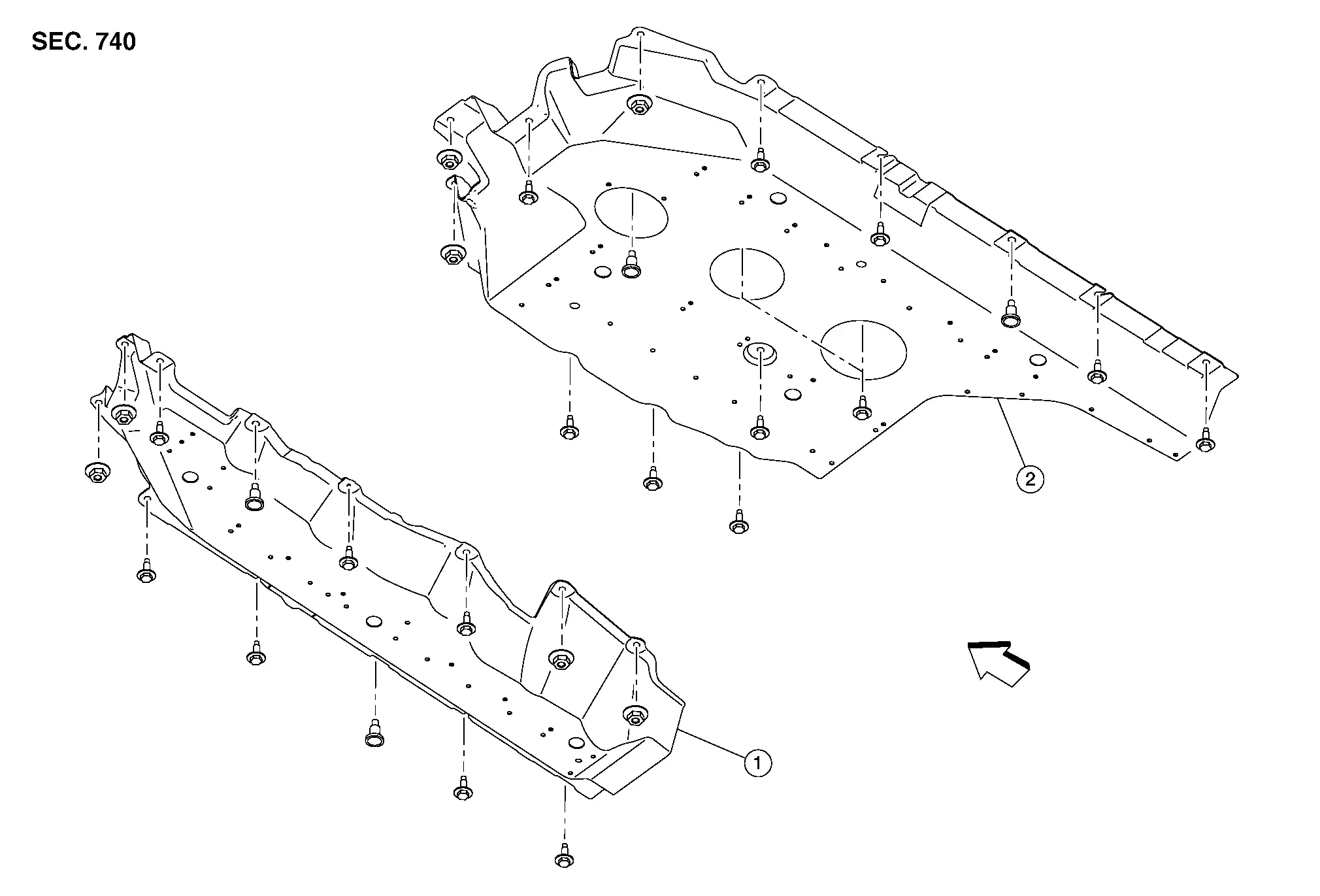

Floor Under Cover Nissan Pathfinder R53
Exploded View
| 1. | Floor under cover (RH) | 2. | Floor under cover (LH) |
 |
Front |
Removal and Installation
REMOVAL
Remove floor under cover bolts and clips.
Remove floor under cover.
INSTALLATION
Installation is in the reverse order of removal.
