Nissan Pathfinder: Exterior - Roof Side Rail
With Rock Creek® Nissan Pathfinder

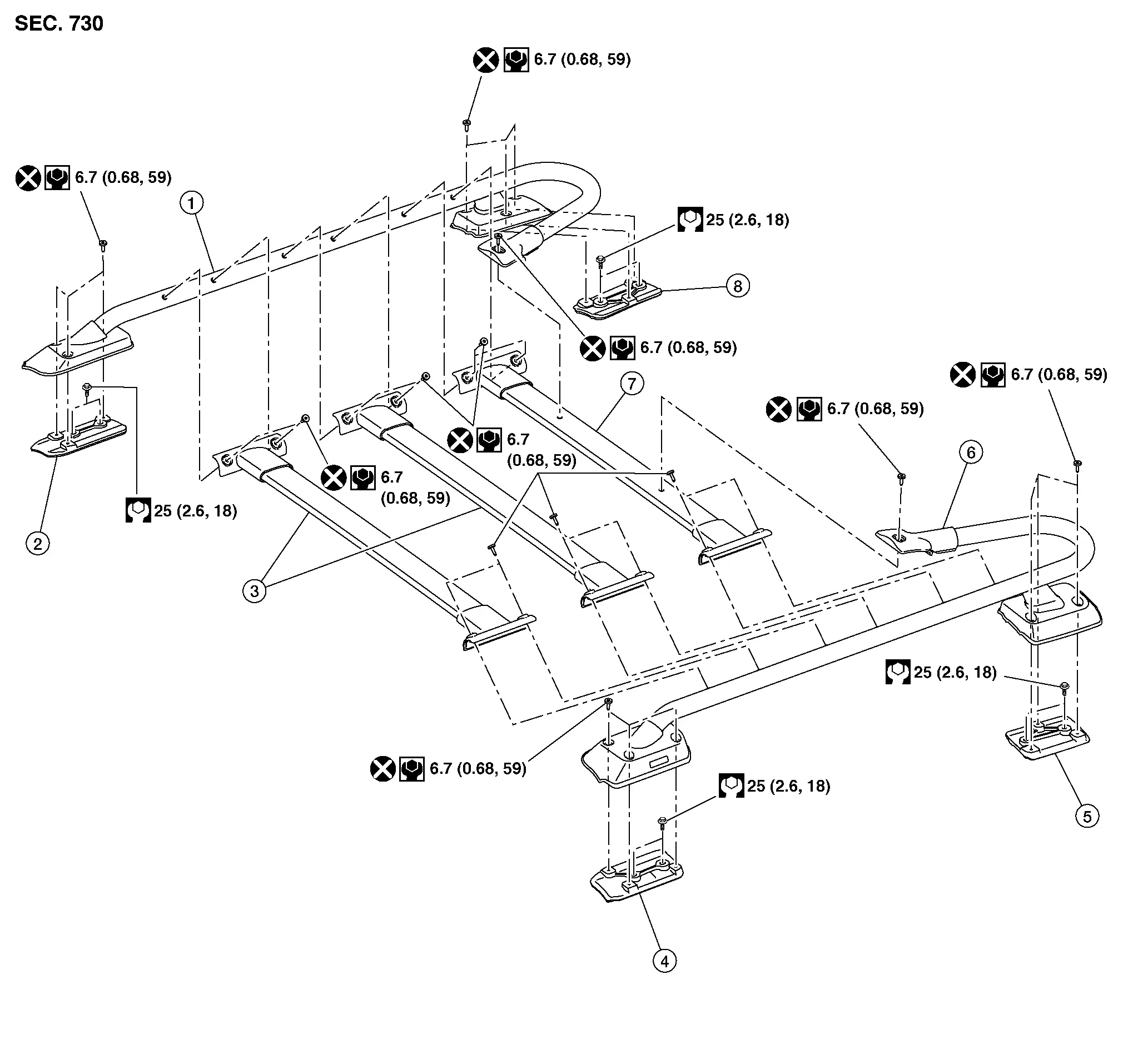

Exploded View
| 1. | Roof rack (RH) | 2. | Roof rack front bracket (RH) | 3. | Front crossbars |
| 4. | Roof rack front bracket (LH) | 5. | Roof rack rear bracket (LH) | 6. | Roof rack (LH) |
| 7. | Rear crossbar | 8. | Roof rack rear bracket (RH) |
Removal and Installation
REMOVAL
Remove front and rear crossbar bolts then front and rear crossbars.
Remove roof rack bolts then remove roof rack (LH/RH).
Remove roof rack bracket bolts then remove roof rack brackets [(LH/RH) (if necessary)].
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Do not reuse roof rack bolts.
Without Rock Creek® Nissan Pathfinder R53

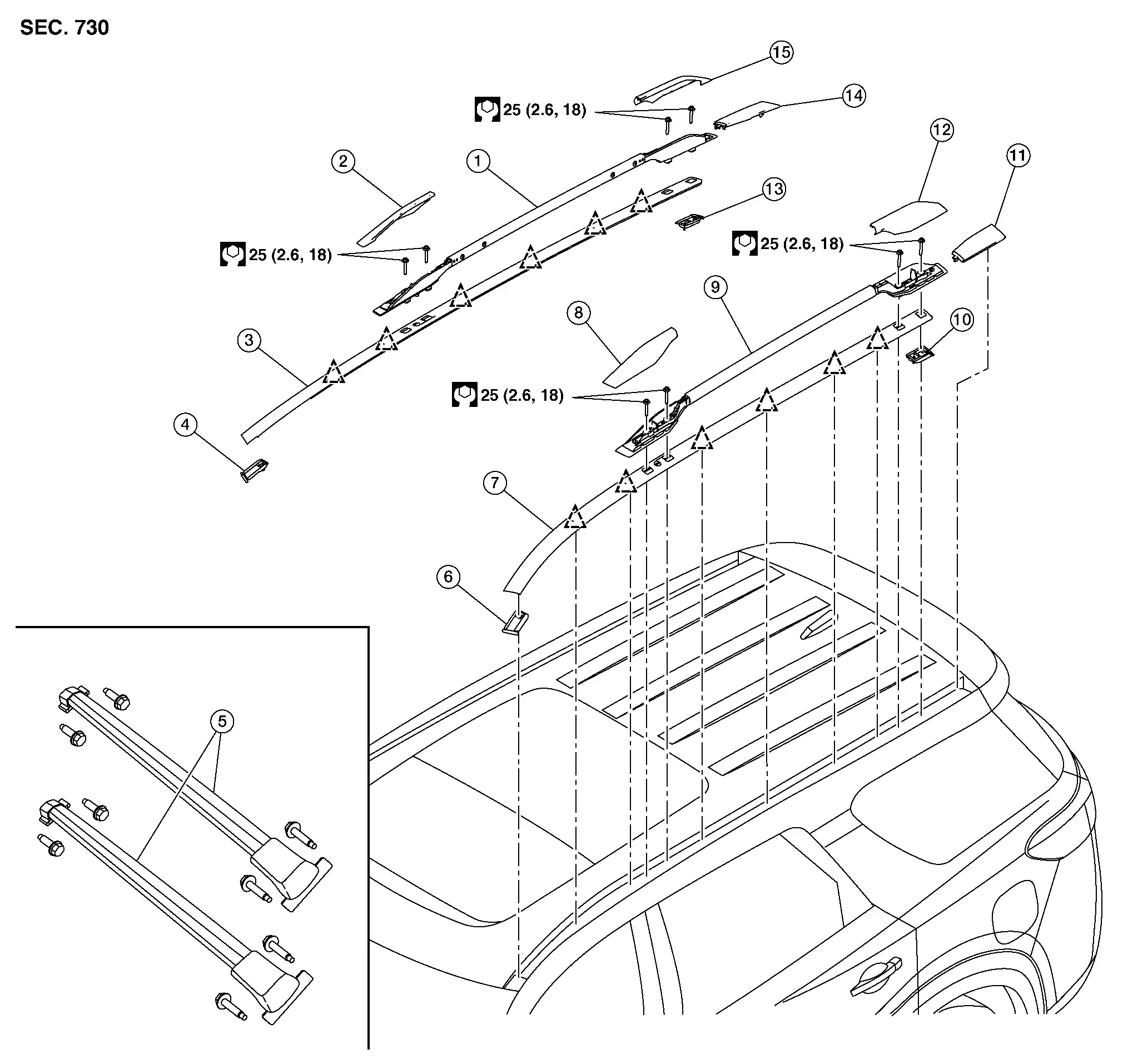

Exploded View
| 1. | Roof rack (RH) | 2. | Front cover (RH) | 3. | Roof side molding (RH) |
| 4. | Front cap (RH) | 5. | Crossbar | 6. | Front cap (LH) |
| 7. | Roof side molding (LH) | 8. | Front cover (LH) | 9. | Roof rack (LH) |
| 10. | Rear cap (LH) | 11. | Back door hinge cover (LH) | 12. | Rear cover (LH) |
| 13. | Rear cap (RH) | 14. | Back door hinge cover (RH) | 15. | Rear cover (RH) |
 |
Clip |
Removal and Installation
REMOVAL
Remove crossbar bolts then remove crossbars (if equipped).
Using suitable tool, remove front and rear covers from roof rack (LH/RH).
Remove roof rack bolts then remove roof rack (LH/RH).
Remove roof side molding and caps [(LH/RH) (if necessary)].
INSTALLATION
Installation is in the reverse order of removal.
Nissan Pathfinder (R53) 2022-2025 Service Manual
Roof Side Rail
