Front Over Fender Nissan Pathfinder SUV

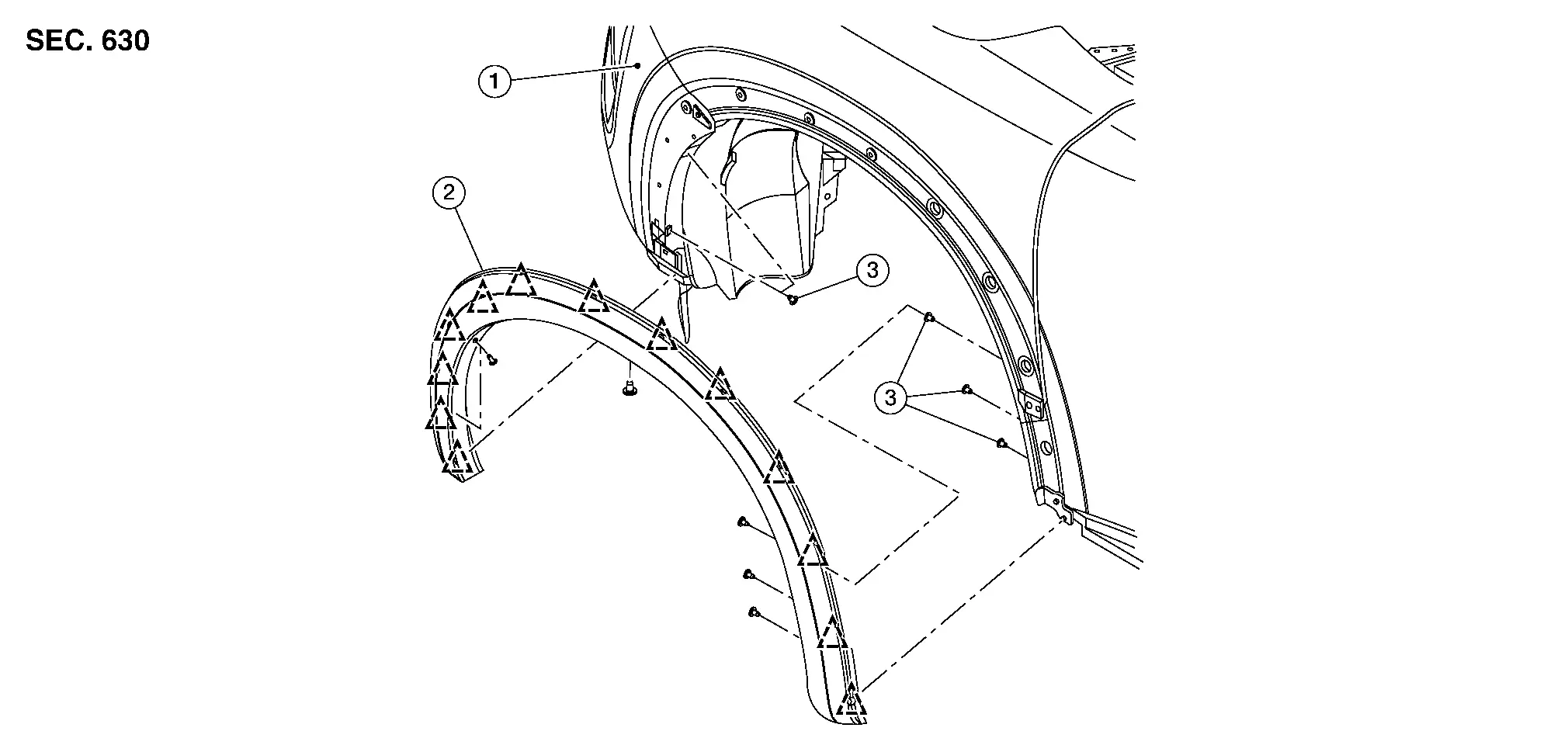

Exploded VIew

NOTE:

LH shown, RH similar.

1.	Front fender	2.	Front over fender	3.	Grommet
	Clip

Removal and Installation

REMOVAL

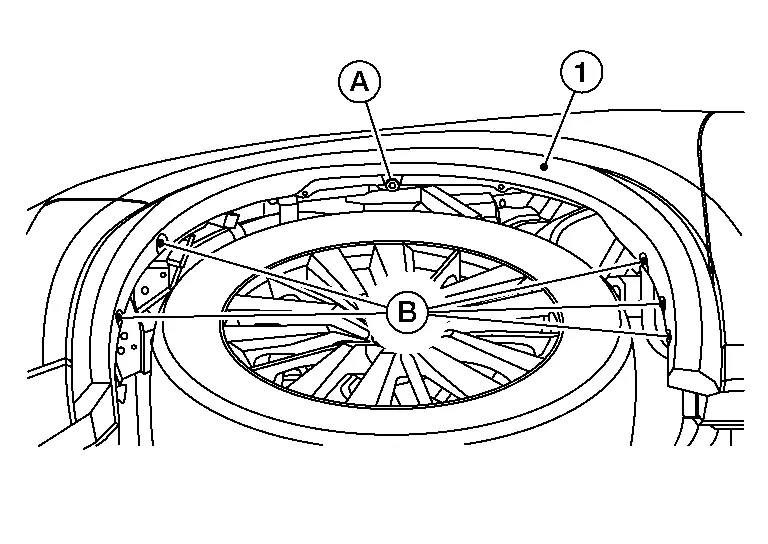

Remove clip (A) and screws (B) from front over fender (1).

Using a suitable tool, release clips and remove front over fender. Refer to Exploded View.

INSTALLATION

Installation is in the reverse order of removal.

Rear Over Fender Nissan Pathfinder Fifth generation

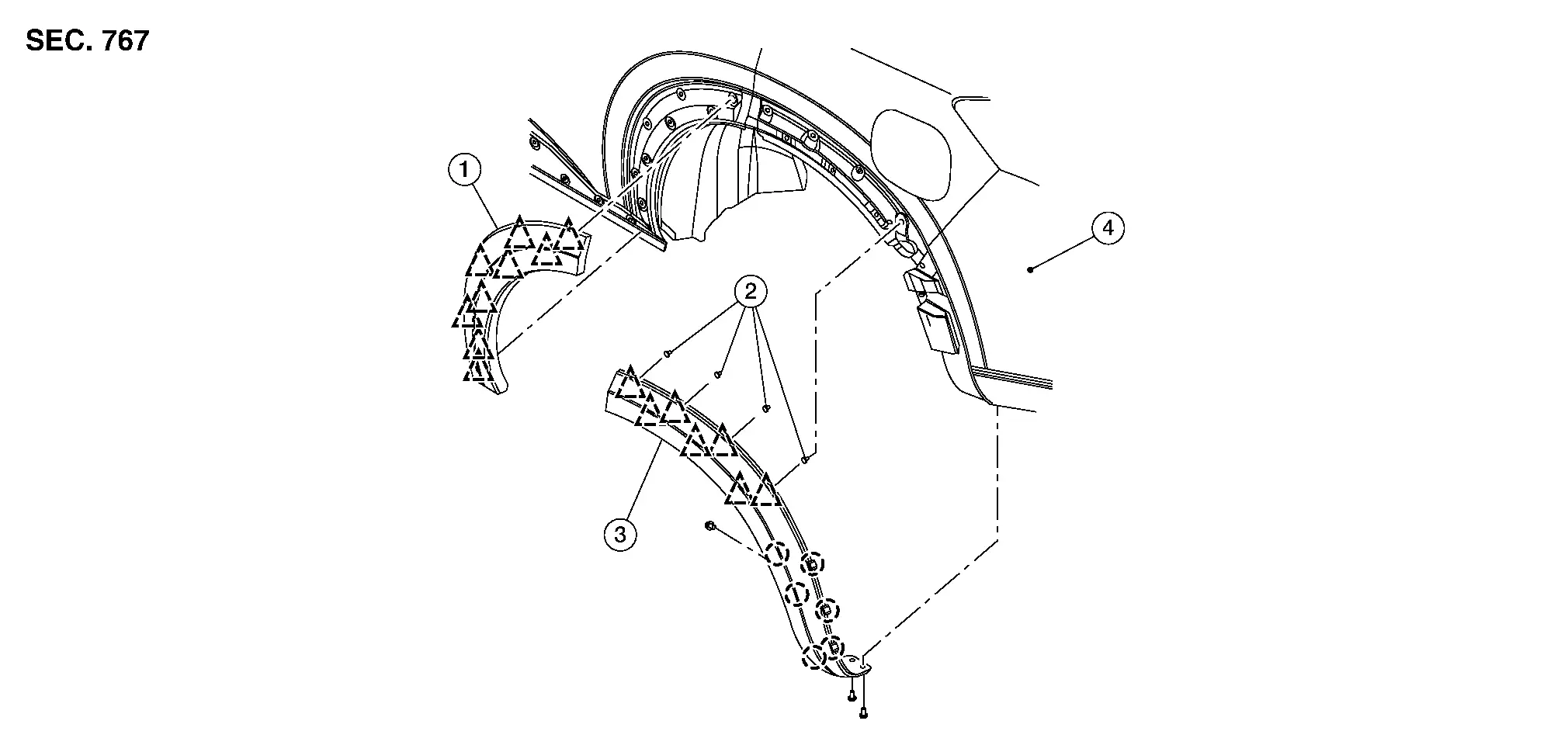

Exploded View

NOTE:

LH shown, RH similar.

1.	Rear over fender (door side)	2.	Grommet	3.	Rear over fender (body side)
4.	Rear fender		Pawl		Clip

Removal and Installation

REAR OVER FENDER (DOOR SIDE)

REMOVAL

Using a suitable tool, release double sided tape from door.

Using a suitable tool, release clips and remove rear over fender (door side). Refer to Exploded View.

CAUTION:

Do not reuse double sided tape.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse double sided tape.

REAR OVER FENDER (BODY SIDE)

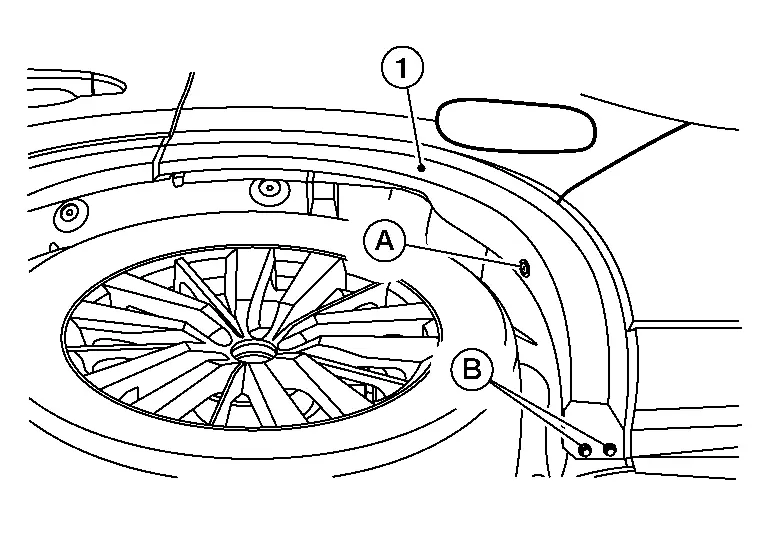

Remove clip (A) and screws (B) from rear over fender [body side (1)].

Using a suitable tool release double sided tape from body.

Using a suitable tool release clips and pawls, then remove rear over fender (body side). Refer to Exploded View.

CAUTION:

Do not reuse double sided tape.

Installation is in the reverse order of removal.

CAUTION:

Do not reuse double sided tape.
