Nissan Pathfinder: Interior Lighting System - Foot Lamp

• Lh Side
• Rh Side

Lh Side Nissan Pathfinder 2025

Exploded View

1.	Instrument lower panel (LH)	2.	Foot lamp (LH)	3.	Bulb and socket assembly
	Pawl

Removal and Installation

REMOVAL

Remove instrument lower panel (LH). Refer to Removal and Installation.

Rotate the bulb and socket assembly counterclockwise and remove from the foot lamp (LH).

Using a suitable tool, release pawls and remove foot lamp (LH). Refer to Exploded View.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not touch the glass surface of a bulb while it is lit or right after being turned OFF to prevent burns.

Bulb Replacement

WARNING:

Do not touch the glass surface of a bulb while it is lit or right after being turned OFF to prevent burns.

CAUTION:

• Do not touch the glass of bulb directly by hand. Keep grease and other oily substances away from bulb surface.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture, smoke, etc. may affect the performance of lamp.

Remove instrument lower panel (LH). Refer to Removal and Installation.

Rotate the bulb and socket assembly counterclockwise and remove.

Insert bulb and socket assembly into foot lamp and rotate clockwise to lock in position.

Install the instrument lower panel (LH). Refer to Removal and Installation.

Rh Side Nissan Pathfinder Fifth generation

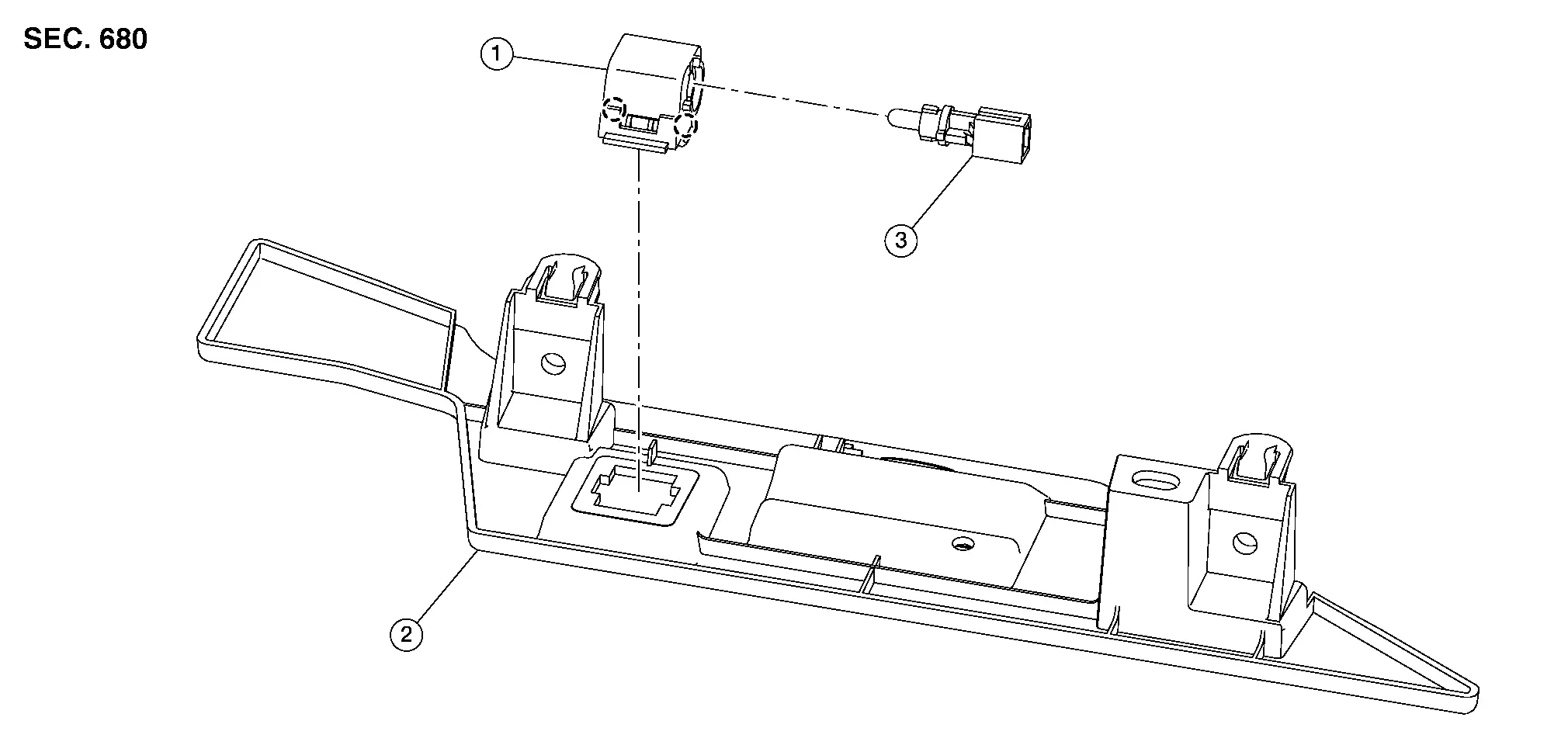

Exploded View

1.	Foot lamp (RH)	2.	Instrument panel undercover(RH)	3.	Bulb and socket assembly
	Pawl

Removal and Installation

REMOVAL

Remove instrument panel undercover. Refer Exploded View.

Rotate the bulb and socket assembly counterclockwise and remove from foot lamp (RH).

Using a suitable tool, release pawls and remove foot lamp (RH).

INSTALLATION

Installation is in reverse order of removal

CAUTION:

Do not touch the glass surface of bulb while it is lit or right after being turned OFF to prevent burns.

Bulb Replacement

WARNING:

Do not touch the glass surface of a bulb while it is lit or right after being turned OFF to prevent burns.

CAUTION:

• Do not touch the glass of bulb directly by hand. Keep grease and other oily substances away from bulb surface.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture, smoke, etc. may affect the performance of lamp.

Remove instrument panel under cover. Refer to Exploded View.

Rotate the bulb and socket assembly counterclockwise and remove from foot lamp (RH).

Insert bulb and socket assembly into foot lamp (RH) and rotate clockwise to lock in position.

Install instrument panel undercover.
