Nissan Pathfinder: Exterior - Fender Protector
Fender Protector Nissan Pathfinder SUV

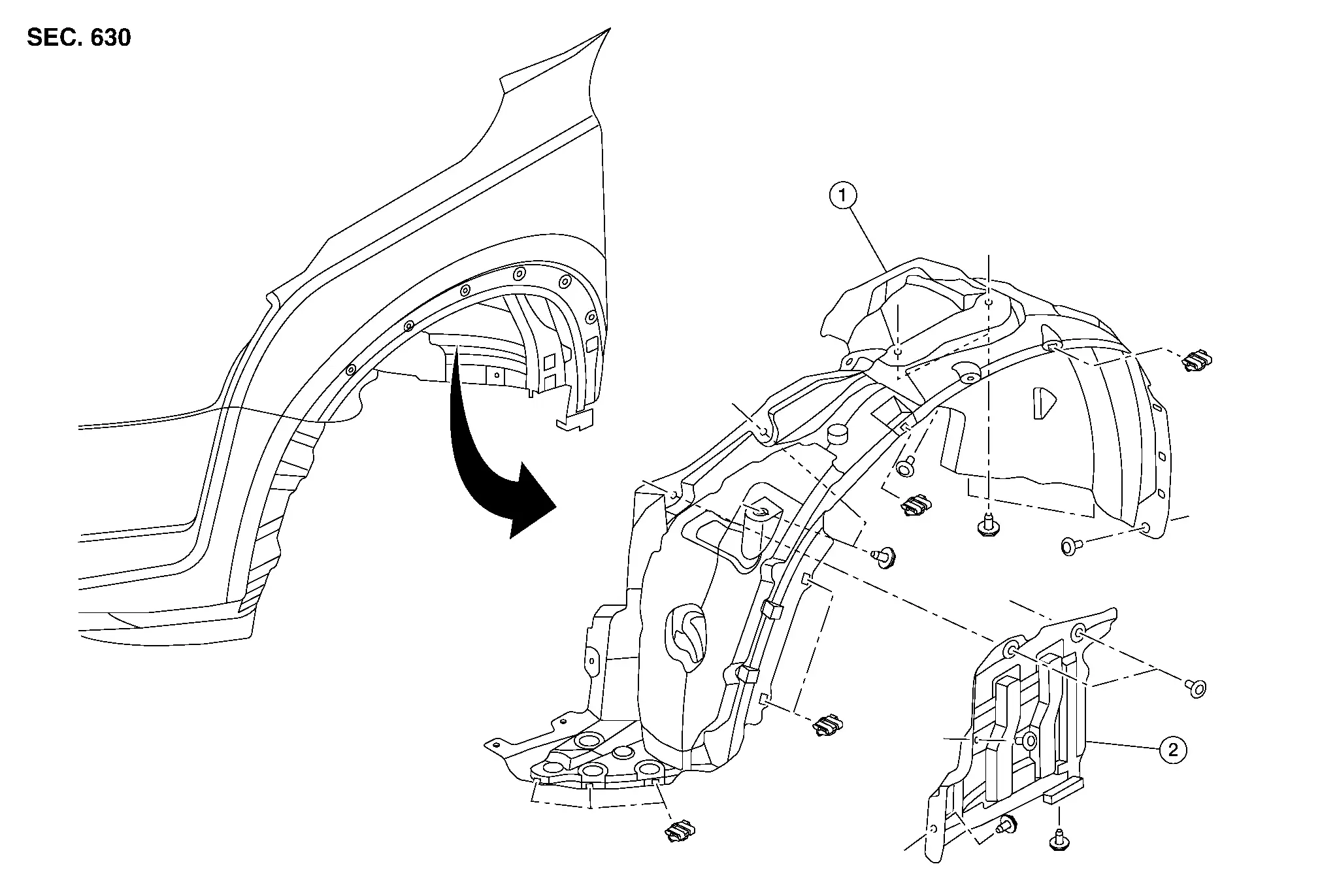

Exploded View
NOTE:
LH shown, RH similar.
| 1. | Fender protector | 2. | Fender protector side cover |
Removal and Installation
REMOVAL
Position the front wheels as necessary to remove screws and clips.
Remove front over fender. Refer to Removal and Installation.
Using suitable tool, remove clips and front fender protector side cover.
Using suitable tool, remove clips, screws and front fender protector.
INSTALLATION
Installation is in the reverse order of removal.
Rear Wheel House Protector Nissan Pathfinder 2022

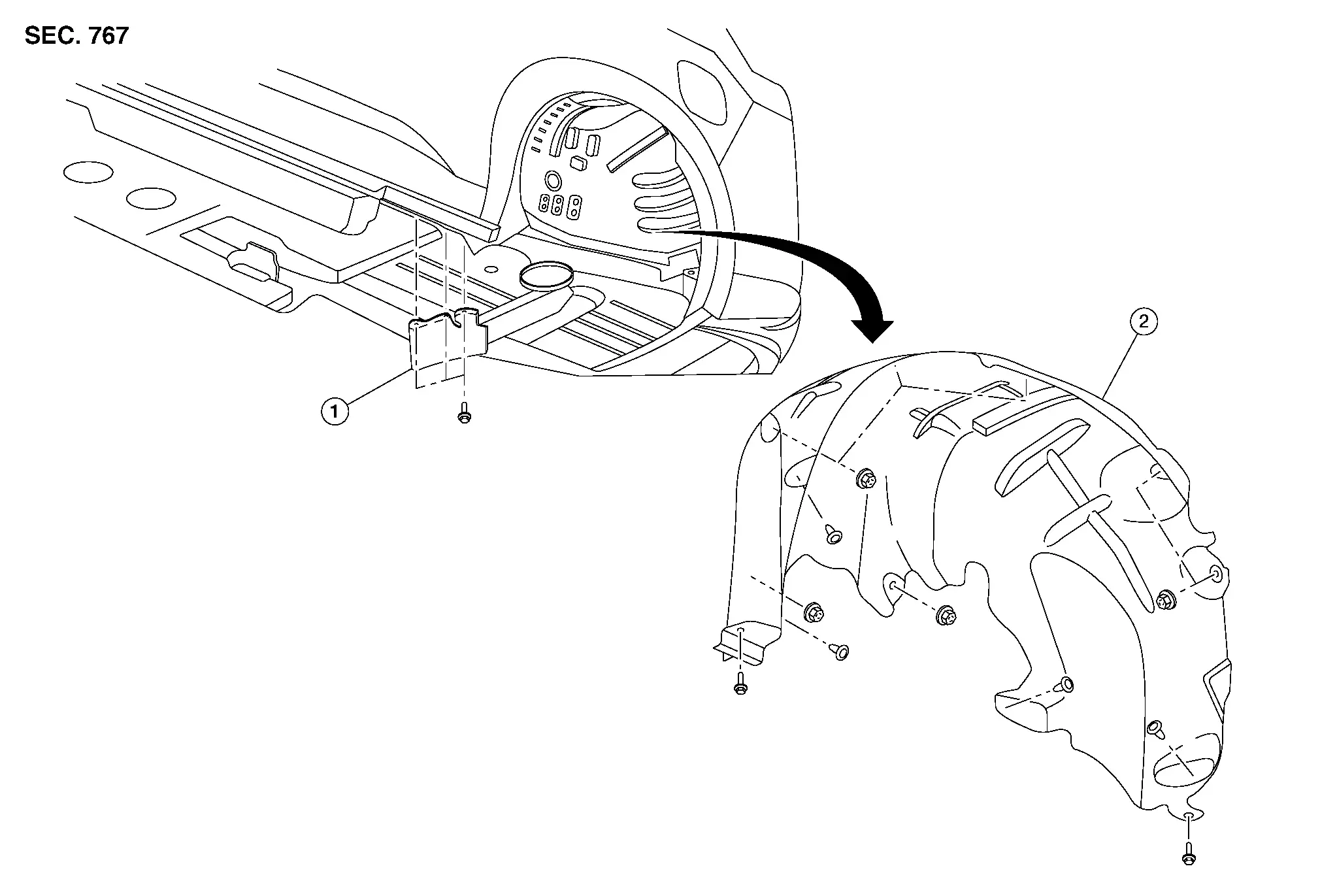

Exploded View
NOTE:
LH shown, RH similar.
| 1. | Rear wind deflector | 2. | Rear wheel house protector |
Removal and Installation
REMOVAL
Using suitable tool, remove rear wheel house protector clips, plastic nuts and screws.
Remove rear wheel house protector.
Remove rear wind deflector bolts and rear wind deflector.
INSTALLATION
Installation is in the reverse order of removal.
