Nissan Pathfinder: Door & Lock - Back Door Lock

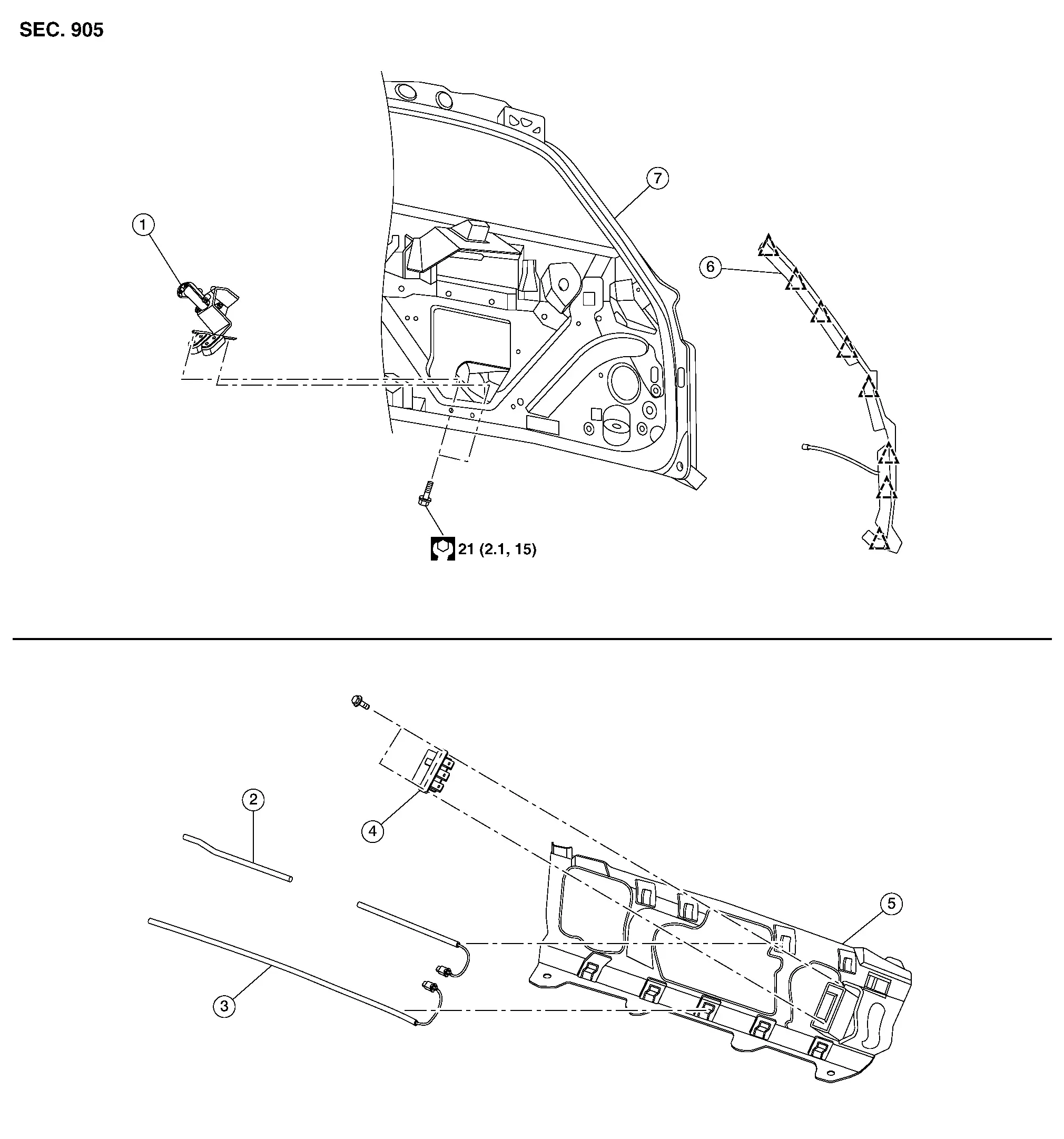

Exploded View

1.	Back door lock assembly	2.	Hands free sensor [(upper side) (if so equipped)]	3.	Hands free sensor [(lower side) (if so equipped)]
4.	Hands free sensor control unit (if so equipped)	5.	Rear bumper stiffener	6.	Touch sensor (if so equipped)
7.	Back door		: Clip

• Back Door Lock
• Touch Sensor
• Hands Free Sensor
• Hands Free Sensor Control Unit

Back Door Lock Nissan Pathfinder SUV

Removal and Installation

REMOVAL

Remove back door lower finisher. Refer to Removal and Installation.

Disconnect harness connector from back door lock assembly.

Remove back door lock assembly bolts and remove back door lock assembly.

INSTALLATION

Installation is in the reverse order of removal.

Touch Sensor Nissan Pathfinder SUV

Removal and Installation

CAUTION:

• Use care not to bend touch sensor.

• Replace the back door touch sensor if it has been dropped or sustained an impact.

REMOVAL

Using a suitable tool, release touch sensor clips. Refer to Exploded View.

Disconnect the harness connector from the touch sensor.

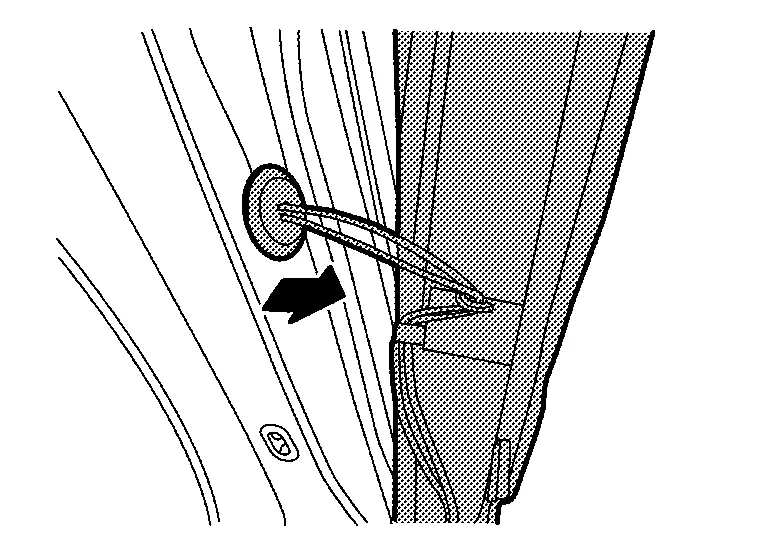

Remove grommet and touch sensor harness from back door as shown and remove touch sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, check back door open/close operation.

Hands Free Sensor Nissan Pathfinder 2025

Removal and Installation

REMOVAL

Remove rear bumper fascia. Refer to Removal and Installation.

Disconnect the harness connectors from hands free sensor.

Remove hands free sensor upper and lower from rear bumper bracket.

INSTALLATION

Installation is in the reverse order of removal.

Hands Free Sensor Control Unit Nissan Pathfinder 2022

Removal and Installation

REMOVAL

Remove rear bumper fascia. Refer to Removal and Installation.

Disconnect the harness connectors from hands free sensor.

Remove hands free sensor upper and lower from rear bumper bracket.

Remove hands free sensor control unit bolts, and then remove hands free sensor control unit.

INSTALLATION

Installation is in the reverse order of removal.
