Nissan Pathfinder: Accelerator Control System - Accelerator Pedal Assembly

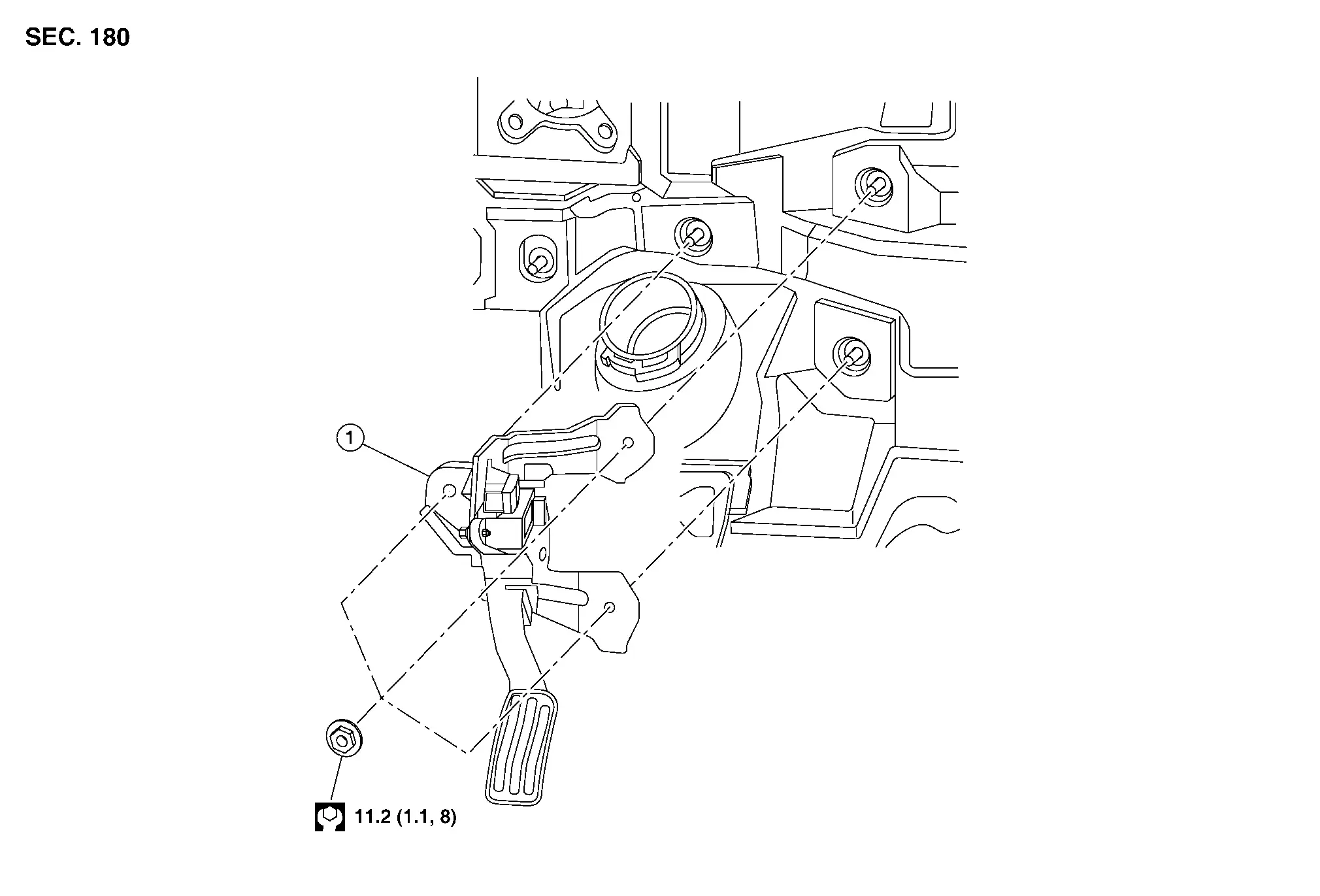

Exploded View

Removal and Installation

REMOVAL

Remove accelerator pedal assembly nuts.

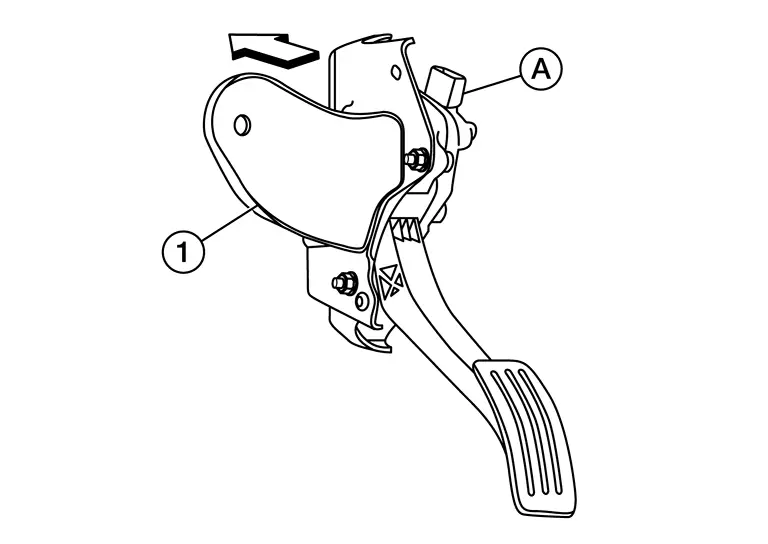

Disconnect harness connector (A) from the accelerator pedal assembly (1).

: Front

Remove the accelerator pedal assembly.

CAUTION:

• Do not disassemble accelerator pedal assembly.

• Do not drop or impact accelerator pedal assembly.

• Do not expose accelerator pedal assembly to water.

INSTALLATION

Installation is in the reverse order of removal.

Perform inspection after installation. Refer to Inspection.

CAUTION:

• The accelerator pedal shall operate smoothly without catching, the pedal operating force is released. The pedal shall return smoothly to the fully raised position. The spring shall be free from damage.

• If the harness connector of the accelerator pedal position sensor is disconnected, perform “ACCELERATOR PEDAL RELEASED POSITION LEARNING”. Refer to Description.

Inspection

Inspection after installation

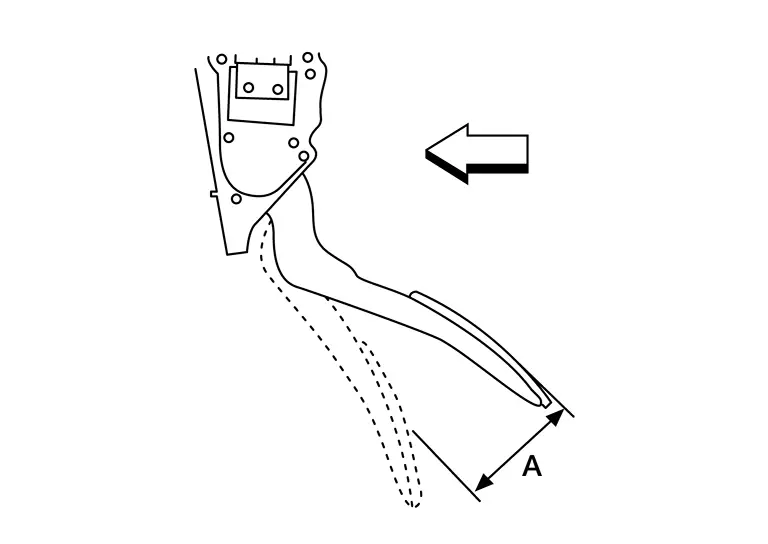

• Check that the accelerator pedal moves smoothly within the specified range.



  : Front

  Accelerator pedal stroke (A)

  : Refer to Accelerator Control.

• Check the accelerator pedal height.

  Accelerator pedal height

  : Refer to Accelerator Control.

• Depress and release the accelerator pedal to check that it returns quickly and smoothly to the original released position.
