Av Control Unit
Rear View Camera

Av Control Unit Nissan Pathfinder 2025

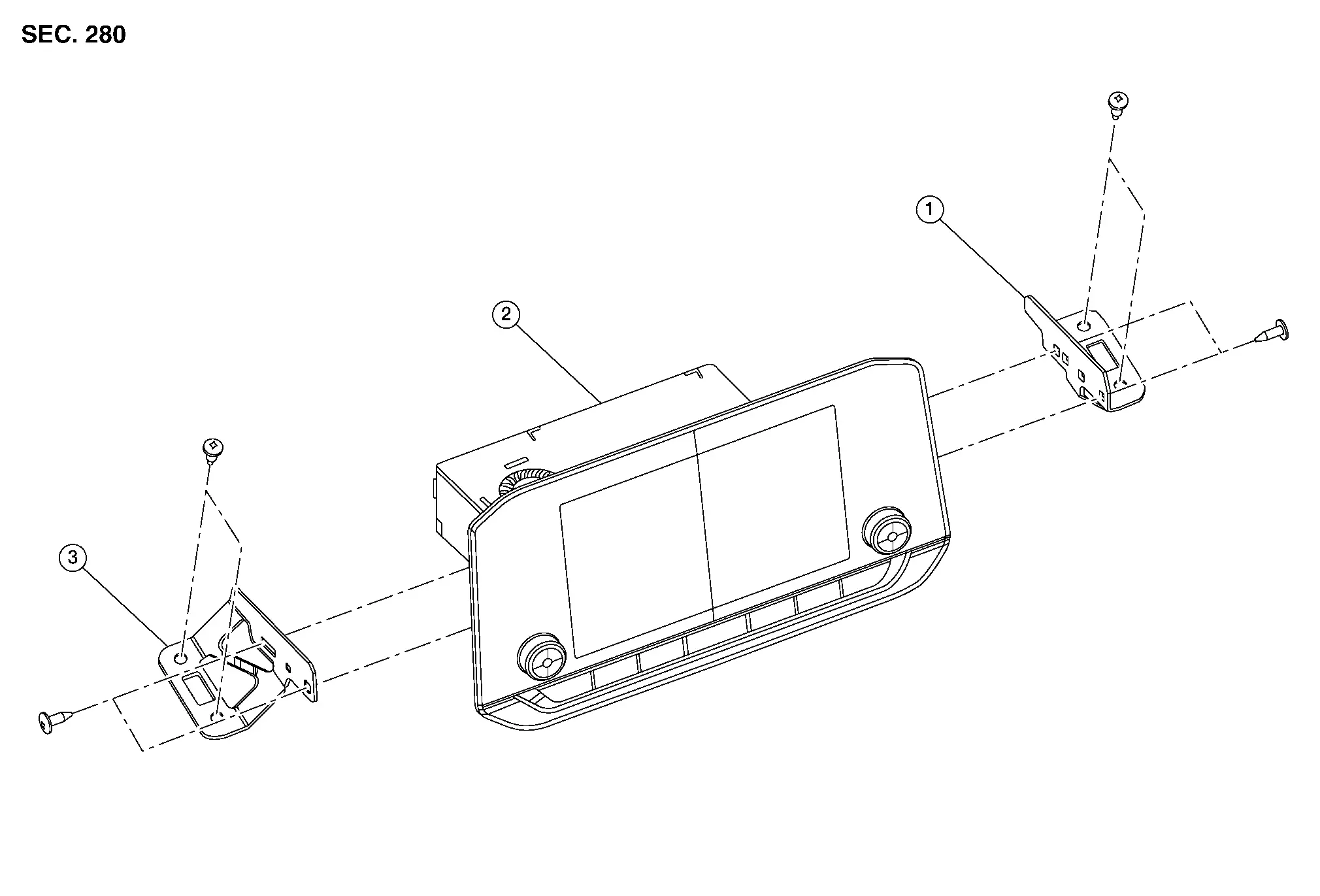

Exploded View

AV control unit bracket (RH)

AV control unit

AV control unit bracket (LH)

Removal and Installation

REMOVAL

CAUTION:

Remove battery terminal and AV control unit after a lapse of 30 seconds or more after placing the ignition switch OFF.

If replacing AV control unit, perform "ADDITIONAL SERVICE WHEN REPLACING AV CONTROL UNIT". Refer to Description.

NOTE:

After the ignition switch is placed OFF, the AV control unit continues operating for approximately 30 seconds.

Therefore, data corruption may occur if battery voltage is cut off within 30 seconds.

Disconnect the negative battery terminal. Refer to Removal and Installation.

Remove cluster lid D. Refer to Removal and Installation.

Remove the screws, then pull out the AV control unit.

Disconnect the harness connectors from the AV control unit.

Remove AV control unit.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

If replacing AV control unit, perform "ADDITIONAL SERVICE WHEN REPLACING AV CONTROL UNIT". Refer to Description.

Rear View Camera Nissan Pathfinder R53

Removal and Installation

REMOVAL

Remove rear bumper. Refer to Removal and Installation.

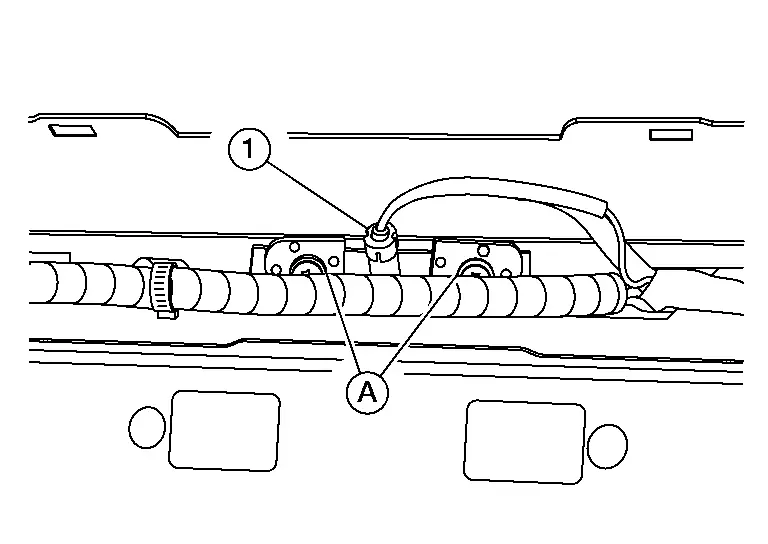

Remove rear view camera screws (A), then remove rear view camera (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Perform the calibration and perform the writing to the around view monitor control unit when removing and replacing each camera, removing the camera mounting parts (front grille, door mirror, etc.) and replacing the around view monitor control unit. Refer to Description.
