Nissan Pathfinder: Road Wheels & Tires - Preparation. Bcm (Ecu Diagnosis Information). Service Data and Specifications (SDS)

Nissan Pathfinder (R53) 2022-2025 Service Manual / Suspension :: Road Wheels & Tires / Preparation. Bcm (Ecu Diagnosis Information). Service Data and Specifications (SDS)

Preparation Nissan Pathfinder 5th Gen

Special Service Tool

The actual shape of the tools may differ from those illustrated here.

Tool number

(TechMate No.)

Tool name 		Description

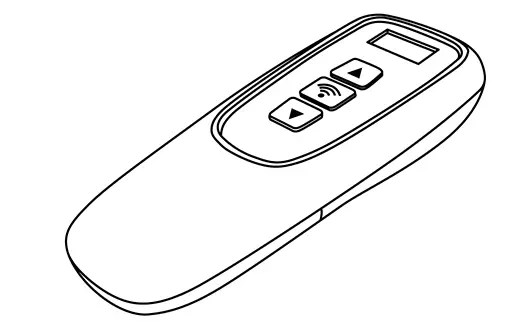

KV48105501

(NI-45295-A)

Transmitter activation tool

  • Activate TPMS transmitter IDs

  • Compatible with future sensors

  • Equipped with a display (KV48105501 only)

 —

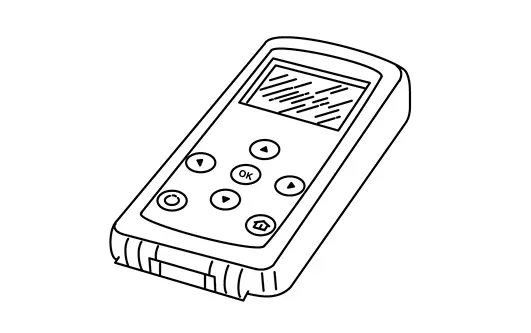

(NI-50190)

Signal Tech II

  • Activate and display TPMS transmitter IDs

  • Display tire pressure reported by the TPMS transmitter

  • Read TPMS DTCs

  • Register TPMS transmitter IDs

  • Test remote keyless entry keyfob relative signal strength

  • Check Intelligent Key relative signal strength

  • Confirm Nissan Pathfinder vehicle Intelligent Key antenna signal strength

  • Compatible with future sensors

  • Equipped with a display

 —

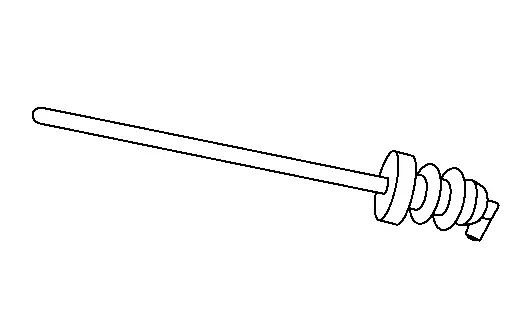

(NI-51980)

TPMS Service Tool

Remove and install TPMS transmitter valve stem

Commercial Service Tool

Tool name Description

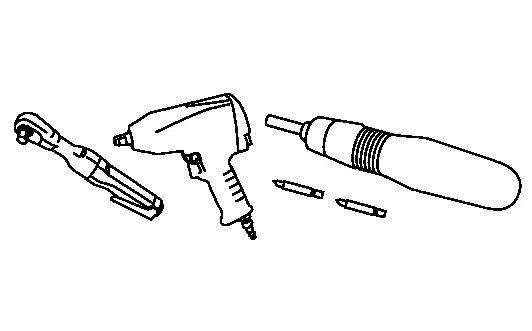

Power tool

Loosening nuts, screws and bolts.

Always Replace with New Parts

Never Reuse These Parts Part Code For additional information:
Valve cap 40703* TIRE PRESSURE SENSOR EXPLODED VIEW
Valve core 40704* TIRE PRESSURE SENSOR EXPLODED VIEW
Valve 40770KA TIRE PRESSURE SENSOR EXPLODED VIEW

Bcm (Ecu Diagnosis Information) Nissan Pathfinder 2022

List of ECU Reference

ECU Reference
BCM Values on the Diagnosis Tool
Reference Value
Fail-safe
DTC Inspection Priority Chart
DTC Index

Service Data and Specifications (SDS) Nissan Pathfinder

Wheel

Runout Maximum lateral runout limit 0.3 mm (0.012 in) or less
Maximum radial runout limit
Allowable imbalance Dynamic (At flange) Less than 5 g (0.17 oz) (one side)
Static (At flange) Less than 10 g (0.35 oz)

Tire Air Pressure

Unit: kPa (kg/cm2, psi)

Tire size Cold tire pressure
255/60R18 230 (2.3, 33)
265/60R18 250 (2.6, 36)
255/50R20 240 (2.4, 35)
Spare: T165/90D18 420 (4.2, 60)
