Precautions
Preparation
Starter Motor (Service Data and Specifications (sds))

Precautions Nissan Pathfinder 2025

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER"

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collisions.

Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” sections of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in the event of a collision that would result in air bag inflation, it is recommended that all maintenance and repair be performed by an authorized NISSAN/INFINITI dealer.

Improper repair, including incorrect removal and installation of the SRS, can lead to personal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module, see “SRS AIR BAG”.

Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation:

When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the ignition/power switch ON or engine running, never use air or electric power tools or strike near the sensor(s) with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing serious injury.

When using air or electric power tools or hammers, always switch the ignition/power switch OFF, disconnect the 12V battery or batteries, and wait at least 3 minutes before performing any service.

Preparation Nissan Pathfinder SUV

Special Service Tool

The actual shape of the tools may differ from those illustrated here.
Tool number (TechMate No.) Tool name		Description

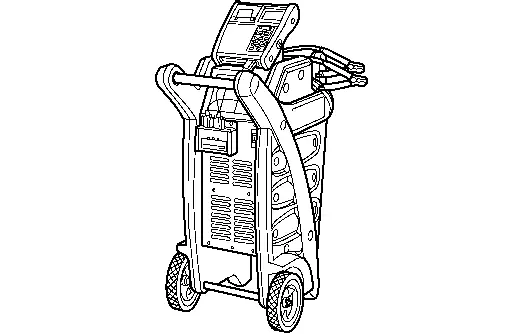

165-GR8-1200KIT (—) Midtronics Battery Charger and Tester		Tests batteries, starting and charging systems and charges batteries. For operating instructions, refer to diagnostic station instruction manual.

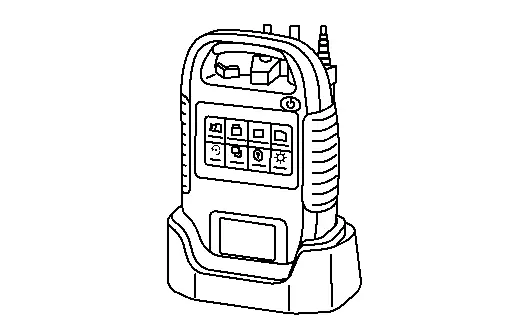

165–DSS-5000P (—) Midtronics Hand–Held Battery		Tests batteries,starting and charging systems. For operating instructions, refer to diagnostic analyzer instruction manual.

Commercial Service Tools

Tool name		Description

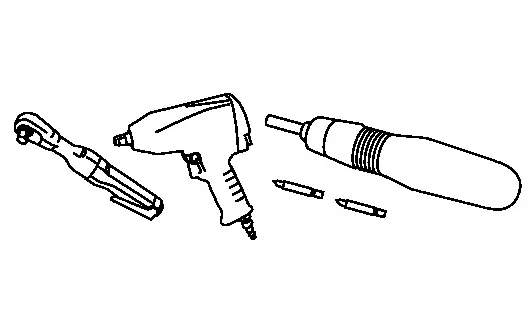

Power tool		Loosening nuts, screws and bolts

Starter Motor (Service Data and Specifications (sds)) Nissan Pathfinder SUV

Starter

Market		US, CAN
Type*		Mitsubishi M001TA0771ZC
		Direct drive type
System voltage		12V
No-load	Terminal voltage	11V
	Current	Less than 90A
	Revolution	More than 2,950 rpm
Movement "L" in height of pinion assembly [mm (in)]		± 1.0 (0.04)

Market		MEX
Type*		Mitsubishi M000TB0571ZC
		Direct drive type
System voltage		12V
No-load	Terminal voltage	11V
	Current	Less than 90A
	Revolution	More than 2,340 rpm
Movement "L" in height of pinion assembly [mm (in)]		± 1.0 (0.04)
