Nissan Pathfinder: Engine Cooling System - Precautions. Preparation. Service Data and Specifications (SDS)
Precautions Nissan Pathfinder 2022
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER"
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collisions.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” sections of this Service Manual.
WARNING:
Always observe the following items for preventing accidental activation:
-
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in the event of a collision that would result in air bag inflation, it is recommended that all maintenance and repair be performed by an authorized NISSAN/INFINITI dealer.
-
Improper repair, including incorrect removal and installation of the SRS, can lead to personal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module, see “SRS AIR BAG”.
-
Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
Always observe the following items for preventing accidental activation:
-
When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the ignition/power switch ON or engine running, never use air or electric power tools or strike near the sensor(s) with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing serious injury.
-
When using air or electric power tools or hammers, always switch the ignition/power switch OFF, disconnect the 12V battery or batteries, and wait at least 3 minutes before performing any service.
Preparation Nissan Pathfinder SUV
Special Service Tool
The actual shape of the tools may differ from those illustrated here.
|
Tool number (TechMate No.) Tool name | Description | |
|---|---|---|
|

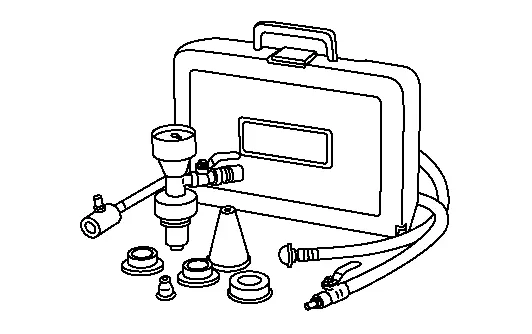

KV991J0070 (NI-45695-A) Coolant refill tool |
|
Refilling engine cooling system |
|

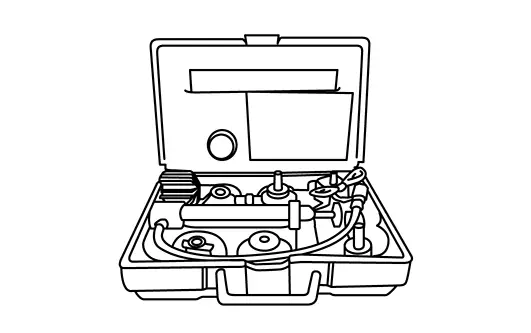

— (NI-51771) Cooling system pressure test kit
|
|
Checking cooling system and radiator cap |
Commercial Service Tool
|
(TechMate No.) Tool name | Description | |
|---|---|---|

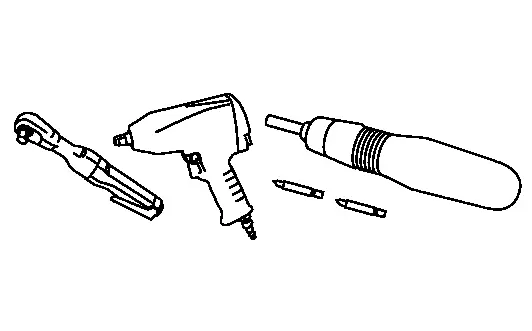

| Power tool |
|
Loosening nuts, screws and bolts |
|

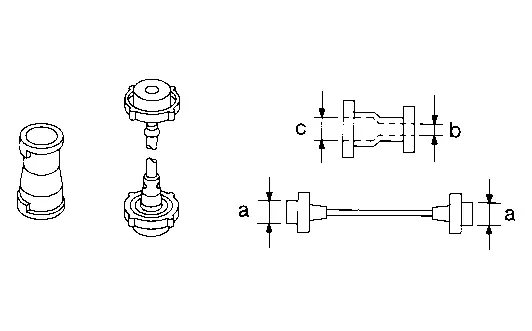

(NI-33984-A) Radiator pressure adapter |
|
Adapting cooling system pressure tester to radiator cap and reservoir tank cap a: 28 (1.10) diameter b: 31.4 (1.236) diameter c: 41.3 (1.626) diameter Unit: mm (in) |

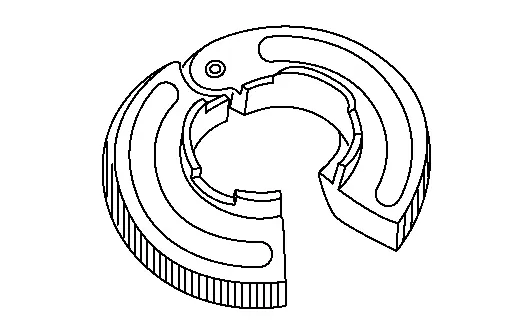

| 5/8" Disconnect tool |
|
For removal of the A/T fluid cooler hoses |
Always Replace with New Parts
| Never Reuse These Parts | Part Code | For additional information: |
|---|---|---|
| Seal - O-ring | 21010J | WATER PUMP EXPLODED VIEW |
| Seal - O-ring | 21010JA | WATER PUMP EXPLODED VIEW |
| Gasket - water inlet | 13050P | THERMOSTAT AND THERMOSTAT EXPLODED VIEW |
| Gasket - water outlet | 11062 | WATER OUTLET AND WATER PIPING EXPLODED VIEW |
| Seal - O-ring | 21049 | WATER OUTLET AND WATER PIPING EXPLODED VIEW |
| Gasket - water inlet | 13050N | WATER OUTLET AND WATER PIPING EXPLODED VIEW |
| Gasket - cylinder block | 11023AA | CYLINDER BLOCK DISASSEMBLY AND ASSEMBLY |
Service Data and Specifications (SDS) Nissan Pathfinder 2025
Capacity
(US qt, Imp qt)
| Engine coolant capacity* | With Tow Package | 11.9 (12-5/8, 10-1/2) |
| Without Tow Package | 11.6 (12-1/2, 10-1/4) |
*: Includes 0.8L with engine coolant reservoir tank at MAX level.
Thermostat
| Valve opening temperature | 82 ± 1.5°C (180 ± 35°F) |
| Full-open lift amount | 8.6 mm / 95°C (0.34 in / 203°F) |
| Valve closing temperature | 77°C (171°F) |
Radiator
Unit: kPa (bar, kg/cm2, psi)
| Cap relief pressure | Standard | 118 (1.18, 1.2, 17) |
| Test pressure | 147 (1.47, 1.5, 21.3) | |
Nissan Pathfinder (R53) 2022-2025 Service Manual
Precautions. Preparation. Service Data and Specifications (SDS)
