Nissan Pathfinder: Rear Axle - Precautions. Preparation. Service Data and Specifications (SDS)
Precautions Nissan Pathfinder Fifth generation
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER"
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collisions.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” sections of this Service Manual.
WARNING:
Always observe the following items for preventing accidental activation:
-
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in the event of a collision that would result in air bag inflation, it is recommended that all maintenance and repair be performed by an authorized NISSAN/INFINITI dealer.
-
Improper repair, including incorrect removal and installation of the SRS, can lead to personal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module, see “SRS AIR BAG”.
-
Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
Always observe the following items for preventing accidental activation:
-
When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the ignition/power switch ON or engine running, never use air or electric power tools or strike near the sensor(s) with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing serious injury.
-
When using air or electric power tools or hammers, always switch the ignition/power switch OFF, disconnect the 12V battery or batteries, and wait at least 3 minutes before performing any service.
Precautions for Drive Shaft
Observe the following precautions when disassembling and assembling drive shaft:
-
Joint sub-assembly does not disassemble because it is non-overhaul parts.
-
Perform work in a location which is as dust-free as possible.
-
Before disassembling and assembling, clean the outside of parts.
-
Prevention of the entry of foreign objects must be taken into account during disassembly of the service location.
-
Disassembled parts must be carefully reassembled in the correct order. If work is interrupted, a clean cover must be placed over parts.
-
Paper shop cloths must be used. Fabric shop cloths must not be used because of the danger of lint adhering to parts.
-
Disassembled parts (except for rubber parts) should be cleaned with kerosene which shall be removed by blowing with air or wiping with paper shop cloths.
Preparation Nissan Pathfinder SUV
Special Service Tool
|
Tool number (TechMate No.) Tool name | Description | |
|---|---|---|
|

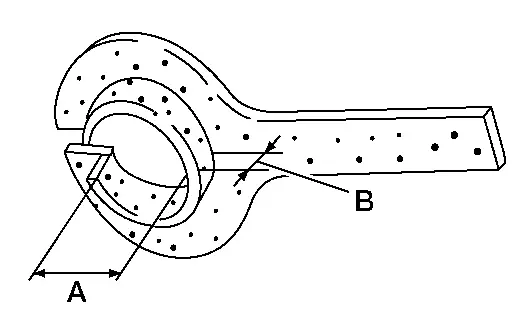

KV38107900 (NI-52469-1) Differential side oil seal protector |
|
Installing drive shaft A: 32 mm (1.26 in) dia B: Minimum 23 mm (0.91 in) |
|

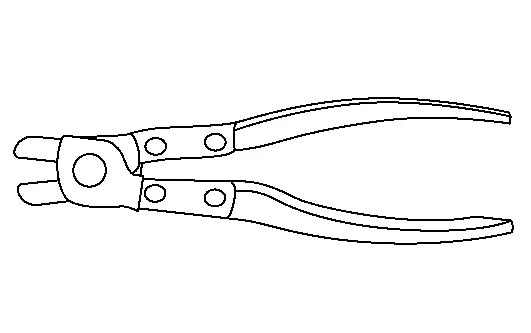

KV40107300 (NI-51751) Boot Band crimping tool |
|
Installing boot bands |
Commercial Service Tool
| Tool name | Description | |

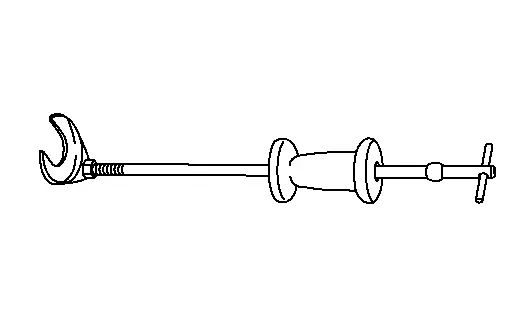

| Drive shaft joint puller |
|
Removing drive shaft |

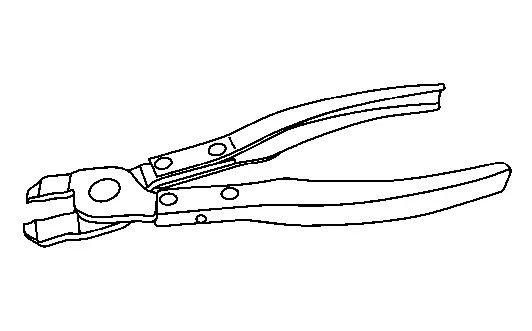

| Boot band & Damper band crimping tool |
|
Installing boot band & damper bands |

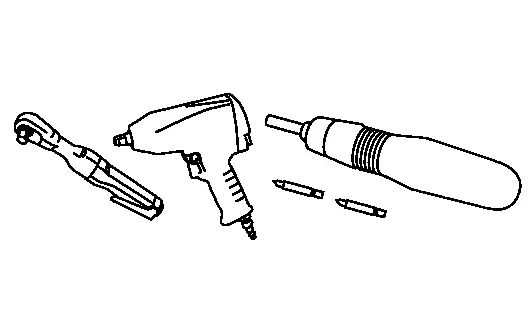

| Power tool |
|
Loosening nuts, screws and bolts |
Always Replace with New Parts
| Do not Reuse These Parts | Part Code | For additional information: |
|---|---|---|
| Bush - Radius, Axle | 43052H | REAR WHEEL HUB EXPLODED VIEW |
| Bush - LWR Link, FR Axle | 43052D | REAR WHEEL HUB EXPLODED VIEW |
| Bush - LWR Link, RR Axle | 43052E | REAR WHEEL HUB EXPLODED VIEW |
| Cotter pin | 43080J | REAR WHEEL HUB EXPLODED VIEW |
| Circlip - Drive SFT | 39634 | REAR DRIVE SHAFT EXPLODED VIEW |
| Circlip - Drive SFT | 39600F | REAR DRIVE SHAFT EXPLODED VIEW |
| Shield – dust | 39752X | REAR DRIVE SHAFT EXPLODED VIEW |
| Band - Boot, HSG (Small) | — | REAR DRIVE SHAFT EXPLODED VIEW |
| Band - boot, SFT (Small) | — | REAR DRIVE SHAFT EXPLODED VIEW |
| Band - boot, HSG (Large) | — | REAR DRIVE SHAFT EXPLODED VIEW |
| Band - boot, SFT (Large | — | REAR DRIVE SHAFT EXPLODED VIEW |
| Boot - Fixed JT, RUB | 39641K | REAR DRIVE SHAFT EXPLODED VIEW |
| Boot - Slide JT, RUB | 39741K | REAR DRIVE SHAFT EXPLODED VIEW |
| Boot - fixed JT, RUB | 39641K | REAR DRIVE SHAFT EXPLODED VIEW |
| Ring - Snap | 39010J | REAR DRIVE SHAFT EXPLODED VIEW |
Service Data and Specifications (SDS) Nissan Pathfinder
Wheel Bearing
| Item | Standard |
|---|---|
| Axial end play | 0.05 mm (0.002 in) or less |
Drive Shaft
|
|
|
|||
| Joint type | Wheel side | Final drive side | ||
| Grease quantity |
99± 10 g (3.49 ± 0.35 oz) |
114± 10 g (4.02 ± 0.35 oz) |
||

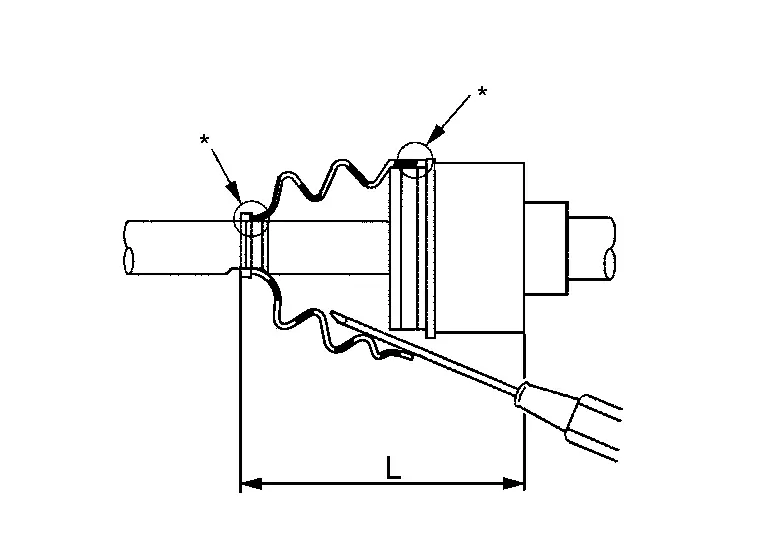

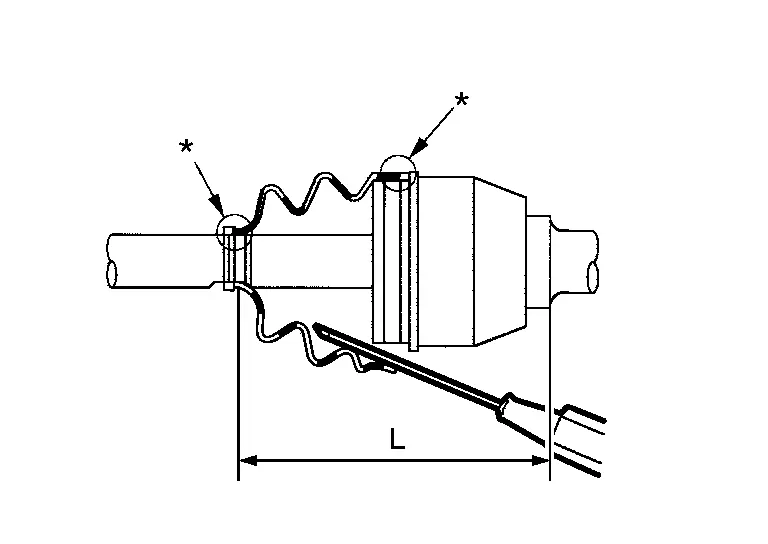

| Boots installed length |
121 mm (4.76 in) |
128.1 mm (5.04 in) |
||
* : Boot installation grooves

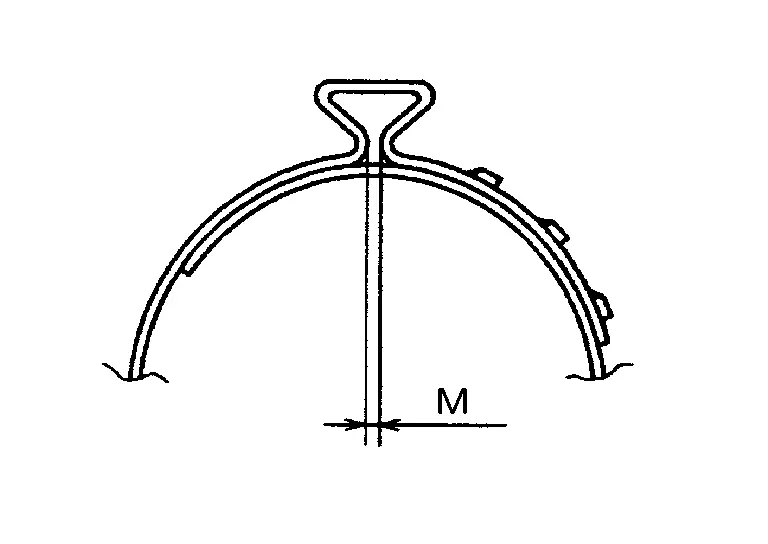

Boot Bands
Unit: mm (in)
|
|
||||
| Dimension (M) | Wheel side | Large | 2.6 mm Max (0.102 Max) | |
| Small | 2.15 mm Max (0.085 Max) | |||
| Transaxle side | Large | Low profile type band | ||
| Small | 1.5 mm Max (0.059 Max) | |||
