Nissan Pathfinder: Glass & Window System - Precautions. Preparation

• Precautions
• Preparation

Precautions Nissan Pathfinder 5th Gen

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER"

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collisions.

Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” sections of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation:

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation:

Handling for Adhesive and Primer

• Do not use an adhesive which is past its usable date. Shelf life of this product is limited to six months after the date of manufacture. Carefully adhere to the expiration or manufacture date printed on the box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

• Open the seal of the primer and adhesive just before application. Discard the remainder.

• Before application, be sure to shake the primer container to stir the contents. If any floating material is found, do not use it.

• If any primer or adhesive contacts the skin, wipe it off with gasoline or equivalent and wash the skin with soap.

• When using primer and adhesive, always observe the precautions in the instruction manual.

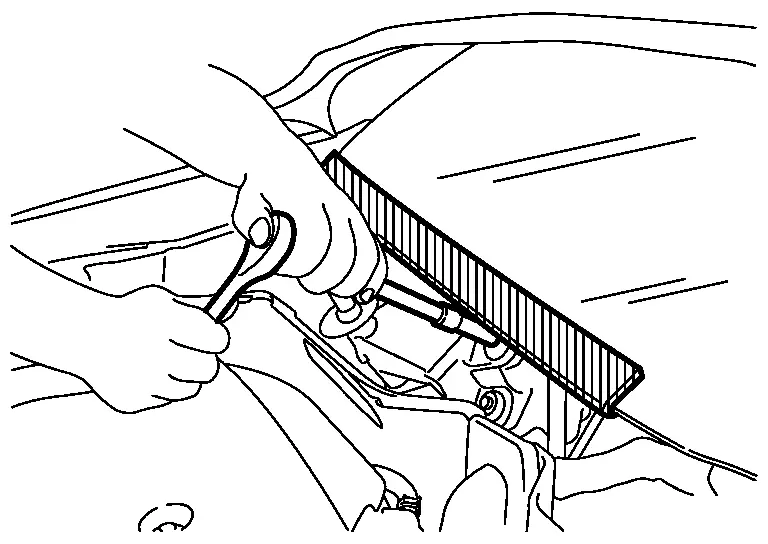

Procedure without Cowl Top Cover

When performing the procedure after removing cowl top cover, cover the lower end of windshield with urethane, etc. to prevent damage to the windshield.

Precautions for Work

• When removing or disassembling each component, be careful not to damage or deform it. If a component may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with a new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components:

  • Water soluble dirt:

    1. Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.

    2. Then rub with a soft, dry cloth.

  • Oily dirt:

    1. Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty area.

    2. Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.

    3. Then rub with a soft, dry cloth.

  • Do not use organic solvent such as thinner, benzene, alcohol or gasoline.

  • For genuine leather seats, use a genuine leather seat cleaner.

Preparation Nissan Pathfinder 2025

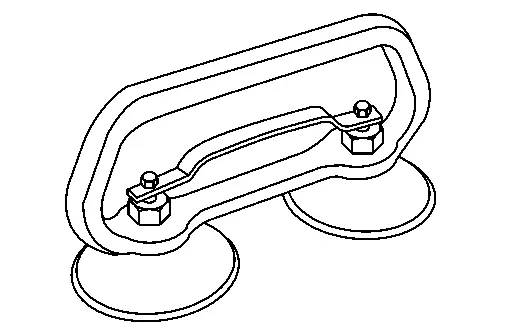

Special Service Tool

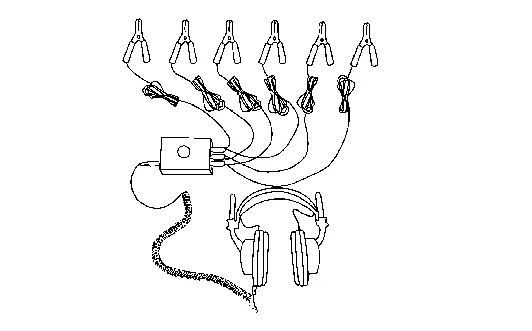

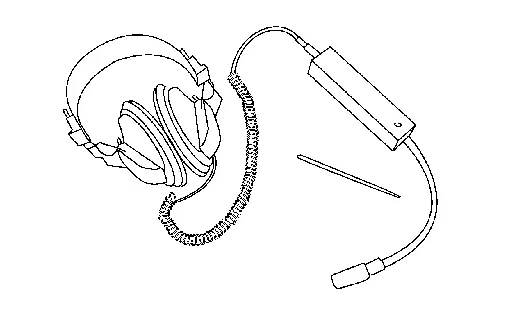

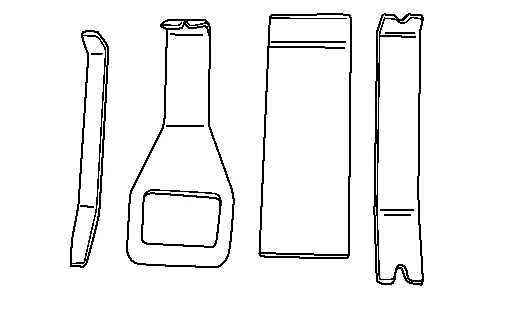

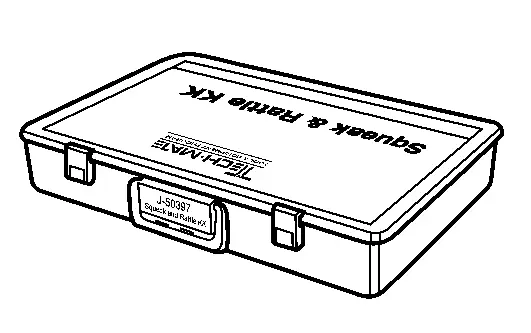

Commercial Service Tool
