Precautions Nissan Pathfinder 2022

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER"

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collisions.

Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” sections of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in the event of a collision that would result in air bag inflation, it is recommended that all maintenance and repair be performed by an authorized NISSAN/INFINITI dealer.

Improper repair, including incorrect removal and installation of the SRS, can lead to personal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module, see “SRS AIR BAG”.

Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation:

When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the ignition/power switch ON or engine running, never use air or electric power tools or strike near the sensor(s) with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing serious injury.

When using air or electric power tools or hammers, always switch the ignition/power switch OFF, disconnect the 12V battery or batteries, and wait at least 3 minutes before performing any service.

Service Notice or Precautions for Steering System

In case of removing steering gear, make the final tightening with grounded and unloaded vehicle condition, and then check wheel alignment.
Observe the following precautions when disassembling.
- Before disassembly, thoroughly clean the outside of the unit.
- Disassembly should be done in a clean work area. It is important to prevent the internal parts from becoming contaminated by dirt or other foreign matter.
- For easier and proper assembly, place disassembled parts in order on a parts rack.
- Use nylon cloth or paper towels to clean the parts; common shop rags can leave lint that might interfere with their operation.
- Never reuse non-reusable parts.
- Before assembling, apply the specified grease to the directed parts.

Preparation Nissan Pathfinder 2025

Special Service Tool

The actual shape of the tools may differ from those illustrated here.
Tool number (TechMate No.) Tool name		Description

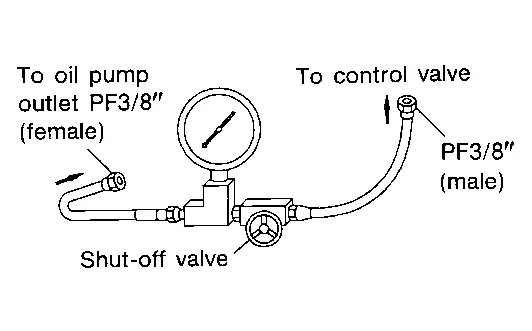

KV48103500 (NI-26357) Pressure gauge		Measuring oil pump relief pressure

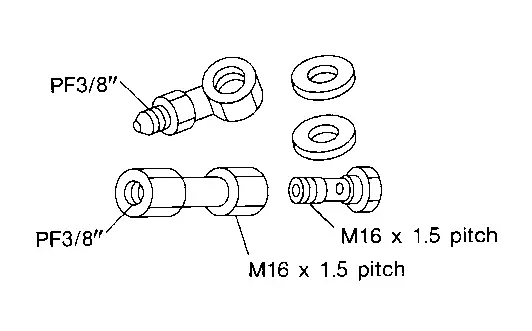

KV48102500 (NI-33914) Pressure gauge adapter		Measuring oil pump relief pressure
KV40107300 (NI-51751) Boot clamp crimping tool		Installing boot clamps

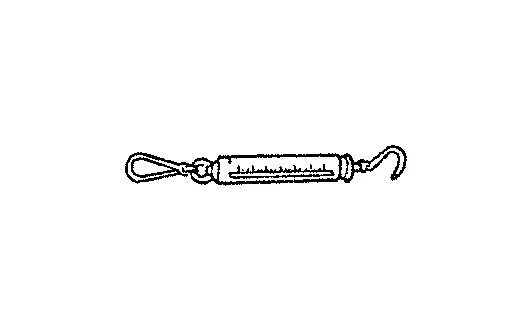

— (NI-44372) Pull gauge		Measuring steering wheel turning force, rack sliding force and ball joint swinging force
KV38107900 (NI-52469-1) Differential side oil seal protector		Installing drive shaft A: 32 mm (1.26 in) dia B: Minimum 23 mm (0.91 in)

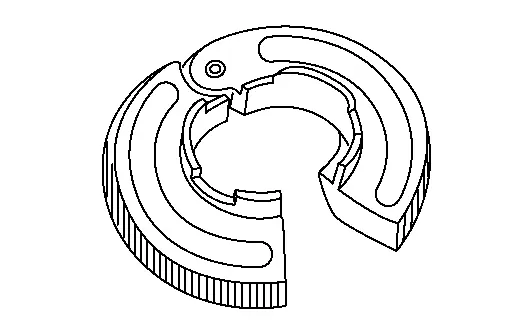

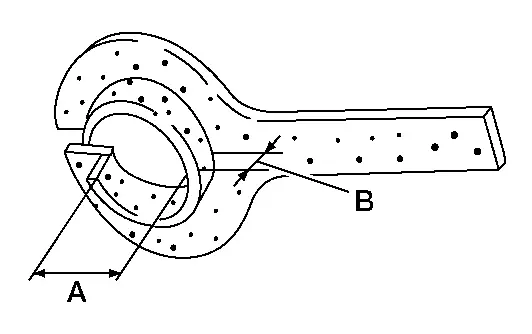

— (NI-52982) Lock nut chisel (Cape chisel)		Removing wheel hub lock nut

Commercial Service Tool

Tool name		Description

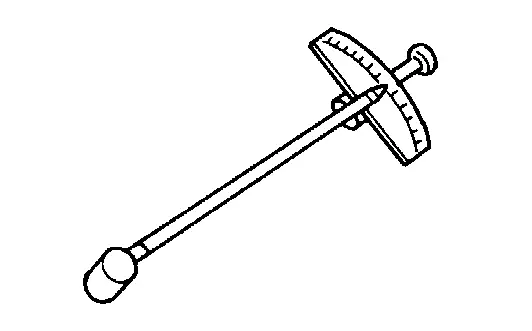

Preload gauge		Inspecting steering column rotating torque, pinion rotating torque and ball joint rotating torque

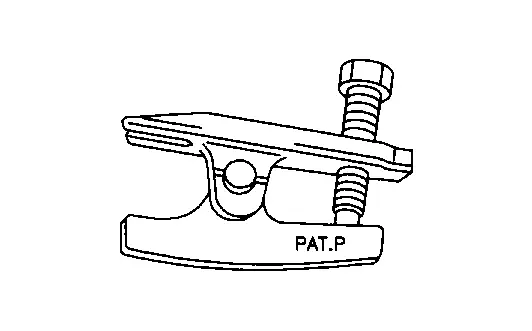

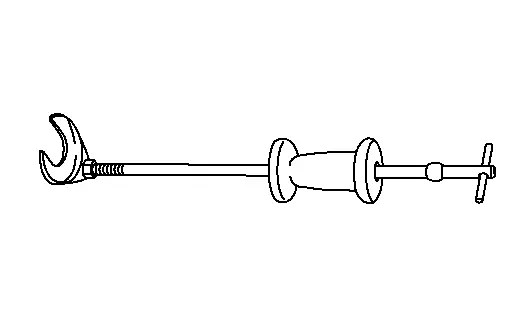

Ball joint remover		Remove steering outer socket
Steering wheel puller		Removing steering wheel

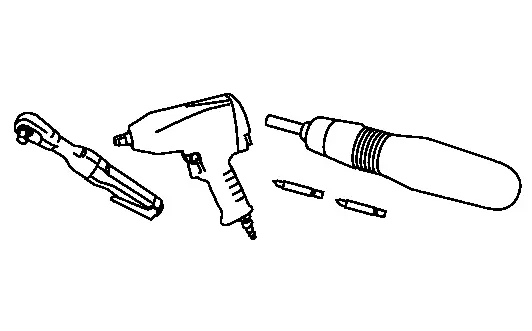

Power tool		Loosening nuts, screws and bolts

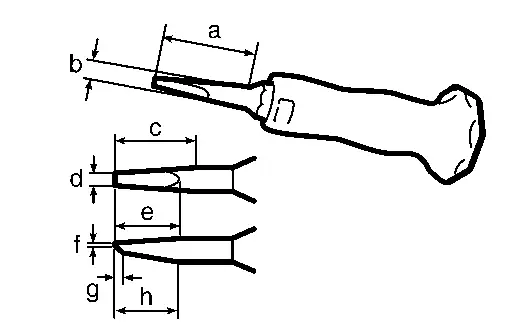

Lock nut crimp punch (Cold chisel)		Installing wheel hub lock nut a: 5 mm (0.20 in) b: 7 mm (0.28 in)

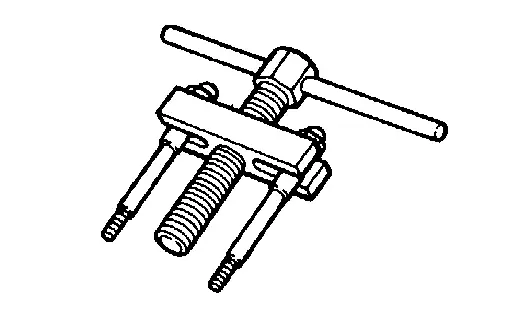

Drive shaft joint puller		Removing drive shaft

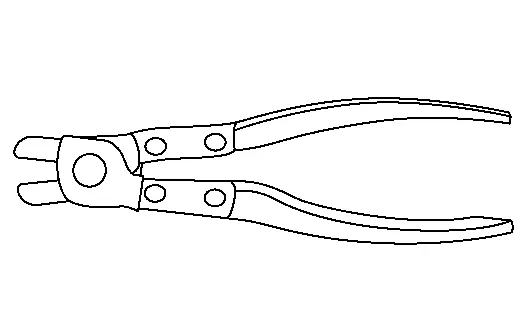

5/8" Disconnect tool		For removal of A/T fluid cooler hoses

Always Replace with New Parts

Never Reuse These Parts	Part # Prefix	For additional information:
BOLT-SPL	48025	STEERING WHEEL EXPLODED VIEW
NUT-SLOCK	08918	STEERING COLUMN EXPLODED VIEW
NUT-FLG	48020	STEERING GEAR AND LINKAGE EXPLODED VIEW
CLP-BOOT	49203A	STEERING GEAR AND LINKAGE EXPLODED VIEW
