Precautions Nissan Pathfinder

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER"

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collisions.

Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” sections of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in the event of a collision that would result in air bag inflation, it is recommended that all maintenance and repair be performed by an authorized NISSAN/INFINITI dealer.

Improper repair, including incorrect removal and installation of the SRS, can lead to personal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module, see “SRS AIR BAG”.

Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation:

When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the ignition/power switch ON or engine running, never use air or electric power tools or strike near the sensor(s) with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing serious injury.

When using air or electric power tools or hammers, always switch the ignition/power switch OFF, disconnect the 12V battery or batteries, and wait at least 3 minutes before performing any service.

Precautions for Drive Shaft

Observe the following precautions when disassembling and assembling drive shaft.

Joint sub-assembly does not disassemble because it is non-overhaul parts.
Perform work in a location which is as dust-free as possible.
Before disassembling and assembling, clean the outside of parts.
Prevention of the entry of foreign objects must be taken into account during disassembly of the service location.
Disassembled parts must be carefully reassembled in the correct order. If work is interrupted, a clean cover must be placed over parts.
Paper shop cloths must be used. Fabric shop cloths must not be used because of the danger of lint adhering to parts.
Disassembled parts (except for rubber parts) should be cleaned with kerosene which shall be removed by blowing with air or wiping with paper shop cloths.

Preparation Nissan Pathfinder 5th Gen

Special Service Tool

The actual shape of the tools may differ from those illustrated here.
Tool number (TechMate No.) Tool name		Description

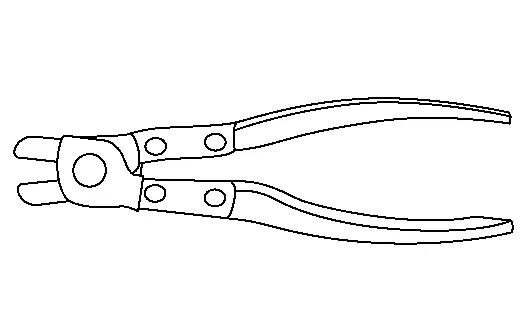

KV40107300 (NI-51751) Boot band crimping tool		Installing boot band

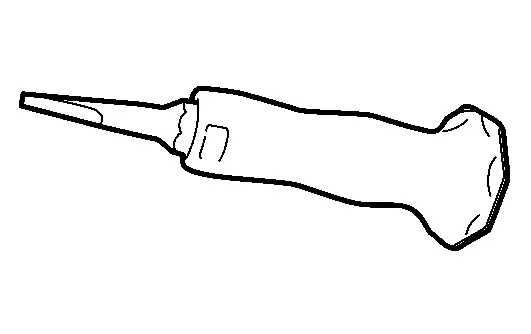

KV38107900 (NI-52469–1) Differential side oil seal protector		Installing drive shaft A: 32 mm (1.26 in) dia B: Minimum 23 mm (0.91 in)

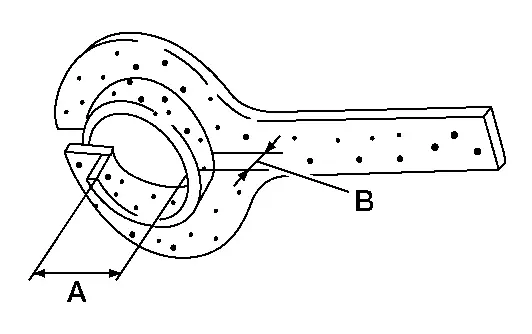

(NI-52982) Lock nut chisel (Cape chisel)		Removing wheel hub lock nut

Commercial Service Tool

Tool name		Description

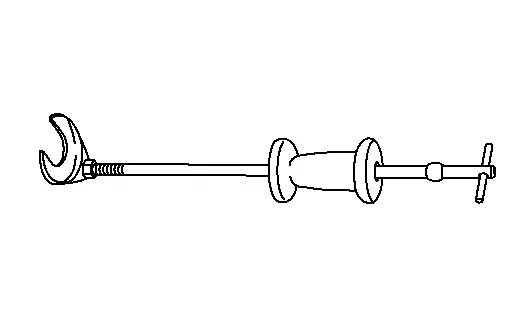

Drive shaft joint puller		Removing drive shaft

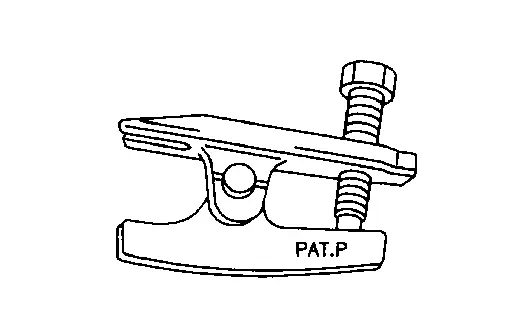

Ball joint remover		Removing ball joint for suspension arm Removing hub bolt

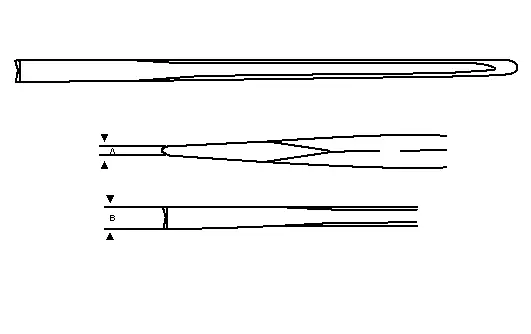

Lock nut crimp punch (Cold chisel)		Installing wheel hub lock nut a: 5 mm (0.20 in) b: 7 mm (0.28 in)

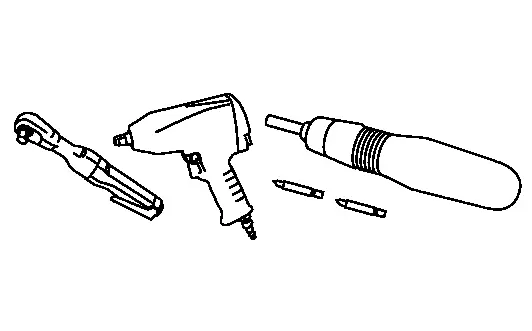

Power tool		Loosening nuts, screws and bolts

FRONT AXLE SYSTEM: Always Replace with New Parts

Never Reuse These Parts	Part Code	For additional information:
Nut-Lock, Wheel Bearing	40262	FRONT WHEEL HUB AND BEARING EXPLODED VIEW
Bolt-Hub	40222	FRONT WHEEL HUB AND BEARING EXPLODED VIEW
Nut-Hex,slock	1223	FRONT WHEEL HUB AND BEARING EXPLODED VIEW
Nut	54020B	FRONT WHEEL HUB AND BEARING EXPLODED VIEW
Circlip - Side Gear	38225W	FRONT DRIVE SHAFT BOOT EXPLODED VIEW
Shield - Dust	39752+B	FRONT DRIVE SHAFT BOOT EXPLODED VIEW
Ring - Snap	—	FRONT DRIVE SHAFT BOOT EXPLODED VIEW
Ring - Stopper	—	FRONT DRIVE SHAFT BOOT EXPLODED VIEW
Band Boot -Sld Hsg	—	FRONT DRIVE SHAFT BOOT EXPLODED VIEW
Band - Boot, SFT	—	FRONT DRIVE SHAFT BOOT EXPLODED VIEW
Boot - Fixed JT	39156KA	FRONT DRIVE SHAFT BOOT EXPLODED VIEW
Band - Damp	—	FRONT DRIVE SHAFT BOOT EXPLODED VIEW
Band - Boot, Hsg	—	FRONT DRIVE SHAFT BOOT EXPLODED VIEW
Band - Boot, SFT	—	FRONT DRIVE SHAFT BOOT EXPLODED VIEW
Boot - Fixed JT	39155KA	FRONT DRIVE SHAFT BOOT EXPLODED VIEW
Circlip - Drive Sft	—	FRONT DRIVE SHAFT BOOT EXPLODED VIEW
Circlip - Drive Sft	39234	FRONT DRIVE SHAFT BOOT EXPLODED VIEW
Boot - Fixed JT	39155K	FRONT DRIVE SHAFT BOOT EXPLODED VIEW
Boot - Slide JT, Rub	39156K	FRONT DRIVE SHAFT BOOT EXPLODED VIEW
Ring - Snap	39734	FRONT DRIVE SHAFT BOOT EXPLODED VIEW
Ring - Stopper	39735+A	FRONT DRIVE SHAFT BOOT EXPLODED VIEW
Ring - Snap	—	FRONT DRIVE SHAFT BOOT EXPLODED VIEW
Shield - Dust	—	FRONT DRIVE SHAFT BOOT EXPLODED VIEW
Shield - Dust	—	FRONT DRIVE SHAFT BOOT EXPLODED VIEW
Shield - Dust	39752	FRONT DRIVE SHAFT BOOT EXPLODED VIEW
