Vehicle-To-Vehicle Distance Control Mode Function

Operation

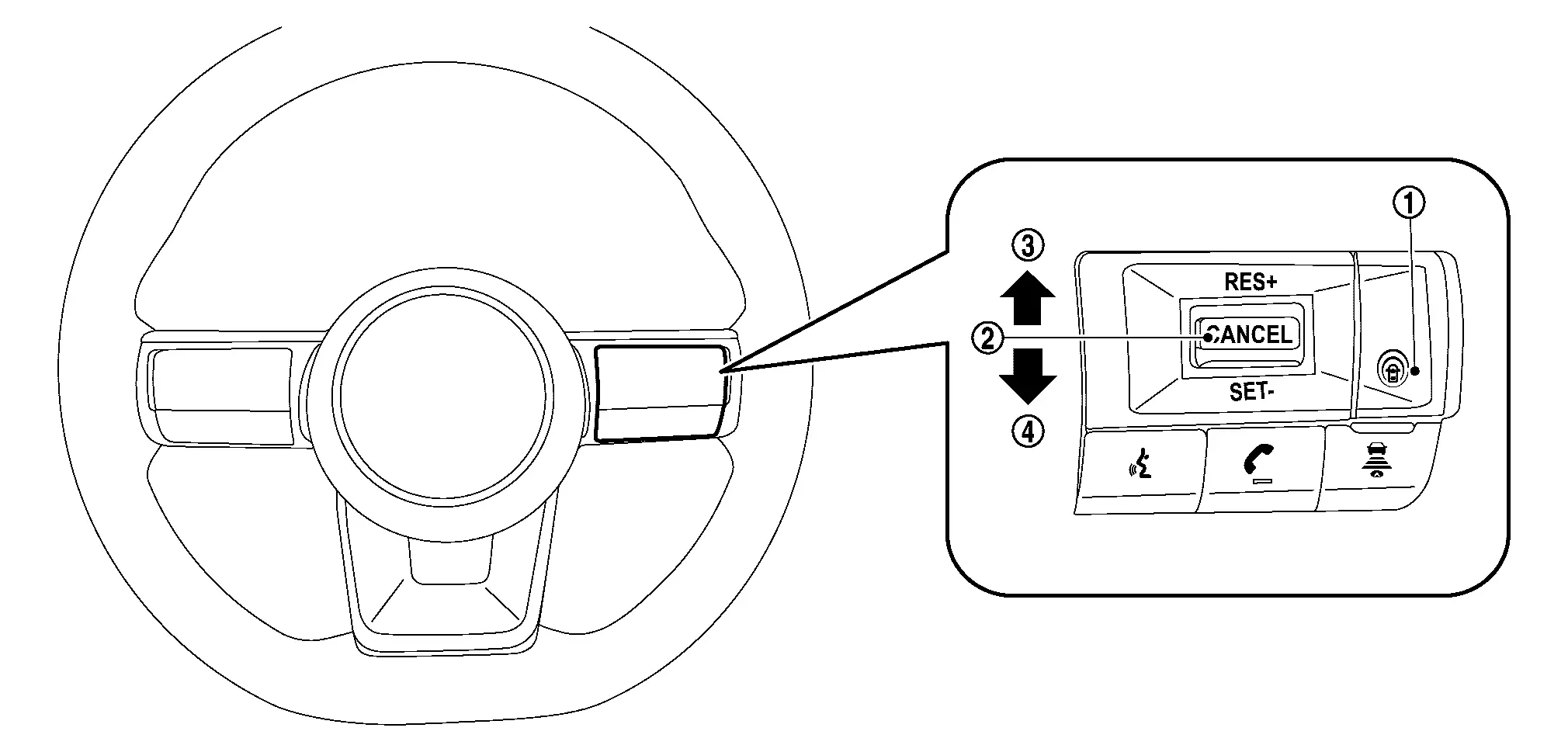

SWITCH NAME AND FUNCTION

No. Switch name Description
MAIN switch MAIN switch to activate the system (Press for less than 1.5 seconds)
CANCEL switch Pressing the switch cancels ICC
RES+ switch

Resumes set speed or increases speed incrementally

  • Push and hold the switch to increase the set speed by 5 km/h (5 MPH)

  • Push then quickly release the switch to increase the set speed by 1 km/h (1 MPH)
SET- switch

Sets desired cruise speed or reduces speed incrementally

  • Push and hold the switch to decrease the set speed by 5 km/h (5 MPH)

  • Push then quickly release the switch to decrease the set speed by 1 km/h (1 MPH)

NOTE:

The minimum set speed is 30 km/h (20 MPH)


DISTANCE switch Changes the following distance from: Long, Middle, Short

SYSTEM DISPLAY AND WARNING

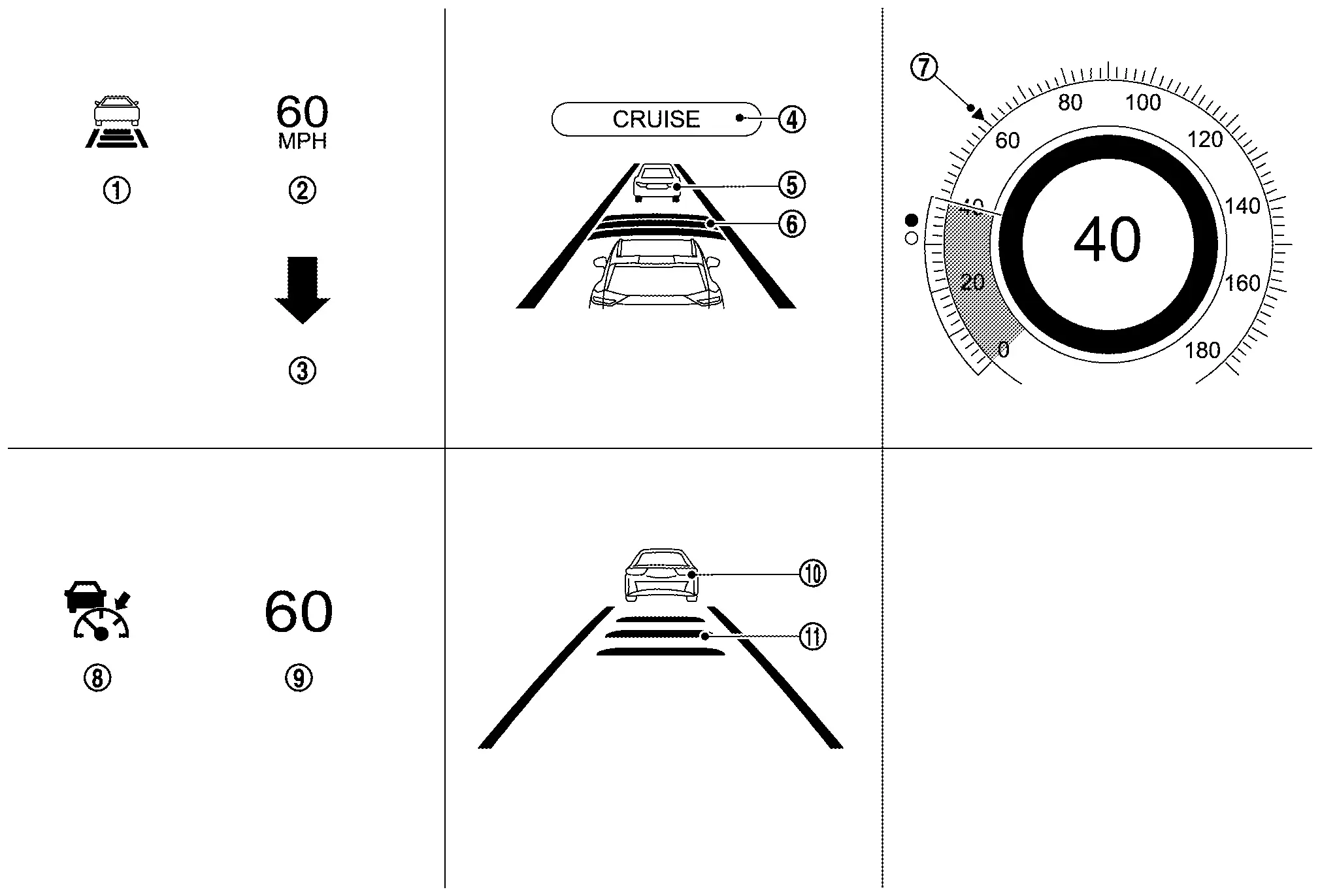

SYSTEM DISPLAY

No. Switch name Description

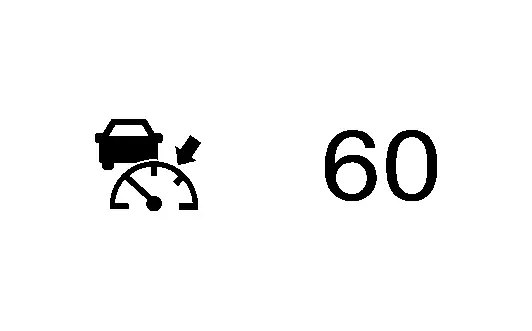

Speed control status indicator/warning (Information display) The Nissan Pathfinder vehicle speed control status is indicated by different colors and shapes

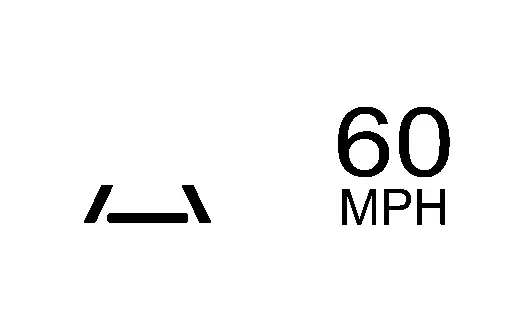

Set Nissan Pathfinder vehicle speed indicator (Information display)

  • Indicates the set Nissan Pathfinder vehicle speed

  • Indicates 30 km/h (20 MPH) when setting less than 30 km/h (20 MPH)
Speed Limit Assist indicator Indicates the Speed Limit Assist activation mode or system operation
ICC activation Indicates once the ICC system is activated

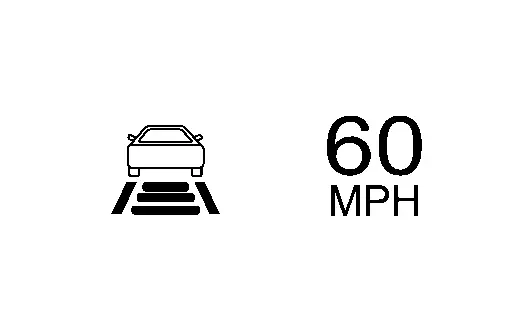

Nissan Pathfinder Vehicle ahead detection indicator (Information display) Indicates whether it detects a Nissan Pathfinder vehicle ahead

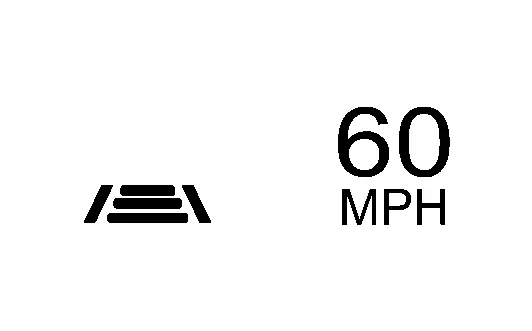

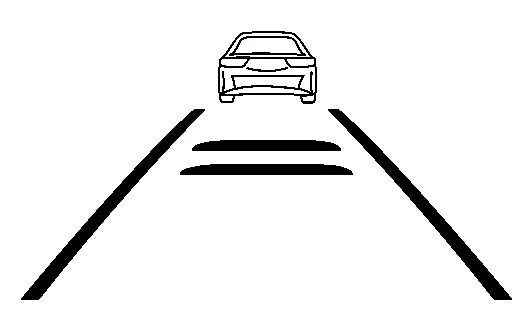

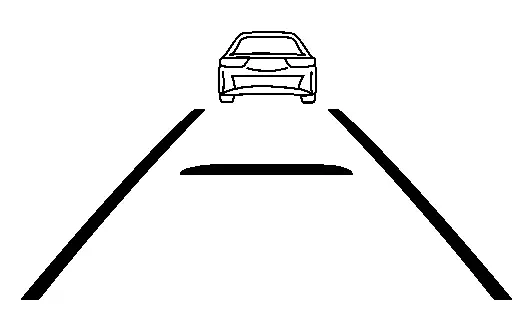

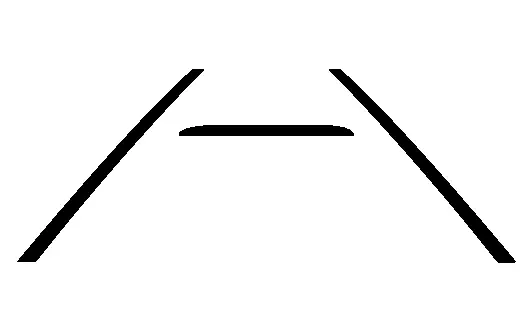

Set distance indicator (Information display) Indicates the selected distance between Nissan Pathfinder vehicles set with the DISTANCE switch
Nissan Pathfinder Vehicle set speed indicator (Information display) Indicates the vehicle set speed
ICC status indicator (Head Up Display) Displays the status of ICC system
Set Nissan Pathfinder vehicle speed indicator (Head Up Display)

  • Indicates the set Nissan Pathfinder vehicle speed

  • Indicates 30 km/h (20 MPH) when setting less than 30 km/h (20 MPH)
Nissan Pathfinder Vehicle ahead detection indicator (Head Up Display) Indicates whether it detects a Nissan Pathfinder vehicle ahead

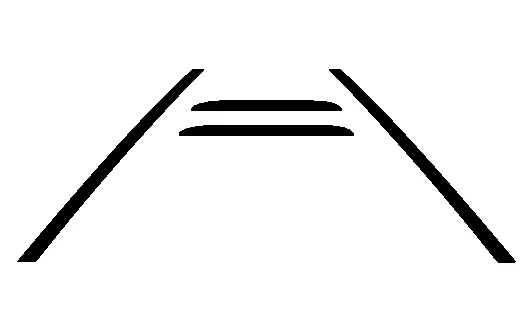

Set distance indicator (Head Up Display) Indicates the selected distance between Nissan Pathfinder vehicles set with the DISTANCE switch

SYSTEM CONTROL CONDITION DISPLAY

Quickly push (less than 1.5 seconds) and release the MAIN switch ON.

Condition Display on information display Display on Head Up Display

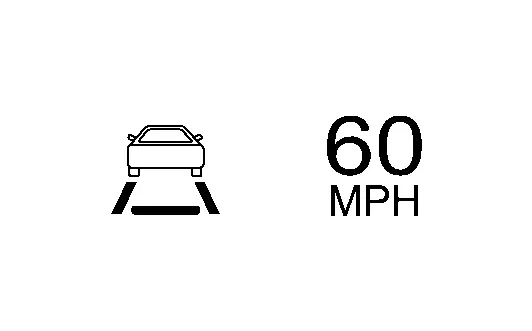

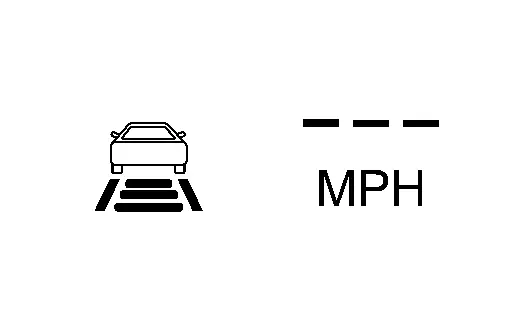

Standby mode

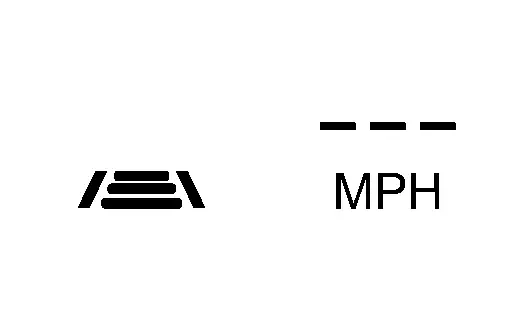

Speed control status indicator/warning: Gray

Set Nissan Pathfinder vehicle speed indicator: Gray

 ―

White

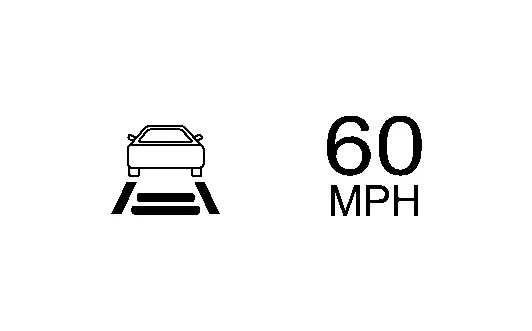

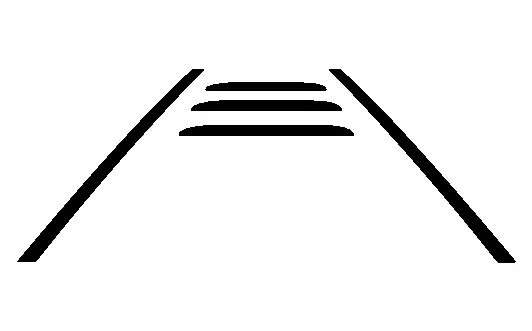

Control mode Without a Nissan Pathfinder vehicle ahead Set vehicle distance (Long)

Speed control status indicator/warning: Green

Set Nissan Pathfinder vehicle speed indicator: Green

ICC status indicator: Green

Set Nissan Pathfinder vehicle speed indicator: Green

Green

Green

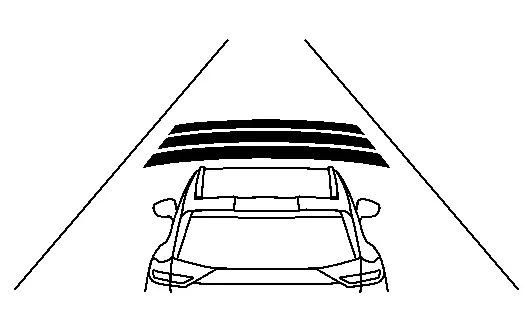

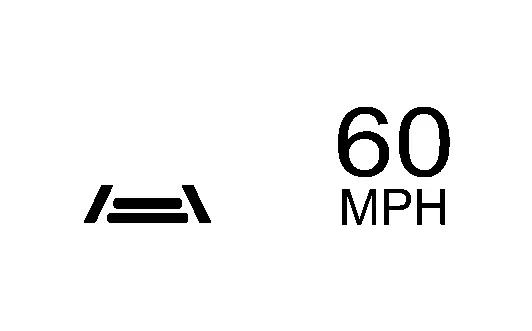

Set Nissan Pathfinder vehicle distance (Middle)

Speed control status indicator/warning: Green

Set Nissan Pathfinder vehicle speed indicator: Green

ICC status indicator: Green

Set Nissan Pathfinder vehicle speed indicator: Green

Green

Green

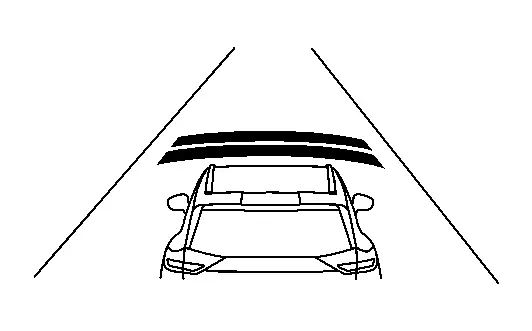

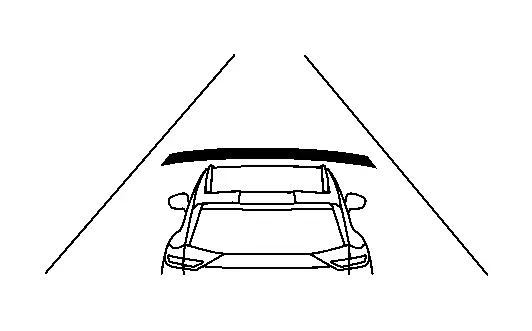

Set Nissan Pathfinder vehicle distance (Short)

Speed control status indicator/warning: Green

Set Nissan Pathfinder vehicle speed indicator: Green

ICC status indicator: Green

Set Nissan Pathfinder vehicle speed indicator: Green

Green

Green
When the Nissan Pathfinder vehicle speed exceeds the set speed

Speed control status indicator/warning: Green

Set Nissan Pathfinder vehicle speed indicator: Green (Blink)

ICC status indicator: Green

Set Nissan Pathfinder vehicle speed indicator: Green (Blink)

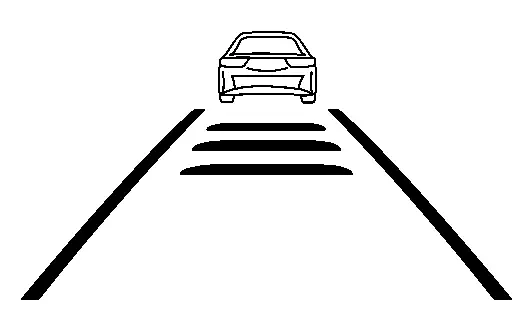

Control mode With a Nissan Pathfinder vehicle ahead Set vehicle distance (Long)

Speed control status indicator/warning: Green

Set Nissan Pathfinder vehicle speed indicator: Green

ICC status indicator: Green

Set Nissan Pathfinder vehicle speed indicator: Green

Green

Green

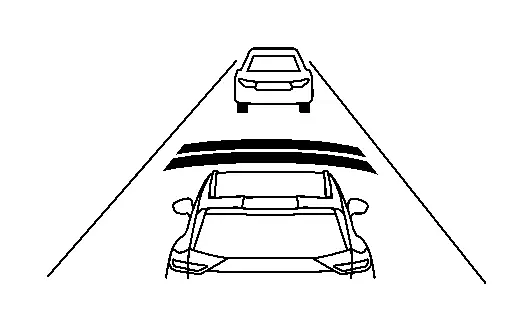

Set Nissan Pathfinder vehicle distance (Middle)

Speed control status indicator/warning: Green

Set Nissan Pathfinder vehicle speed indicator: Green

ICC status indicator: Green

Set Nissan Pathfinder vehicle speed indicator: Green

Green

Green

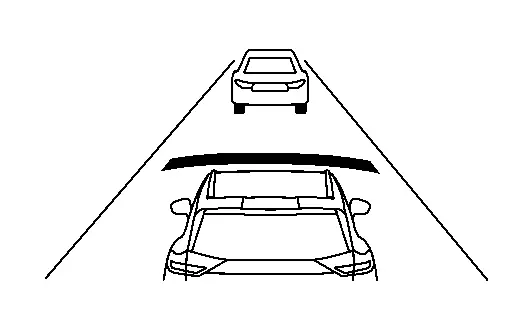

Set Nissan Pathfinder vehicle distance (Short)

Speed control status indicator/warning: Green

Set Nissan Pathfinder vehicle speed indicator: Green

ICC status indicator: Green

Set Nissan Pathfinder vehicle speed indicator: Green

Green

Green
When the Nissan Pathfinder vehicle speed exceeds the set speed

Speed control status indicator/warning: Green

Set Nissan Pathfinder vehicle speed indicator: Green (Blink)

ICC status indicator: Green

Set Nissan Pathfinder vehicle speed indicator: Green (Blink)
When the system detects a change of the speed limit and the new speed limit sign is applied to the Nissan Pathfinder vehicle set speed automatically

―

APPROACH WARNING DISPLAY

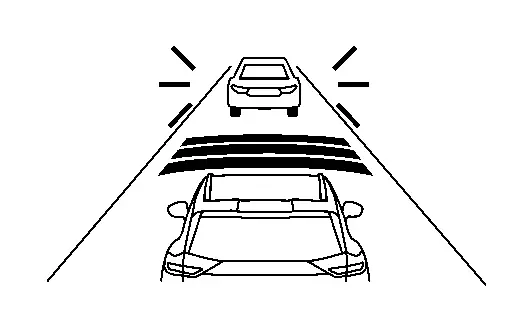

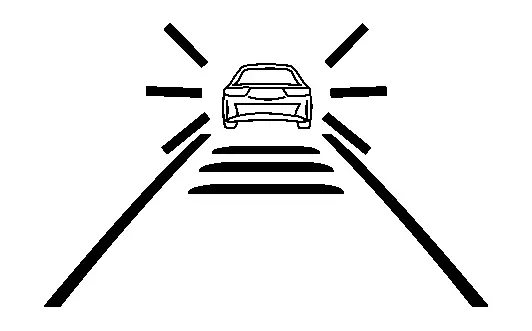

If own vehicle comes closer to a vehicle ahead due to rapid deceleration of that vehicle or if another Nissan Pathfinder vehicle cuts in, the system warns the driver with the chime and ICC system display. Decelerate by depressing the brake pedal to maintain a safe Nissan Pathfinder vehicle distance if:

  • The chime sounds.

  • The vehicle ahead detection indicator blinks in yellow.

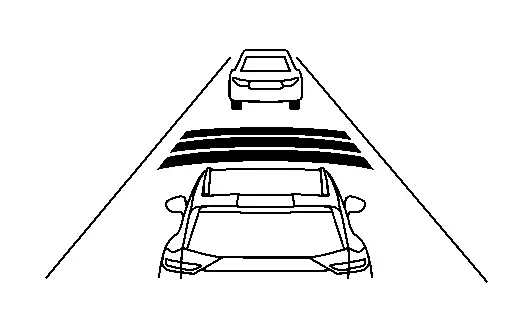

The warning chime may not sound in some cases when there is a short distance between vehicles. Some examples are:

  • When the vehicles are traveling at the same speed and the distance between vehicles is not changing.

  • When the Nissan Pathfinder vehicle ahead is traveling faster and the distance between vehicles is increasing.

  • When a Nissan Pathfinder vehicle cuts in at near own vehicle.

The warning chime will not sound when own vehicle approaches vehicles that are parked or moving slowly.

The warning chime will not sound when the accelerator pedal is depressed, overriding the system.

The approach warning chime may sound and the system display may blink when the distance sensor detects some reflectors which are fitted on Nissan Pathfinder vehicles in other lanes or on the side of the road.

This may cause the ICC system to decelerate or accelerate the vehicle.

The distance sensor may detect these objects when the vehicle is driven on winding roads, hilly roads or when entering or exiting a curve.

The distance sensor may also detect reflectors on narrow roads or in road construction zones.

In these cases, driver will have to manually control the proper distance ahead of own vehicle.

Also, the sensor sensitivity can be affected by vehicle operation (steering maneuver or driving position in the lane) or traffic or Nissan Pathfinder vehicle condition (for example, if a vehicle is being driven with some damage).

Condition Display on information display Display on Head Up Display
When own Nissan Pathfinder vehicle comes closer to the vehicle ahead and it is judged that the distance between the vehicles is not sufficient

Nissan Pathfinder Vehicle ahead detection indicator: Yellow (Blink)

Nissan Pathfinder Vehicle ahead detection indicator: Yellow (Blink)

WARNING LAMP AND AUTOMATIC CANCELLATION DISPLAY

Condition Description Display on information display

  • When the VDC is turned OFF

  • When the SNOW mode is selected

  • When the SAND mode is selected (AWD models)

  • When the MUD/RUT mode is selected (AWD models)

A chime sounds and the control is automatically canceled.

NOTE:

When the condition is no longer present, turn the system OFF. Turn the ICC system back on to use the system.



 Currently not available

  • When the VDC or ABS (including the TCS) operates

  • When a wheel slips

A chime sounds and the control is automatically canceled.

NOTE:

When the conditions listed above are no longer present, turn the system OFF. Turn the ICC system back on to use the system.



Not Available:

Poor Road

Conditions
Parking brake is applied

A chime sounds and the control is automatically canceled.

NOTE:

After releasing the parking brake, turn the system OFF . Turn the ICC system back on to use the system.



Not Available

Parking Brake On
When the driver’s seat belt is not fastened

A chime sounds and the control is automatically canceled.

NOTE:

After fastened the seat belt, turn the system OFF. Turn the ICC system back on to use the system.



Not Available

Seat Belt

Not Fastened
When the distance sensor is dirty, making it impossible to detect a Nissan Pathfinder vehicle ahead

A chime sounds and the control is automatically canceled.

NOTE:

    • Park the Nissan Pathfinder vehicle in a safe place, turn the engine OFF.

    • Check to see if the distance sensor area of the front grille is blocked.

    • If the distance sensor area of the front grille is blocked, remove the blocking material.

    • Restart the engine and then perform the ICC system again.



Forward Driving Aids

temporarily disabled

Front Sensor blocked

See Owner's Manual
While the Nissan Pathfinder vehicle is stopped by the ICC, the driver’s door is opened but the electronic parking brake was not activated

A chime sounds and the control is automatically canceled.

NOTE:

Please step on the brake immediately



 Press Brake pedal
When the system is malfunctioning

A chime sounds and the control is automatically canceled.

NOTE:

    • Stop the Nissan Pathfinder vehicle in a safe place.

    • Turn the engine OFF, restart the engine and set the ICC system again

    • If it is not possible to set the ICC system or the indicator stays on, it may be a malfunction.



Not Available

System Malfunction

Conventional (fixed Speed) Cruise Control Mode Function

Operation

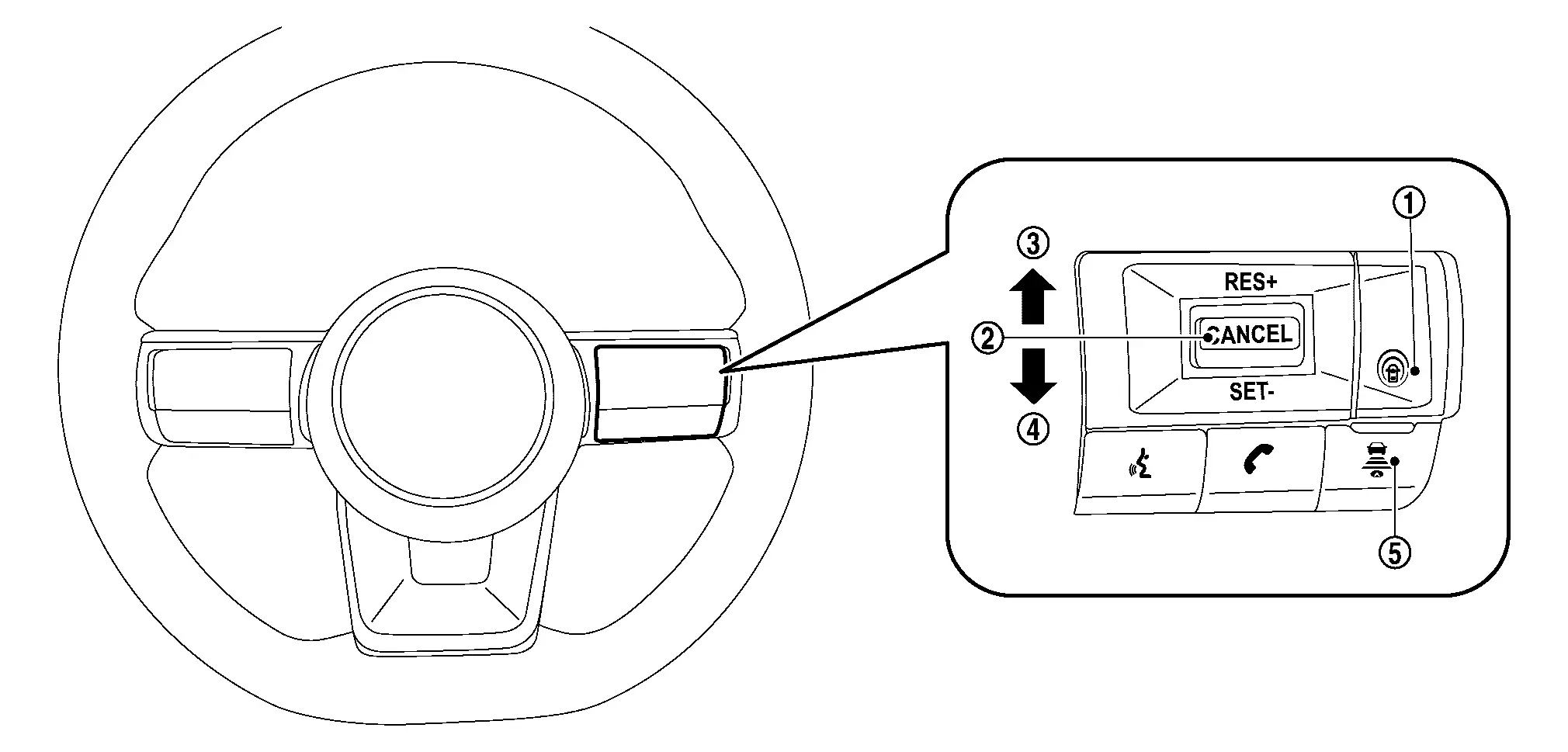

SWITCH NAME AND FUNCTION

No. Description Function
MAIN switch Master switch to activate the system (Press for more than 1.5 seconds)
CANCEL switch Deactivates system without erasing set speed
RES+ switch Resumes set speed or increases speed incrementally
SET− switch Sets desired cruise speed or reduces speed incrementally

SYSTEM DISPLAY AND WARNING

No. Description Function

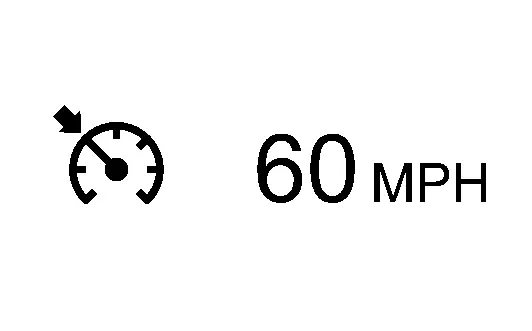

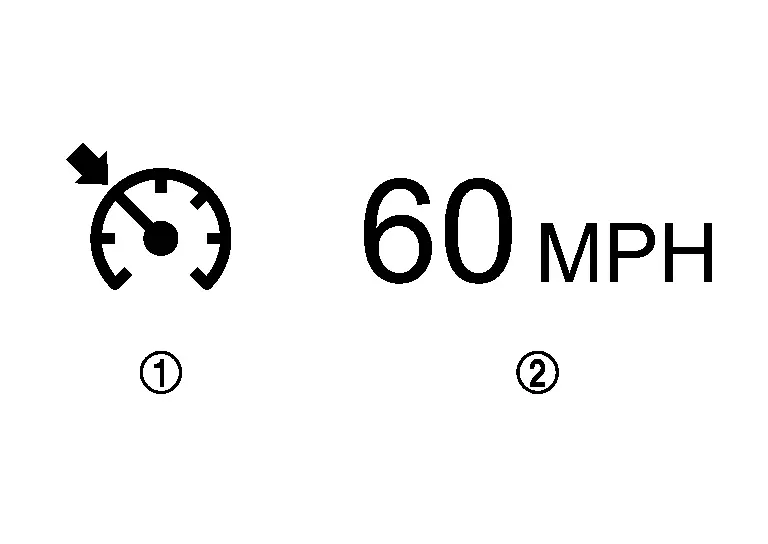

Cruise indicator Indicates the condition of the conventional (fixed speed) cruise control mode of the ICC system depending on a color
Set Nissan Pathfinder vehicle speed indicator Indicates the set vehicle speed

SYSTEM CONTROL CONDITION DISPLAY

Push and hold the MAIN switch for longer than approximately 1.5 seconds. This mode will be in a standby state for setting.

Condition Display on information display
Standby mode

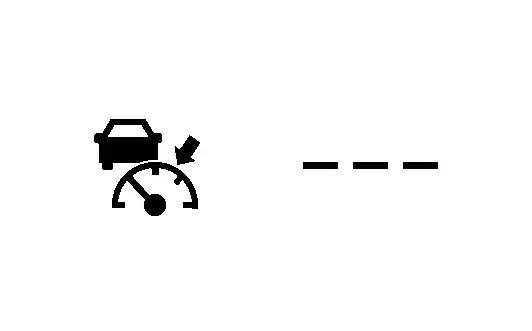

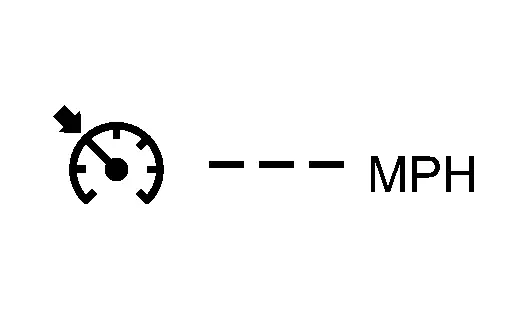

Cruise indicator : Gray

Set Nissan Pathfinder vehicle speed indicator : —
Control mode

Cruise indicator : Green

Set Nissan Pathfinder vehicle speed indicator : Green

WARNING AND AUTOMATIC CANCELLATION DISPLAY

Condition Description Display on information display

  • When VDC (including the TCS) operates

  • When a wheel slips

  • The control is automatically canceled

  • A chime sounds

NOTE:

    • The system will be in a standby, after the control is automatically canceled

    • A chime sounds when the control is automatically canceled, except when brake pedal is depressed or when CANCEL switch is pressed



Not Available:

Poor Road

Conditions

  • When the VDC is turned OFF

  • When the SNOW mode is selected

  • When the SAND mode is selected (AWD models)

  • When the MUD/RUT mode is selected (AWD models)

A chime sounds and the control is automatically canceled.

NOTE:

When the condition is no longer present, turn the system OFF. Turn the ICC system back on to use the system.



 Currently not available
Parking brake is applied

A chime sounds and the control is automatically canceled.

NOTE:

After releasing the parking brake, turn the system OFF . Turn the ICC system back on to use the system.



Not Available

Parking Brake On
When the ICC system is malfunctioning

  • The control is automatically canceled

  • A chime sounds

NOTE:

Turn the engine OFF and restart engine. If there is no malfunction, it is possible to set the system



Not Available

System Malfunction
