Noise, Vibration and Harshness (nvh) Troubleshooting (Symptom Diagnosis) Nissan Pathfinder 2025
NVH Troubleshooting Chart
Use chart below to find the cause of the symptom. If necessary, repair or replace these parts.
| Possible cause and SUSPECTED PARTS | SYMPTOM | Reference | |||||
| FRONT SUSPENSION | |||||||
| Noise | Shake | Vibration | Shimmy | Shudder | Poor quality ride or handling | ||
| Improper installation, looseness | x | x | x | x | x | x | Refer to Exploded View, Refer to Exploded View, Refer to Exploded View, Refer to Exploded View, Refer to Exploded View, Refer to Exploded View, Refer to Exploded View |
| Shock absorber deformation, damage or deflection | x | x | x | x | x | x | Refer to Exploded View |
| Bushing or mounting deterioration | x | x | x | x | x | x | — |
| Parts interference | x | x | x | x | — | x | — |
| Spring fatigue | x | — | x | — | — | x | — |
| Suspension looseness | x | x | — | — | — | — | Refer to Exploded View, Refer to Exploded View, Refer to Exploded View, Refer to Exploded View, Refer to Exploded View, Refer to Exploded View, Refer to Exploded View |
| Incorrect wheel alignment | — | — | — | x | — | x | Refer to Inspection and Adjustment |
| Stabilizer bar fatigue | — | — | — | — | — | x | Refer to Inspection and Adjustment |
| PROPELLER SHAFT (4WD) | x | x | x | — | — | — | Refer to NVH Troubleshooting Chart |
| DIFFERENTIAL (4WD) | x | — | — | — | — | — | Refer to NVH Troubleshooting Chart |
| REAR AXLE | x | x | x | x | x | x | Refer to NVH Troubleshooting Chart |
| TIRE | x | x | x | x | x | x | Refer to NVH Troubleshooting Chart |
| ROAD WHEEL | x | x | — | x | x | x | Refer to NVH Troubleshooting Chart |
| DRIVE SHAFT | x | x | x | — | — | — | Refer to NVH Troubleshooting Chart |
| BRAKES | x | x | — | x | x | — | Refer to NVH Troubleshooting Chart |
×: Applicable
Service Data and Specifications (SDS) Nissan Pathfinder 5th Gen
Wheel Alignment (Unladen)
| Item | Except for ROCK CREEK® | ROCK CREEK® | ||
|---|---|---|---|---|
|
Camber Degree minute (Decimal degree) |
Minimum | –1° 27′ 00′′ (–1.450°) | –1° 06′ 36′′ (–1.110°) | |
| Nominal | –0° 42′ 00′′ (–0.700°) | –0° 21′ 36′′ (–0.360°) | ||
| Maximum | 0° 03′ 00′′ (0.050°) | 0° 23′ 24′′ (0.390°) | ||
|
|
||||

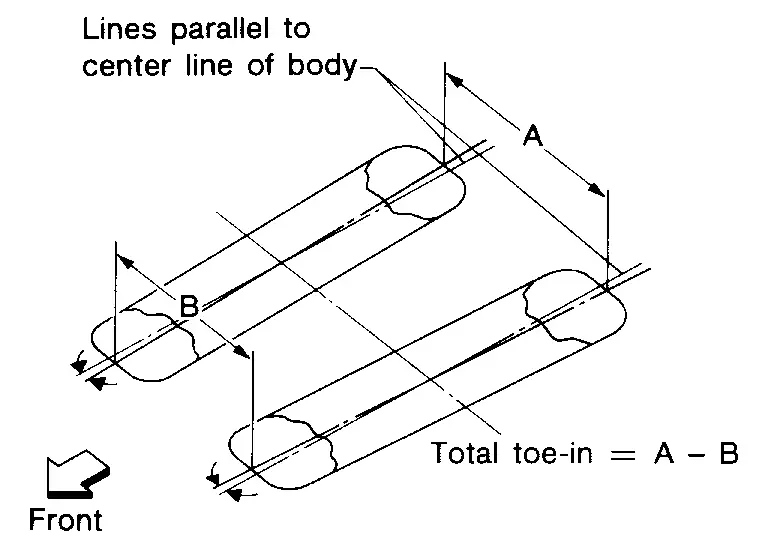

| Total toe-in | Distance (A - B) | Minimum | Out 0.8 mm (Out 0.031 in) | Out 1.6 mm (Out 0.063 in) |
| Nominal | In 3.2 mm (In 0.126 in) | In 2.4 mm (In 0.094 in) | ||
| Maximum | In 7.2 mm (In 0.283 in) | In 6.4 mm (In 0.252 in) | ||
|
Angle (LH and RH) Degree minute (Decimal degree) |
Minimum | Out 0° 03′ 36′′ (Out 0.06°) | Out 0° 07′ 12′′ (Out 0.12°) | |
| Nominal | In 0° 14′ 24′′ (In 0.24°) | In 0° 10′ 48′′ (In 0.18°) | ||
| Maximum | In 0° 32′ 24′′ (In 0.54°) | In 0° 28′ 48′′ (In 0.48°) | ||
*: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.
Ball Joint
| Item | Standard |
|---|---|
| Swing torque | 0.5 – 3.4 N·m (0.05 – 0.35 kg-m, 4 – 30 in-lb) |
| Measurement on spring balance (cotter pinhole position) | 8.1 – 54.8 N (0.83 – 5.59 kg, 1.82 – 12.32 lb) |

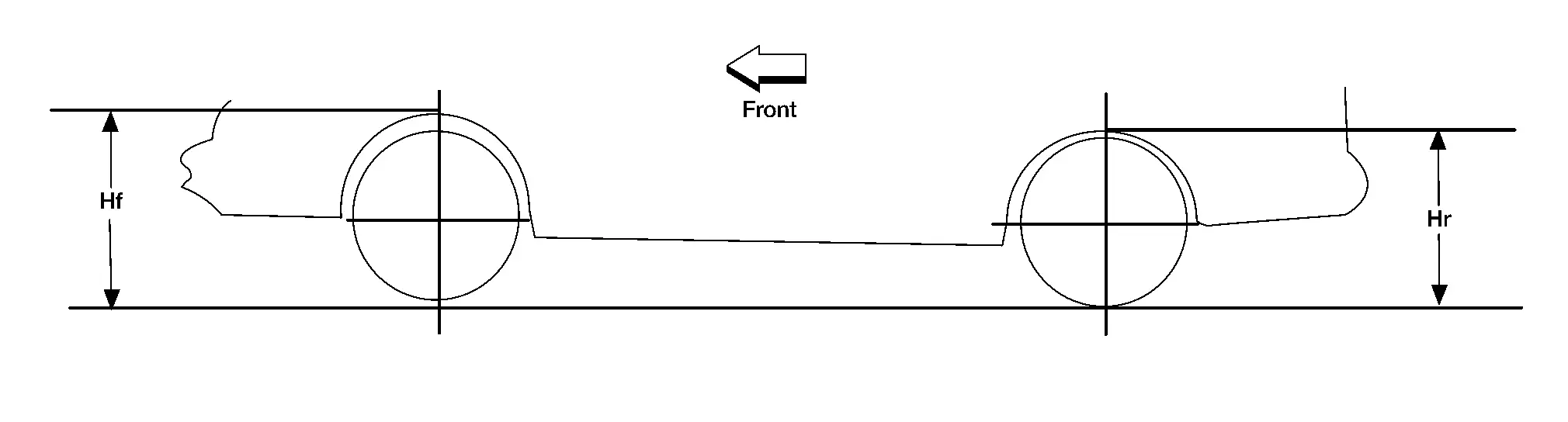

Wheelarch Height
Wheelarch Height
UNITED STATES
Unit: mm (in)
|
|
||||||||
| Axle type | 2WD | 4WD | ||||||
| Wheel size | 255/60R18 | 255/50R20 | 255/60R18 | 255/60R18 | 265/60R18 | 255/50R20 | ||
| Grade | S, SV, SL | Platinum | S, SV, SL (with 8 passenger) | SV (with 7 passenger) | ROCK CREEK® | Platinum | ||
| Front (Hf) | 836 (32.91) | 838 (32.99) | 836 (32.91) | 836 (32.91) | 854 (33.62) | 838 (32.99) | ||
| Rear (Hr) | 856 (33.70) | 854 (33.62) | 856 (33.70) | 855 (33.66) | 869 (34.21) | 853 (33.58) | ||
Measure value under unladen conditions. (Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions).
CANADA
Unit: mm (in)
|
|
|||||||||
| Axle type | 4WD | ||||||||
| Wheel size | 265/60R18 | 255/60R18 | 255/50R20 | ||||||
| Grade | ROCK CREEK® | S | SV | SL | Platinum | ||||
| Front (Hf) | 854 (33.62) | 836 (32.91) | 839 (33.03) | ||||||
| Rear (Hr) | 869 (34.21) | 855 (33.66) | 853 (33.58) | ||||||
Measure value under unladen* conditions. (Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions).
MEXICO
Unit: mm (in)
|
| ||||
|---|---|---|---|---|
| Axle type | 2WD | 4WD | ||
| Wheel size | 255/60R18 | 255/50R20 | ||
| Grade | Sense | Advance | Exclusive | Exclusive 4WD |
| Front (Hf) | 836 (32.91) | 838 (32.99) | ||
| Rear (Hf) | 856 (33.70) | 854 (33.62) | 853 (33.58) | |
Measure value under unladen* conditions. (Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions).
Nissan Pathfinder (R53) 2022-2025 Service Manual
Noise, Vibration and Harshness (nvh) Troubleshooting (Symptom Diagnosis). Service Data and Specifications (SDS)
- Noise, Vibration and Harshness (nvh) Troubleshooting (Symptom Diagnosis)
- Service Data and Specifications (SDS)
