Nissan Pathfinder: Power Outlet - System Description

• Component Parts
• System

Component Parts Nissan Pathfinder 2025

Ac 120 V Outlet

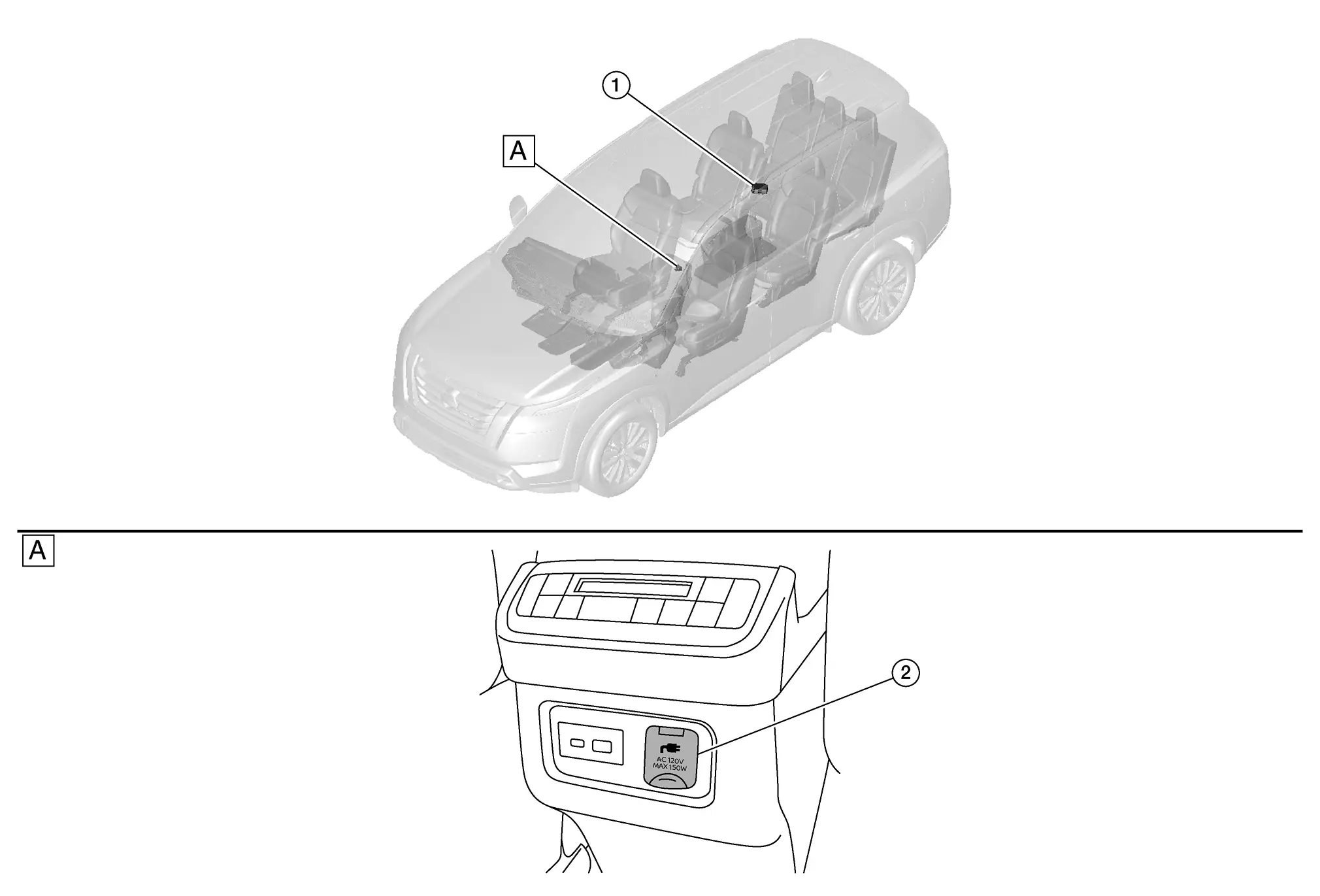

Component Parts Location

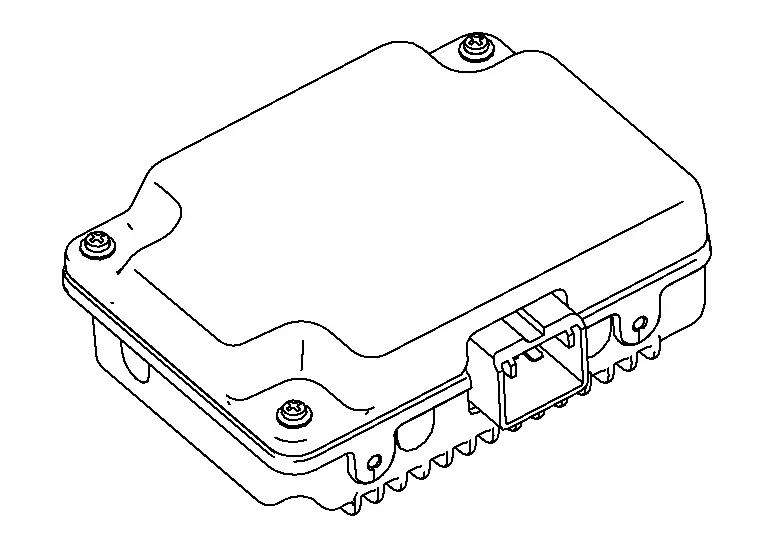

Inverter Unit

• The inverter unit is located under the storage box bracket (LH) behind the luggage side lower finisher LH.

• The inverter unit converts 12 V DC to 120 V AC.

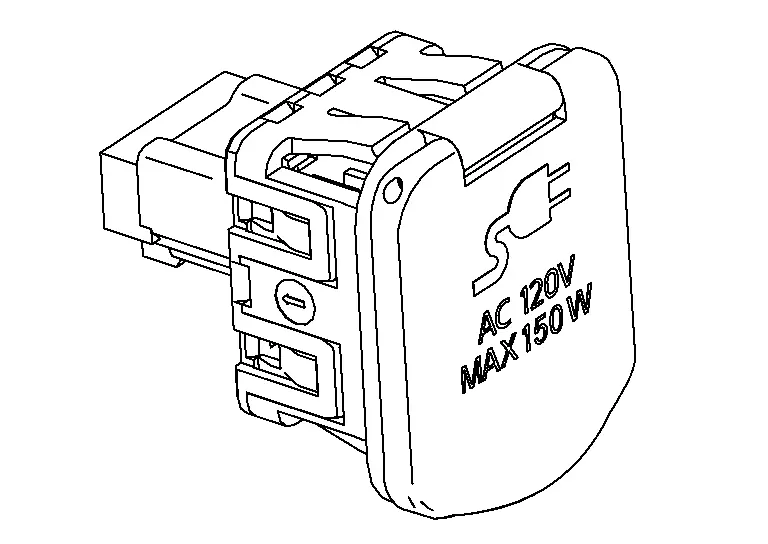

AC 120 V Outlet

• The AC 120 V outlet is located at the center console rear finisher

• The AC 120 V outlet allow use of AC components up to 150 W.

System Nissan Pathfinder SUV

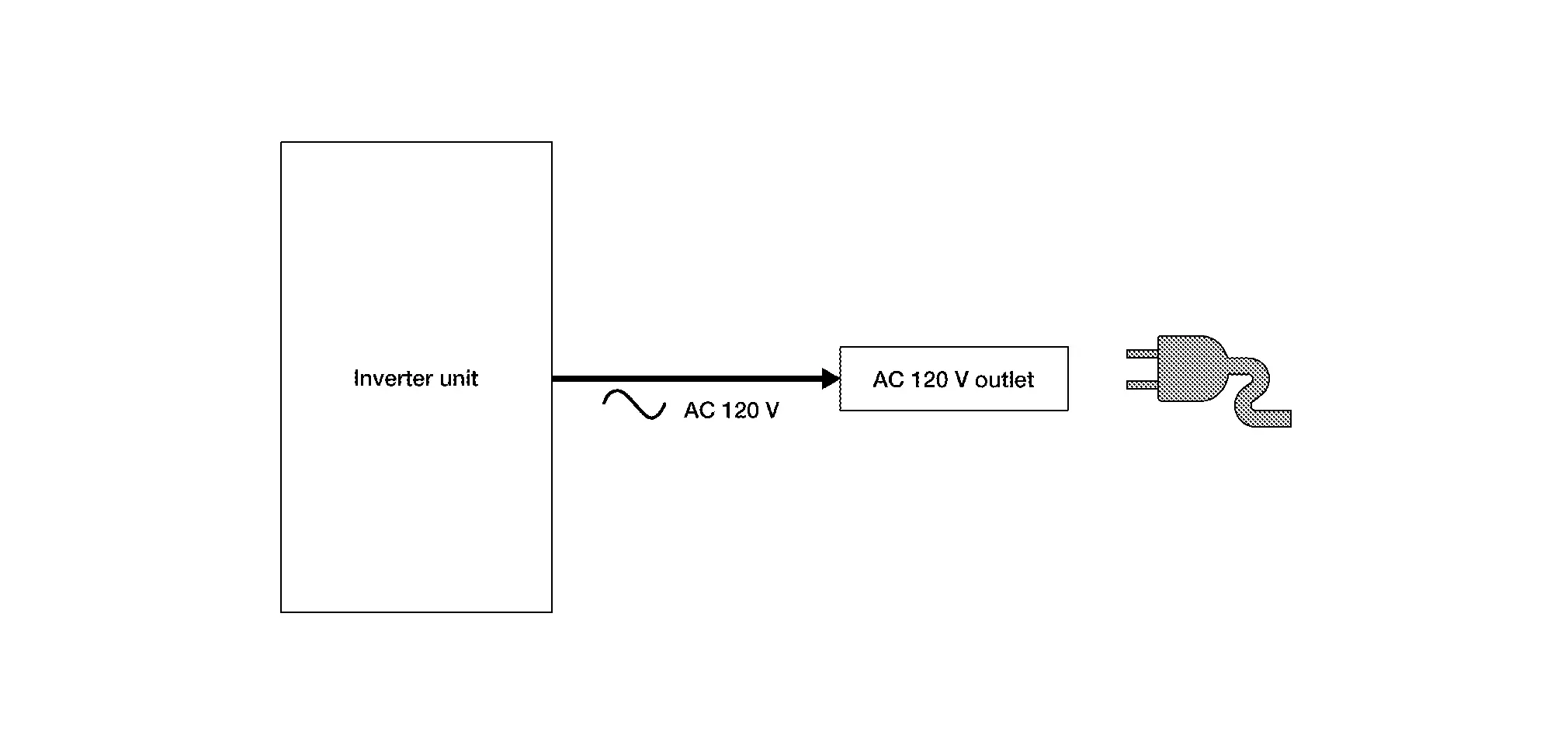

System Diagram

System Description

• When the ignition switch is placed on the inverter unit is activated allowing the use of devices up to 150 watts.

• The inverter unit converts 12 DC to 120 V AC and outputs the converted voltage to the 120 V outlet when the ignition is ON.
