Nissan Pathfinder: Power Outlet - Removal and Installation
Nissan Pathfinder (R53) 2022-2025 Service Manual / Electrical & Power Control :: Power Outlet / Ac 120 V Outlet / Removal and Installation
Inverter Unit Nissan Pathfinder Fifth generation

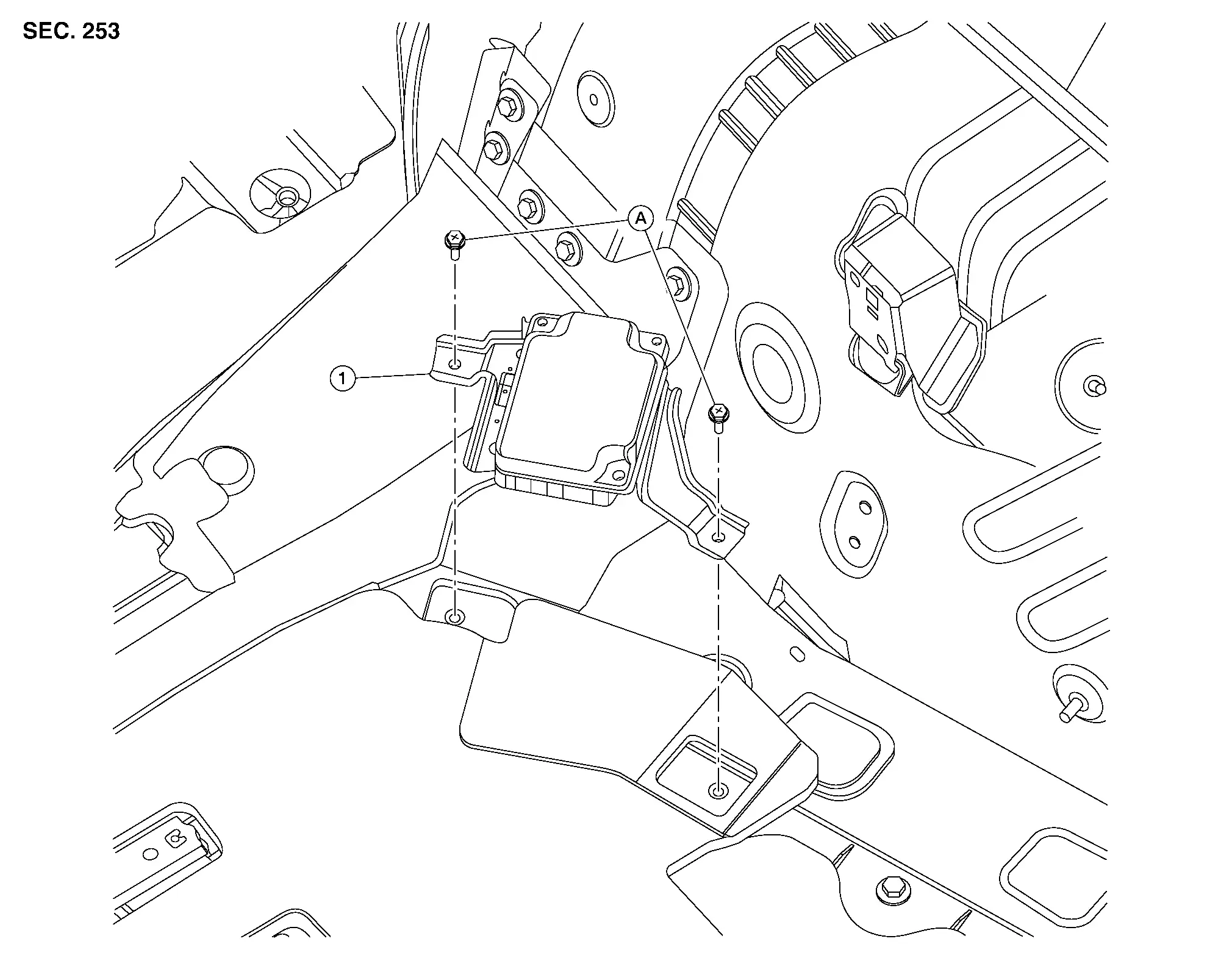

Exploded View
| 1. | Inverter unit | A. | Inverter unit bolts |
Removal and Installation
REMOVAL
Remove third row seat. Refer to Removal and Installation.
Remove inverter unit bolts. Refer to Exploded View.
Disconnect harness connector from inverter and remove inverter.
INSTALLATION
Installation is in the reverse order of removal.
Ac 120v Outlet Nissan Pathfinder SUV
Removal and Installation
Remove center console rear finisher. Refer to Exploded view.
Using a suitable tool, release pawls and remove AC 120V outlet (1) in direction shown.
 |
: Pawl |
INSTALLATION
Installation is in the reverse order of removal.
