Nissan Pathfinder: Instruments and controls - USB/iPod charging ports

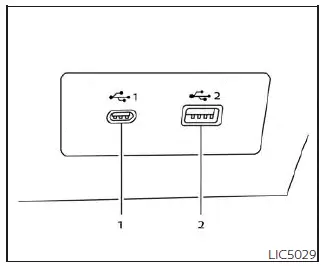

1st row

1. Type-C USB
2. Type-A USB

There are USB/iPod charging ports located in 1st row, two in the front media pocket below the climate controls and one in the console box, in the 2nd row on the back of the center console and in the 3rd row by the cup holders. These ports will charge compatible devices.

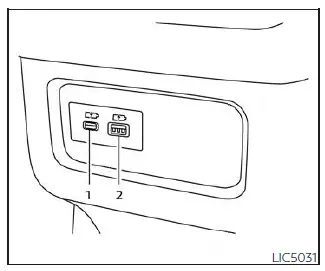

2nd row

NOTE:

• Not all of the USB/iPod charging ports will operate with the display screen.

  Only the USB connection ports located under the climate controls will allow operation of USB/iPod devices through the audio system.

• For best results, it is recommended to use the manufacturer cables, which are sold separately. A USB Type-A to USB Type-C adapter (or vice versa) can also be purchased separately; however, results may vary.

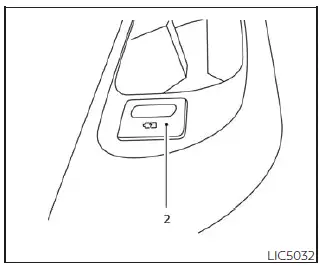

3rd row (if so equipped)

CAUTION

• Do not force a USB device into the connector. Inserting the USB device tilted or up-side down into the connector may damage the connector.

  Make sure that the USB device is connected correctly into the connector.

• Do not use a reversible USB cable. Using the reversible USB cable may damage the connector.
