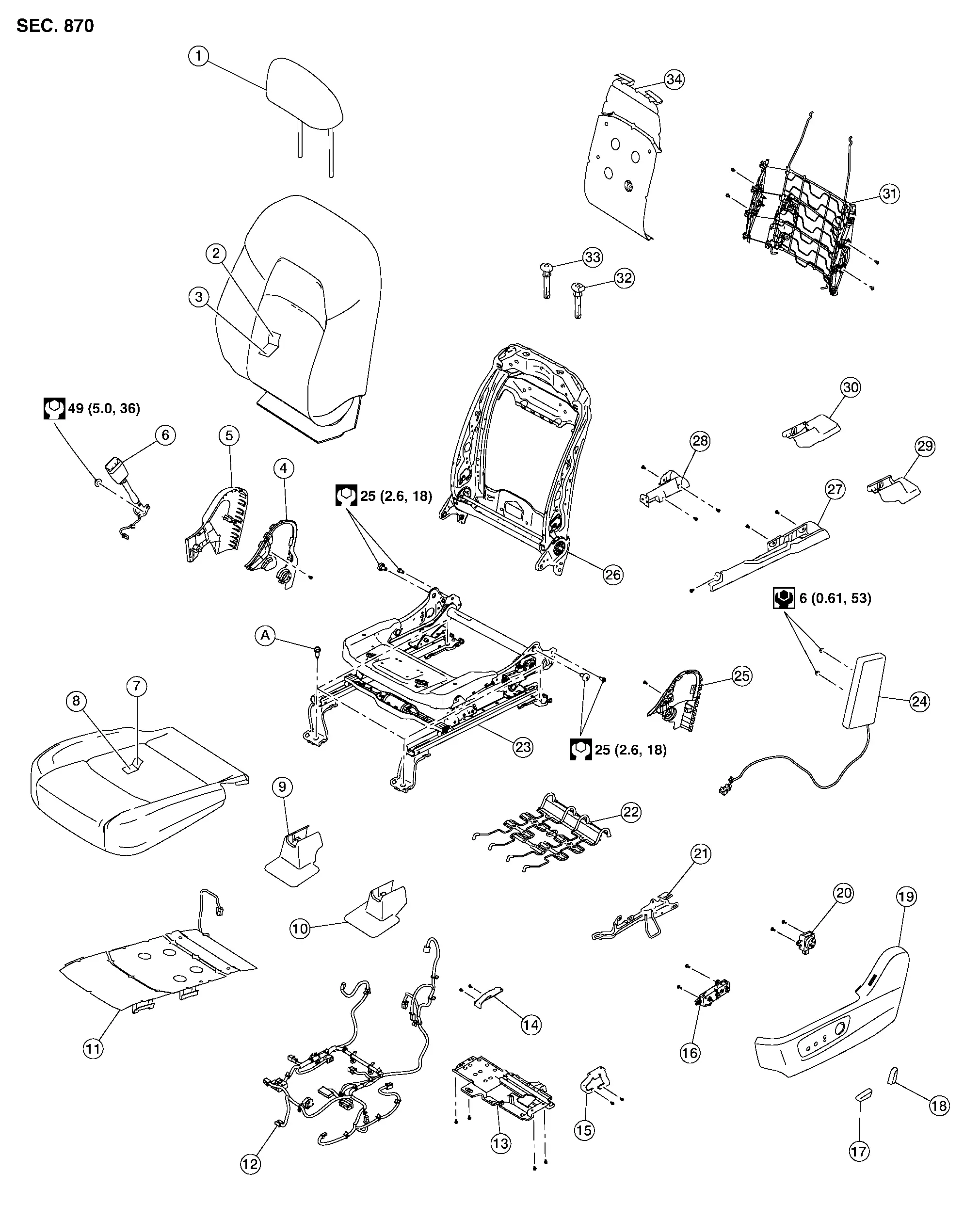

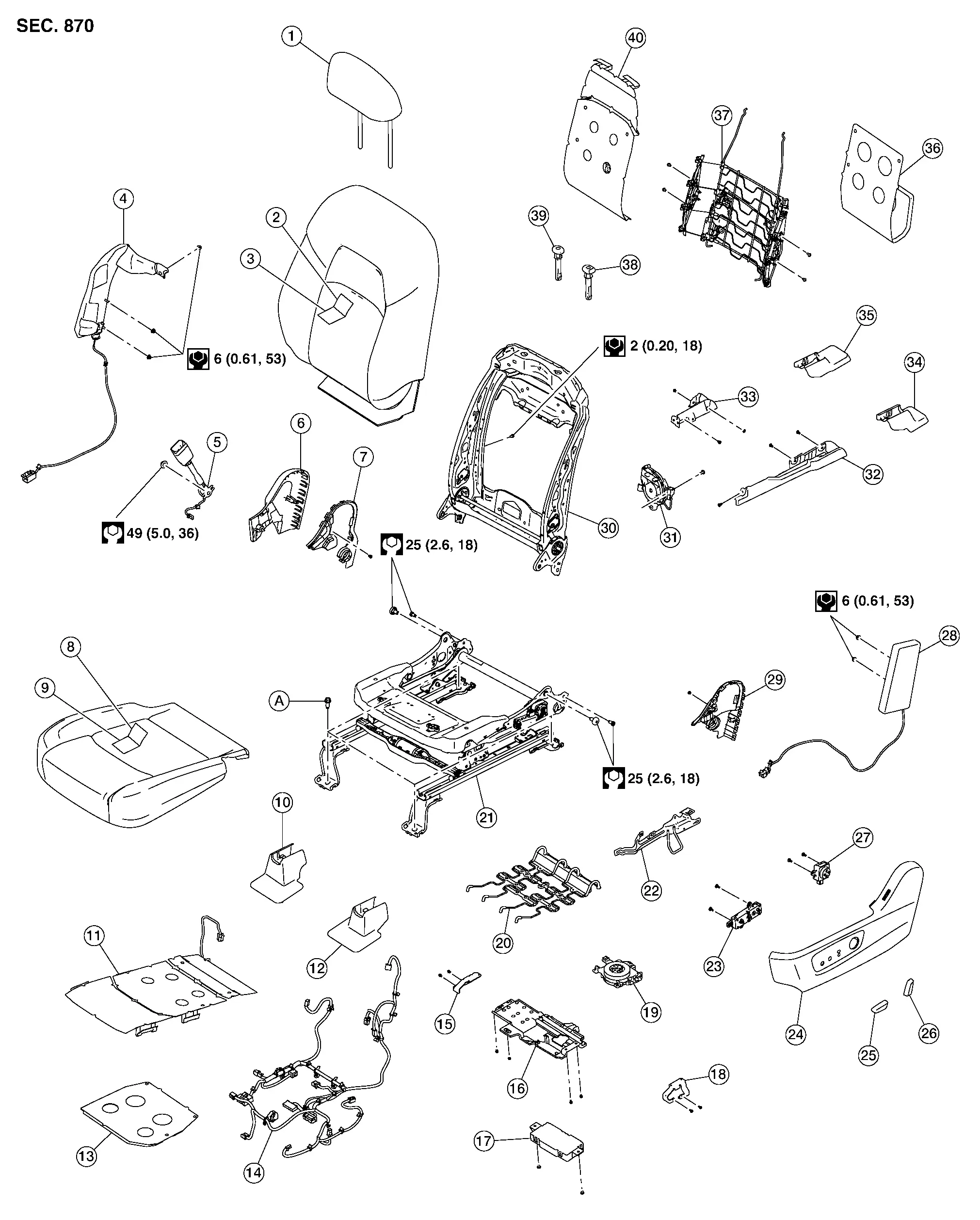

Exploded View

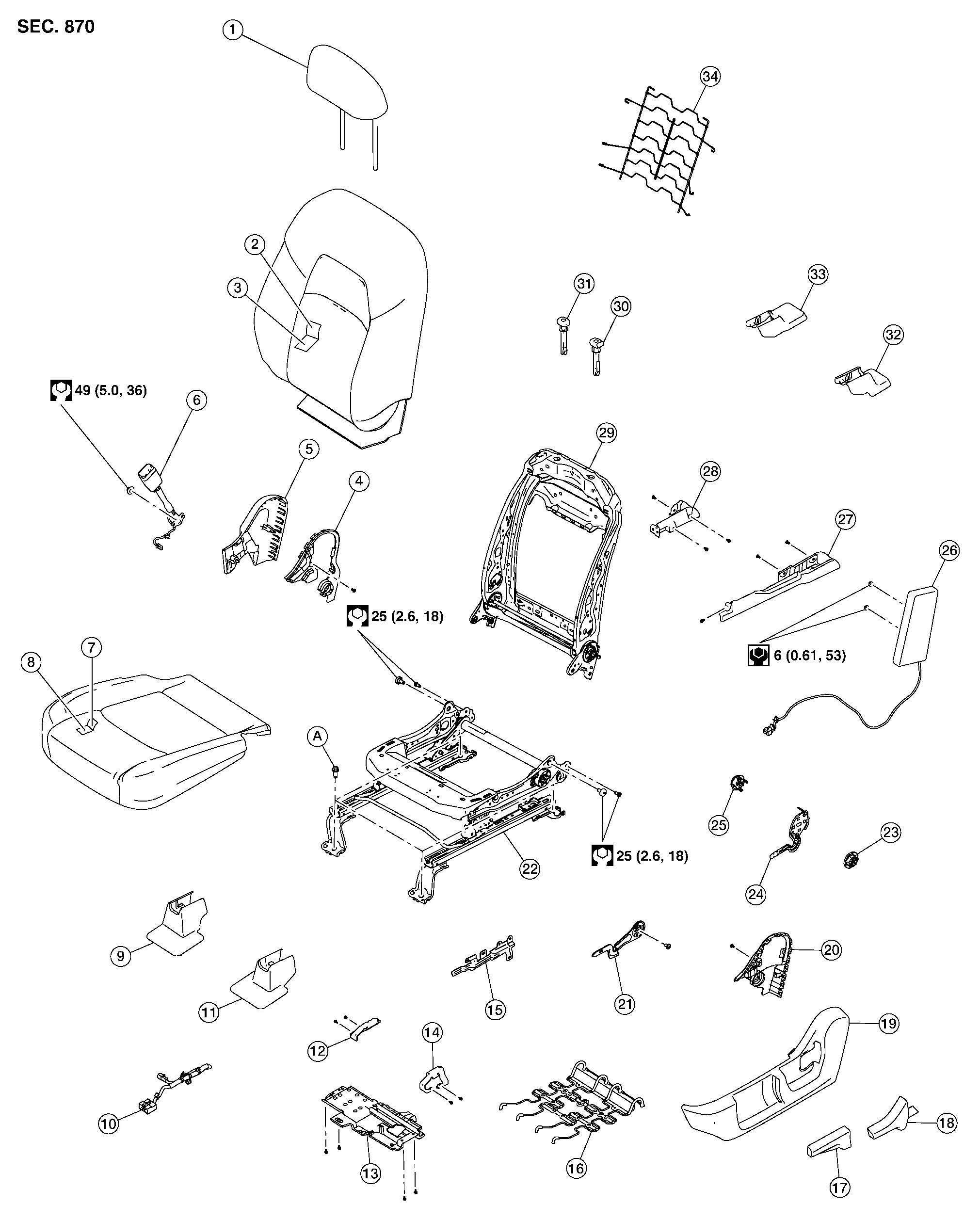

DRIVER SEAT – MANUAL

1.	Headrest	2.	Seatback trim	3.	Seatback pad
4.	Seat cushion inner finisher (RH)	5.	Seat cushion outer finisher (RH)	6.	Seat belt buckle
7.	Seat cushion trim	8.	Seat cushion pad	9.	Front slide finisher (RH)
10.	Seat harness	11.	Front slide finisher (LH)	12.	Side attachment bracket (RH)
13.	Center attachment bracket	14.	Side attachment bracket (LH)	15.	Seat cushion side attachment
16.	Seat cushion support	17.	Lift lever finisher	18.	Recline lever finisher
19.	Seat cushion outer finisher (LH)	20.	Seat cushion inner finisher (LH)	21.	Lift lever
22.	Seat cushion frame assembly	23.	Lifter knob retainer	24.	Recline lever
25.	Lifter knob cap	26.	Front side air bag module	27.	Slide finisher outer
28.	Slide finisher inner	29.	Seat back frame assembly	30.	Headrest holder (locked)
31.	Headrest holder (free)	32.	Rear slide finisher (LH)	33.	Rear slide finisher (RH)
34.	Seat lumbar assembly	A.	Refer to Removal and Installation.

DRIVER SEAT – POWER WITHOUT CLIMATE CONTROL

1.	Headrest	2.	Seatback trim	3.	Seatback pad
4.	Seat cushion inner finisher (RH)	5.	Seat cushion outer finisher (RH)	6.	Seat belt buckle
7.	Seat cushion trim	8.	Seat cushion pad	9.	Front slide finisher (RH)
10.	Front slide finisher (LH)	11.	Seat cushion heater (if equipped)]	12.	Seat harness
13.	Center attachment bracket	14.	Side attachment bracket (RH)	15.	Side attachment bracket (LH)
16.	Power seat switch	17.	Seat slide knob	18.	Seat recline knob
19.	Seat cushion inner finisher (LH)	20.	Lumbar support switch	21.	Seat cushion side attachment
22.	Seat cushion support	23.	Seat cushion frame assembly	24.	Front side air bag module
25.	Seat cushion inner finisher (LH)	26.	Seat back frame assembly	27.	Slide finisher outer
28.	Slide finisher inner	29.	Rear slide finisher (LH)	30.	Rear slide finisher (RH)
31.	Seat lumbar assembly	32.	Headrest holder (locked)	33.	Headrest holder (free)
34.	Seat back heater (if equipped)	A.	Refer to Remove and Installation.

DRIVER SEAT – POWER WITH CLIMATE CONTROL

1.	Headrest	2.	Seatback trim	3.	Seatback pad
4.	Front center air bag module	5.	Seat belt buckle	6.	Seat cushion outer finisher (RH)
7.	Seat cushion inner finisher (RH)	8.	Seat cushion trim	9.	Seat cushion pad
10.	Front slide finisher (RH)	11.	Seat cushion heater	12.	Front slide finisher (LH)
13.	Seat cushion duct	14.	Seat harness	15.	Side attachment bracket (RH)
16.	Center attachment bracket	17.	Driver seat control unit (if equipped)	18.	Side attachment bracket (LH)
19.	Seat cushion blower	20.	Seat cushion support	21.	Seat cushion frame assembly
22.	Seat cushion side attachment	23.	Power seat switch	24.	Seat cushion outer finisher (LH)
25.	Seat slide knob	26.	Seat recline knob	27.	Lumbar support switch
28.	Front side air bag module	29.	Seat cushion inner finisher (LH)	30.	Seat back frame assembly
31.	Seat back blower	32.	Slide finisher outer	33.	Slide finisher inner
34.	Rear slide finisher (LH)	35.	Rear slide finisher (RH)	36.	Seatback duct
37.	Seat lumbar assembly	38.	Headrest holder (locked)	39.	Headrest holder (free)
40.	Seat back heater	A.	Refer to Removal and Installation.

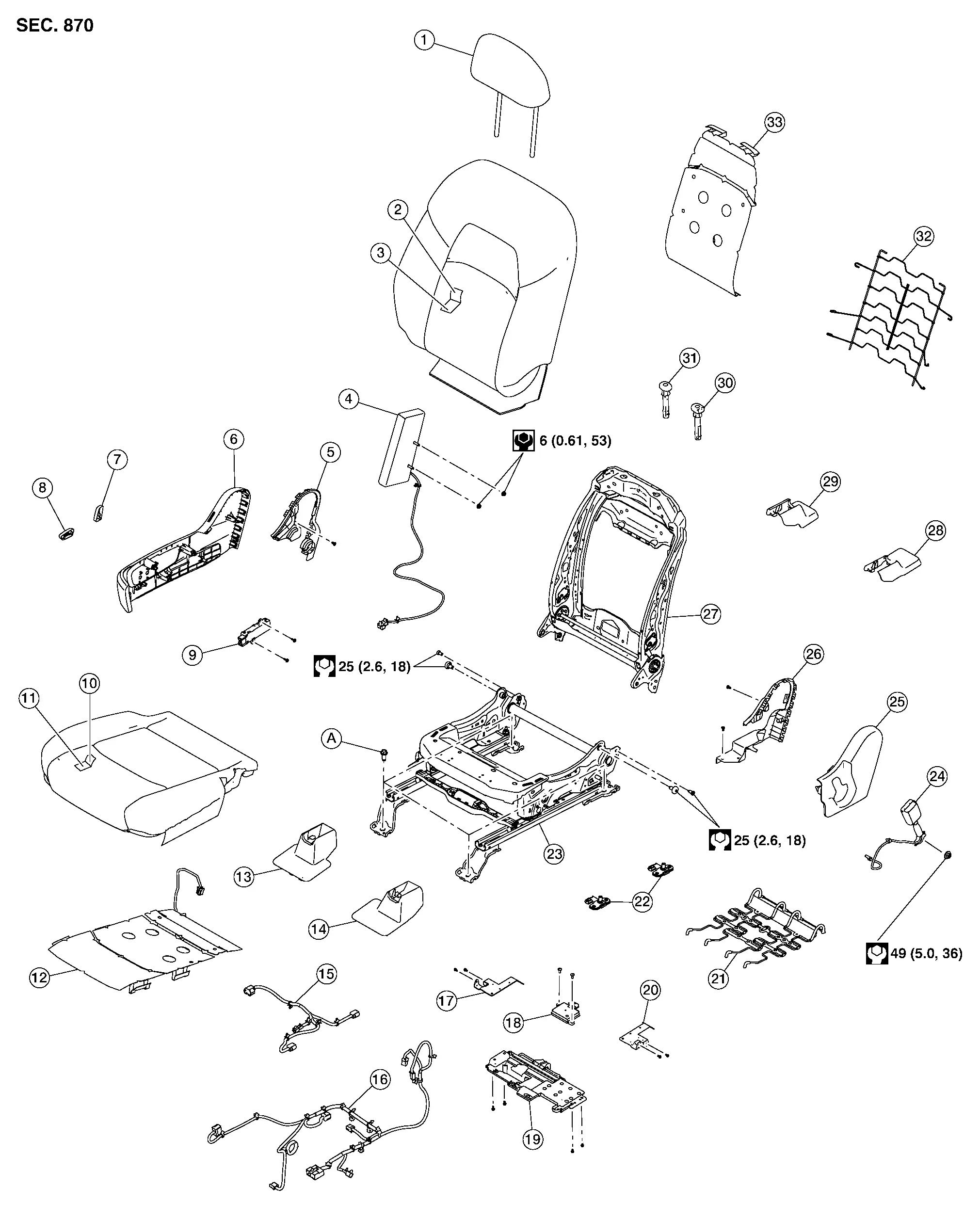

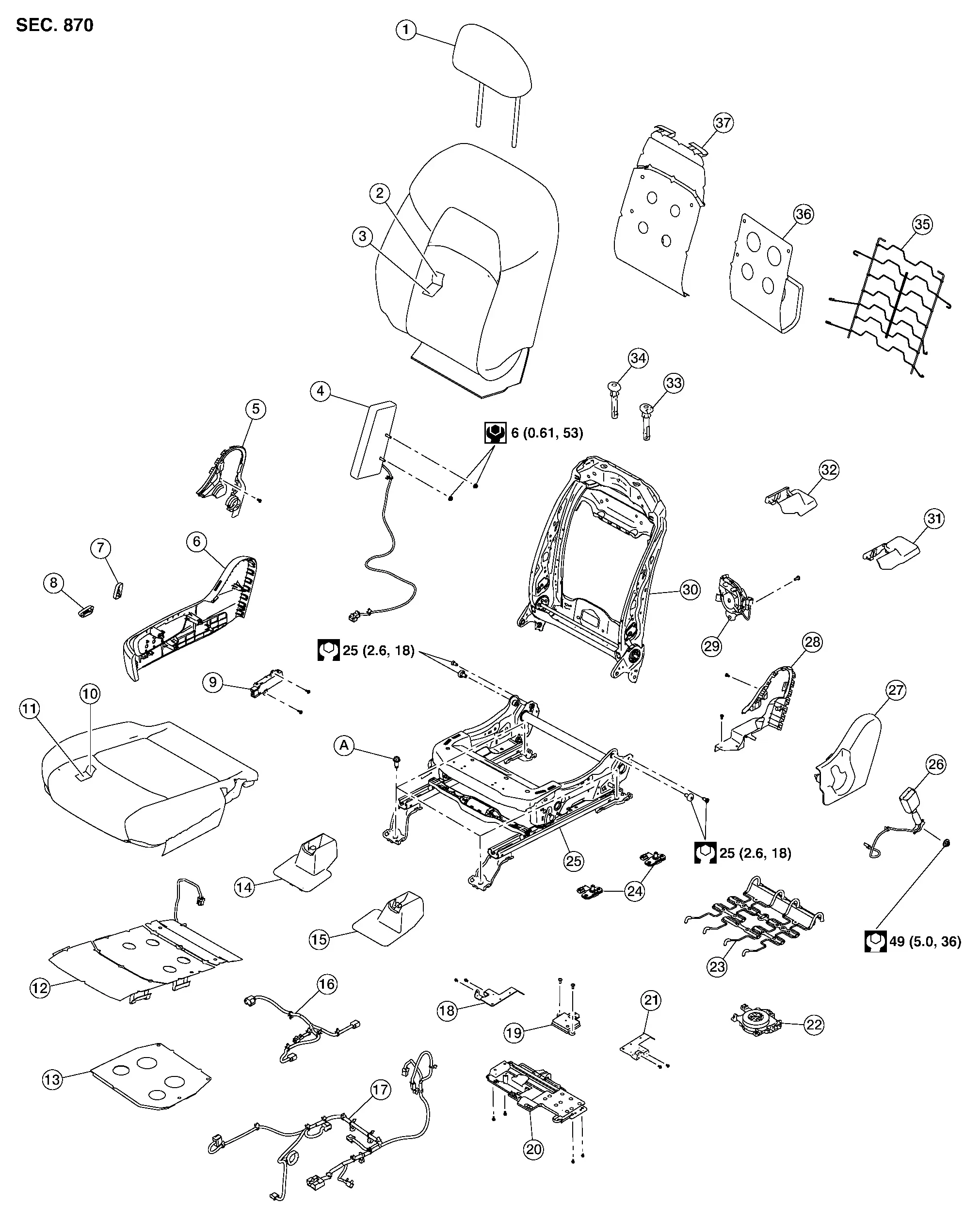

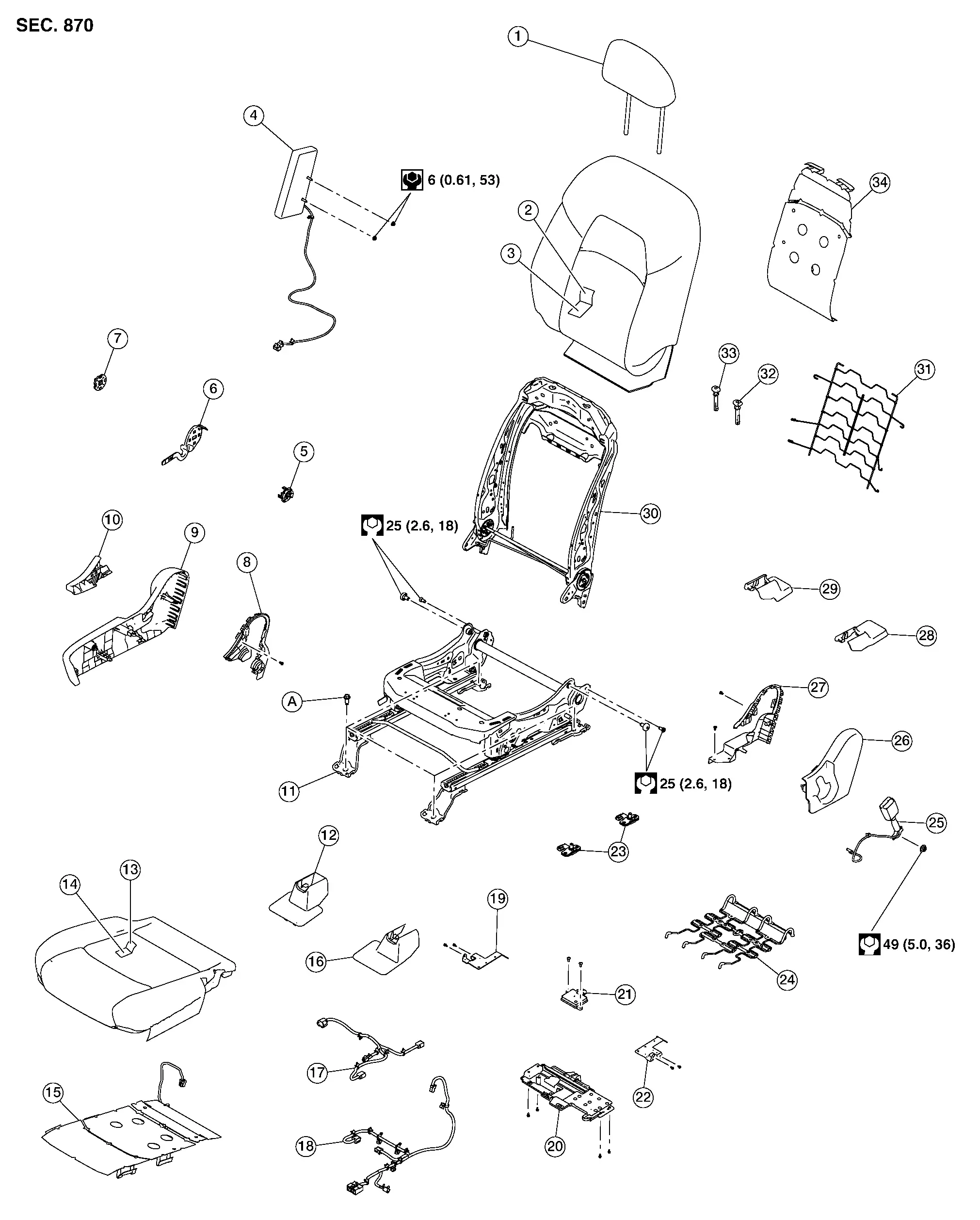

PASSENGER SEAT – MANUAL

1.	Headrest	2.	Seatback trim	3.	Seatback pad
4.	Front side air bag module	5.	Lifter knob cap	6.	Recline lever
7.	Lifter knob retainer	8.	Seat cushion inner finisher (RH)	9.	Seat cushion outer finisher (RH)
10.	Recline lever finisher	11.	Seat cushion frame assembly	12.	Front slide finisher (RH)
13.	Seat cushion trim	14.	Seat cushion pad	15.	Seat cushion heater (if equipped)
16.	Front slide finisher (LH)	17.	Occupant Classification Sensor harness	18.	Seat harness
19.	Side attachment bracket (RH)	20.	Center attachment bracket	21.	Occupant Classification System control unit
22.	Side attachment bracket (LH)	23.	Seat cushion inner finisher (LH) Occupant Classification System sensor	24.	Seat cushion support
25.	Seat belt buckle	26.	Seat cushion outer finisher (LH)	27.	Seat cushion inner finisher (LH)
28.	Rear slide finisher (LH)	29.	Rear slide finisher (RH)	30.	Seat back frame assembly
31.	Seat lumbar assembly	32.	Headrest holder (locked)	33.	Headrest holder (free)
34.	Seat back heater (if equipped)	A.	Refer to Removal and Installation.

PASSENGER SEAT – POWER WITHOUT CLIMATE CONTROL

1.	Headrest	2.	Seatback trim	3.	Seatback pad
4.	Front side air bag module	5.	Seat cushion inner finisher (RH)	6.	Seat cushion outer finisher (RH)
7.	Seat recline knob	8.	Seat slide knob	9.	Power seat switch
10.	Seat cushion trim	11.	Seat cushion pad	12.	Seat cushion heater
13.	Front slide finisher (RH)	14.	Front slide finisher (LH)	15.	Occupant Classification Sensor harness
16.	Seat harness	17.	Side attachment bracket (RH)	18.	Occupant Classification System control unit
19.	Center attachment bracket	20.	Side attachment bracket (LH)	21.	Seat cushion support
22.	Occupant Classification System sensor	23.	Seat cushion frame assembly	24.	Seat belt buckle
25.	Seat cushion outer finisher (LH)	26.	Seat cushion inner finisher (LH)	27.	Seat back frame assembly
28.	Rear slide finisher (LH)	29.	Rear slide finisher (RH)	30.	Headrest holder (locked)
31.	Headrest holder (free)	32.	Seat lumbar assembly	33.	Seat back heater
A.	Refer to Removal and Installation.

PASSENGER SEAT – POWER WITH CLIMATE CONTROL

1.	Headrest	2.	Seatback trim	3.	Seatback pad
4.	Front side air bag module	5.	Seat cushion inner finisher (RH)	6.	Seat cushion outer finisher (RH)
7.	Seat recline knob	8.	Seat slide knob	9.	Power seat switch
10.	Seat cushion trim	11.	Seat cushion pad	12.	Seat cushion heater
13.	Seat cushion duct	14.	Front slide finisher (RH)	15.	Front slide finisher (LH)
16.	Occupant Classification Sensor harness	17.	Seat harness	18.	Side attachment bracket (RH)
19.	Occupant Classification System control unit	20.	Center attachment bracket	21.	Side attachment bracket (LH)
22.	Seat cushion blower	23.	Seat cushion support	24.	Occupant Classification System sensor
25.	Seat cushion frame assembly	26.	Seat belt buckle	27.	Seat cushion outer finisher (LH)
28.	Seat cushion inner finisher (LH)	29.	Seat back blower	30.	Seat back frame assembly
31.	Rear slide finisher (LH)	32.	Rear slide finisher (RH)	33.	Headrest holder (locked)
34.	Headrest holder (free)	35.	Seat lumbar assembly	36.	Seatback duct
37.	Seat back heater	A.	Refer to Removal and Installation.

Seatback
Seat Cushion

Seatback Nissan Pathfinder SUV

Seatback

DISASSEMBLY

WARNING:

Do not leave any objects (screwdrivers, tools, etc.) on the seat during seatback repair. It can lead to personal injury if the side air bag module should accidentally deploy.

CAUTION:

Before servicing, place ignition switch OFF, disconnect both battery terminals then wait at least three minutes.

Always work from the side or back of the seatback, do not work in front of seat.

Do not use air tools or electric tools for servicing the seat assembly.

Do not insert any objects into the side air bag module.

Do not attempt to disassemble the side air bag module.

Do not expose the side air bag module to temperatures exceeding 90°C (194°F).

Do not expose the side air bag module to any oil, grease, detergent or water.

During disassembly, do not damage the seatback board, connectors, retainers, clips, module harness or the side air bag module.

NOTE:

If the vehicle has been involved in a collision and the side air bag module has deployed, the seatback must be replaced.

Driver seat shown; Passenger seat similar.

Remove front seat. Refer to Removal and Installation.

Remove headrest.

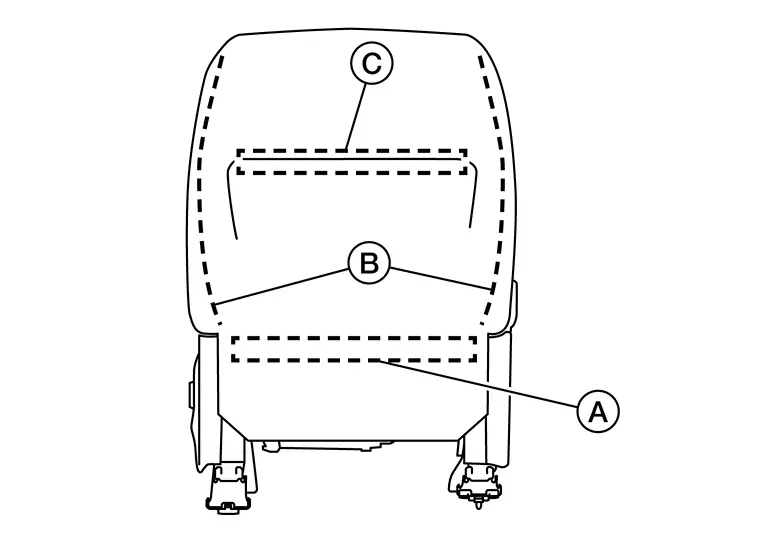

Remove seatback straps (A) from the seat frame.

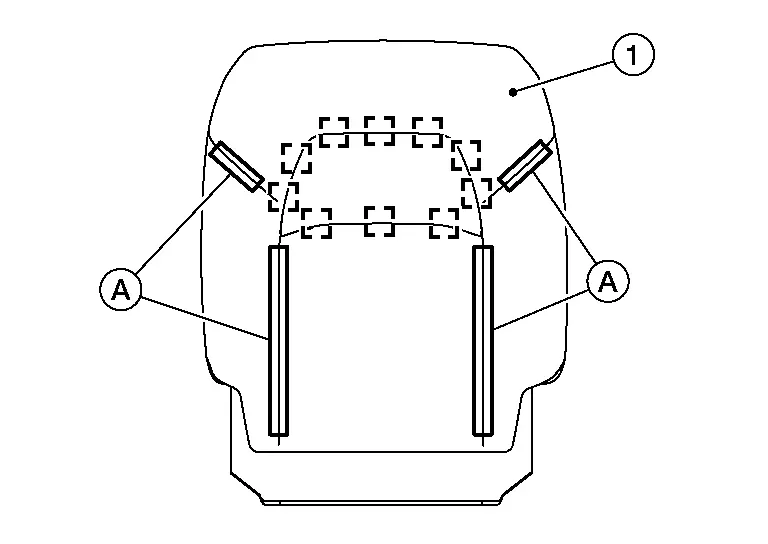

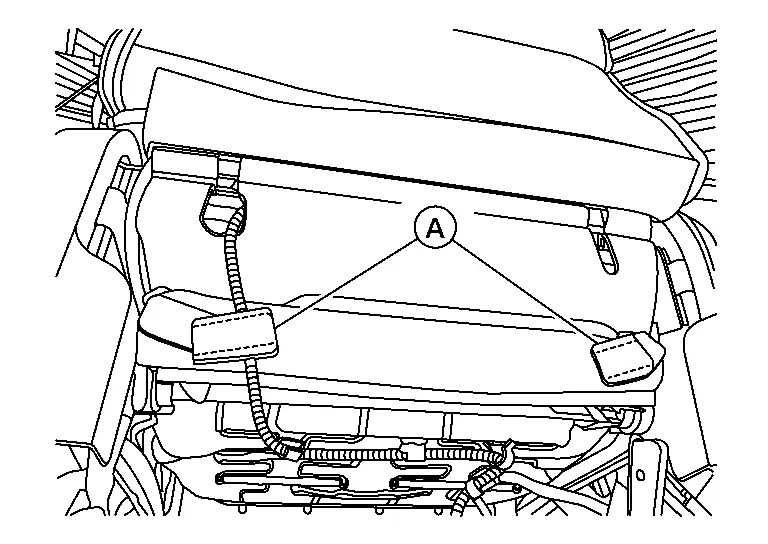

Release hook fasteners (A).

Using suitable tool, release J-hooks (A).

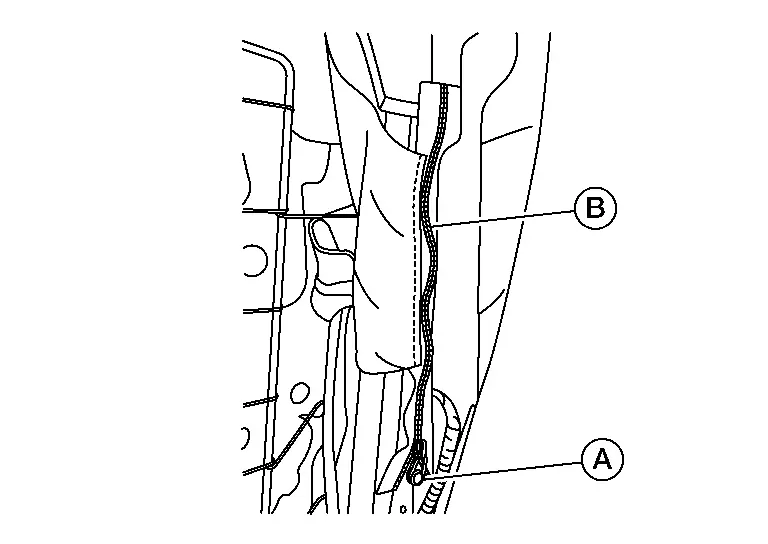

Unzip seatback zippers (B).

Using suitable tool, release J-hooks (C).

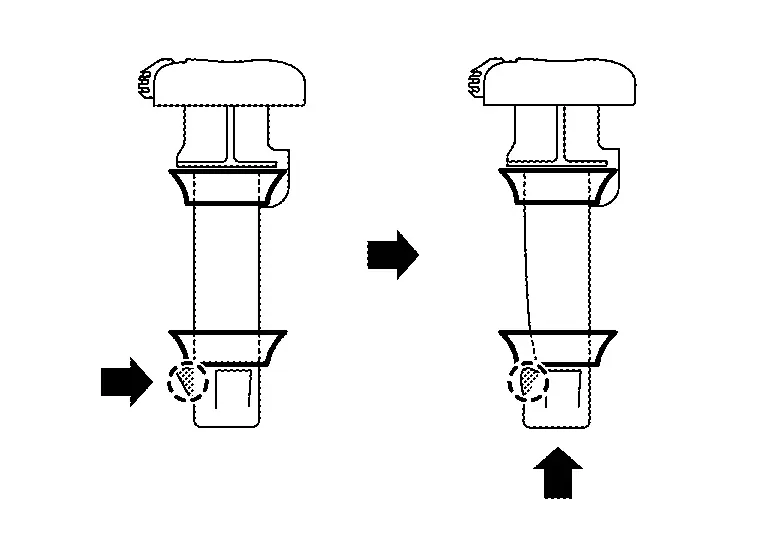

Reach up behind the seatback pad, release pawls and remove the headrest holder in the direction shown.

CAUTION:

Before removing/installing headrest holder, check its orientation (front/rear and right/left).

: Pawl

For models with climate control seats, perform the following steps:Unclip the seatback duct from the seat back blower. Remove bolt (A) from seat back blower motor (1).

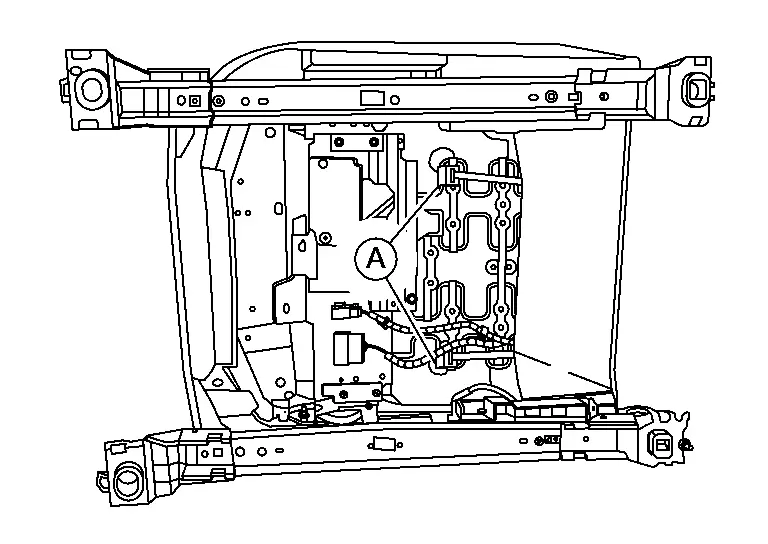

Disconnect the harness connectors (B). Release hooks (C) and position aside the seat back blower motor. Using suitable tool, release the harness retainers from the seat back blower motor and remove the seatback blower motor.

Disconnect the harness connector from the seat back heater (if equipped).

Using suitable tool, release harness retainer from the front side air bag module.

NOTE:

Take note of harness routing and attachment location for correct installation.

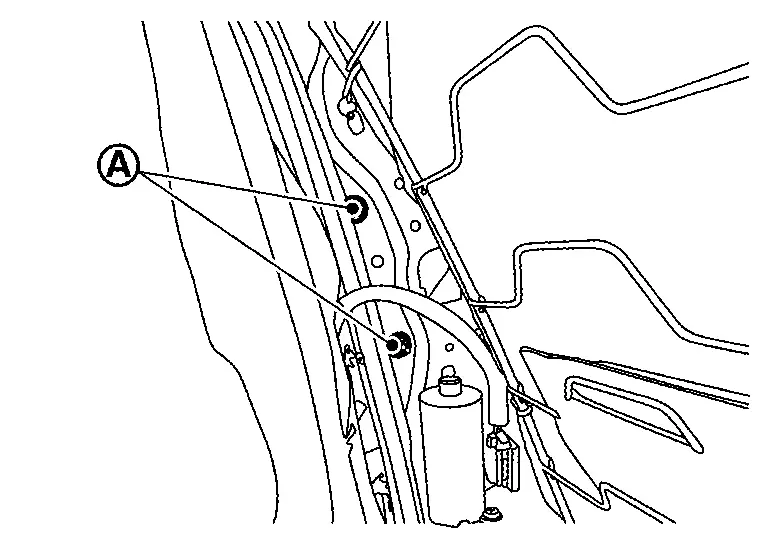

Remove the front side air bag module nuts (A).

For models with front center air bag module, remove screw (A) and unzip seatback trim (B) from the seat frame.

Release the front side air bag module studs from the seatback frame and lift the seatback trim and seatback pad as an assembly from the seat frame assembly.

Remove the front side air bag module from chute and remove from seatback trim.

CAUTION:

Replace the front side air bag module if it has been dropped or sustained an impact.

Do not strike the front side air bag module.

For models with front center air bag module, remove the front center air bag module using the following steps:Using suitable tool, release harness retainers from the front center air bag module.

NOTE:

Take note of harness routing and attachment location for correct installation.

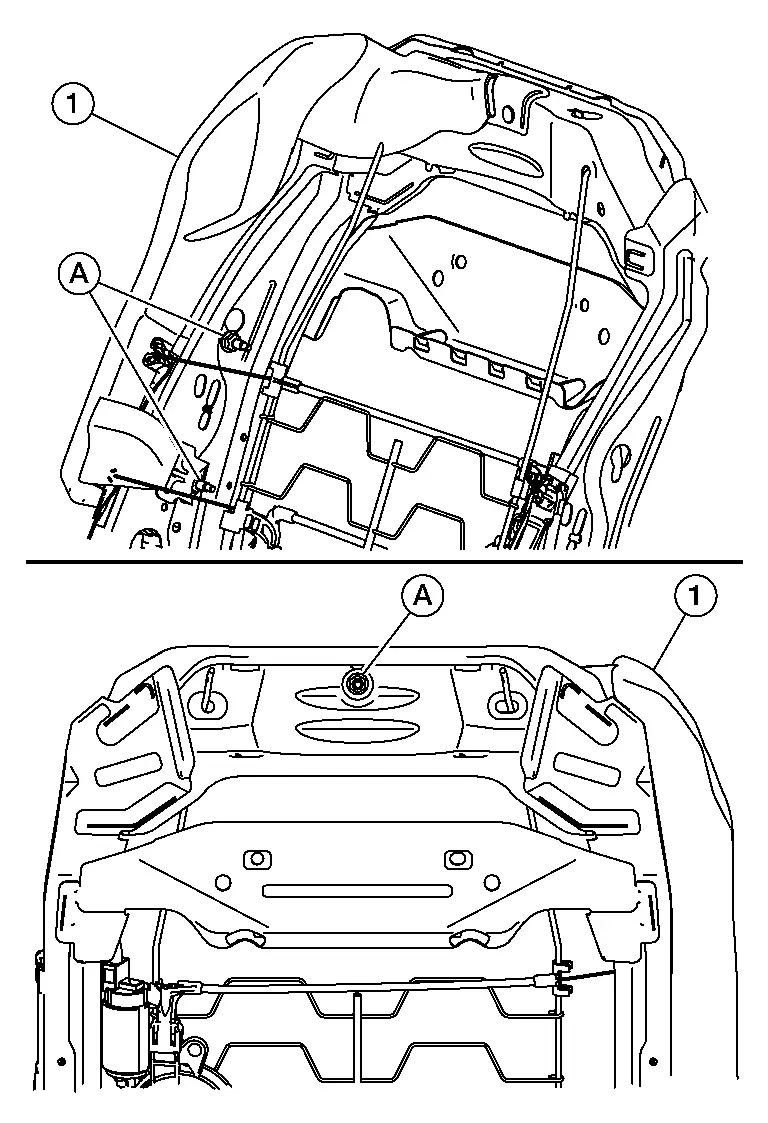

Remove nuts (A) from the front center air bag module (1).

CAUTION:

Replace the front center air bag module if it has been dropped or sustained an impact.

Do not strike the front center air bag module.

Remove the front center air bag module from the seat frame.

Release hook fasteners (A) and remove the hog ring from the seatback trim and seatback pad (1).

NOTE:

Remove all pieces of hog rings and discard them.

: Hog ring

Remove seatback trim from the pad.

ASSEMBLY

Assembly is in the reverse order of disassembly.

CAUTION:

Always route the front side air bag module and front center air bag module harness in original location. Replace any deformed or damaged clips with same type and color. Always install clips in the original location in the harness.

After work is completed, check that no system malfunction is detected causing the air bag warning lamp to illuminate.

If a malfunction is detected by the air bag warning lamp after repair or replacement of the malfunction parts, perform the SRS final check. Refer to SRS Final Check.

Seat Cushion Nissan Pathfinder 2025

Seat Cushion

DISASSEMBLY

WARNING:

Do not leave any objects (screwdrivers, tools, etc.) on the seat during seat cushion repair. It can lead to personal injury if the side air bag module should accidentally deploy.

CAUTION:

Before servicing, place ignition switch OFF, disconnect both battery terminals and wait at least three minutes.

Always work from the side or back of the seatback assembly, do not work in front of seat.

Do not use air tools or electric tools for servicing the seat assembly.

NOTE:

Driver seat shown; passenger seat similar.

Remove the front seat. Refer to Removal and Installation.

Using suitable tool, release J-hooks (A).

Unzip the seatback zippers (B).

Using suitable tool, release J-hook (C).

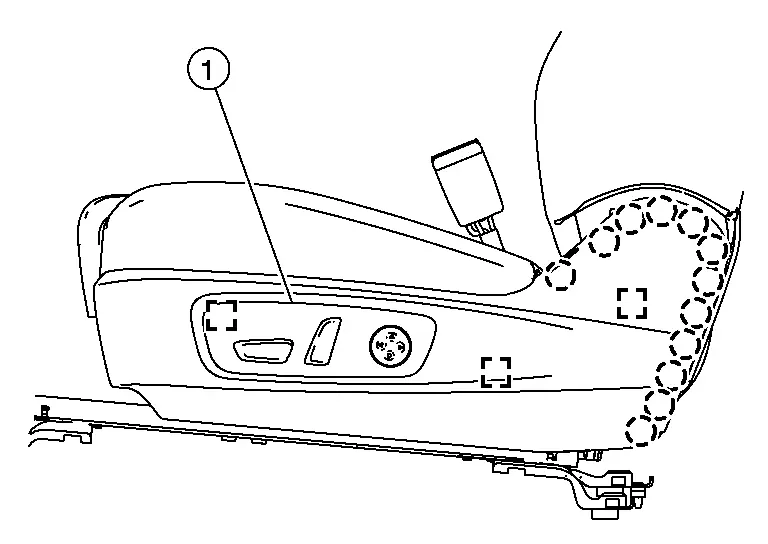

Remove the seat cushion outer finisher [LH (1)].For Manual seat, use the following procedure:

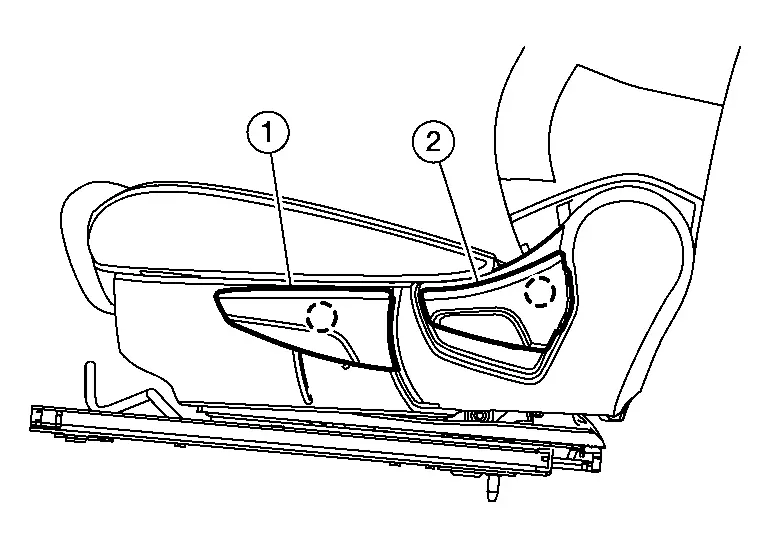

Using suitable tool, release pawls and remove the lift lever (1) and recline lever (2).

: Pawl

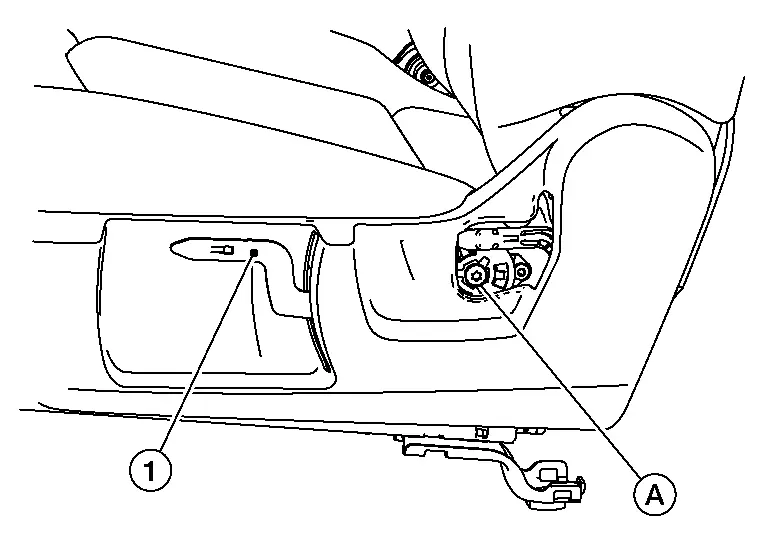

Remove screw (A) and remove front seatback lever (1).
Using suitable tool, release clips and pawls and remove the seat cushion outer finisher.

For Power seat, use the following procedure:

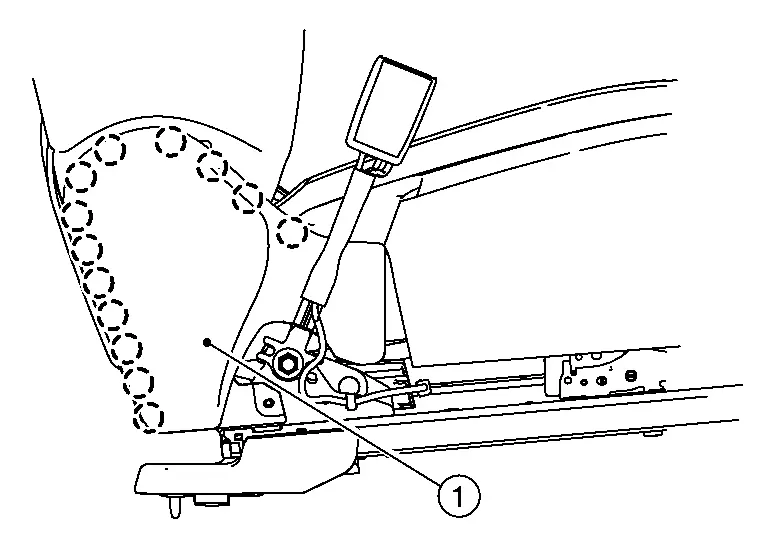

Using suitable tool, release clips and pawls and remove the seat cushion outer finisher (1).

: Metal clip

: Pawl
Disconnect the harness connectors from the power seat switch and lumbar support switch.
Release clips and remove the seat cushion outer finisher.

Using suitable tool, release pawls and remove the seat cushion outer finisher (1).

: Pawl

Release hook fasteners (A).

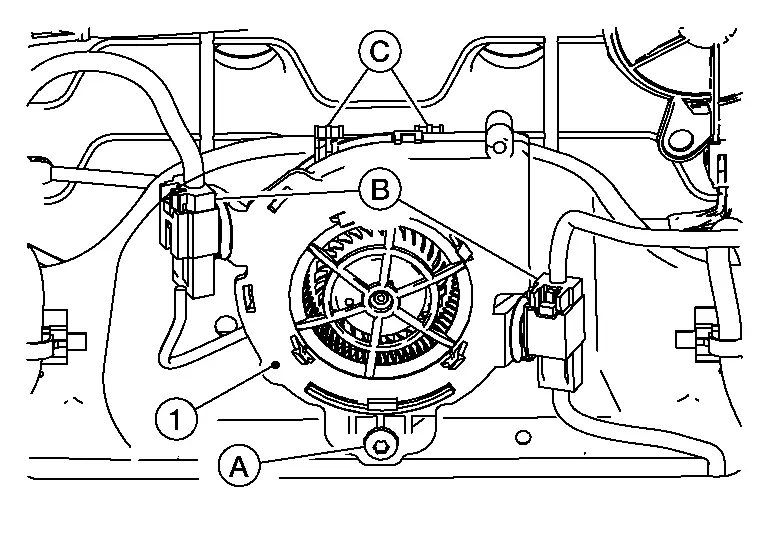

For models with climate control seats, perform the following steps:Unclip the seatback duct from the seat back blower. Remove bolt (A) from seat back blower motor (1).

Disconnect harness connector from the seat cushion heater and seat back heater (if equipped).

Using suitable tool, release harness retainers from the seat cushion heater and seat back heater harness connectors.

NOTE:

Take note of harness routing and attachment location for correct installation.

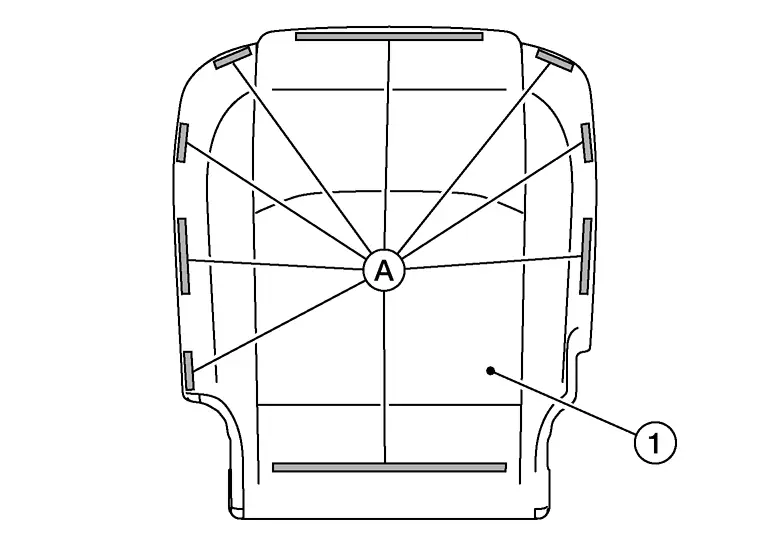

Using suitable tool, release the seat cushion trim J-clips (A) then remove the seat cushion trim and seat cushion pad (1) from the seat frame assembly.

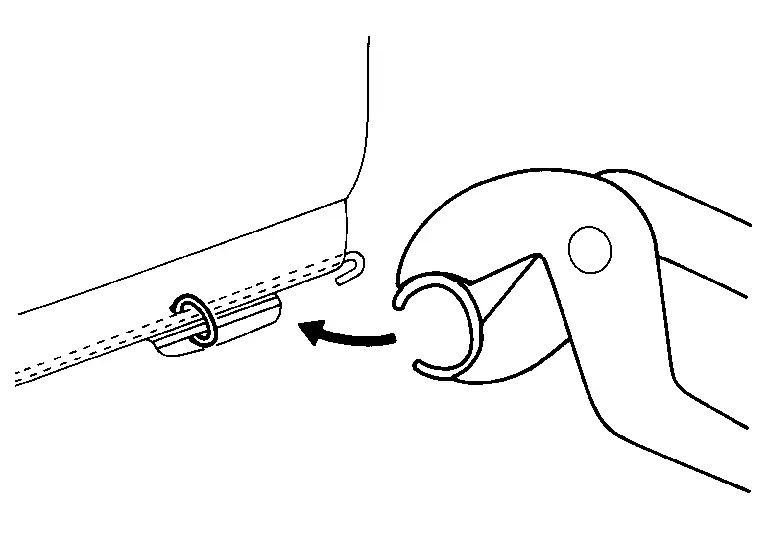

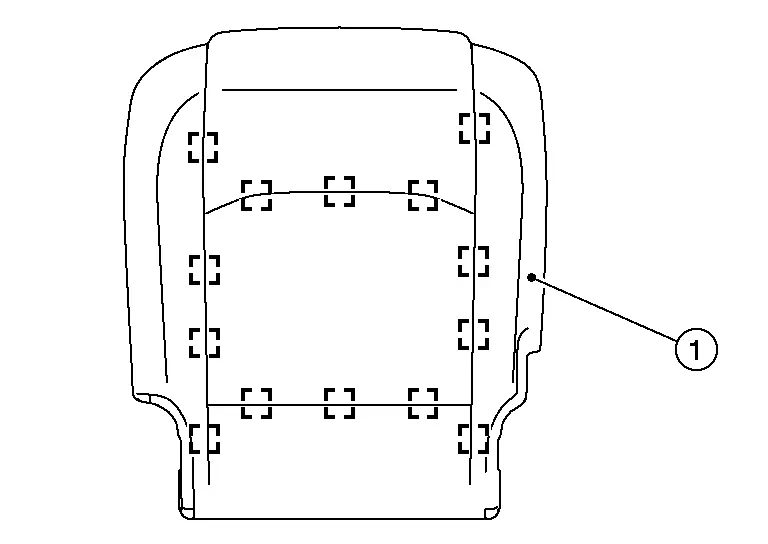

Remove the hog rings from the seat cushion trim and seat cushion pad (1) and remove seat cushion trim from the seat cushion pad.

: Hog ring

NOTE:

Remove all pieces of hog rings and discard them.

ASSEMBLY

Assembly is in the reverse order of disassembly.

Install new hog rings on the seat cushion trim in original positions.
Use only one hog ring in each designated location.
Make sure hog rings are correctly fastened around both the seat cushion trim and seat cushion pad wires.
Use NISSAN standard hog rings and tools to assemble.
Make sure hook fastener is pressed into place after seat cushion trim is assembled.
Smooth out all wrinkles during assembly.

CAUTION:

After work is completed, check that no system malfunction is detected causing the air bag warning lamp to illuminate.

If a malfunction is detected by the air bag warning lamp after repair or replacement of the malfunction parts, perform the SRS final check. Refer to SRS Final Check.
