System Description

• The electric parking brake system uses the signal from the parking brake switch to have the ABS actuator and electric unit (control unit) operate the parking brake actuator to apply and release the parking brake.

• The parking brake switch is placed in the console finisher so that it can be operated close at hand (applied/released).

• When the parking brake is operated, the electric parking brake indicator lamp in the combination meter and the parking brake switch indicator turn ON.

• When the parking brake is released, the electric parking brake indicator lamp in the combination meter and the parking brake switch indicator turn OFF.

• When a malfunction occurs in the electric parking brake system, electric parking brake warning lamp turn ON, electric parking brake indicator lamp turn ON/OFF (depends on the electric parking brake system) or blink, and parking brake switch indicator turn ON/OFF (depends on the electric parking brake system) or blink, and the function for entering the fail-safe status is held.

• When a malfunction occurs in the electric parking brake system, the parking brake can be mechanically released. Refer to Diagnosis Procedure.

OPERATION

• When the parking brake switch is pulled, a parking brake operation switch signal is transmitted from the ABS actuator and electric unit (control unit) to the parking brake actuator.

• When the parking brake actuator receives a parking brake switch signal, it activates the motor in the parking brake actuator.

• When the motor is operated, rotating torque is generated, and transmitted to the piston in the parking brake actuator of the rear brake caliper via gears in parking brake actuator.

• The piston is pushed out by the rotating torque, and the parking brake operates by pressing the brake pad against the disc rotor.

RELEASE

• When the parking brake switch is pushed, a parking brake release switch signal is transmitted from the ABS actuator and electric unit (control unit) to the parking brake actuator.

• When a parking brake switch signal is input, the motor in the parking brake actuator rotates in reverse and pulls back the piston of the rear brake caliper.

• By pulling back the piston of the rear brake caliper, the brake pad and disc rotor are released as with the normal brakes, and the parking brake is released.

• When the motor is operated, rotating torque is generated, and transmitted to the piston in the parking brake actuator of the rear brake caliper via gears in parking brake actuator.

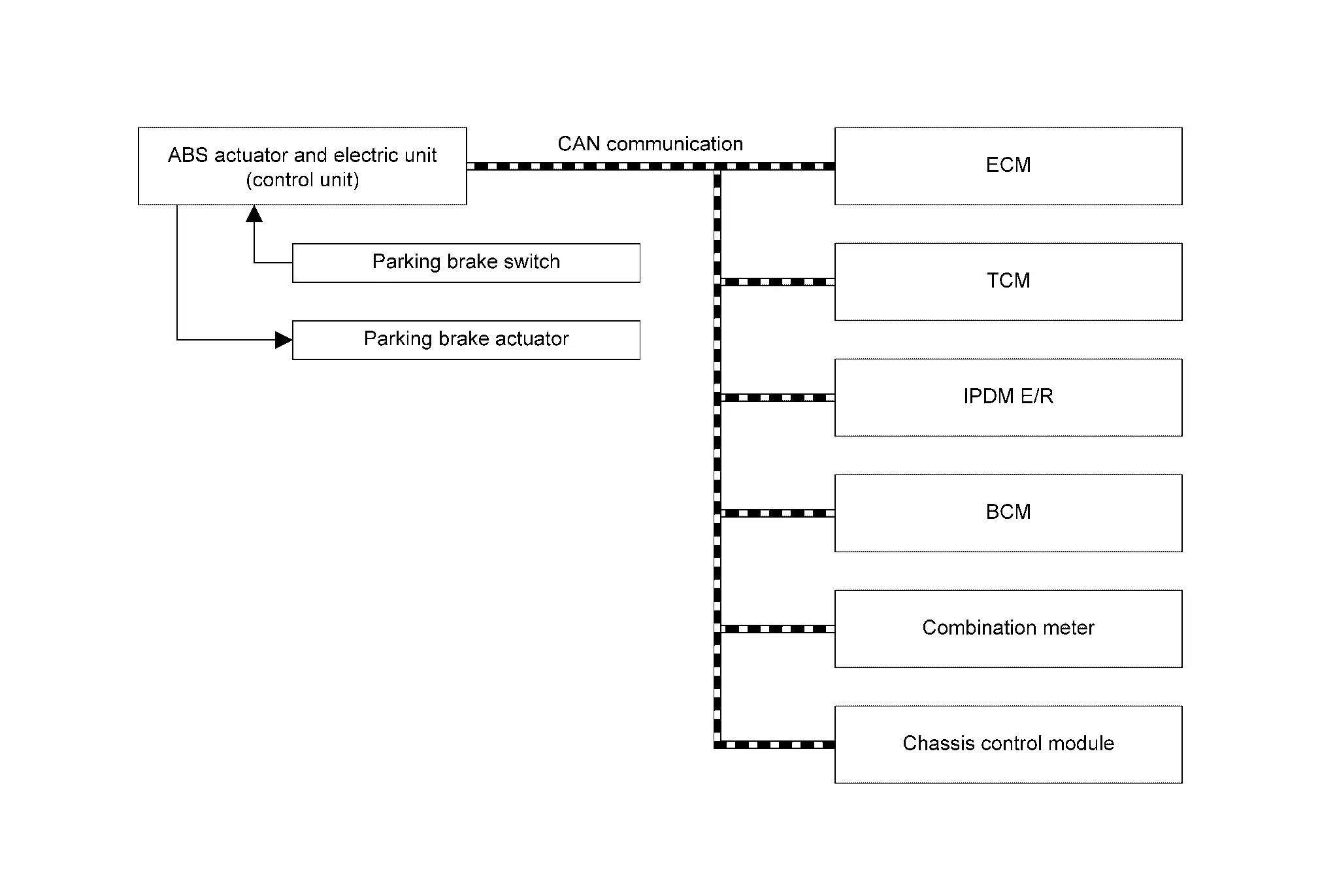

SYSTEM DIAGRAM

INPUT SIGNAL AND OUTPUT SIGNAL

Major signal transmission between each unit via communication lines is shown in the following table:

ELECTRIC PARKING BRAKE OPERATION

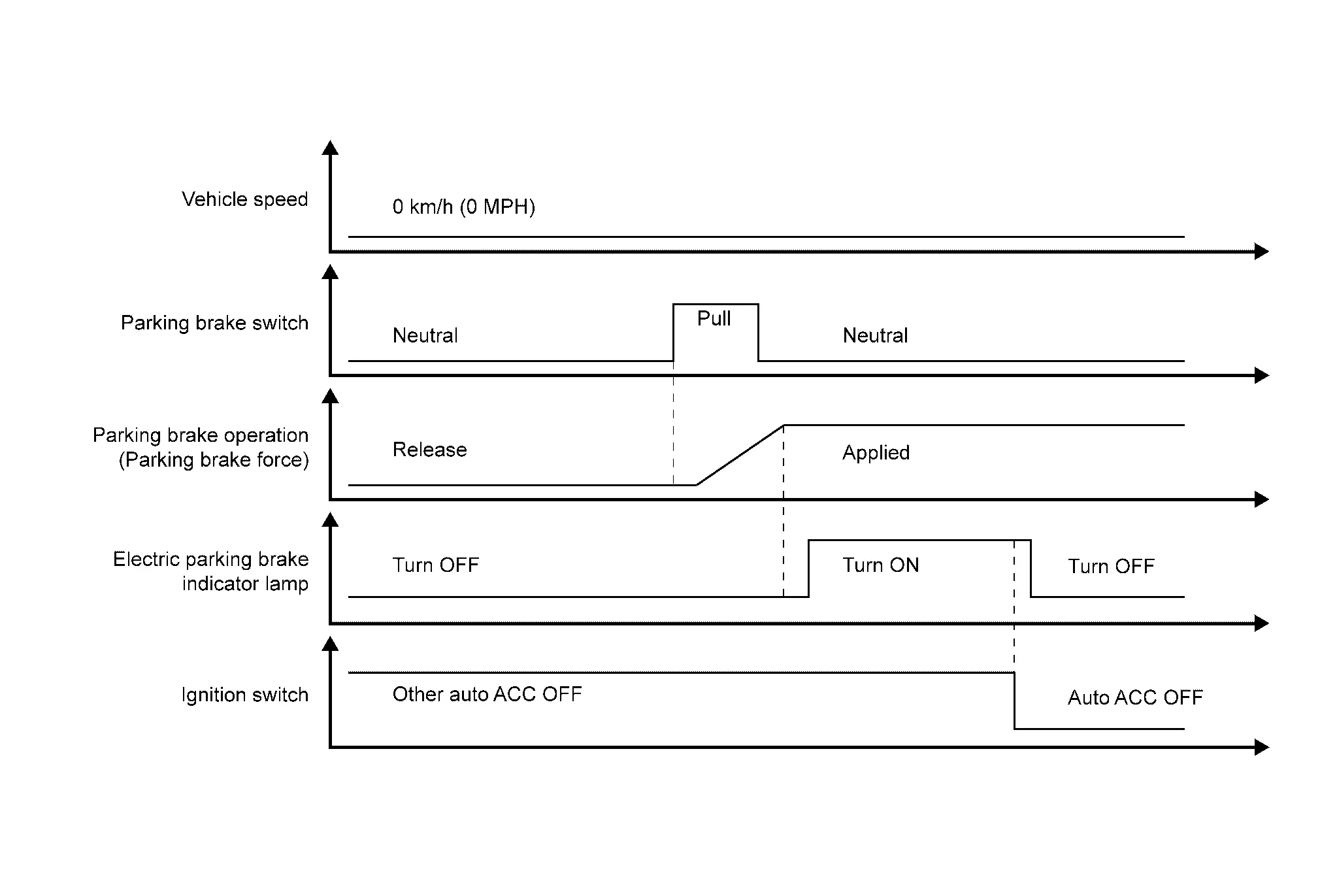

Normal Operation

• When the parking brake switch is pulled while the vehicle is stopped, the parking brake operates. (The motor in the parking brake actuator starts generating rotating torque.)

• When the parking brake braking force reaches the prescribed value (rotating torque generated by the motor in the parking brake actuator), the electric parking brake indicator lamp turns ON.

• When the auto ACC is OFF, the electric parking brake indicator lamp is turn OFF.

  NOTE:

  The braking force of parking brake remains to be held.

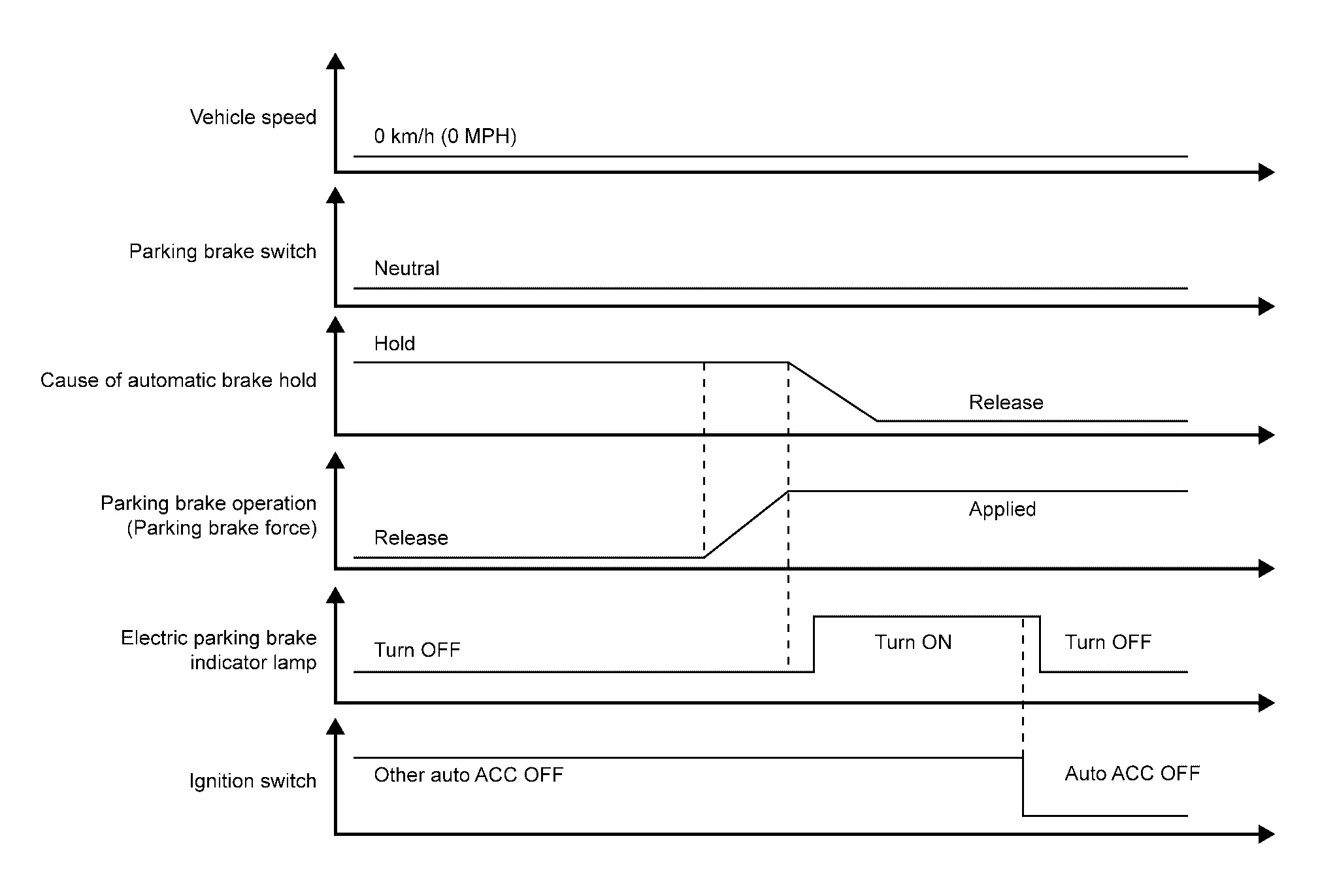

Changing from Automatic Brake Hold to Parking Brake

NOTE:

For automatic brake hold. Refer to System Description.

• If any of the following conditions are met, parking brake operates automatically: (The braking method for stopping the Nissan Pathfinder vehicle is changed from automatic brake hold to parking brake.)

  • Automatic brake hold operates for approximately 3 minutes

  • Driver seat belt is unfastened while automatic brake hold is being applied

  • Ignition switch is OFF

  • A malfunction is detected in automatic brake hold

  • Driver side door is open

• When the parking brake effectiveness reaches the specified value, electric parking brake indicator lamp turns ON.

• When the auto ACC is OFF, the electric parking brake indicator lamp is turn OFF.

  NOTE:

  The braking force of parking brake remains to be held.

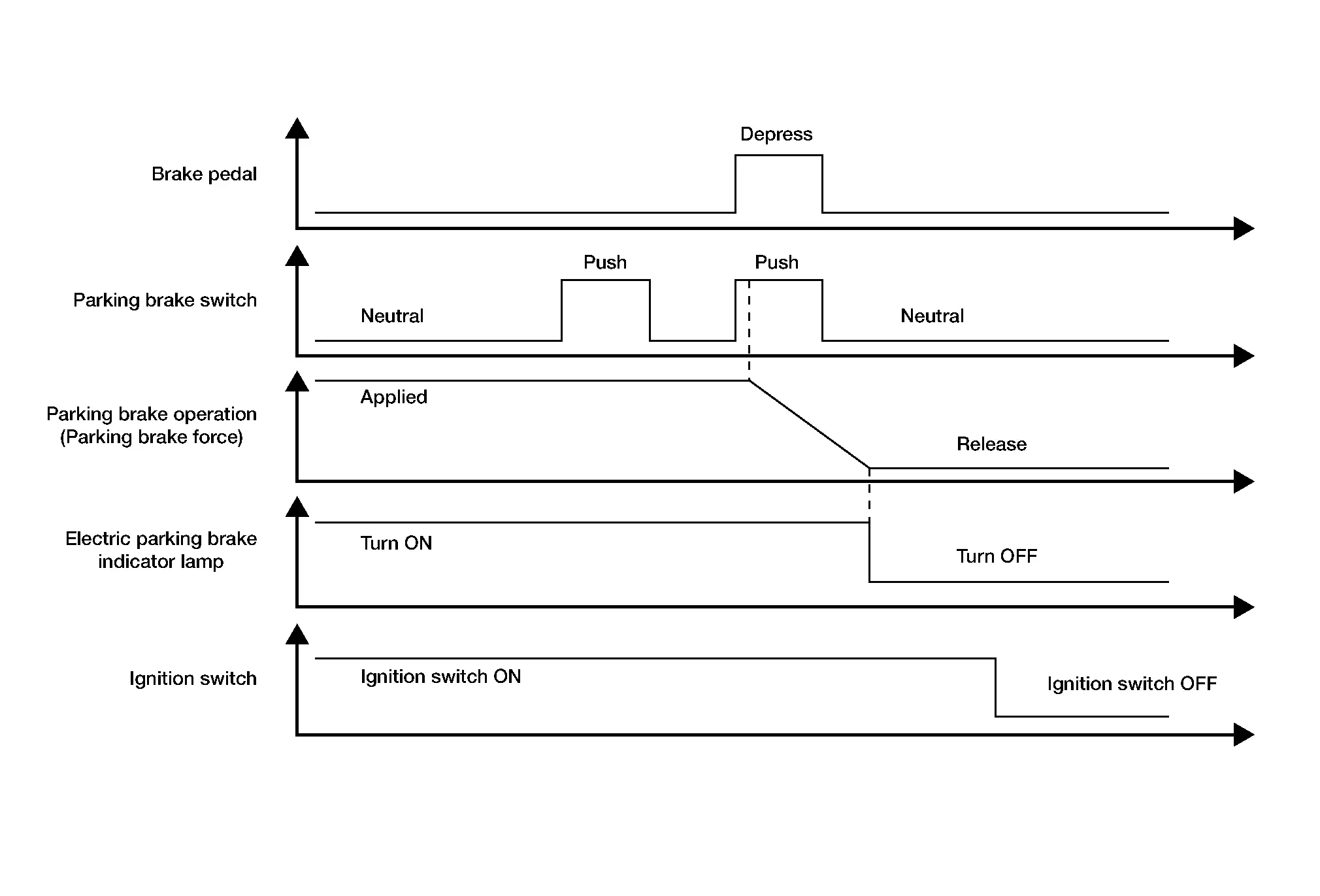

Normal Release (Ignition switch ON)

• The parking brake is released when the parking brake switch is pushed while the brake pedal is depressed, the ignition switch is ON, and the parking brake is operating.

  NOTE:

  • Parking brake is not released if only parking brake switch is pushed.

  • The parking brake can be released by placing ON the ignition switch and pushing the parking brake switch while depressing the brake pedal.

• When release of the parking brake is completed (it means no rotating torque generated by the motor in the parking brake actuator), the electric parking brake indicator lamp turns OFF.

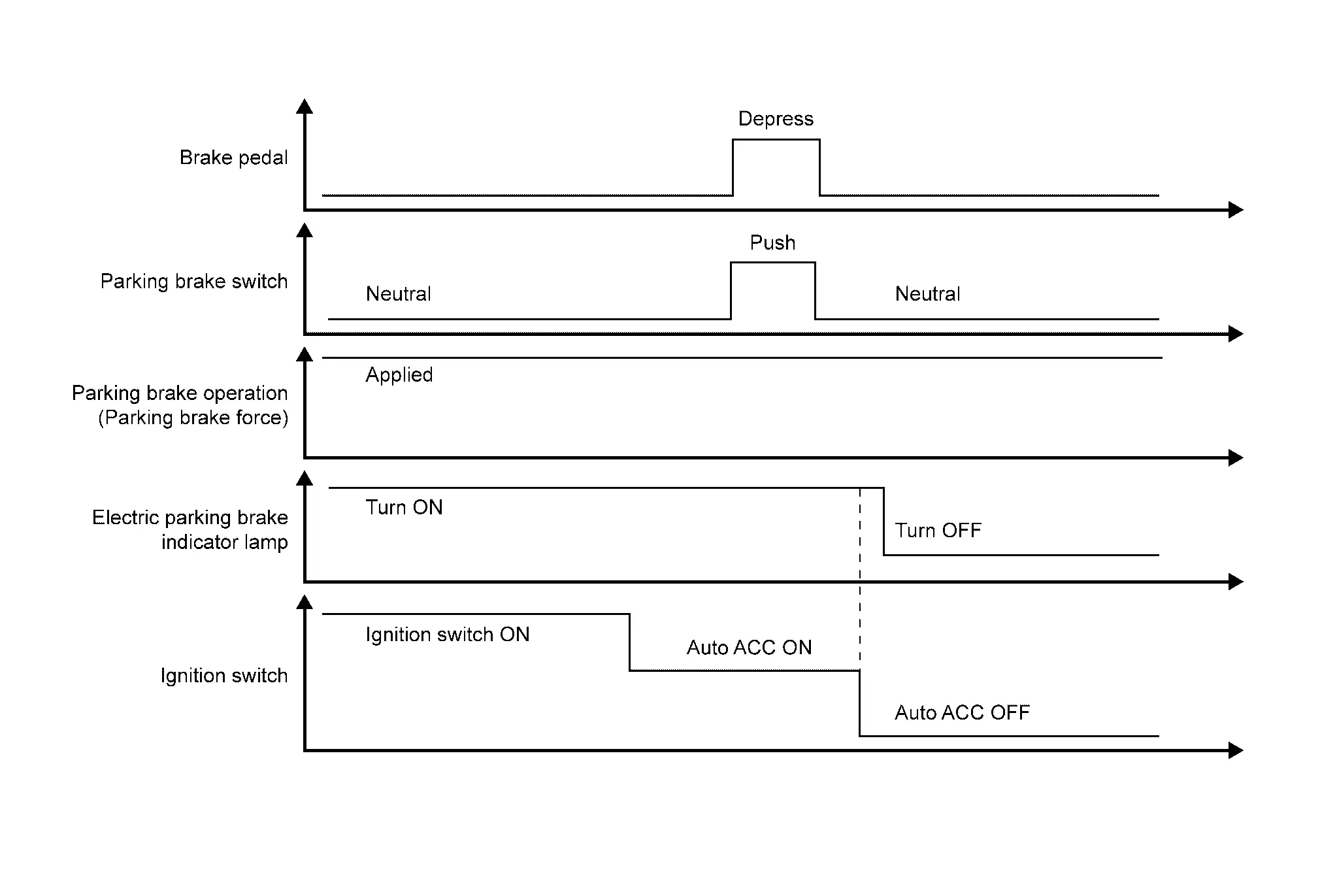

Normal Release (Other ignition switch ON)

• The parking brake cannot be released if only parking brake switch is pushed while the ignition switch is OFF, the parking brake is applied, and the brake pedal is depressed.

  NOTE:

  • Parking brake is not released if only parking brake switch is pushed.

  • The parking brake can be released by placing ON the ignition switch and pushing the parking brake switch while depressing the brake pedal.

• The electric parking brake indicator lamp turns OFF.

  NOTE:

  The braking force of parking brake remains to be held.

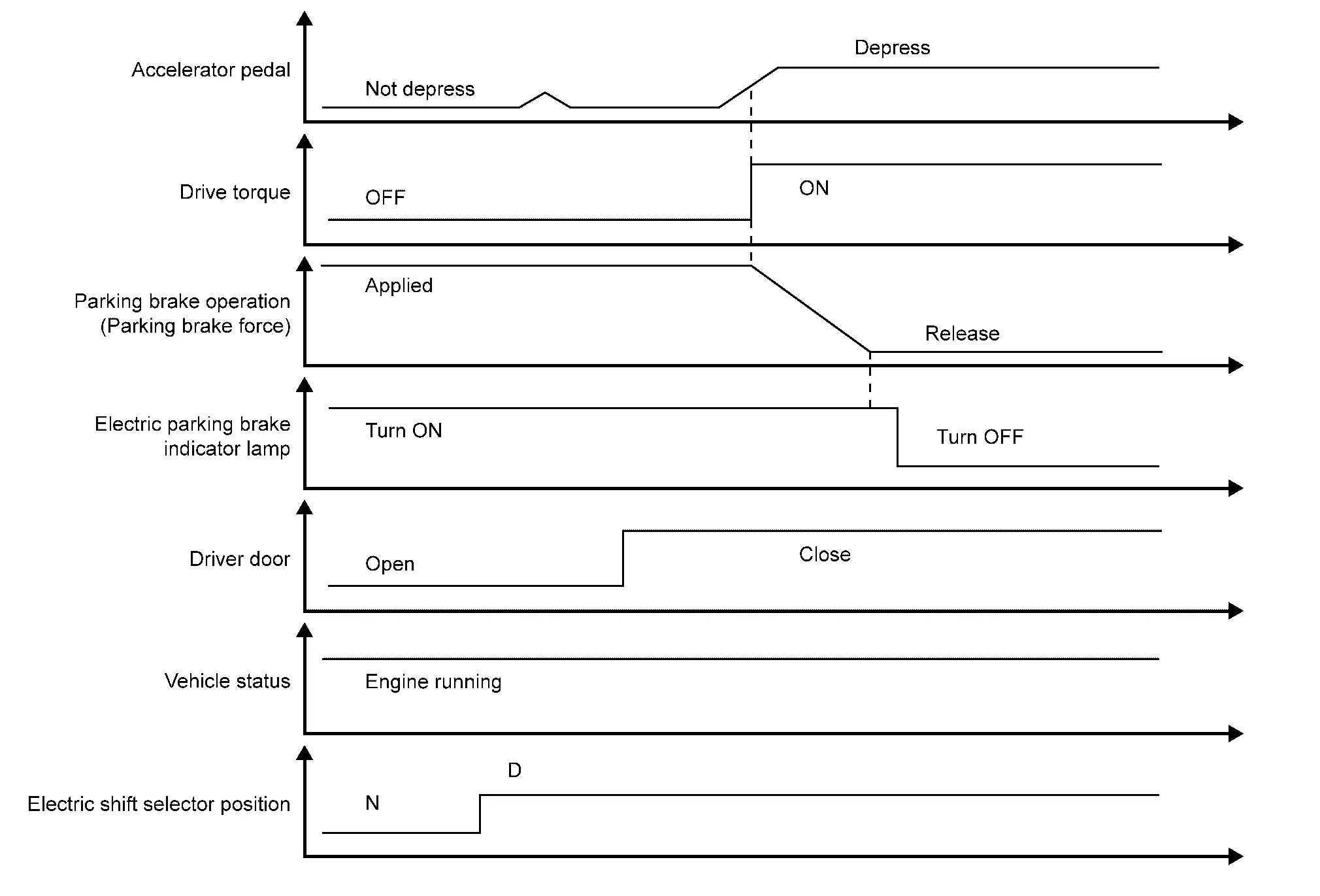

Automatic Release

• The parking brake automatically releases under the following conditions:

  • Engine running

  • The electric shift selector is in the D or R position

  • Driver side door is close

  • The accelerator pedal is depressed

  • When traction motor torque necessary for travelling is generated

• When release of the parking brake is completed (it means no rotating torque generated by the motor in the parking brake actuator), the electric parking brake indicator lamp turns OFF.

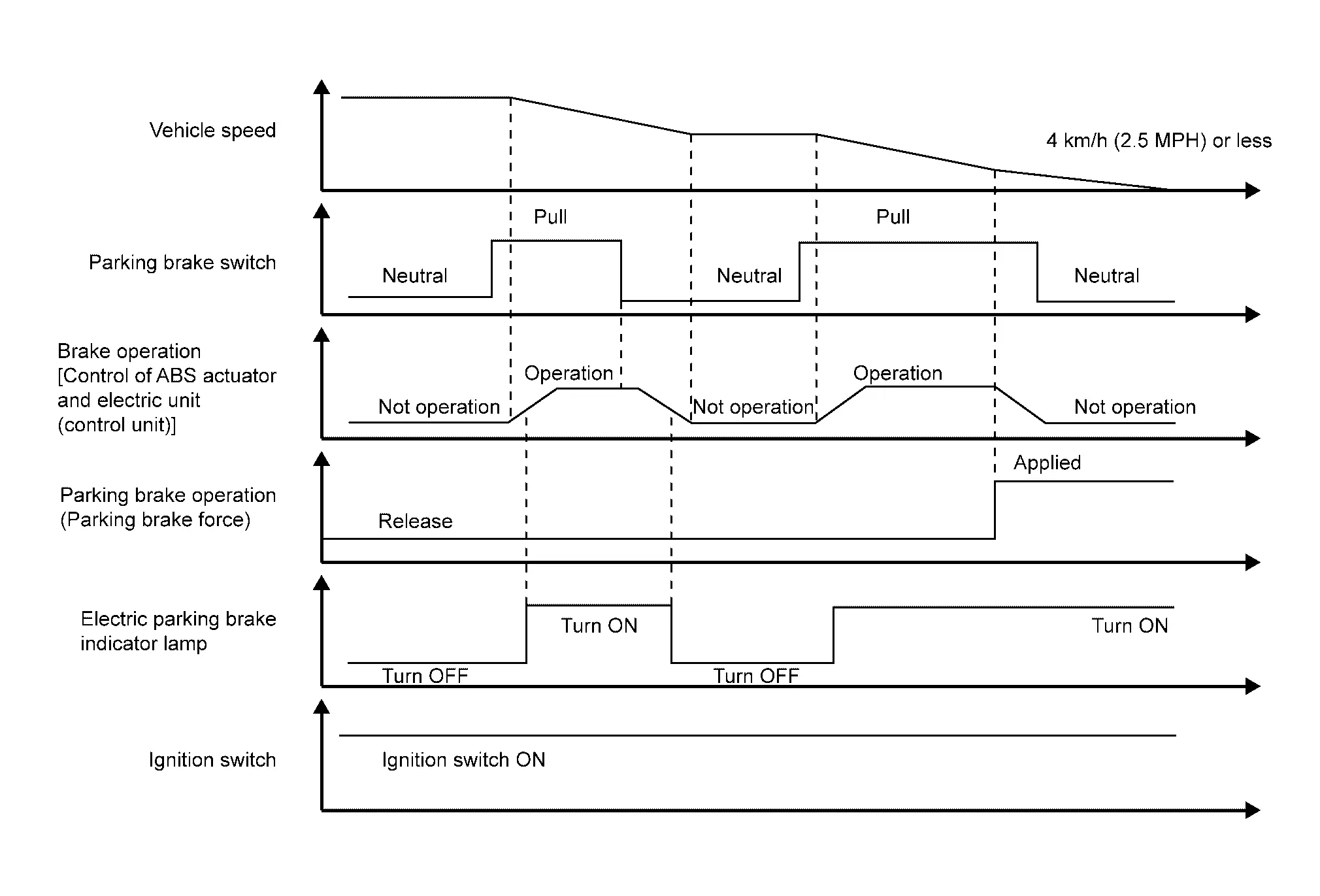

Driving

• When parking brake switch is pulled while the vehicle is stopping [Vehicle speed is 2.5 MPH (4 km/h) or less.], the electric parking brake starts the operation (the motor in the parking brake actuator starts the rotation). And then the electric parking brake indicator lamp is turned ON.

• When the parking brake switch is pulled while travelling, a command is transmitted to the ABS actuator and electric unit (control unit), and it applies brake on four wheels to reduce Nissan Pathfinder vehicle speed.

  NOTE:

  • If ABS actuator and electric unit (control unit) cannot operate, the electric parking brake system brakes rear wheels by the parking brake actuator. And then Nissan Pathfinder vehicle speed is decelerated.

  • When the parking brake switch is released, the ABS actuator and electric unit (control unit) releases the brakes.

  • During the brake operation (deceleration) by the ABS actuator and electric unit (control unit), the status becomes as follows:

    • Electric parking brake indicator lamp and master warning lamp are turned ON.

    • Buzzer beeps.

    • “Release parking brake” is shown on the information display of the combination meter.

    • Stop lamp is turn ON.

    • If the electric parking brake switch is still pulled after the Nissan Pathfinder vehicle speed decelerates 2.5 MPH (4 km/h), the braking operation is switched from control by the ABS actuator and electric unit (control unit).

CONDITION FOR TURN ON THE WARNING LAMP, THE INDICATOR LAMP AND INFORMATION DISPLAY

Turns ON when ignition switch is placed ON and turns OFF when the system is normal, for bulb check purposes.

Fail-Safe

• The electric parking brake warning lamp and/or electric parking indicator lamp turns ON when a malfunction with the system occurs. Refer to Fail-Safe.

• When parking brake switch is pulled/pushed during system malfunction, electric parking brake indicator lamp blinks and electric parking brake warning lamp turns ON when electric parking brake cannot be operated. It restricts braking and release operations of electric parking brake.

  NOTE:

  The parking brake can be mechanically released.

• Warning/indicator/chime List
• Information Display (combination Meter)

Warning/indicator/chime List Nissan Pathfinder 5th Gen

Warning Lamp/Indicator Lamp

With Full TFT Meter

Name	Design	Layout/Function
Electric parking brake indicator lamp		For layout: Refer to Design.
		For function: Refer to Component Function Check.
Electric parking brake warning lamp		For layout: Refer to Design.
		For function: Refer to Component Function Check.

With 7 Inch Information Display Meter

Name	Design	Layout/Function
Electric parking brake indicator lamp	or	For layout: Refer to Design.
		For function: Refer to Component Function Check.
Electric parking brake warning lamp		For layout: Refer to Design.
		For function: Refer to Component Function Check.

Information Display (combination Meter) Nissan Pathfinder

Parking Brake Warning

DESIGN/PURPOSE

• Warns the driver of the necessity of depressing the brake pedal.

• Warns the driver of the necessity of releasing the parking brake.

Warning Message

SYNCHRONIZATION WITH MASTER WARNING LAMP

Applicable

• Full TFT meter: Refer to Master Warning Lamp.

• 7 inch information display meter: Refer to Master Warning Lamp.

SYNCHRONIZATION WITH WARNING CHIME

Applicable

Refer to System Description.

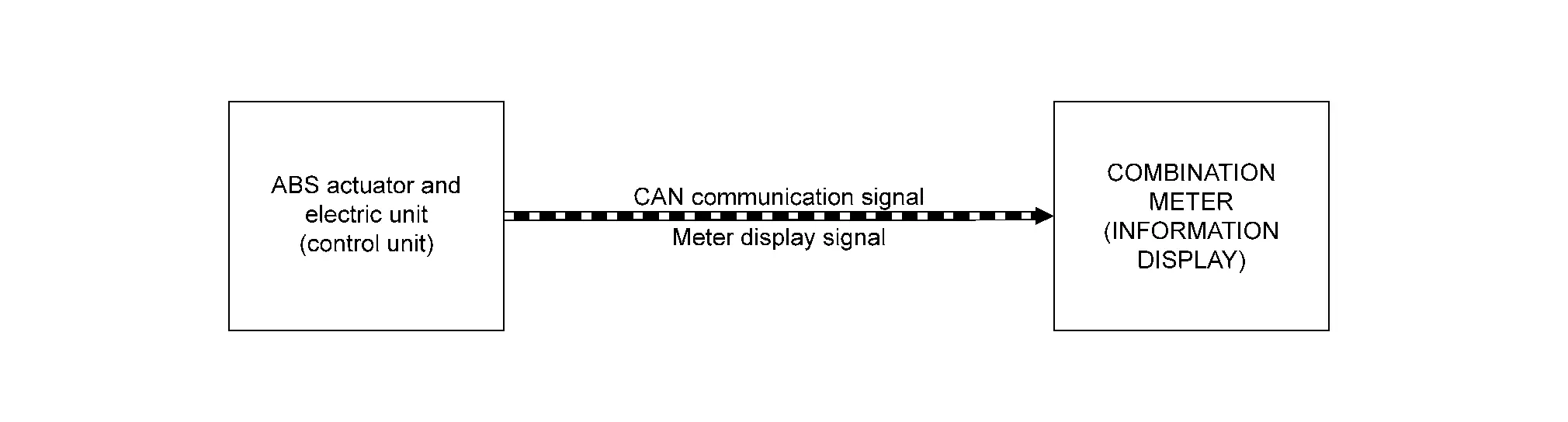

SYSTEM DIAGRAM

SIGNAL PATH

The ABS actuator and electric unit (control unit) transmits a signal to the combination meter via CAN communication under the conditions bellow:

• When necessary to depress the brake pedal.

• When necessary to release the parking brake.

WARNING/INDICATOR OPERATING CONDITION

When the following conditions are satisfied (ignition switch ON):

• The parking brake switch is pushed without depressing the brake pedal.

• The parking brake is operated with the parking brake switch kept pulled during driving.

• The parking brake braking force is insufficient (Nissan Pathfinder vehicle is moving backward).

• When the vehicle is moving.
