Nissan Pathfinder: Seat - Component Parts

• Power Seat System
• 2 Way Lumbar Support System
• Heated Seat System
• Second Row Heated Seat System
• Climate Controlled Seat System
• Second Row Seat Power Walk in System

Power Seat System Nissan Pathfinder Fifth generation

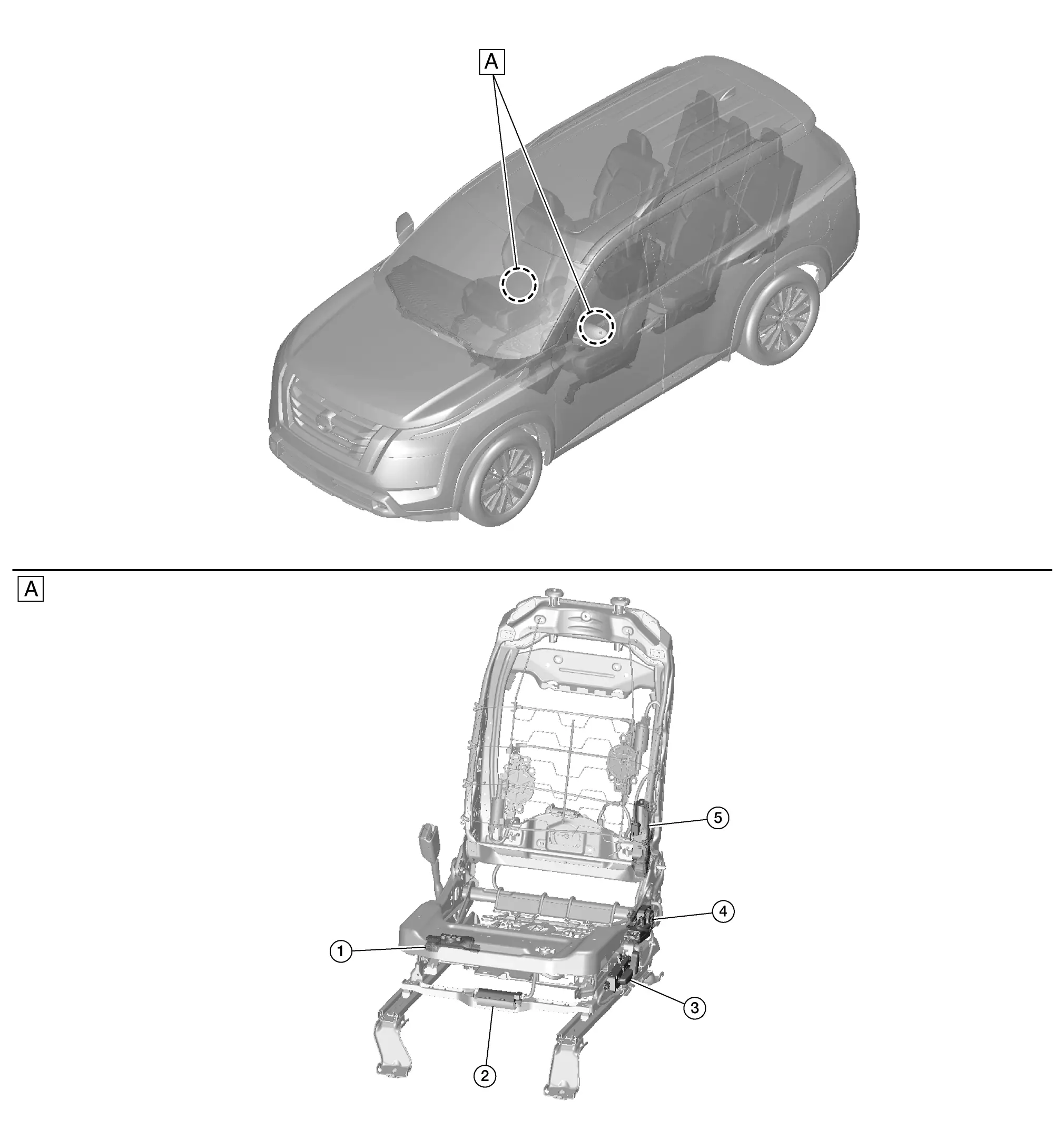

Component Parts Location

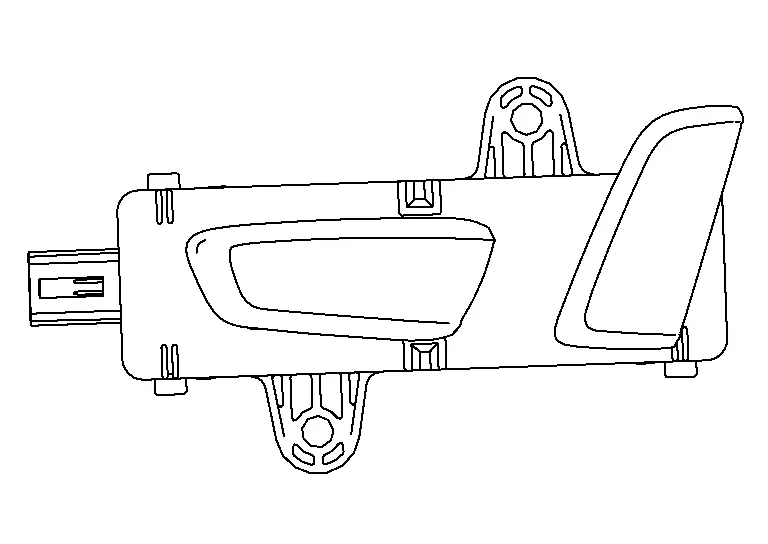

Power Seat Switch

• The power seat switch is installed on the seat cushion outer finisher.



  (Power seat switch RH shown, LH similar)

• Built-in reclining switch, sliding switch and lifting switch controls the power supplied to each power seat motor.

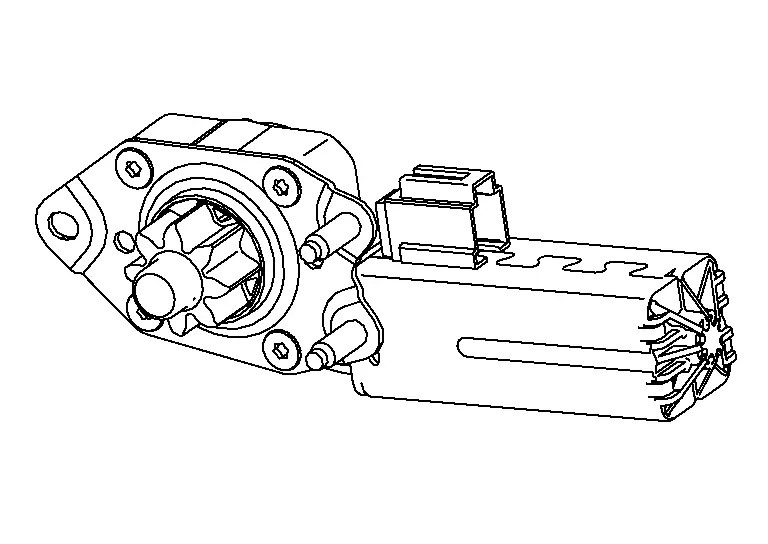

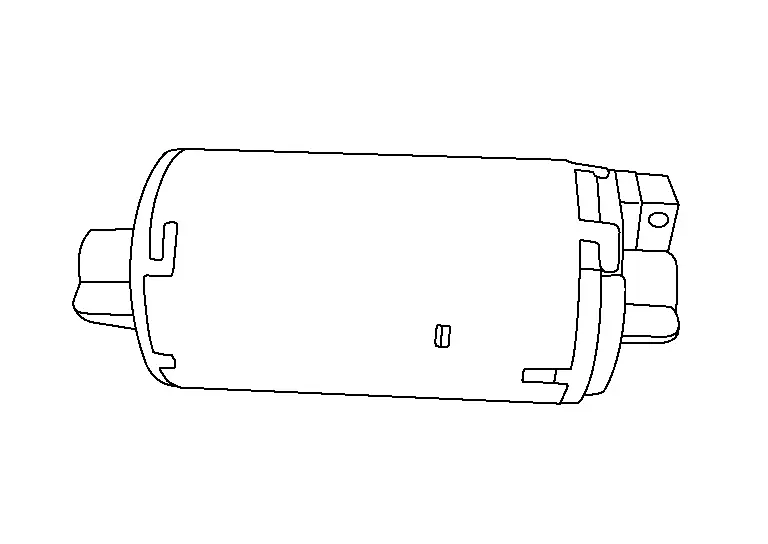

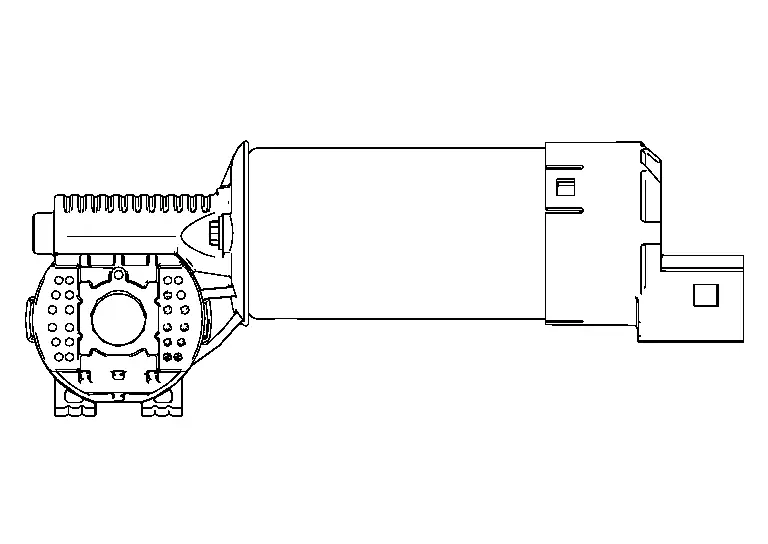

Sliding Motor

• The sliding motor is installed to the seat frame assembly.



  (Front seat LH shown, RH similar)

• The seat is moved forward/backward by changing the rotation direction of the sliding motor.

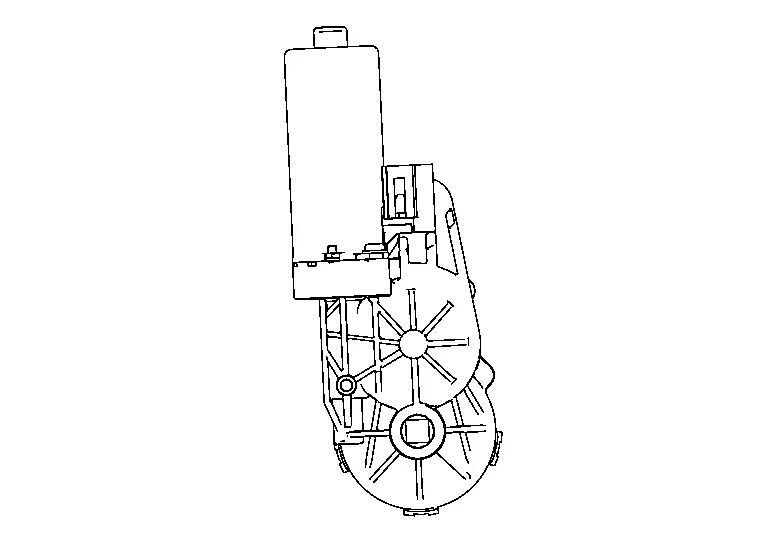

Reclining Motor

• The reclining motor is installed to the seat back assembly.



  (Front seat LH shown, RH similar)

• The seat back is reclined forward/backward by changing the rotation direction of the reclining motor.

Lifting Motor (Front)

• The lifting motor (front) is installed to the seat frame assembly.



• The seat is moved upward/downward by changing the rotation direction of the lifting motor (front).

Lifting Motor (Rear)

• The lifting motor (rear) is installed to the seat frame assembly.



• The seat is moved upward/downward by changing the rotation direction of the lifting motor (rear).

2 Way Lumbar Support System Nissan Pathfinder SUV

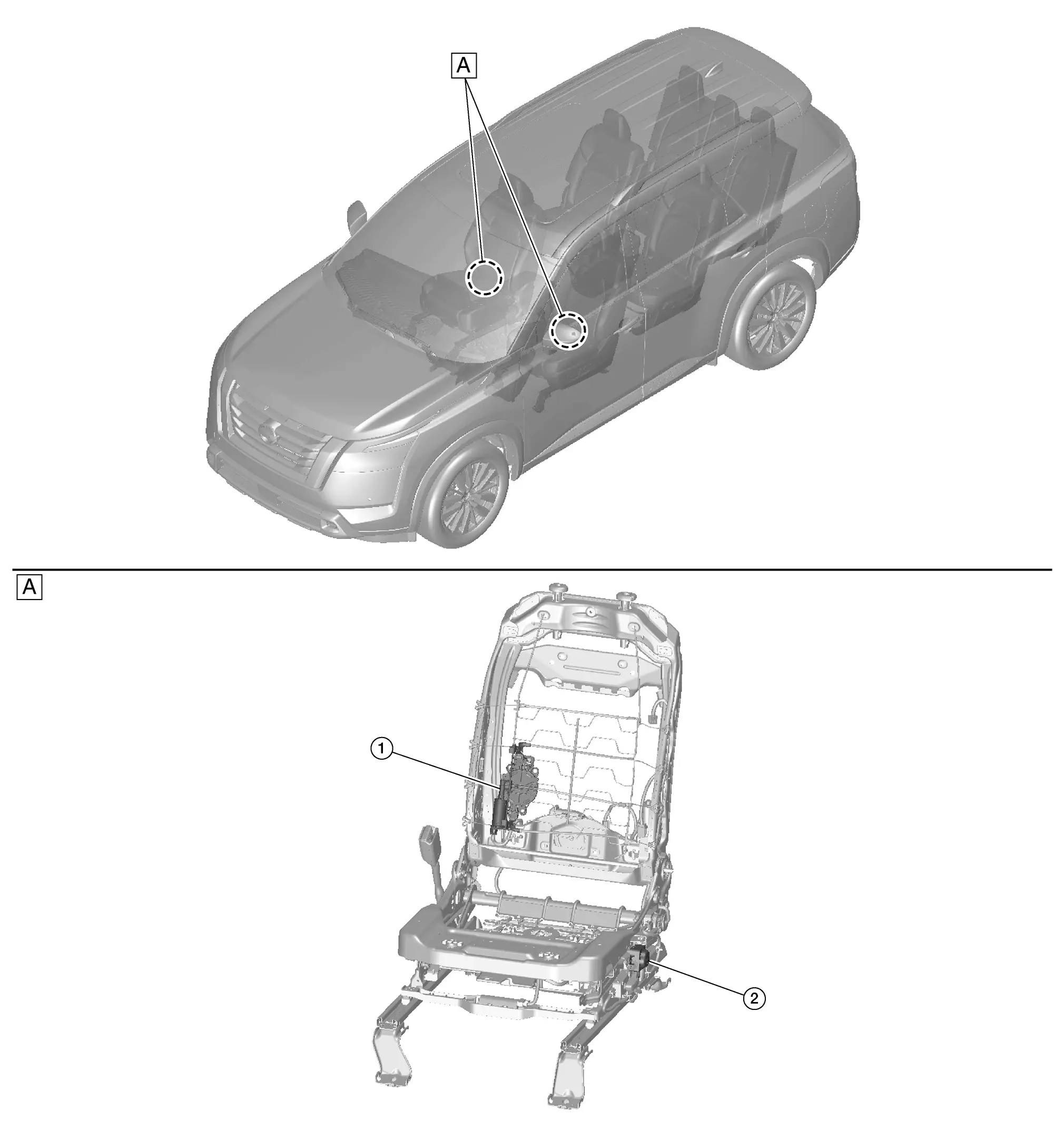

Component Parts Location

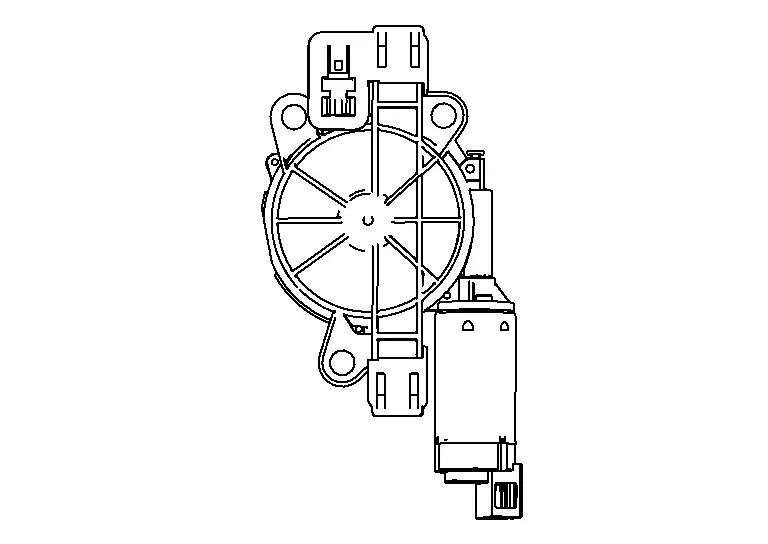

Lumbar Support Motor

• The lumbar support motor is installed on the seat back assembly.



• With power supplied to the lumbar support switch, the lumbar support motor operates the forward and backward movement of the seat back support.

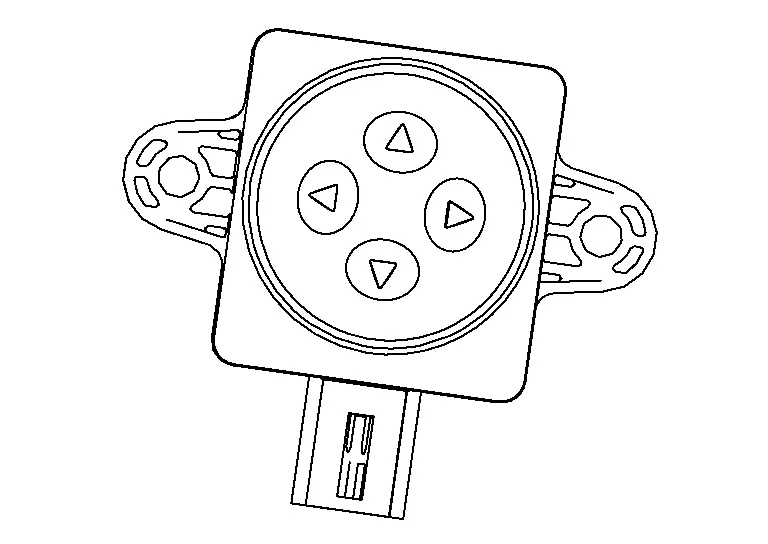

Lumbar Support Switch

• The lumbar support switch is installed on the front seat cushion outer finisher.



  (4 way lumbar support switch shown, 2 way lumbar support switch similar)

• The lumbar support switch controls the power supplied to the lumbar support motor.

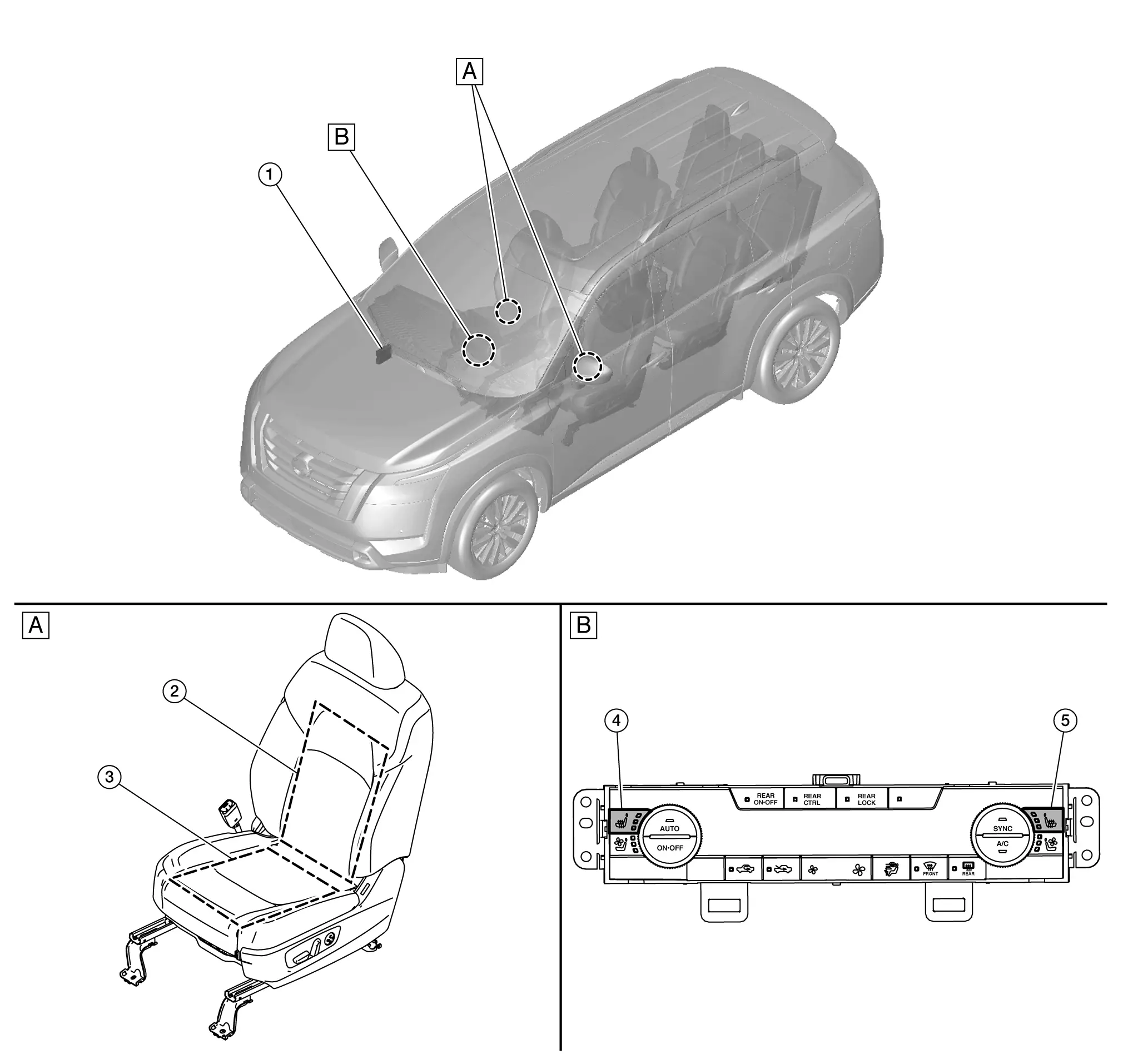

Heated Seat System Nissan Pathfinder R53

Component Parts Location

Front Seat Heater

• Front seat heater is installed in the seat cushion trim and seat back trim.



• Front seat heater controls the temperature of the front seat by activating the front seat heater using the signals transmitted from the A/C amp. via LIN communication.

• Front seat heater consists of a CPU that controls the temperature of the front seat by activating the front seat heater.

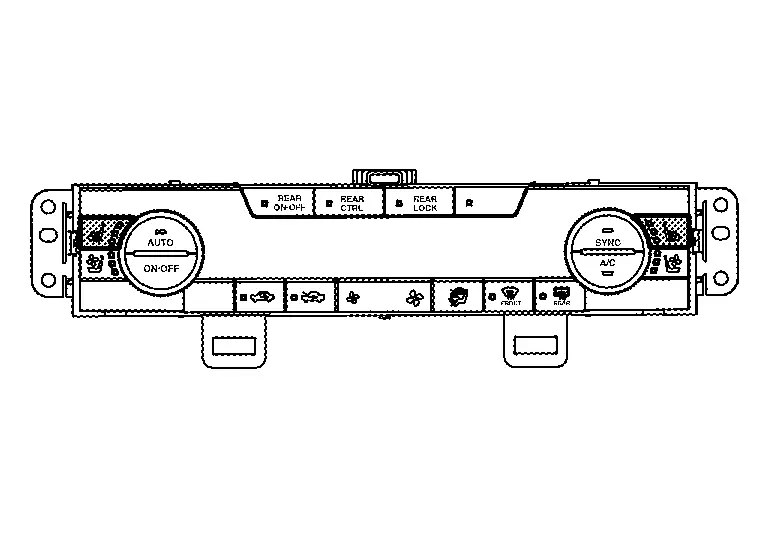

Front Heated Seat Switch

• Front heated seat switch LH/RH are integrated with the front A/C switch assembly.



• Front A/C switch assembly transmits the heated seat request signal to the A/C auto amp. via LIN communication.

• Front A/C switch assembly receives the heated seat switch indicator signal from the A/C auto amp. via LIN communication.

Second Row Heated Seat System Nissan Pathfinder 2022

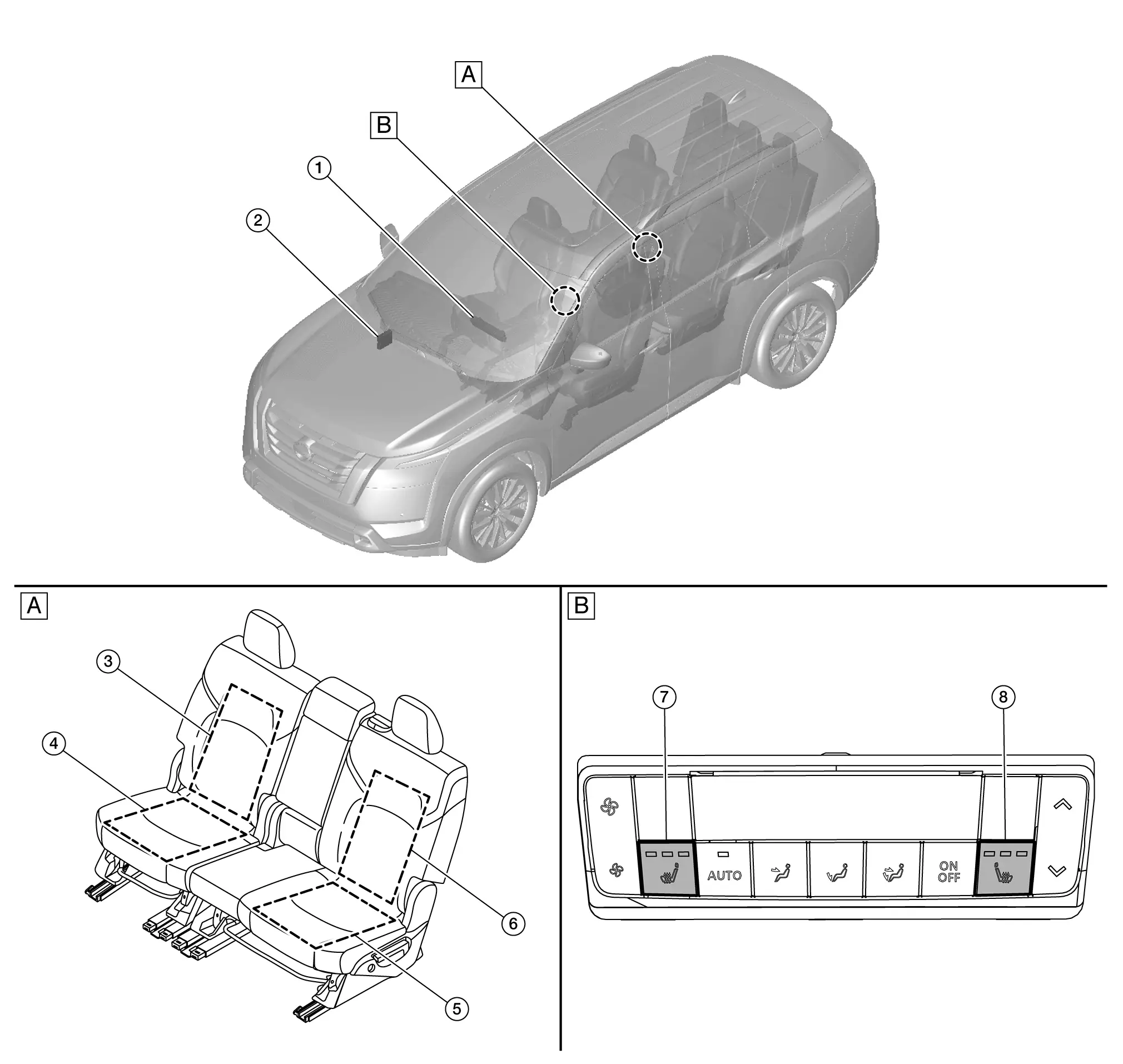

Component Parts Location

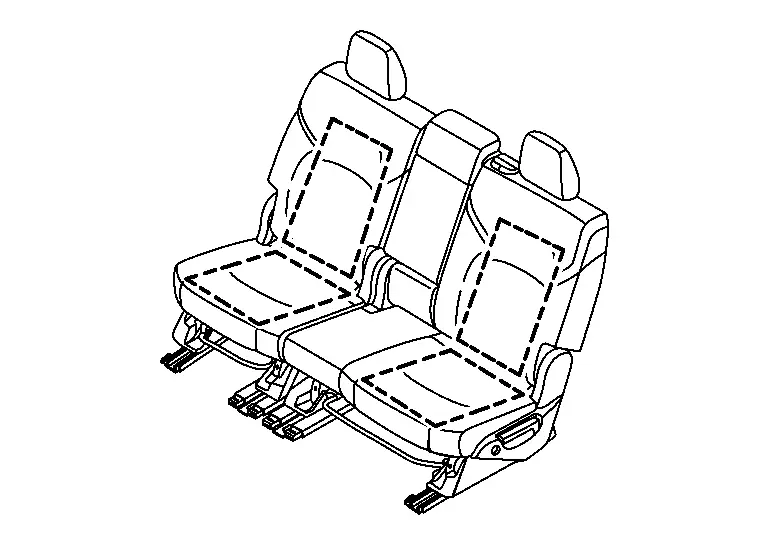

Second Row Seat Heater

• Second row seat heater is installed in the seat cushion trim and seat back trim.



• Second row seat heater controls the temperature of the second row seat by activating the second row seat heater using the signals transmitted from the A/C amp. via LIN communication.

• Second row seat heater consists of a CPU that controls the temperature of the second row seat by activating the second row seat heater.

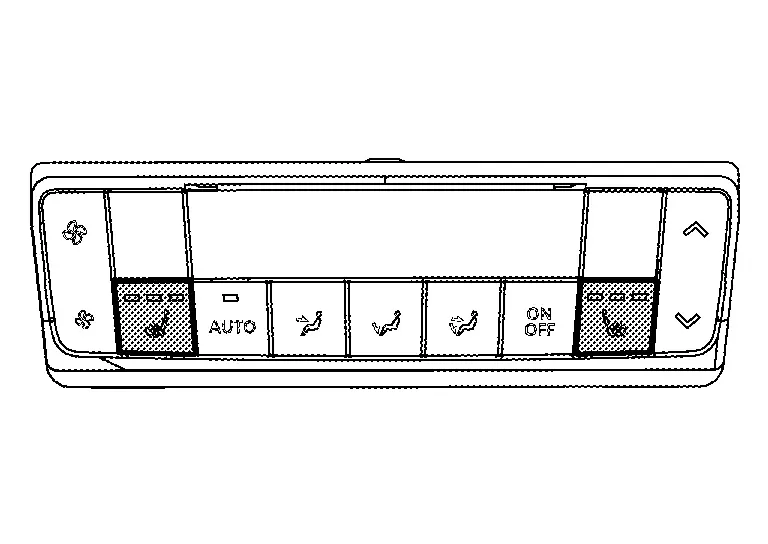

Second Row Heated Seat Switch

• Second row heated seat switch LH/RH are integrated with the rear A/C switch assembly.



• Rear A/C switch assembly transmits the second row heated seat request signal to the A/C auto amp. via LIN communication.

• Rear A/C switch assembly receives the second row heated seat switch indicator signal from the A/C auto amp. via LIN communication.

Climate Controlled Seat System Nissan Pathfinder

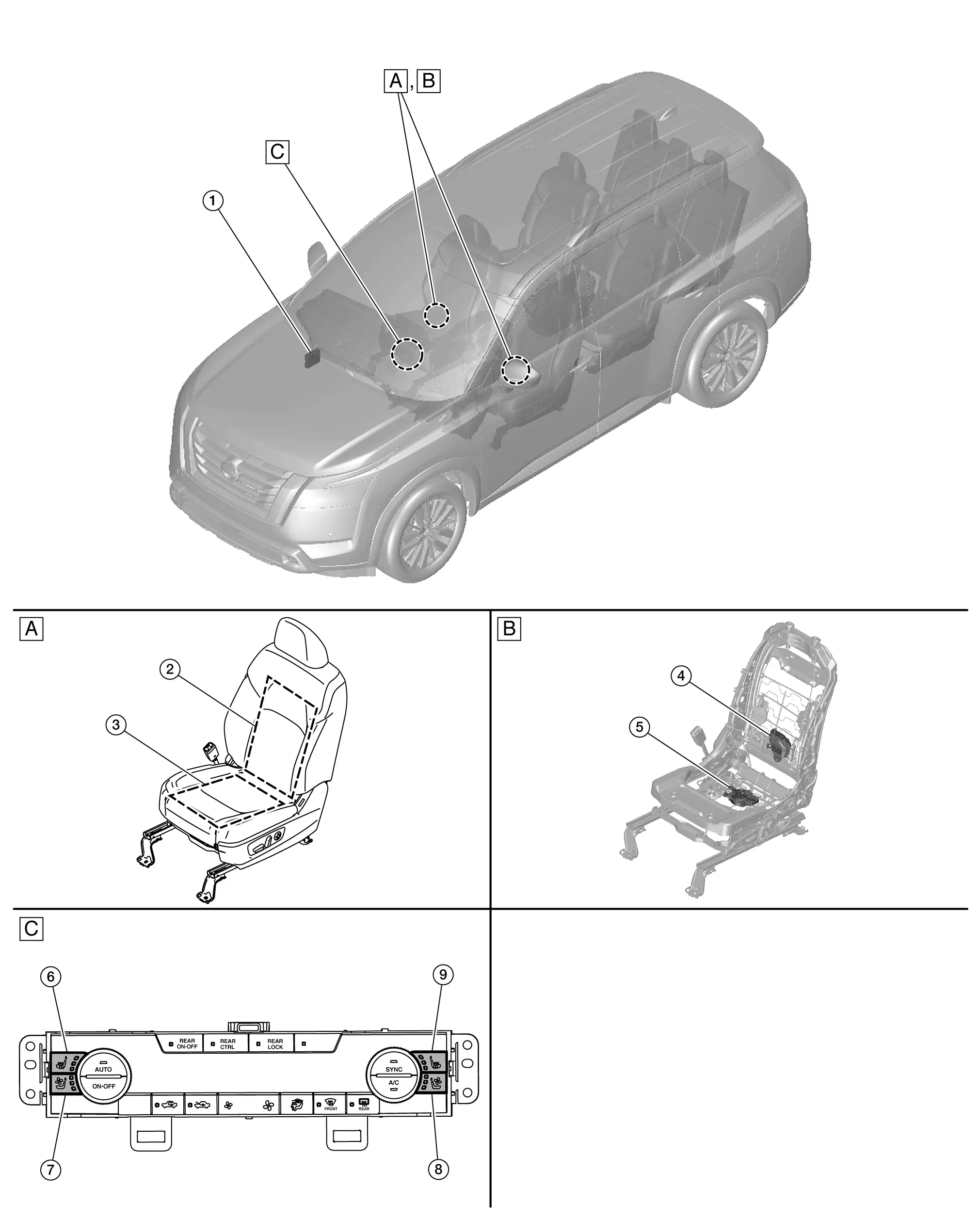

Component Parts Location

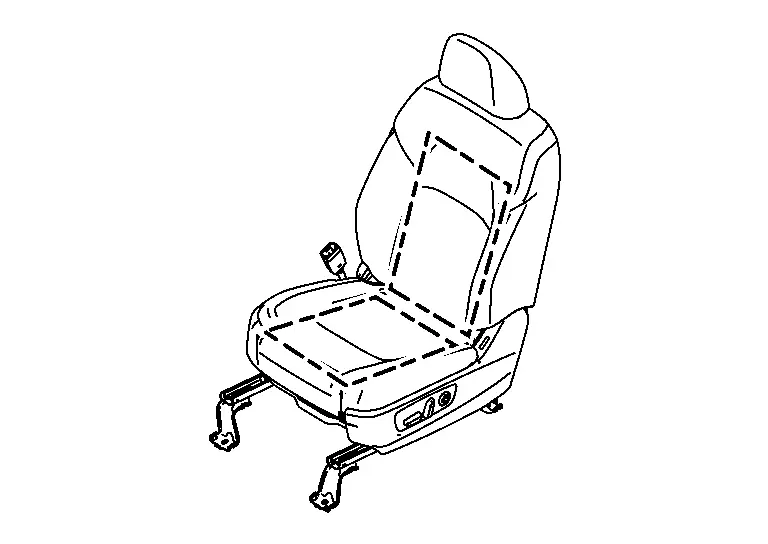

Front Seat Heater

• Front seat heater is installed in the seat cushion trim and seat back trim.



• Front seat heater controls the temperature of the front seat by activating the front seat heater using the signals transmitted from the A/C amp. via LIN communication.

• Front seat heater consists of a CPU that controls the temperature of the front seat by activating the front seat heater.

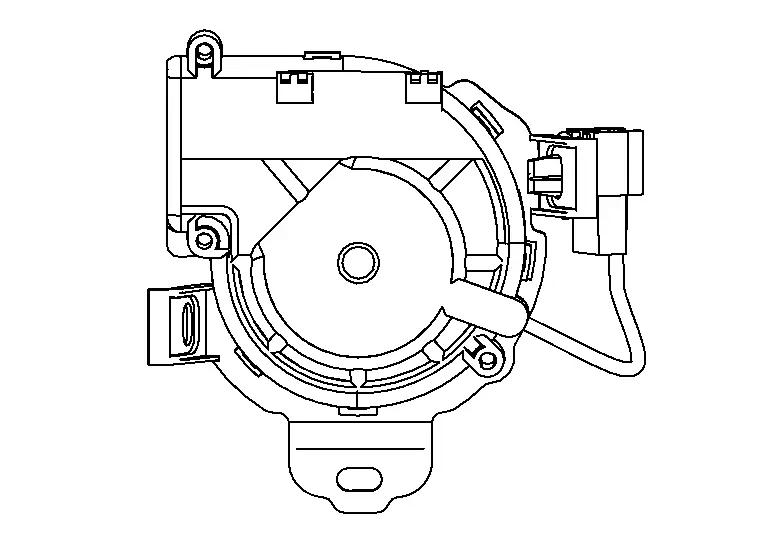

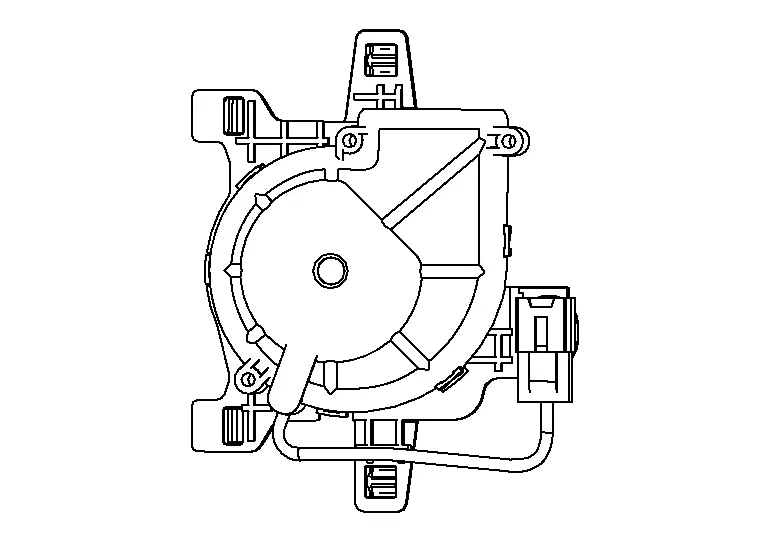

Seat Back Blower

• Seat back blower is installed to the seat back assembly.



• Seat back blower controls seat back ventilation by activating the seat back blower using the signals transmitted from the front seat heater via LIN communication.

• Front seat heater consists of a CPU that controls front seat back ventilation by activating the seat back blower according to the signal received from the A/C auto amp. via LIN communication.

Seat Cushion Blower

• Seat cushion blower is installed to the seat frame assembly.



• Seat cushion blower controls seat cushion ventilation by activating the seat cushion blower using the signals transmitted from the front seat heater via LIN communication.

• Front seat heater consists of a CPU that controls seat cushion ventilation by activating the seat cushion blower according to the signal received from the A/C auto amp. via LIN communication.

Front Heated Seat Switch

• Front heated seat switch LH/RH are integrated with the front A/C switch assembly.



• Front A/C switch assembly transmits the heated seat request signal to the A/C auto amp. via LIN communication.

• Front A/C switch assembly receives the heated seat switch indicator signal from the A/C auto amp. via LIN communication.

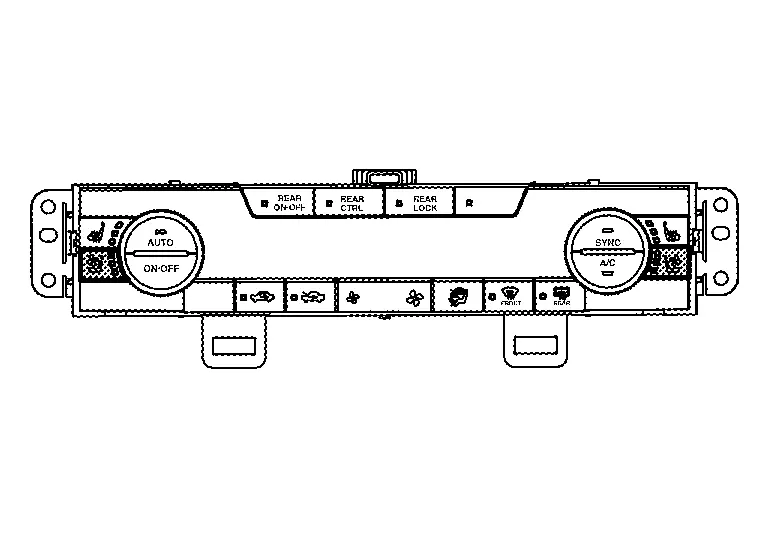

Climate Controlled Seat Switch

• Climate controlled seat switch LH/RH are integrated with the front A/C switch assembly.



• Front A/C switch assembly transmits the climate controlled seat request signal to the A/C auto amp. via LIN communication.

• Front A/C switch assembly receives the climate controlled seat switch indicator signal from the A/C auto amp. via LIN communication.

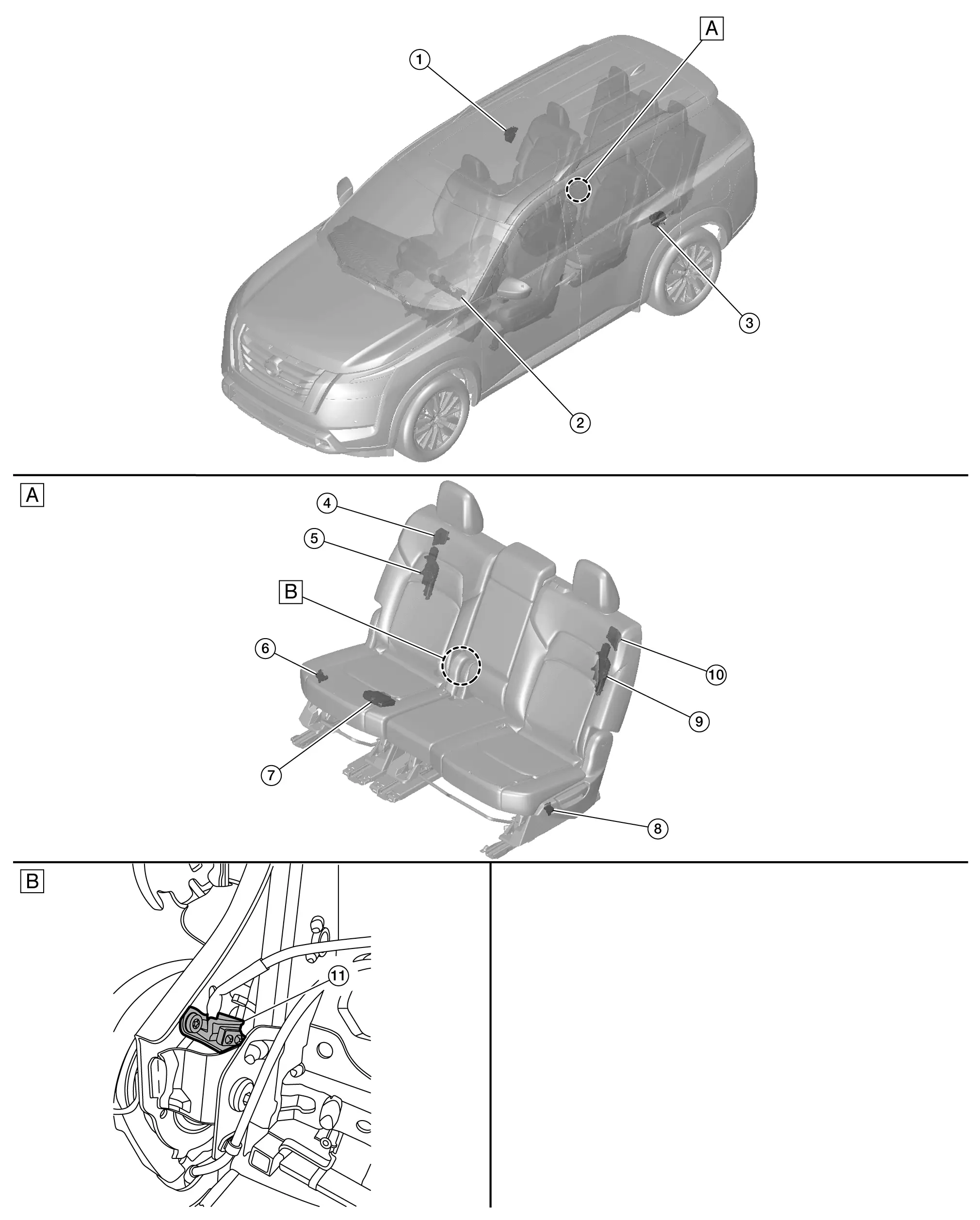

Second Row Seat Power Walk in System Nissan Pathfinder SUV

Component Parts Location

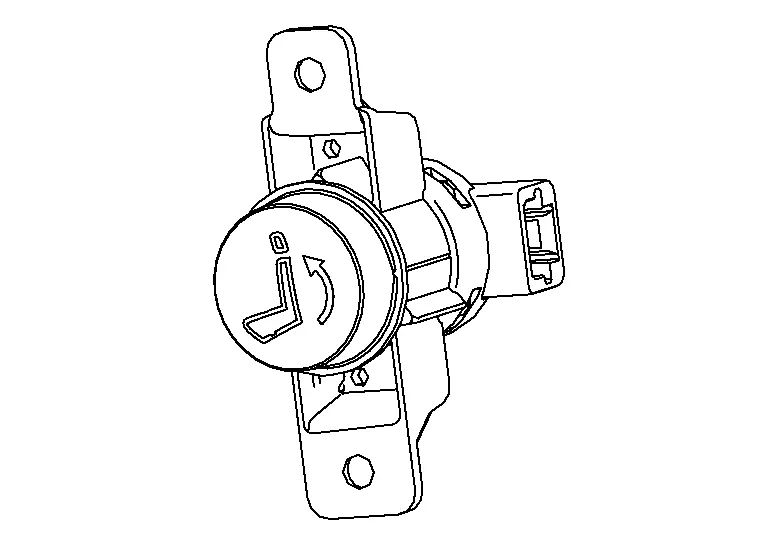

Walk In Switch

• Walk in back switch is installed to the seat back assembly.

• Walk in side switch is installed on the side second row seat cushion outer finisher.



• Walk in switch transmits switch signal to the second row seat power walk in control unit.

• Walk in switch indicator is integrated with the walk in switch, and blinks when a malfunction in the second row seat power walk in system is detected by the second row seat power walk in control unit.

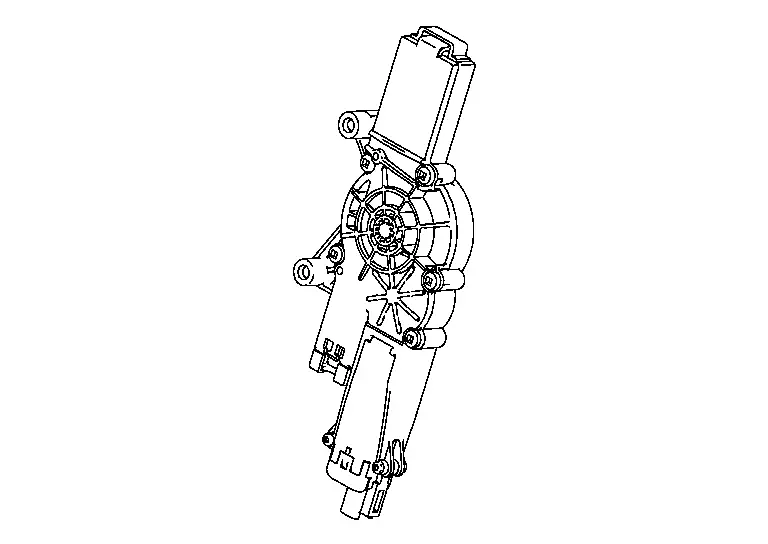

Seat Walk In Motor

• Seat walk in motor is installed in the second row seat back assembly.



• Seat walk in motor allows for pitching operation of the second row seat.

• Seat walk in motor activates/deactivates based on control signal from the second row seat power walk in control unit.

Seat Angle Sensor

• Seat angle sensor is installed in the seat back assembly (inner recliner).

• Seat angle sensor is turned ON/OFF when the seat back is folded flat/upright.

• Seat angle sensor transmits a signal to the second row seat power walk in control unit.

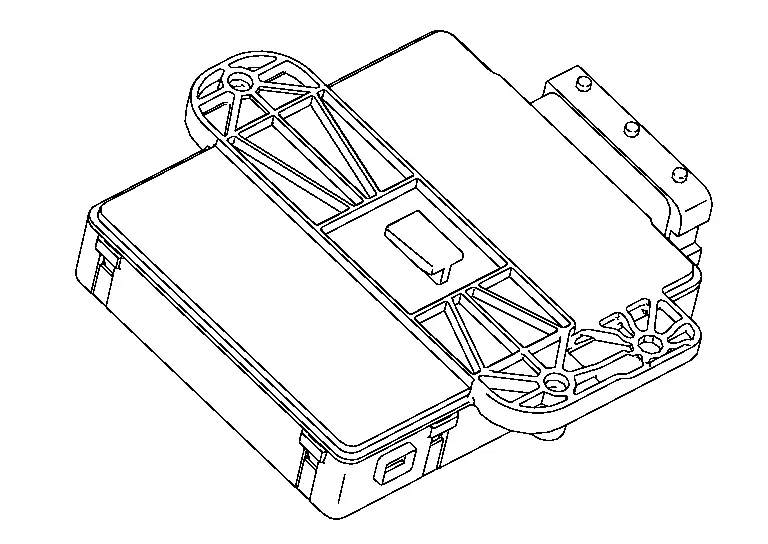

Second Row Seat Power Walk In Control Unit

• Second row seat power walk in control unit is installed underneath the second row seat RH seat cushion.



• Second row seat power walk in control unit controls the seat walk in motors in accordance with the input signal.
