Nissan Pathfinder: Seat - Third Row Seats

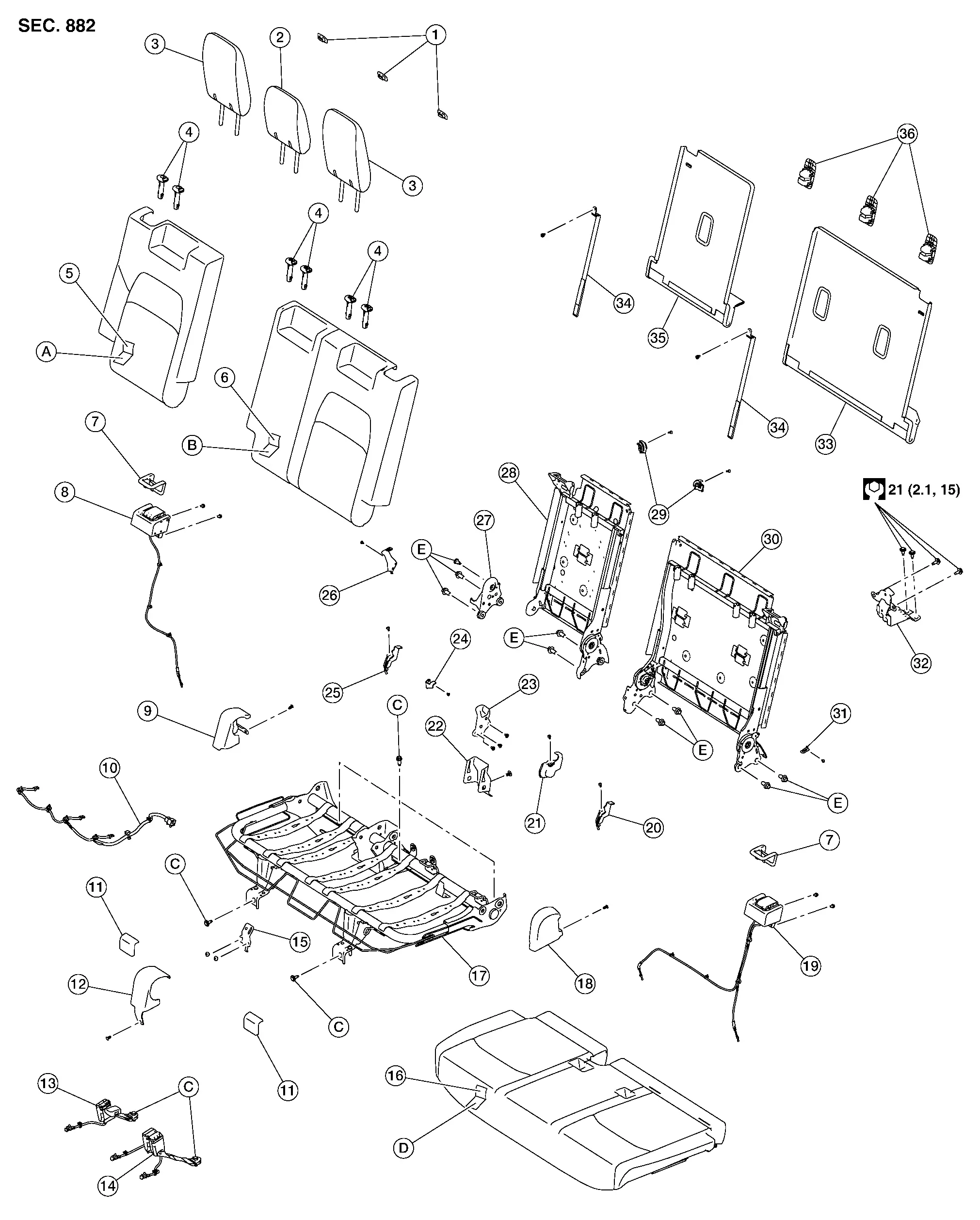

Exploded View
| 1. | Headrest pull strap finisher | 2. | Headrest (center) | 3. | Headrest (RH/LH) |
| 4. | Headrest holders | 5. | Seatback trim (RH) | 6. | Seatback trim (LH) |
| 7. | Seatback release lever finisher (RH/LH) | 8. | Seatback release lever and cable (RH) | 9. | Seatback hinge finisher (RH) |
| 10. | Seat harness | 11. | Seat bolt cover | 12. | Seat hinge finisher (center) |
| 13. | Seat belt buckle (RH) | 14. | Seat belt buckle (center/LH) | 15. | Center seat hinge bracket |
| 16. | Seat cushion trim | 17. | Seat cushion frame assembly | 18. | Seat hinge finisher (LH) |
| 19. | Seatback release lever and cable (LH) | 20. | Seatback release cable cover (LH) | 21. | Seatback release cable cover (center) |
| 22. | Seatback hinge flap | 23. | Seatback hinge plate | 24. | Seat hinge finisher bracket (center) |
| 25. | Seatback release cable cover (RH) | 26. | Seat hinge finisher bracket (RH) | 27. | Seatback hinge assembly |
| 28. | Seatback frame assembly (RH) | 29. | Seatback side inner cover | 30. | Seatback frame assembly (LH) |
| 31. | Seat hinge finisher bracket (LH) | 32. | Jack mounting bracket | 33. | Seatback board (LH) |
| 34. | Seatback pull strap (LH/RH) | 35. | Seatback board (RH) | 36. | Tether anchor finisher |
| A. | Seatback pad (RH) | B. | Seatback pad (LH) | C. | Refer to Removal and Installation. |
| D. | Seat cushion pad | E. | Refer to Seatback. |
Removal and Installation
CAUTION:
-
Before removal and installation, use shop cloths to protect parts from damage.
-
During removal and installation, an assistant is required to protect against injury or damage.
REMOVAL

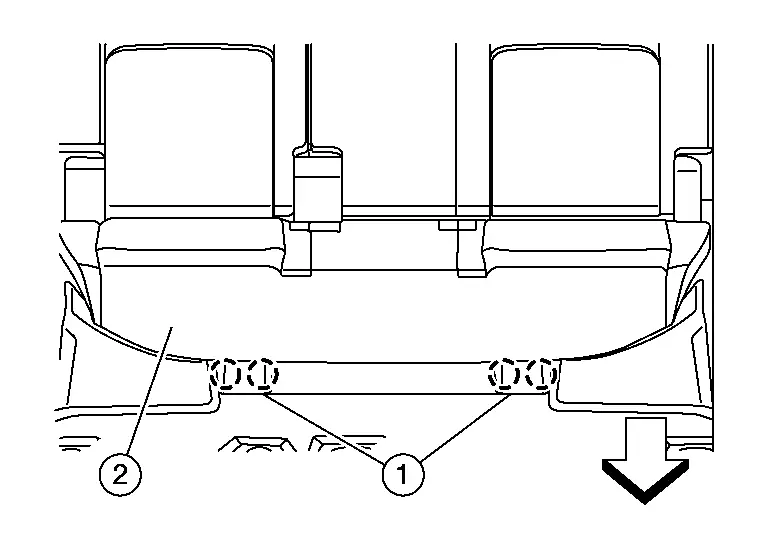

Remove front seat bolt covers (1) from seat assembly (2).
 |
: Front |
 |
: Pawl |

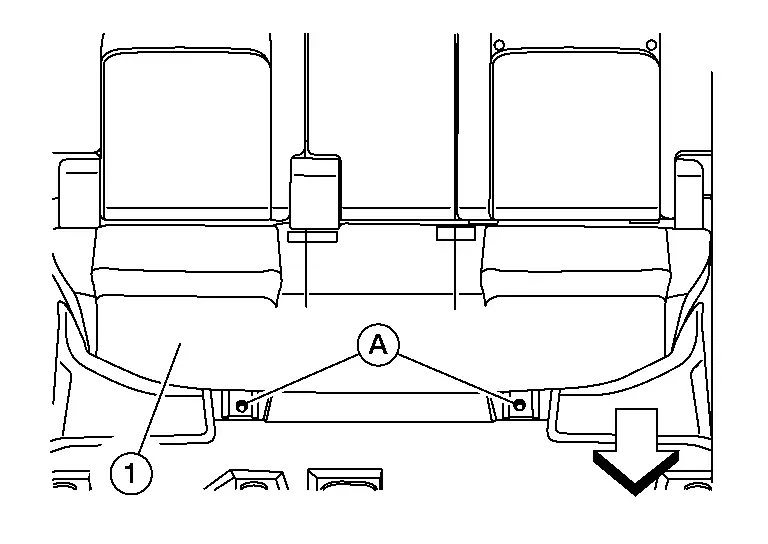

Remove bolts (A) from seat assembly (1).
 |
: Front |
Remove storage box. Refer to Removal and Installation.
Remove tire jack assembly.

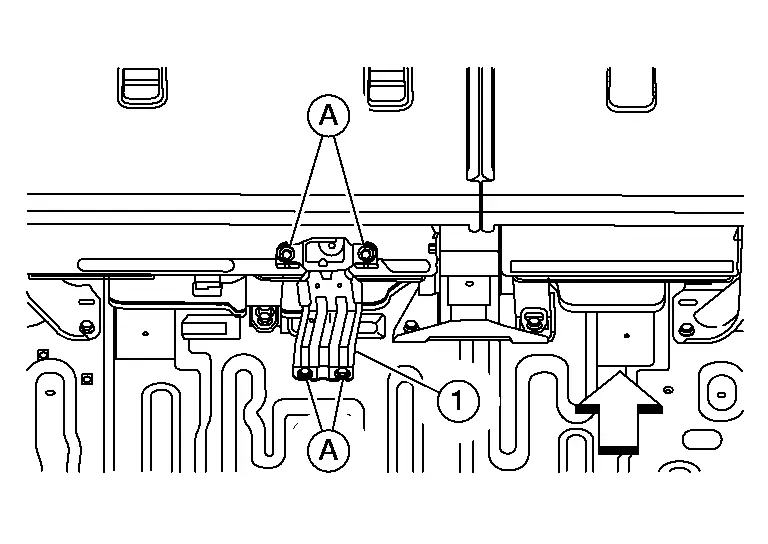

Remove bolts (A) and remove jack bracket (1).
 |
: Front |

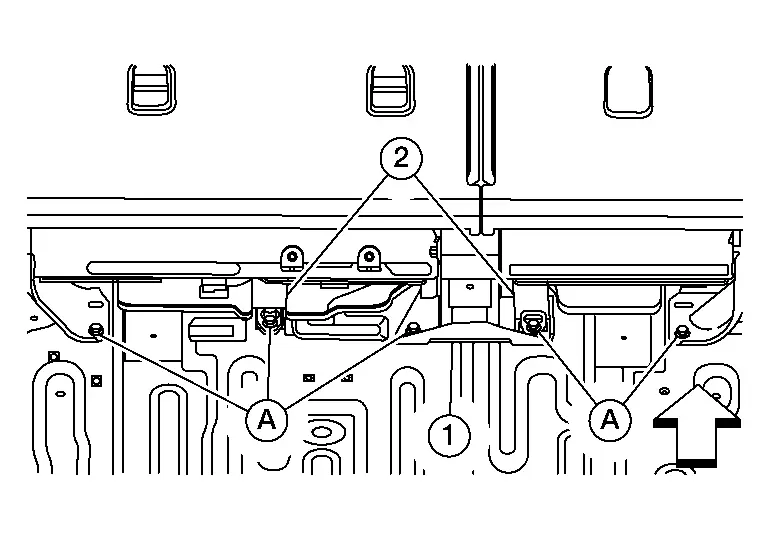

Remove bolts (A) from seat assembly (1) and seat belt buckles (2).
 |
: Front |
Disconnect seat belt buckle harness connector (A).
 |
: Front |
Remove seat assembly through the rear of the Nissan Pathfinder vehicle.
INSTALLATION
Installation is in the reverse order of removal.
-

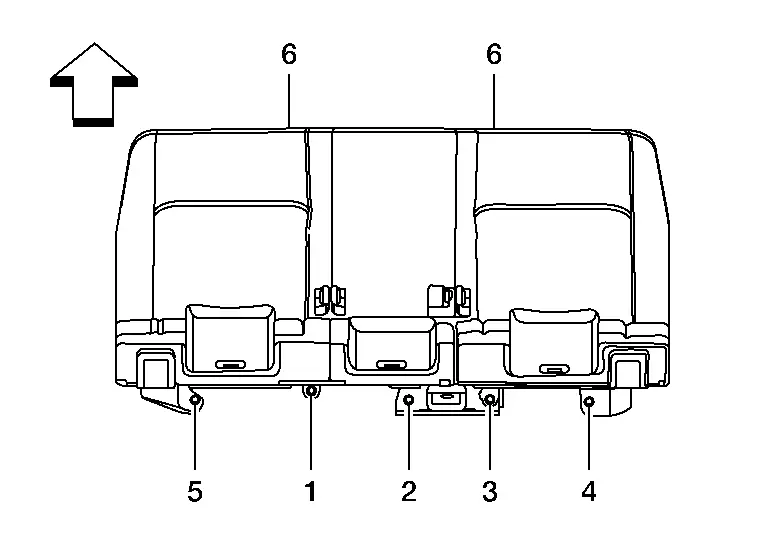

When installing the third row seat, tighten the bolts to specification in the order shown.
: Front Bolts : 47.6 N·m (4.9 kg-m, 35 ft-lb)
Nissan Pathfinder (R53) 2022-2025 Service Manual
