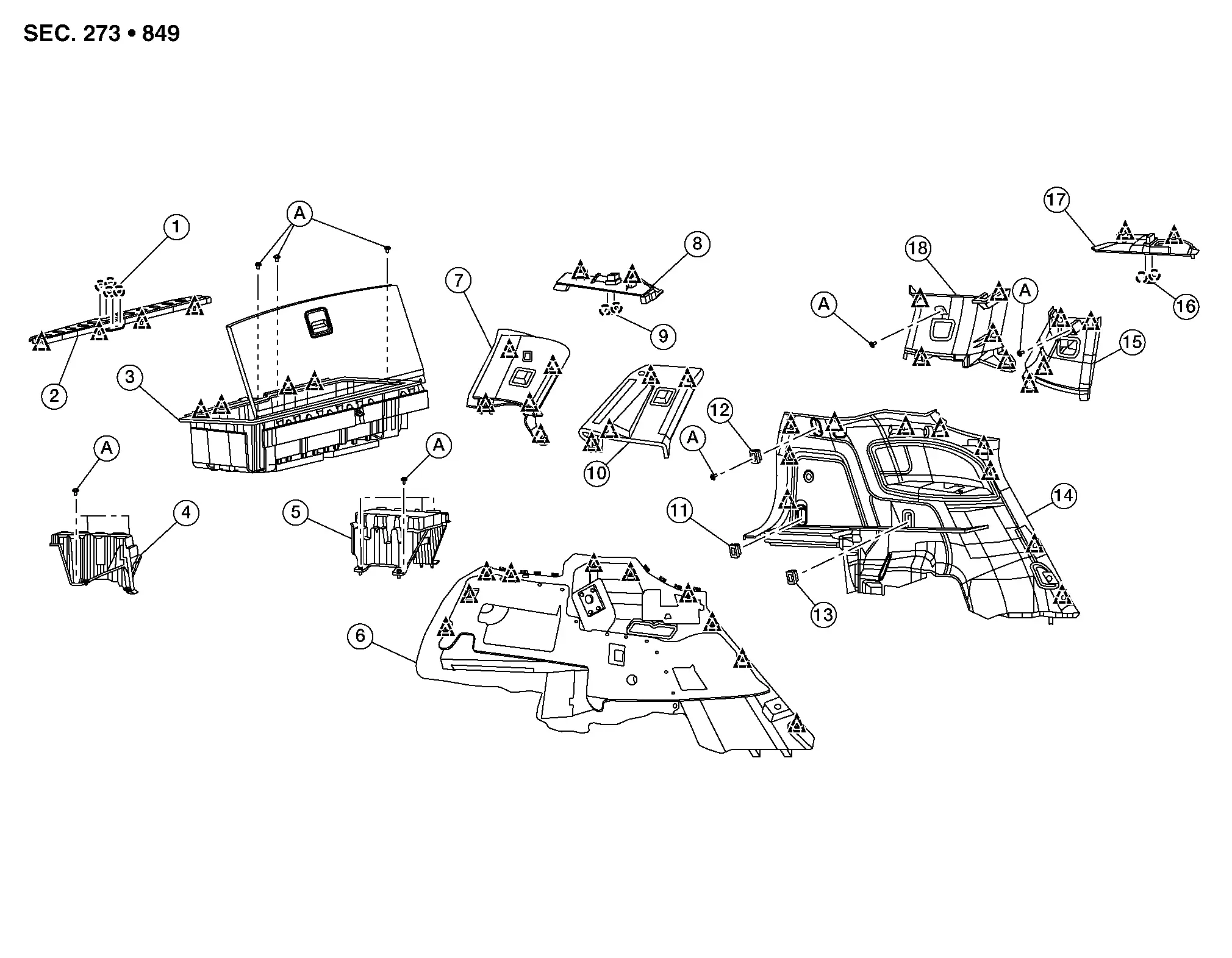

Exploded View

1.	Striker finisher	2.	Back door kicking plate	3.	Storage box assembly
4.	Storage box side finisher (RH)	5.	Storage box side finisher [LH (without rear subwoofer)]	6.	Luggage side lower finisher (RH)
7.	Back pillar finisher (RH)	8.	Luggage side upper finisher (RH)	9.	Luggage side upper finisher cover (RH)
10.	Rear pillar finisher (RH)	11.	Luggage side lower finisher coat hook (LH/RH)	12.	Luggage side lower finisher coat hook (LH/RH)
13.	Luggage side lower finisher coat hook (LH/RH)	14.	Luggage side lower finisher (LH)	15.	Rear pillar finisher (LH)
16.	Luggage side upper finisher cover (LH)	17.	Luggage side upper finisher (LH)	18.	Back pillar finisher (LH)
A.	Bolt		Metal clip		Clip
	Pawl

• Rear Pillar Finisher
• Luggage Side Lower Finisher
• Luggage Side Upper Finisher
• Back Pillar Finisher
• Back Door Kicking Plate
• Storage Box
• Storage Box Side Finisher

Rear Pillar Finisher Nissan Pathfinder Fifth generation

Removal and Installation

REMOVAL

Remove luggage side lower finisher. Refer to Removal and Installation.

Pull back the lower anchor bolt cover (A) and remove the seat belt lower anchor bolt (B).

: Front

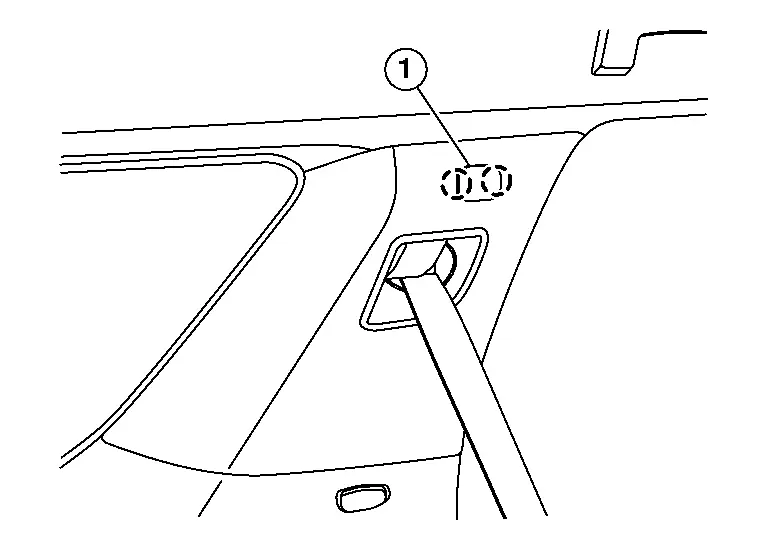

Using a suitable tool, release pawls and remove rear pillar finisher cap (1).

: Pawl

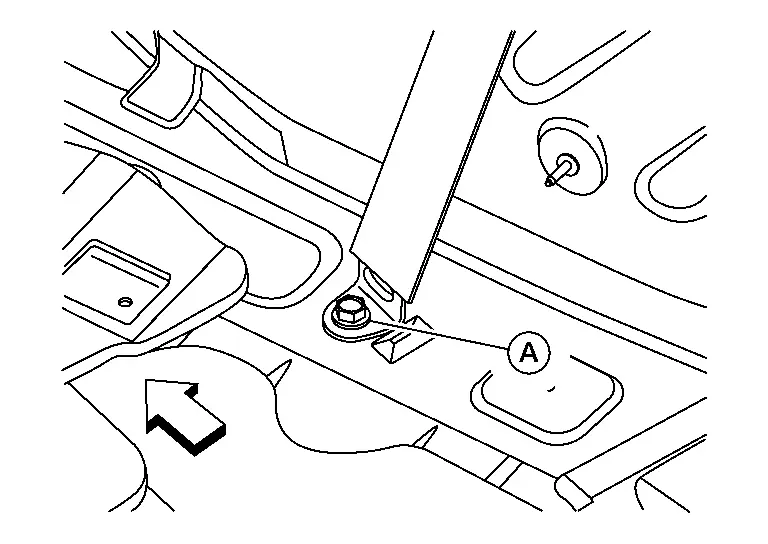

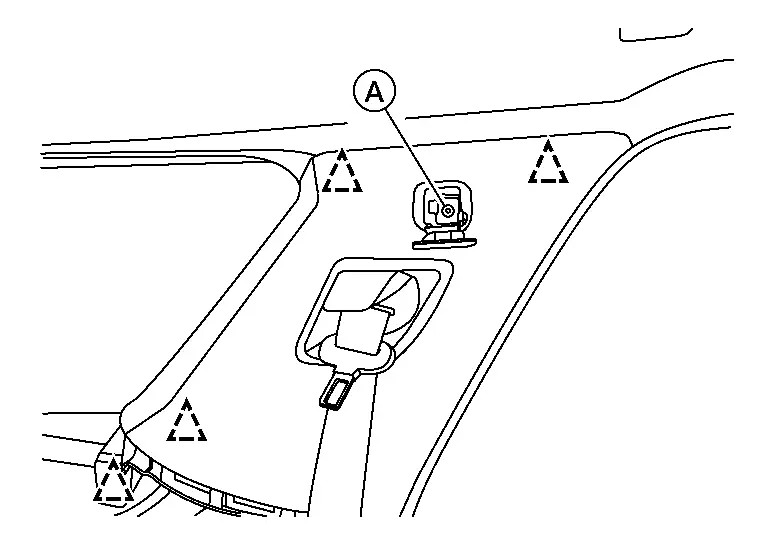

Remove rear pillar finisher bolt (A).

: Clip

Using a suitable tool, release clips.

Remove seat belt from rear pillar finisher, then remove rear pillar finisher.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clip and pawls for deformation and damage during installation. Replace with new ones if necessary.

• When installing rear pillar finisher, check that clips and pawls are securely placed in body panel holes.

Luggage Side Lower Finisher Nissan Pathfinder

Removal and Installation

REMOVAL

Remove the storage box side finisher. Refer to Removal and Installation.

Remove the third row seat. Refer to Removal and Installation.

Remove the back door kicking plate. Refer to Removal and Installation.

Remove rear kicking plate inner. Refer to Removal and Installation — Rear kicking plate.

Partially remove the rear door welt.

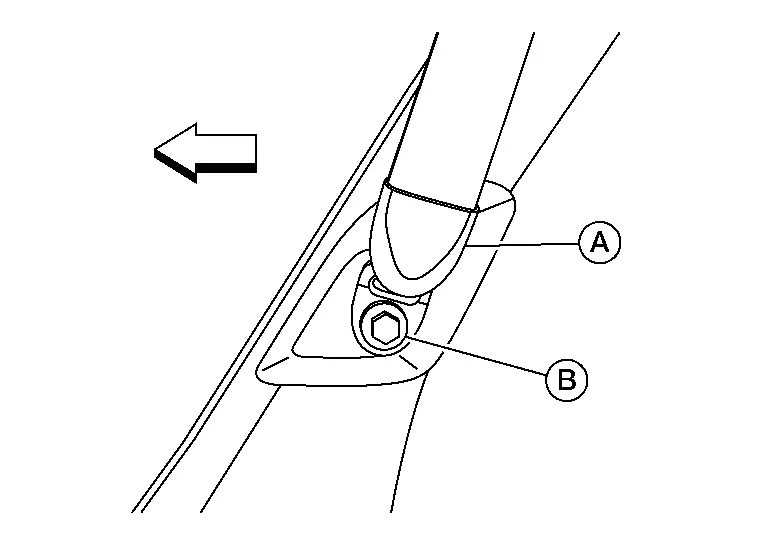

Pull back the second row seat belt lower anchor bolt cover (A) and remove bolt (B).

: Front

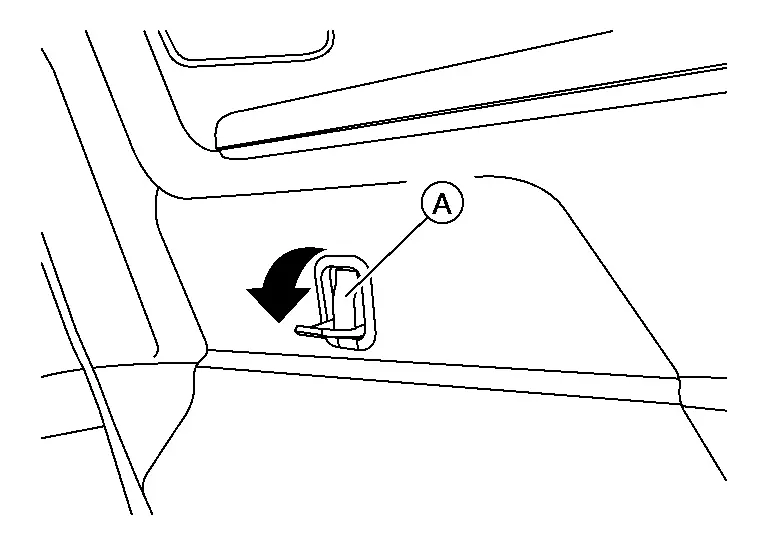

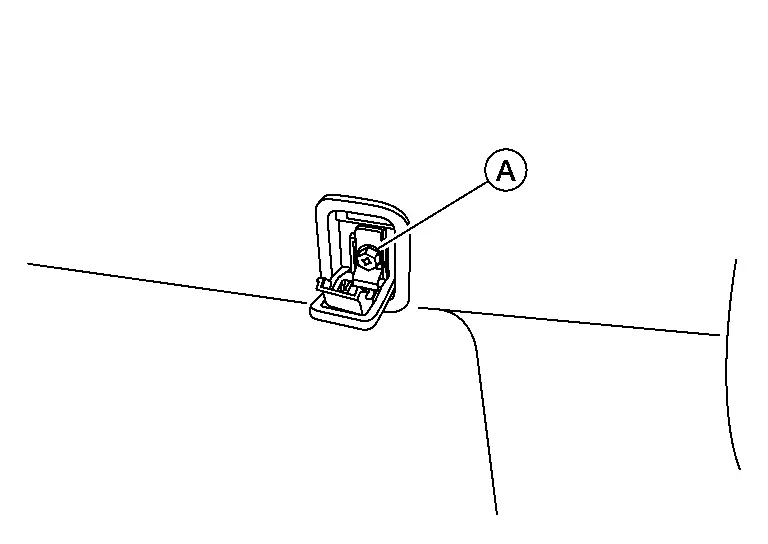

Using a suitable tool, release luggage side lower finisher coat hook (A) as shown.

Remove the luggage side lower finisher coat hook bolt (A).

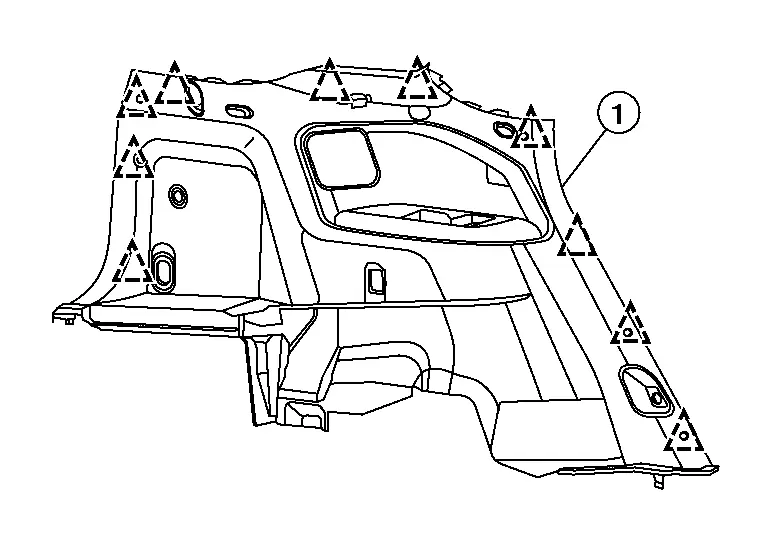

Using a suitable tool, release luggage side lower finisher (1) clips.

: Clip

Disconnect the harness connectors and remove the luggage side lower finisher.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips and pawls for deformation and damage during installation. Replace with new ones if necessary.

• When installing luggage side lower finisher, check that clips and pawls are securely placed in body panel holes.

Luggage Side Upper Finisher Nissan Pathfinder 2025

Removal and Installation

REMOVAL

Remove rear pillar finisher. Refer to Removal and Installation.

Remove back pillar finisher. Refer to Removal and Installation.

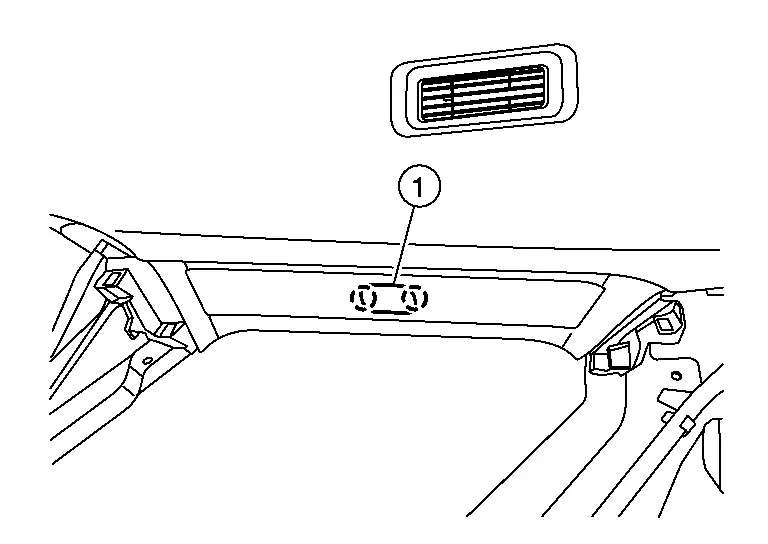

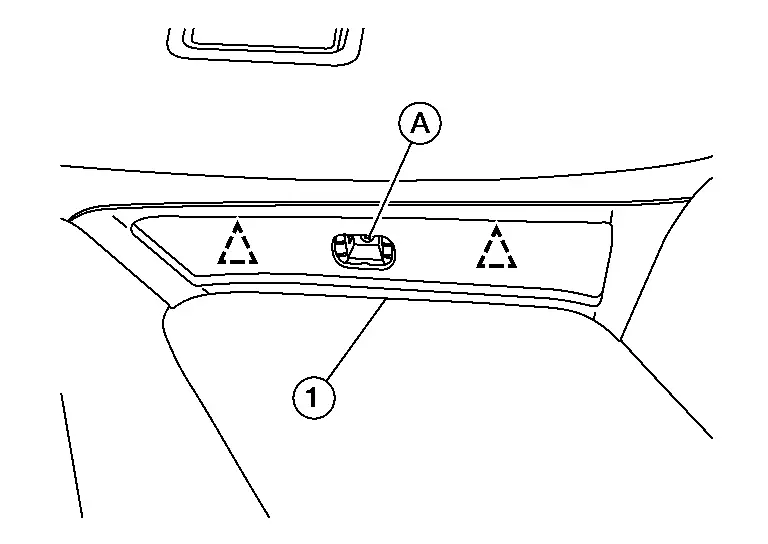

Using a suitable tool, release pawls and remove cap (1).

: Pawl

Remove bolt (A).

: Clip

Using a suitable tool, release clips and remove luggage side upper finisher.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips for deformation and damage during installation. Replace with new ones if necessary.

• When installing luggage side upper finisher, check that clips are securely placed in body panel holes.

Back Pillar Finisher Nissan Pathfinder R53

Removal and Installation

REMOVAL

Remove the luggage side lower finisher. Refer to Removal and Installation.

Remove the third row seat belt lower anchor bolt (A).

: Front

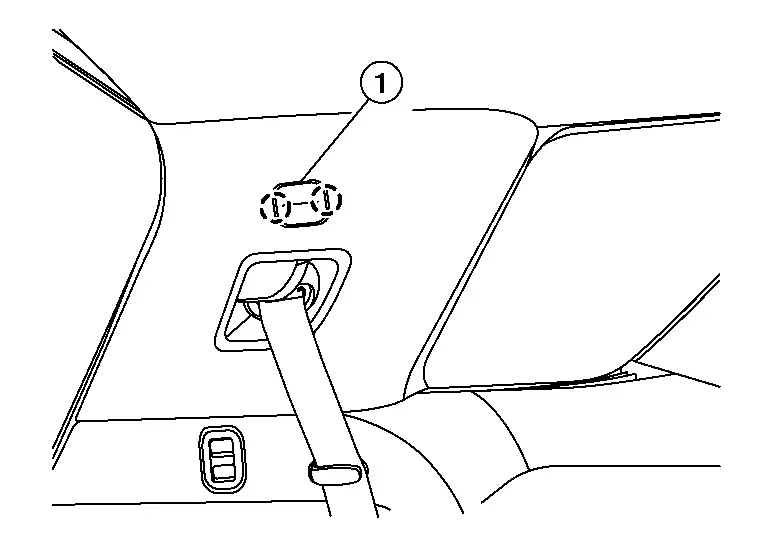

Using a suitable tool, release pawls and remove cap (1).

: Pawl

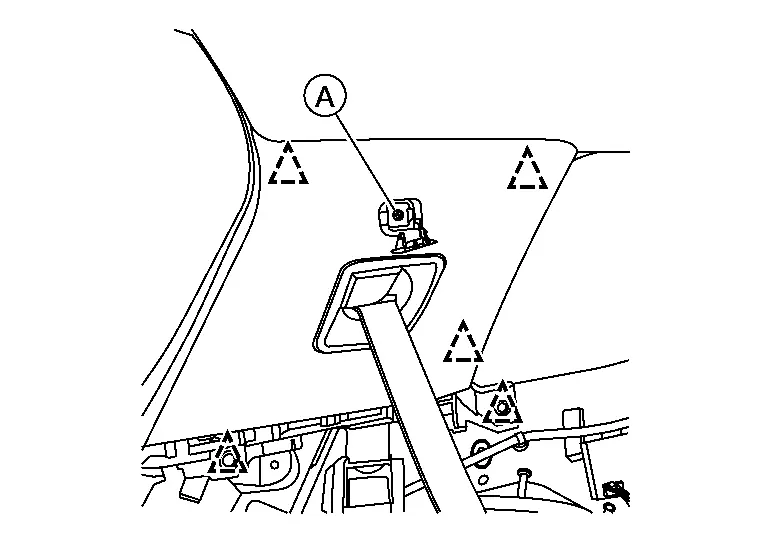

Remove bolt (A).

:

: Clip

CAUTION:

Do not bend the sheet metal when removing the back pillar finisher from the sheet metal.

Using a suitable tool, release clips.

Remove the seat belt from the back pillar finisher then remove the back pillar finisher.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips for deformation and damage during installation. Replace with new ones if necessary.

• When installing back pillar finisher, check that the clips and pawl are securely placed in body panel holes.

Back Door Kicking Plate Nissan Pathfinder 5th Gen

Removal and Installation

REMOVAL

Using a suitable tool, release clips.

: Clip

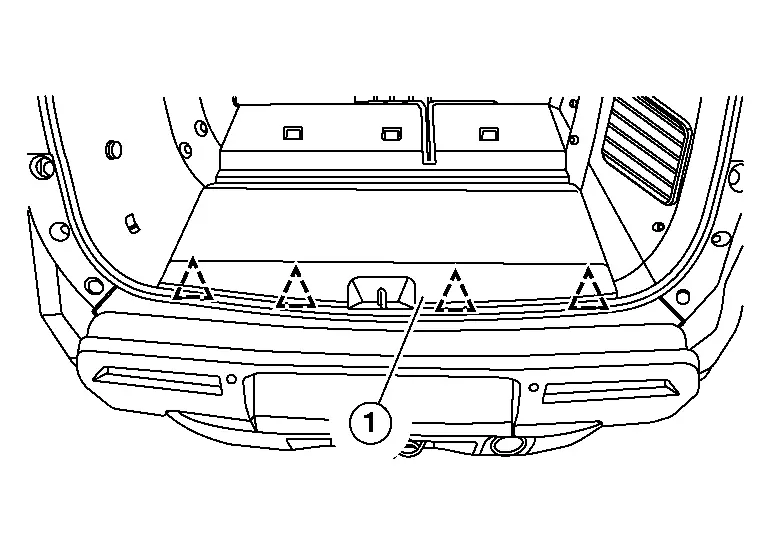

Remove the back door kicking plate (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips and pawls for deformation and damage during installation. Replace with new ones if necessary.

• When installing back door kicking plate, check that clips and pawls are securely placed in body panel holes.

Storage Box Nissan Pathfinder R53

Removal and Installation

REMOVAL

Open the storage box lid.

Remove the back door kicking plate. Refer to Removal and Installation.

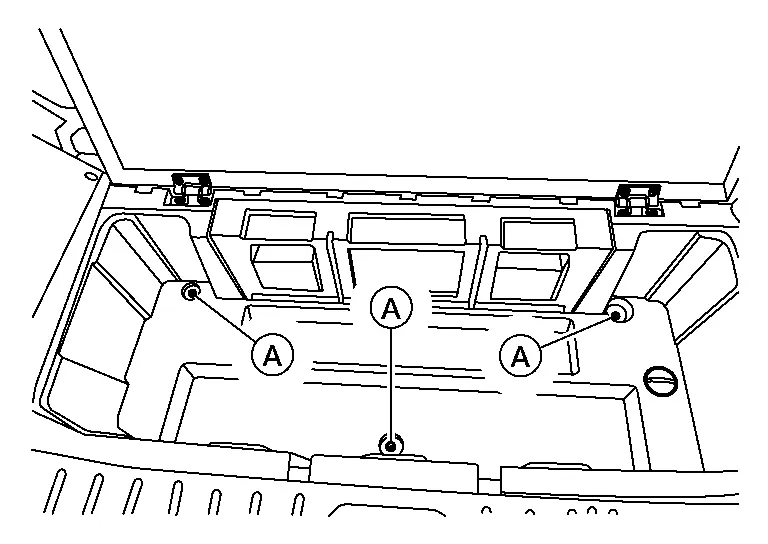

Remove the storage box screws (A).

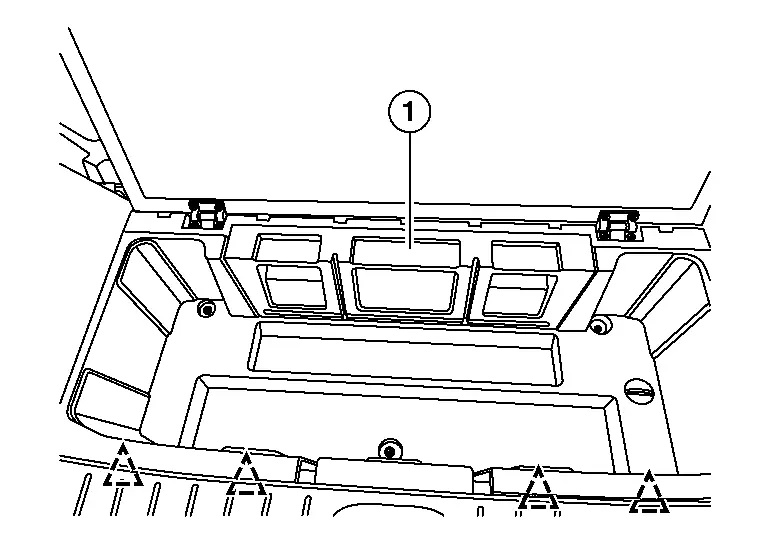

Release clips and remove storage box (1).

: Clip

INSTALLATION

Installation is in the reverse order of removal.

Storage Box Side Finisher Nissan Pathfinder 5th Gen

Removal and Installation

REMOVAL

Remove the storage box. Refer to Removal and Installation.

Remove the storage box side finisher bolts.

Release the clips using a suitable tool, then remove the storage box side finisher.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips for deformation and damage during installation. Replace with new ones if necessary.

• When installing storage box side finisher, check that the clips and pawls are securely placed in body panel holes.
