Nissan Pathfinder: Seat - Front Seat

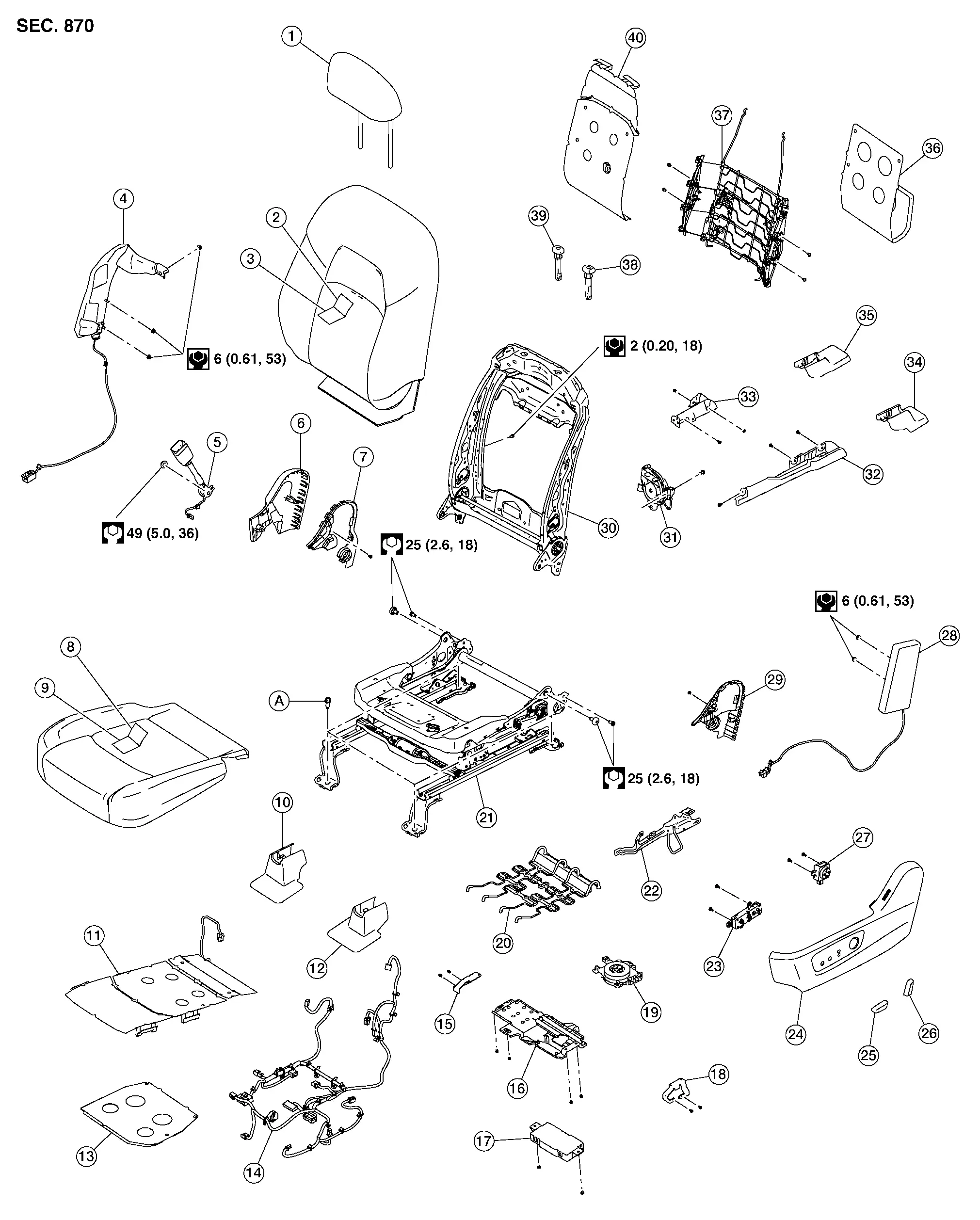

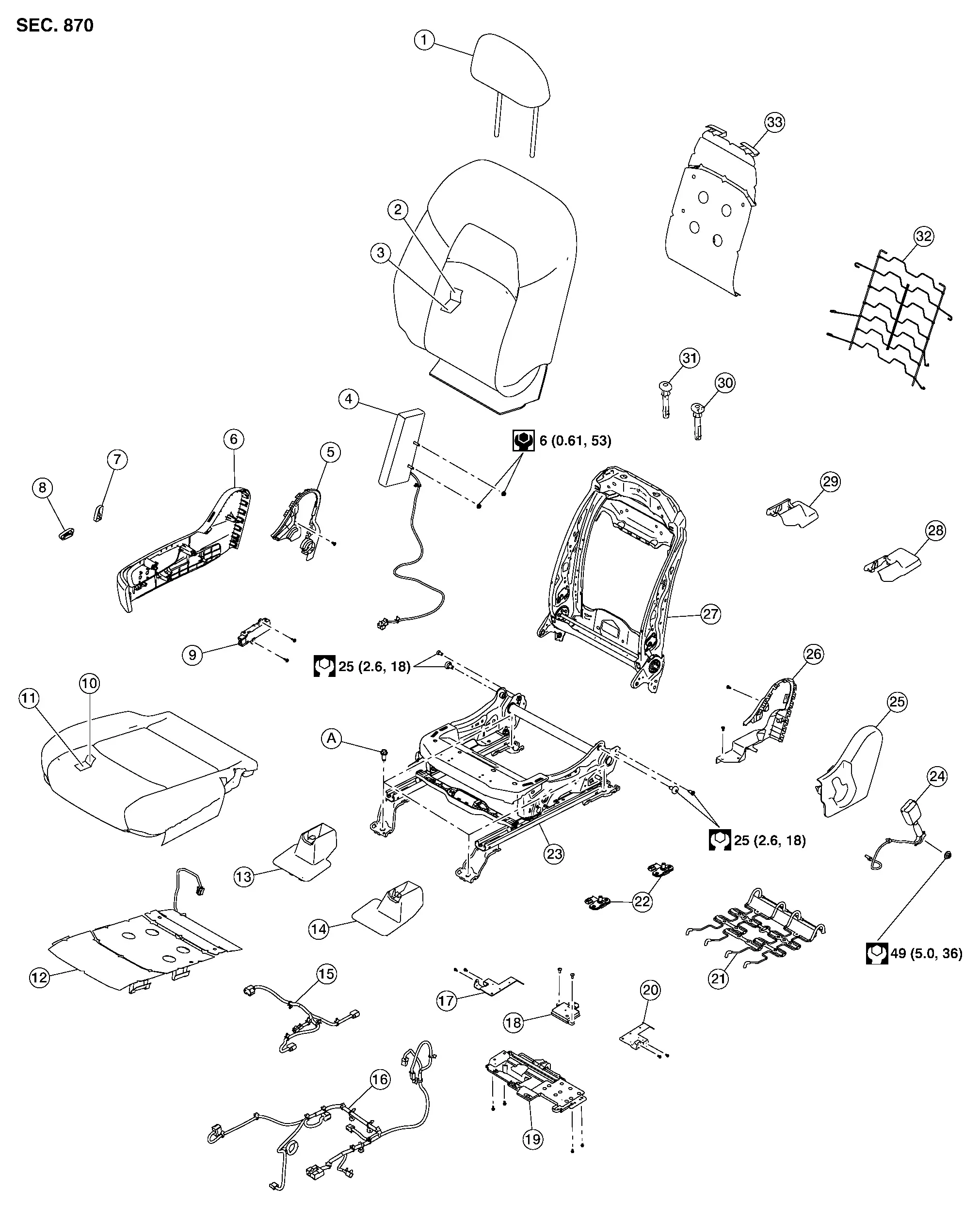

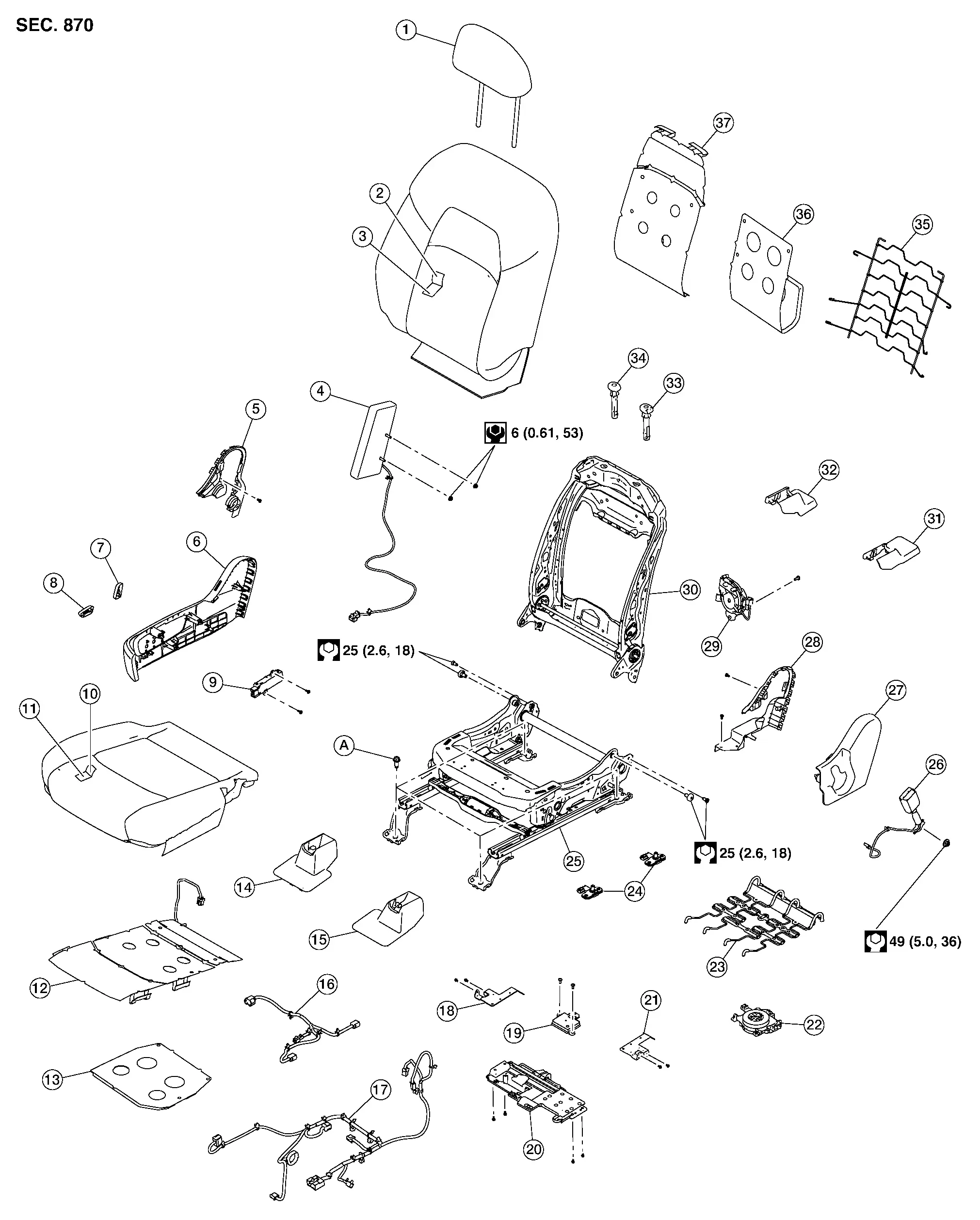

Exploded View

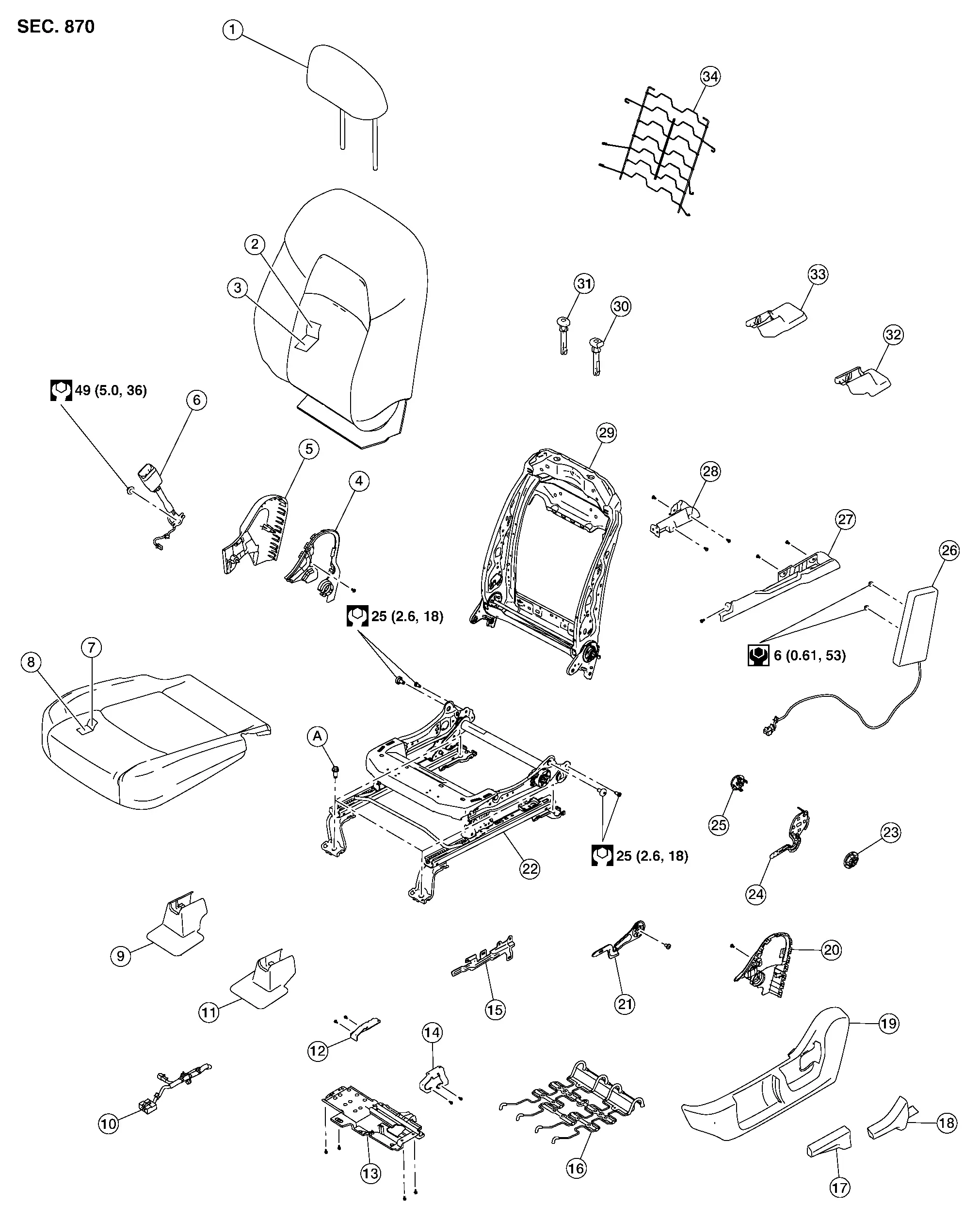

DRIVER SEAT – MANUAL

1.	Headrest	2.	Seatback trim	3.	Seatback pad
4.	Seat cushion inner finisher (RH)	5.	Seat cushion outer finisher (RH)	6.	Seat belt buckle
7.	Seat cushion trim	8.	Seat cushion pad	9.	Front slide finisher (RH)
10.	Seat harness	11.	Front slide finisher (LH)	12.	Side attachment bracket (RH)
13.	Center attachment bracket	14.	Side attachment bracket (LH)	15.	Seat cushion side attachment
16.	Seat cushion support	17.	Lift lever finisher	18.	Recline lever finisher
19.	Seat cushion outer finisher (LH)	20.	Seat cushion inner finisher (LH)	21.	Lift lever
22.	Seat cushion frame assembly	23.	Lifter knob retainer	24.	Recline lever
25.	Lifter knob cap	26.	Front side air bag module	27.	Slide finisher outer
28.	Slide finisher inner	29.	Seat back frame assembly	30.	Headrest holder (locked)
31.	Headrest holder (free)	32.	Rear slide finisher (LH)	33.	Rear slide finisher (RH)
34.	Seat lumbar assembly	A.	Refer to Removal and Installation.

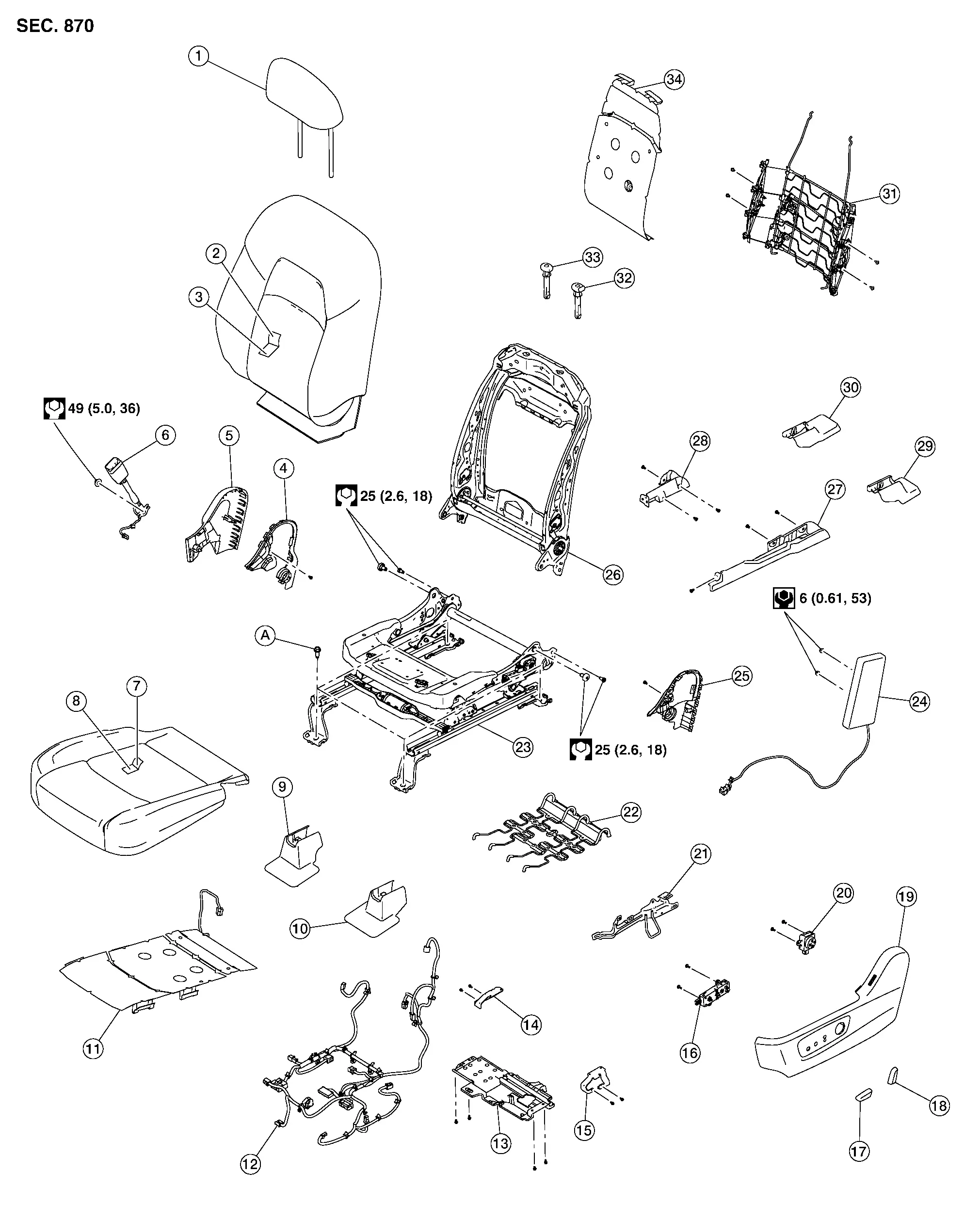

DRIVER SEAT – POWER WITHOUT CLIMATE CONTROL

1.	Headrest	2.	Seatback trim	3.	Seatback pad
4.	Seat cushion inner finisher (RH)	5.	Seat cushion outer finisher (RH)	6.	Seat belt buckle
7.	Seat cushion trim	8.	Seat cushion pad	9.	Front slide finisher (RH)
10.	Front slide finisher (LH)	11.	Seat cushion heater (if equipped)]	12.	Seat harness
13.	Center attachment bracket	14.	Side attachment bracket (RH)	15.	Side attachment bracket (LH)
16.	Power seat switch	17.	Seat slide knob	18.	Seat recline knob
19.	Seat cushion inner finisher (LH)	20.	Lumbar support switch	21.	Seat cushion side attachment
22.	Seat cushion support	23.	Seat cushion frame assembly	24.	Front side air bag module
25.	Seat cushion inner finisher (LH)	26.	Seat back frame assembly	27.	Slide finisher outer
28.	Slide finisher inner	29.	Rear slide finisher (LH)	30.	Rear slide finisher (RH)
31.	Seat lumbar assembly	32.	Headrest holder (locked)	33.	Headrest holder (free)
34.	Seat back heater (if equipped)	A.	Refer to Remove and Installation.

DRIVER SEAT – POWER WITH CLIMATE CONTROL

1.	Headrest	2.	Seatback trim	3.	Seatback pad
4.	Front center air bag module	5.	Seat belt buckle	6.	Seat cushion outer finisher (RH)
7.	Seat cushion inner finisher (RH)	8.	Seat cushion trim	9.	Seat cushion pad
10.	Front slide finisher (RH)	11.	Seat cushion heater	12.	Front slide finisher (LH)
13.	Seat cushion duct	14.	Seat harness	15.	Side attachment bracket (RH)
16.	Center attachment bracket	17.	Driver seat control unit (if equipped)	18.	Side attachment bracket (LH)
19.	Seat cushion blower	20.	Seat cushion support	21.	Seat cushion frame assembly
22.	Seat cushion side attachment	23.	Power seat switch	24.	Seat cushion outer finisher (LH)
25.	Seat slide knob	26.	Seat recline knob	27.	Lumbar support switch
28.	Front side air bag module	29.	Seat cushion inner finisher (LH)	30.	Seat back frame assembly
31.	Seat back blower	32.	Slide finisher outer	33.	Slide finisher inner
34.	Rear slide finisher (LH)	35.	Rear slide finisher (RH)	36.	Seatback duct
37.	Seat lumbar assembly	38.	Headrest holder (locked)	39.	Headrest holder (free)
40.	Seat back heater	A.	Refer to Removal and Installation.

PASSENGER SEAT – MANUAL

1.	Headrest	2.	Seatback trim	3.	Seatback pad
4.	Front side air bag module	5.	Lifter knob cap	6.	Recline lever
7.	Lifter knob retainer	8.	Seat cushion inner finisher (RH)	9.	Seat cushion outer finisher (RH)
10.	Recline lever finisher	11.	Seat cushion frame assembly	12.	Front slide finisher (RH)
13.	Seat cushion trim	14.	Seat cushion pad	15.	Seat cushion heater (if equipped)
16.	Front slide finisher (LH)	17.	Occupant Classification Sensor harness	18.	Seat harness
19.	Side attachment bracket (RH)	20.	Center attachment bracket	21.	Occupant Classification System control unit
22.	Side attachment bracket (LH)	23.	Seat cushion inner finisher (LH) Occupant Classification System sensor	24.	Seat cushion support
25.	Seat belt buckle	26.	Seat cushion outer finisher (LH)	27.	Seat cushion inner finisher (LH)
28.	Rear slide finisher (LH)	29.	Rear slide finisher (RH)	30.	Seat back frame assembly
31.	Seat lumbar assembly	32.	Headrest holder (locked)	33.	Headrest holder (free)
34.	Seat back heater (if equipped)	A.	Refer to Removal and Installation.

PASSENGER SEAT – POWER WITHOUT CLIMATE CONTROL

1.	Headrest	2.	Seatback trim	3.	Seatback pad
4.	Front side air bag module	5.	Seat cushion inner finisher (RH)	6.	Seat cushion outer finisher (RH)
7.	Seat recline knob	8.	Seat slide knob	9.	Power seat switch
10.	Seat cushion trim	11.	Seat cushion pad	12.	Seat cushion heater
13.	Front slide finisher (RH)	14.	Front slide finisher (LH)	15.	Occupant Classification Sensor harness
16.	Seat harness	17.	Side attachment bracket (RH)	18.	Occupant Classification System control unit
19.	Center attachment bracket	20.	Side attachment bracket (LH)	21.	Seat cushion support
22.	Occupant Classification System sensor	23.	Seat cushion frame assembly	24.	Seat belt buckle
25.	Seat cushion outer finisher (LH)	26.	Seat cushion inner finisher (LH)	27.	Seat back frame assembly
28.	Rear slide finisher (LH)	29.	Rear slide finisher (RH)	30.	Headrest holder (locked)
31.	Headrest holder (free)	32.	Seat lumbar assembly	33.	Seat back heater
A.	Refer to Removal and Installation.

PASSENGER SEAT – POWER WITH CLIMATE CONTROL

1.	Headrest	2.	Seatback trim	3.	Seatback pad
4.	Front side air bag module	5.	Seat cushion inner finisher (RH)	6.	Seat cushion outer finisher (RH)
7.	Seat recline knob	8.	Seat slide knob	9.	Power seat switch
10.	Seat cushion trim	11.	Seat cushion pad	12.	Seat cushion heater
13.	Seat cushion duct	14.	Front slide finisher (RH)	15.	Front slide finisher (LH)
16.	Occupant Classification Sensor harness	17.	Seat harness	18.	Side attachment bracket (RH)
19.	Occupant Classification System control unit	20.	Center attachment bracket	21.	Side attachment bracket (LH)
22.	Seat cushion blower	23.	Seat cushion support	24.	Occupant Classification System sensor
25.	Seat cushion frame assembly	26.	Seat belt buckle	27.	Seat cushion outer finisher (LH)
28.	Seat cushion inner finisher (LH)	29.	Seat back blower	30.	Seat back frame assembly
31.	Rear slide finisher (LH)	32.	Rear slide finisher (RH)	33.	Headrest holder (locked)
34.	Headrest holder (free)	35.	Seat lumbar assembly	36.	Seatback duct
37.	Seat back heater	A.	Refer to Removal and Installation.

Removal and Installation

REMOVAL

WARNING:

Do not leave any objects (screwdrivers, tools, etc.) on the seat during seatback repair. It can lead to personal injury if the side air bag module should accidentally deploy.

CAUTION:

• When removing or installing the seat trim, handle it carefully to keep dirt out and to avoid damage.

• When checking the power seat circuit for continuity using a circuit tester, do not confuse its connector with the side air bag module connector. Such an error may cause the air bag module to deploy.

• Do not drop, tilt, or bump the side air bag module while installing the seat. Always handle it with care.

• After front side air bag module inflates, the front seatback assembly must be replaced.

• When removing and installing the seat, use shop cloths to protect components from damage.

• Before removing the front seat, place ignition switch OFF, disconnect both battery cables then wait at least three minutes.

Slide the seat to the full forward position.

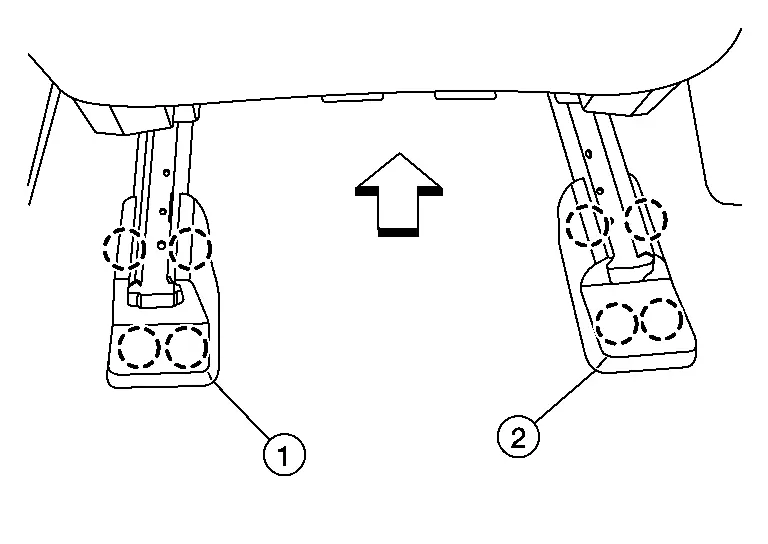

Using a suitable tool, release pawls and remove the rear slide finisher [LH (1)] and [RH (2)].

	: Nissan Pathfinder Vehicle front
	: Pawl

NOTE:

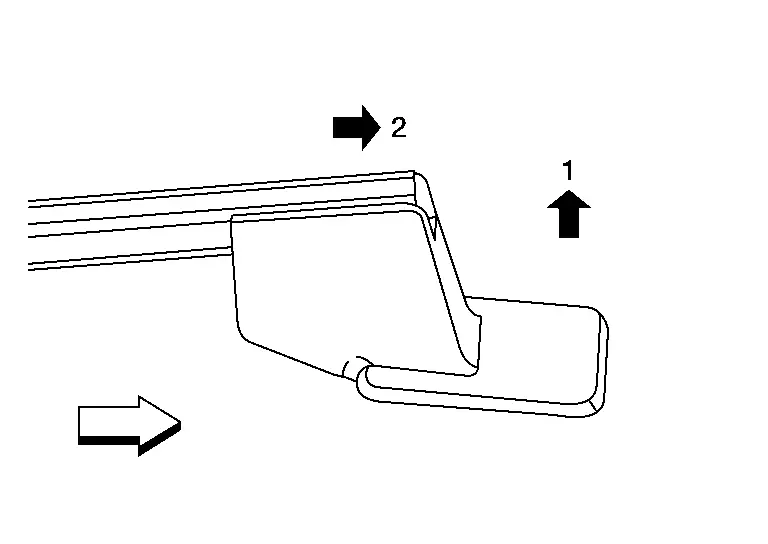

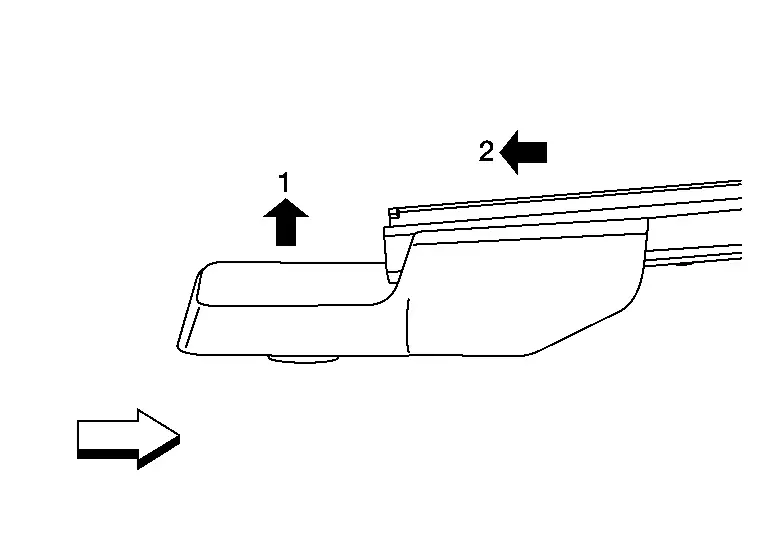

When removing the rear slide finishers, lift up and then pull rearward in the direction shown.

Remove the rear seat bolts.

Slide seat to the full rearward position.

Using a suitable tool, release pawls and remove the front slide finisher [RH (1)] and [LH (2)].

	: Nissan Pathfinder Vehicle front
	: Pawl

NOTE:

When removing the front slide finisher, lift up and then pull forward in the direction shown.

: Nissan Pathfinder Vehicle front

Remove the front seat bolts.

Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to Battery Disconnect.

Tilt the seat rearward and disconnect the harness connectors from the seat.

NOTE:

Take note of the harness routing and attachment locations for correct installation.

Remove the seat from the Nissan Pathfinder vehicle.

INSTALLATION

Installation is in the reverse order of removal.

WARNING:

• Perform additional services when installing front passenger seat. Refer to Description.

• Zero point reset must be performed every time the front passenger seat is removed from the Nissan Pathfinder vehicle.

• Zero point reset is done after the front passenger seat is installed in vehicle and all bolts are tightened to specification.

CAUTION:

Make sure that the seat harness or the floor carpet is not damaged during installation.

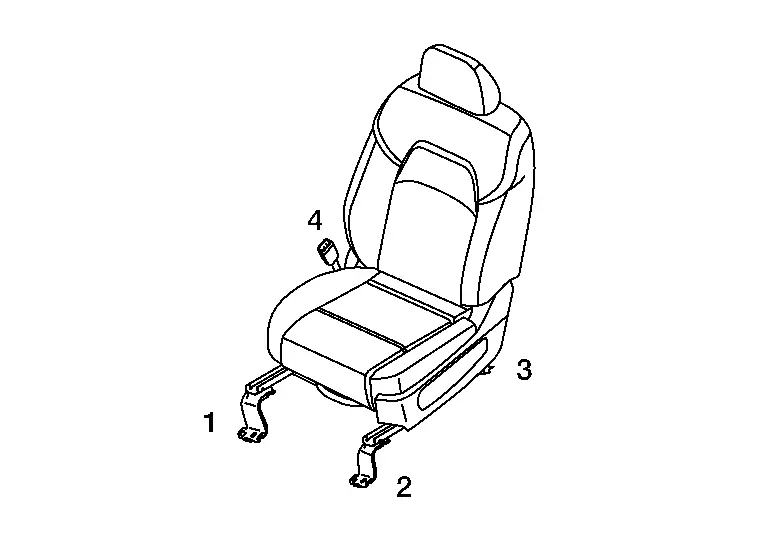

• When installing the front seat (LH), tighten the bolts to specification in the order shown.



  Front seat (LH) bolt torque

  : 45 Nm (4.6 kg-m, 33 ft-lb)

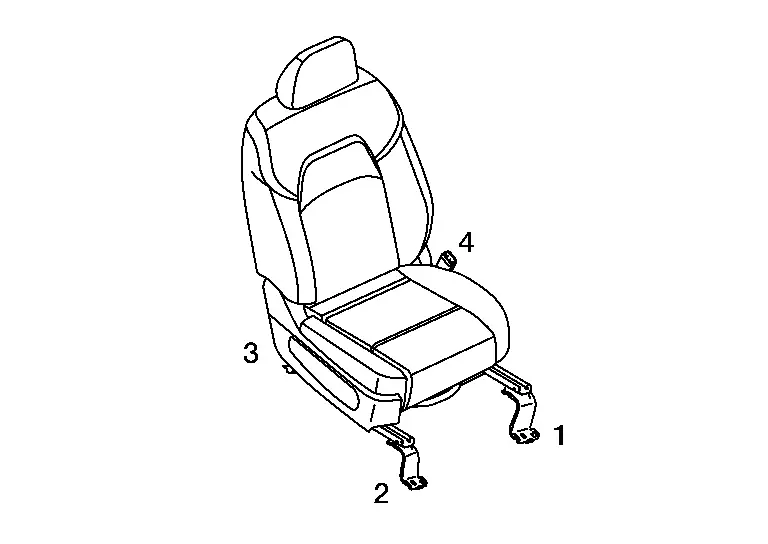

• When installing the front seat (RH), tighten the bolts to specification in the order shown.



  Front seat (RH) bolt torque

  : 45 Nm (4.6 kg-m, 33 ft-lb)

• Seat Back Blower
• Seat Cushion Blower
• Front Seat Heater
• Power Seat Switch
• Lumbar Support Switch

Seat Back Blower Nissan Pathfinder R53

Removal and Installation

REMOVAL

Remove the front seat. Refer to Removal and Installation.

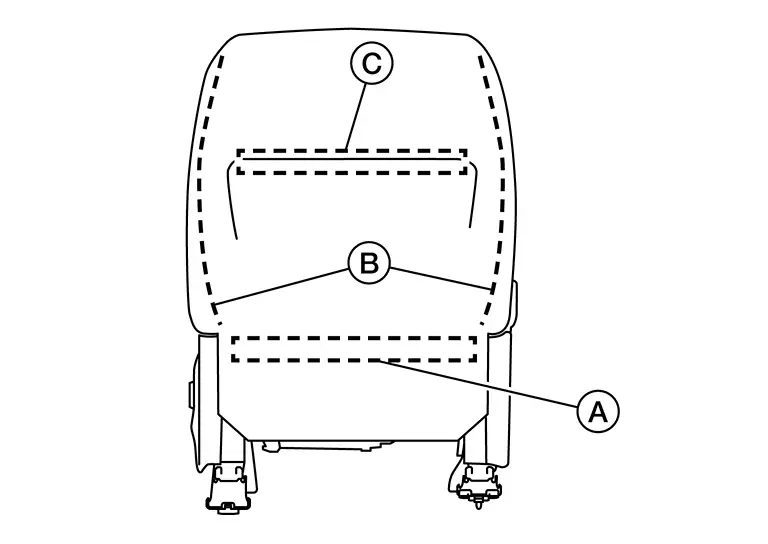

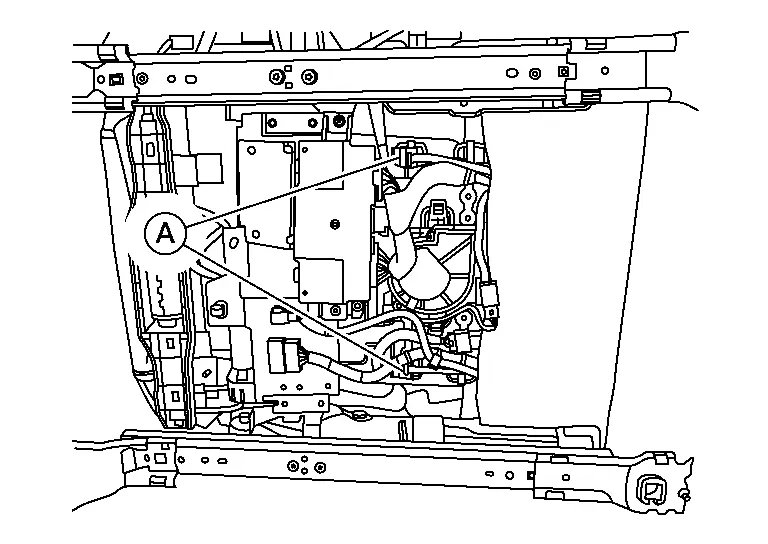

Remove the seatback strap (A) from the seat frame assembly.

Using suitable tool, release the lower J-hooks (A).

(C)	: Upper J-hooks

Unzip the seatback zippers (B).

Unclip the seatback duct from the seat back blower.

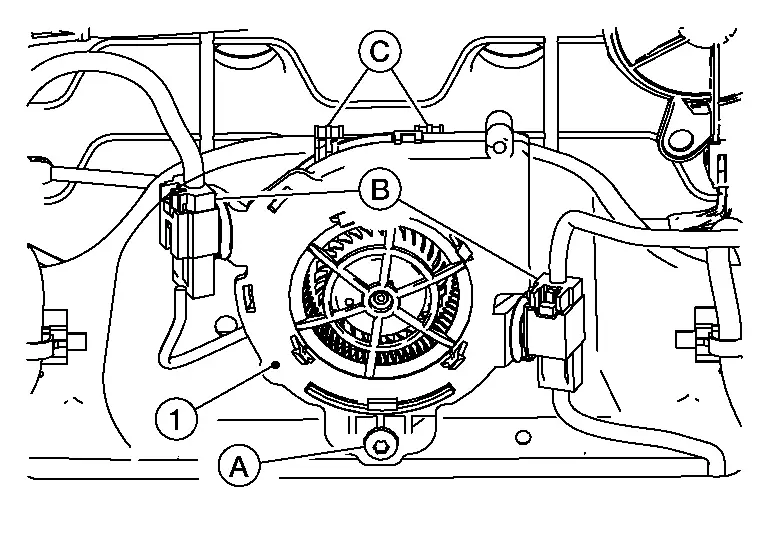

Remove bolt (A) from the seat back blower motor (1).

Disconnect the harness connectors (B) from the seat back blower.

Release hooks (C) and position aside the seat back blower motor.

Using suitable tool, release the harness retainers from the seat back blower motor and remove the seatback blower motor.

INSTALLATION

Installation is in the reverse order of removal.

Seat Cushion Blower Nissan Pathfinder R53

Removal and Installation

REMOVAL

Remove the front seat. Refer to Removal and Installation.

NOTE:

It is not necessary to separate the seatback trim from the seatback pad.

Remove the seatback strap (A) from the seat frame assembly.

Disconnect harness connector from the driver seat control unit (if equipped).

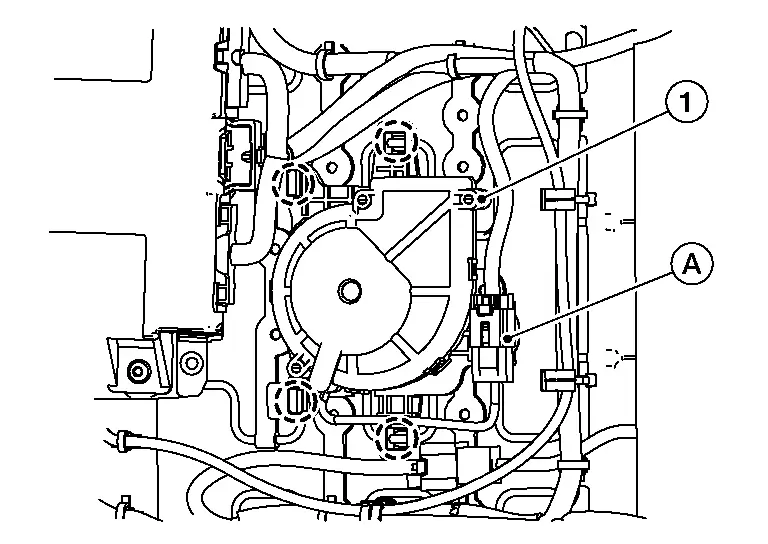

Disconnect the harness connector (A) from the seat cushion blower (1).

: Pawl

Using a suitable tool, release seat back blower pawls and remove seat cushion blower motor.

INSTALLATION

Installation is in the reverse order of removal.

Front Seat Heater Nissan Pathfinder SUV

Removal and Installation

Seat Cushion Heater

REMOVAL

Remove seat cushion pad. Refer to Seat Cushion.

Carefully remove front seat heater from seat cushion pad.

CAUTION:

• Carefully remove seat heater from seat cushion pad.

• Do not damage seat cushion pad when removing seat heater; if damaged, replace seat cushion pad

INSTALLATION

Peel protective backing from front seat heater and attach to seat cushion pad.

Secure the front seat heater harness to the seat cushion frame.

Install the remaining seat cushion components. Refer to Seat Cushion.

Seat Back Heater

REMOVAL

Remove seatback pad. Refer to Seatback.

Carefully remove front seat heater from seatback pad.

CAUTION:

• Carefully remove seat heater from seatback pad.

• Do not damage seatback pad when removing seat heater; if damaged, replace seatback pad

INSTALLATION

Peel protective backing from front seat heater and attach to seatback pad.

Secure the front seat heater harness to the seatback frame.

Install the remaining seatback components. Refer to Seatback.

Power Seat Switch Nissan Pathfinder R53

Removal and Installation

REMOVAL

NOTE:

Driver seat shown; passenger seat similar.

Remove the front seat. Refer to Removal and Installation.

Remove the seatback trim retainer straps (A).

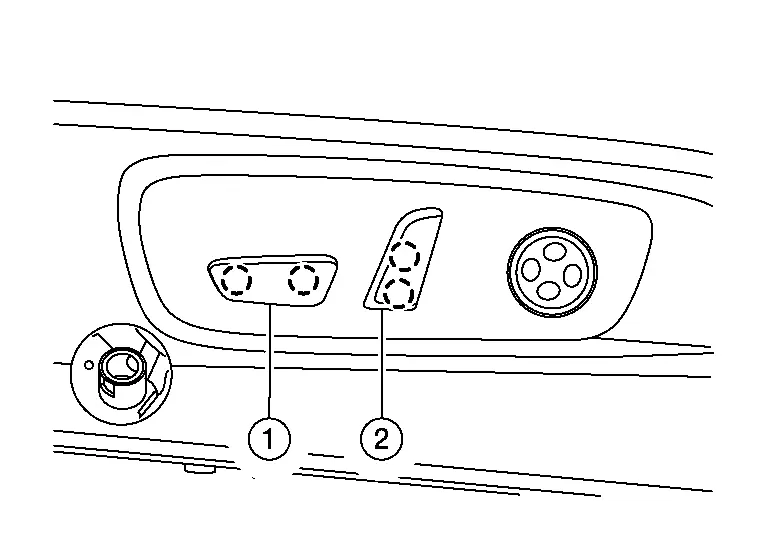

Using suitable tool, release pawls and remove the seat slide knob (1) and the seat recline knob (2).

: Pawl

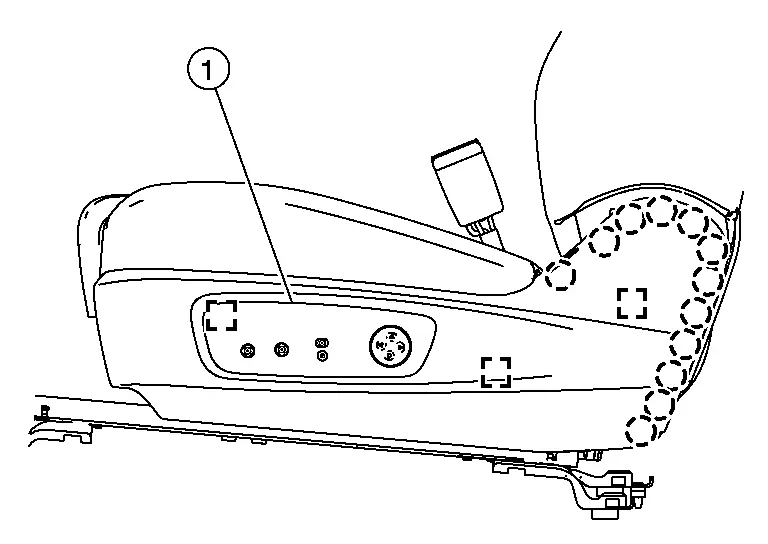

Using suitable tool, release pawls and clips, then reposition the seat cushion outer finisher [LH (1)] aside.

	: Metal clip
	: Pawl

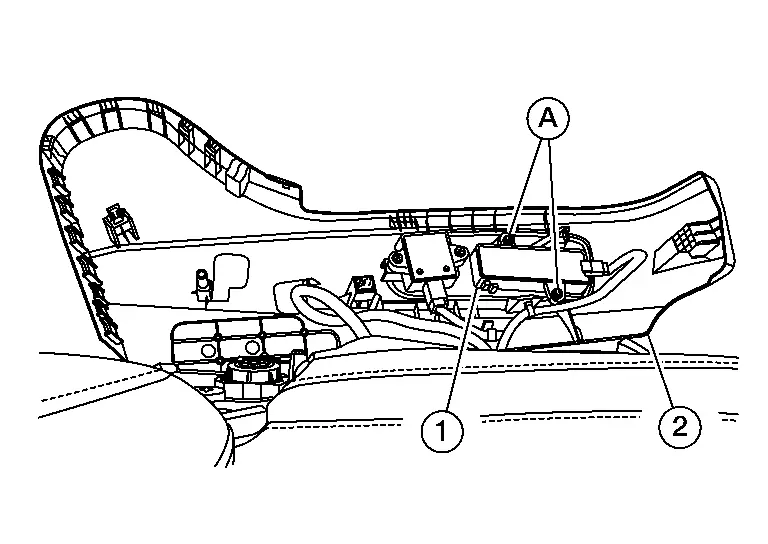

Remove screws (A) and release the power seat switch (1) from the seat cushion outer finisher [LH (2)].

Disconnect the harness connector from the power seat switch and remove.

INSTALLATION

Installation is in the reverse order of removal.

Lumbar Support Switch Nissan Pathfinder 5th Gen

Removal and Installation

REMOVAL

NOTE:

Driver seat shown; passenger seat similar.

Remove the front seat. Refer to Removal and Installation.

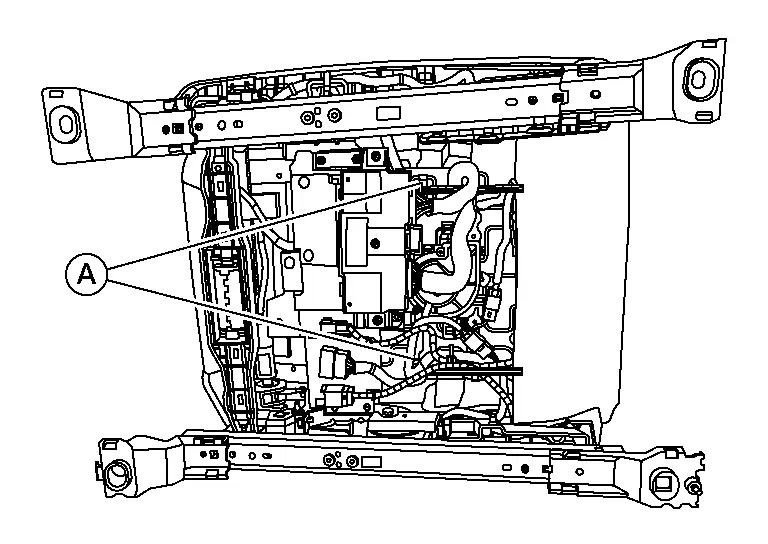

Remove the seatback trim retainer straps (A).

Using suitable tool, release pawls and clips, then reposition the seat cushion outer finisher (1) aside.

	: Metal clip
	: Pawl

Disconnect the harness connector from the lumbar support switch.

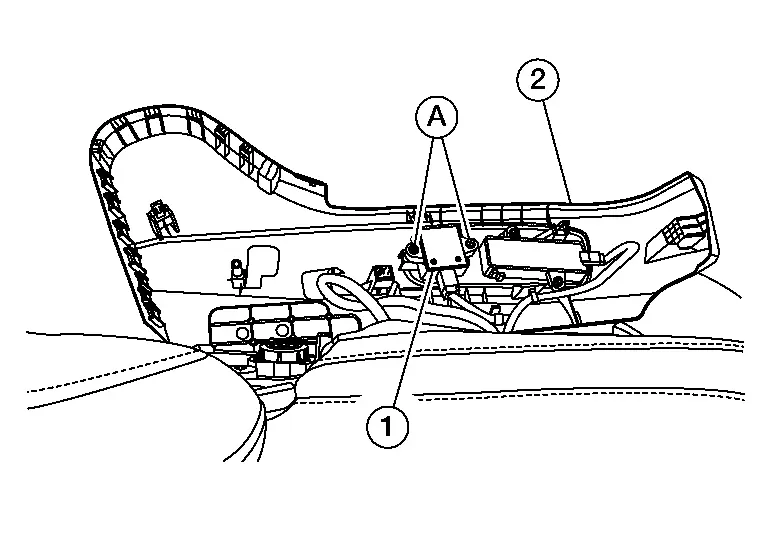

Remove screws (A) and remove the lumbar support switch (1) from the seat cushion outer finisher (2).

INSTALLATION

Installation is in the reverse order of removal.
