Nissan Pathfinder: Instrument Panel - Cluster Lid C

Nissan Pathfinder (R53) 2022-2025 Service Manual / Body Interior :: Instrument Panel / Removal and Installation / Cluster Lid C

Cluster Lid C Lower Nissan Pathfinder 2022

Removal and Installation

REMOVAL

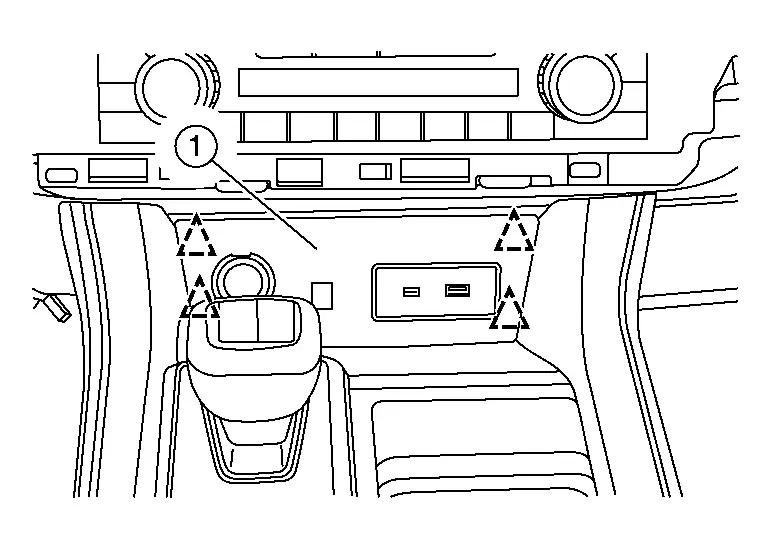

Using a suitable tool, release clips.

NOTE:

Cluster lid C lower with USB charge port shown; Cluster lid C lower without USB charge port similar.

: Clip

Disconnect harness connectors and remove cluster lid C lower (1).

INSTALLATION

Installation is in the reverse order of removal.

Cluster Lid C Nissan Pathfinder R53

Removal and Installation

REMOVAL

Remove instrument lower panel LH. Refer to Removal and Installation.

Remove instrument finisher C. Refer to Removal and Installation.

Remove AV control unit. Refer to Removal and Installation.

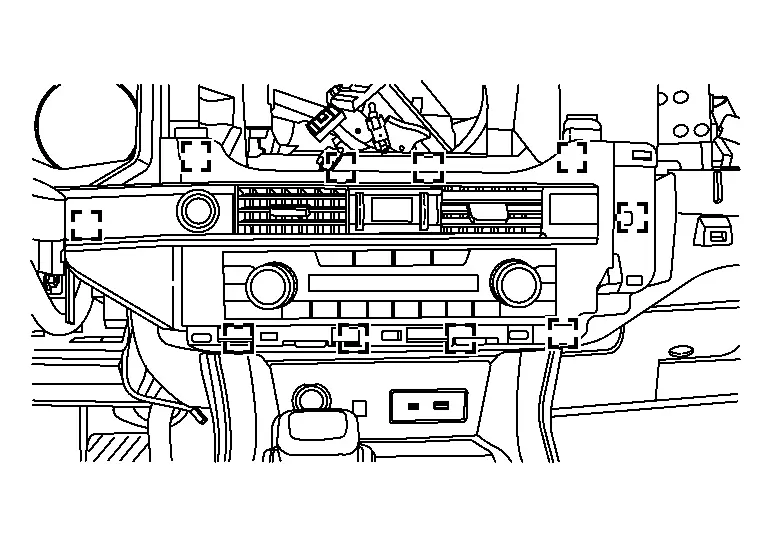

Using a suitable tool, release clips.

: Metal clip

Disconnect the harness connectors and remove cluster lid C.

INSTALLATION

Installation is in the reverse order of removal.
