Nissan Pathfinder: Ventilation System - Blower Unit
Front Blower Unit Nissan Pathfinder 5th Gen

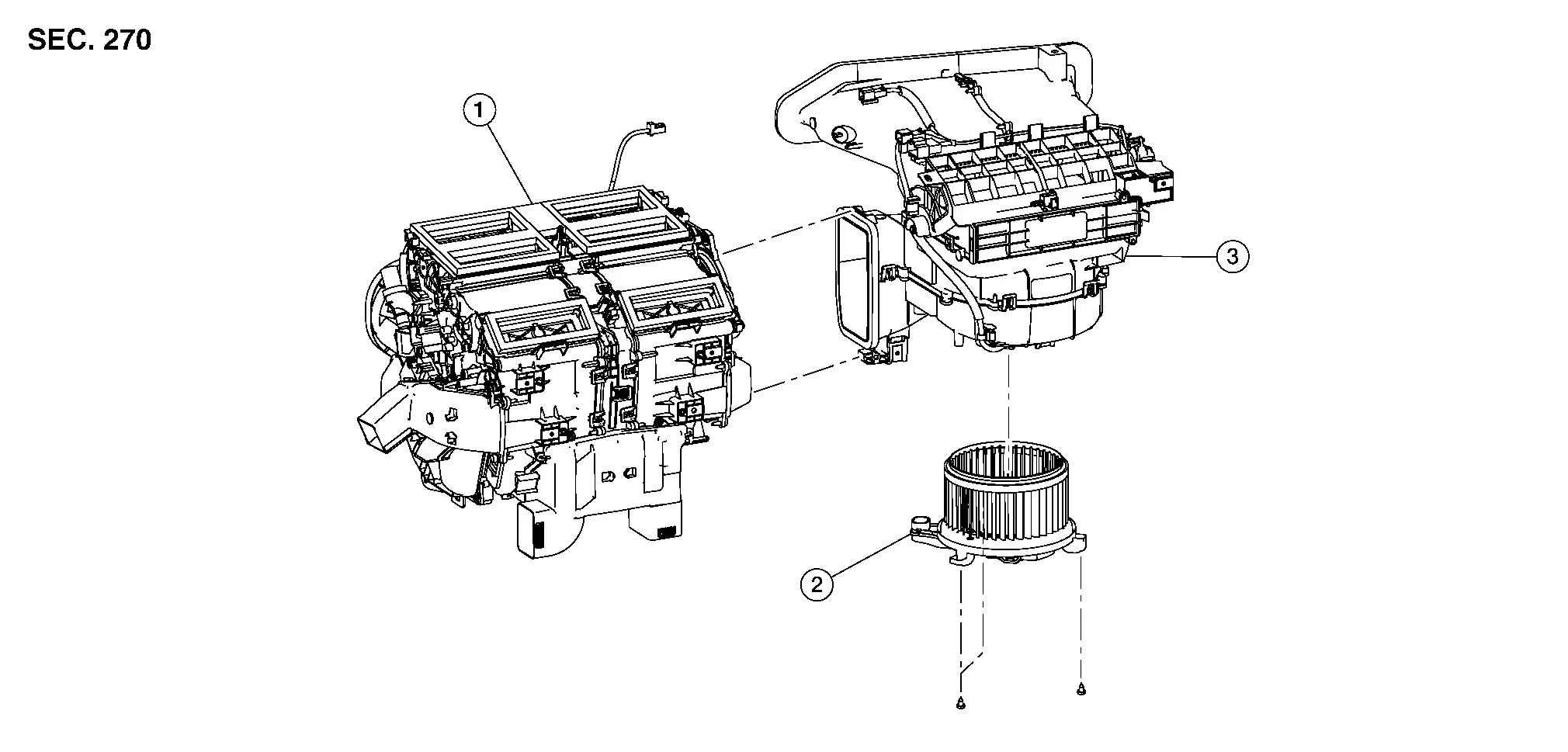

Exploded View
| 1. | Front heating and cooling unit | 2. | Front blower motor | 3. | Front blower unit |
Removal and Installation
REMOVAL
Remove front heating and cooling unit assembly. Refer to Removal and Installation.

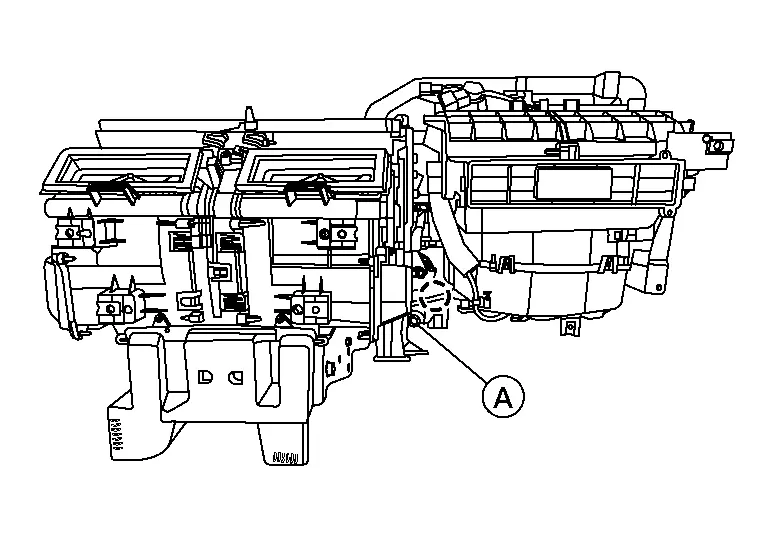

Remove screw (A), then release pawl.
 |
: Pawl |
Separate front blower unit from front heating and cooling unit.
INSTALLATION
Installation is in the reverse order of removal.
Front Blower Motor Nissan Pathfinder SUV
Removal and Installation
REMOVAL
Remove knee air bag module RH. Refer to Removal and Installation.
Remove instrument panel undercover. Refer to Exploded View.
Disconnect harness connector from foot lamp (RH).

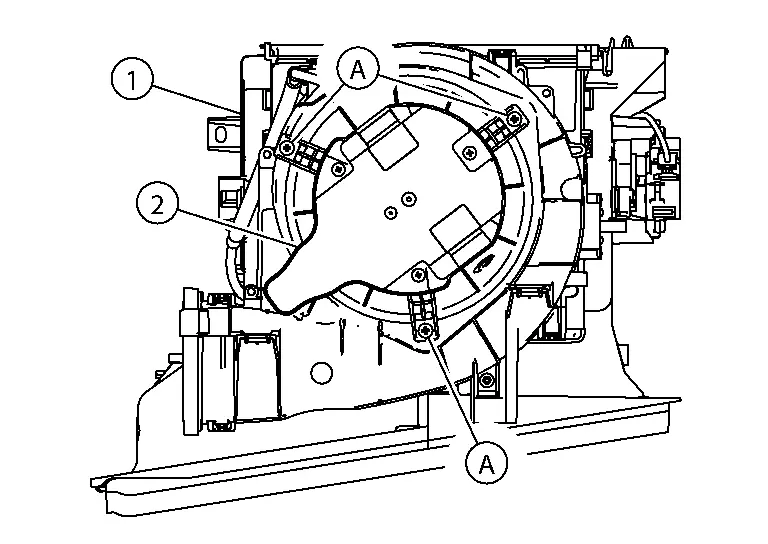

Disconnect harness connector, then remove screws (A) from front blower motor (2).
Remove front blower motor from front blower unit (1).
INSTALLATION
Installation is in the reverse order of removal.
Rear Blower Motor Nissan Pathfinder 5th Gen

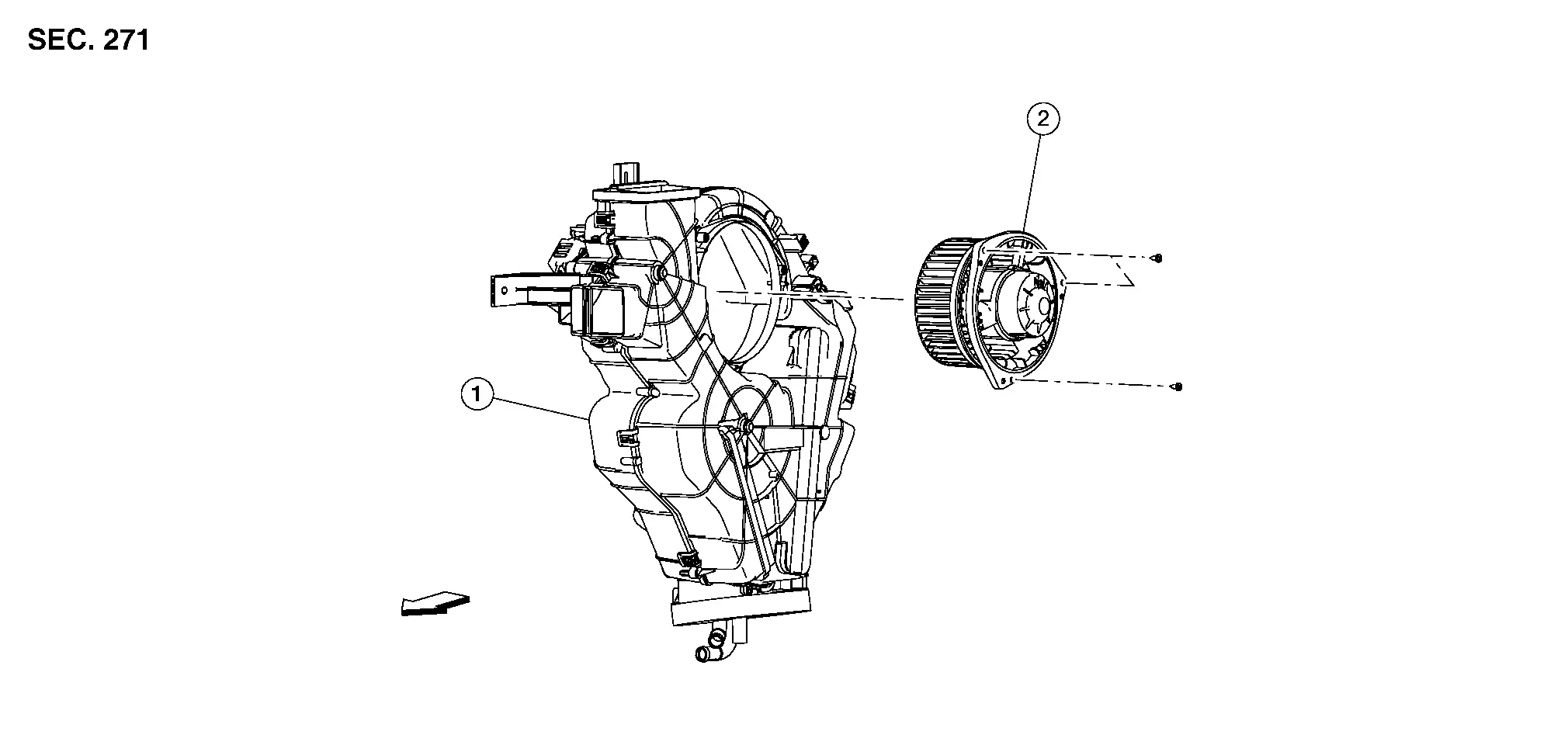

Exploded View
| 1. | Rear cooling unit assembly | 2. | Rear blower motor |
 |
Front |
Removal and Installation
REMOVAL
Remove luggage side lower finisher (RH). Refer to Removal and Installation.
Disconnect harness connector from rear blower motor.

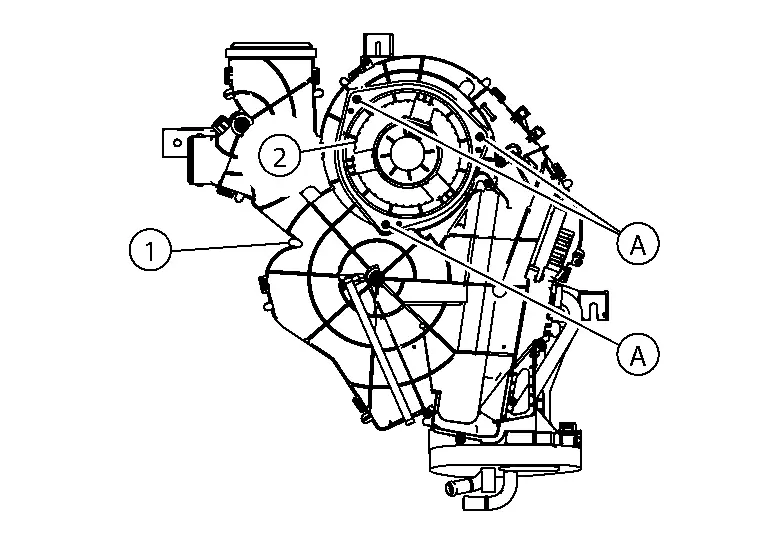

Remove screws (A), then remove blower motor (2) from rear cooling unit assembly (1)
INSTALLATION
Installation is in the reverse order of removal.
