Nissan Pathfinder: Seat - Preparation. Clip List
Preparation Nissan Pathfinder 2025
Special Service Tool
|
Tool number (TechMate No.) Tool name | Description | |
|---|---|---|
|

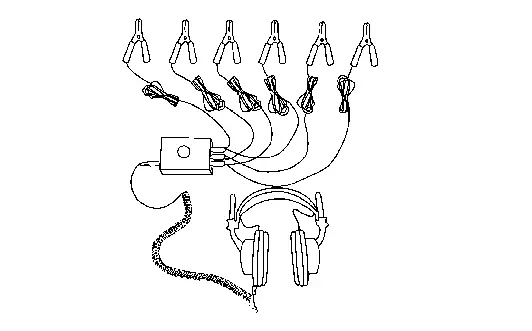

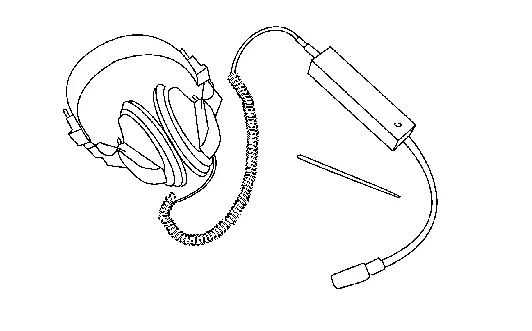

— (NI-39570) Chassis Ear |
|
Locating the noise |
|

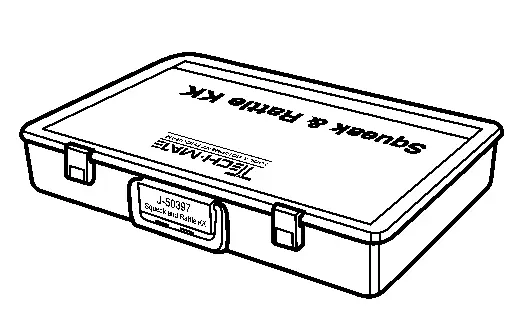

— (NI-50397) Squeak and Rattle Kit |
|
Repairing the cause of noise |
|

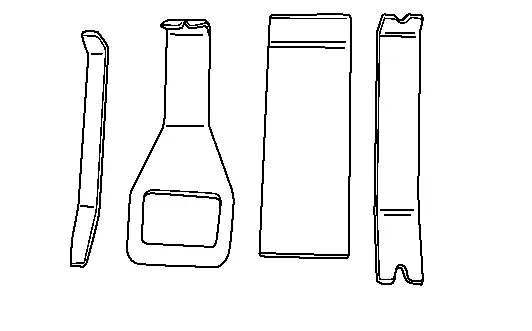

— (NI-46534) Trim Tool Set |
|
Removing trim components |
Commercial Service Tool
|
(TechMate No.) Tool name | Description | |
|---|---|---|
|
(NI-39565) Engine Ear |
|
Locating the noise |
|

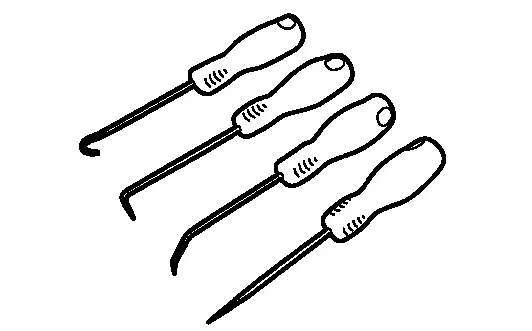

( — ) Hook and Pick Tool |
|
Removes snap rings |
|

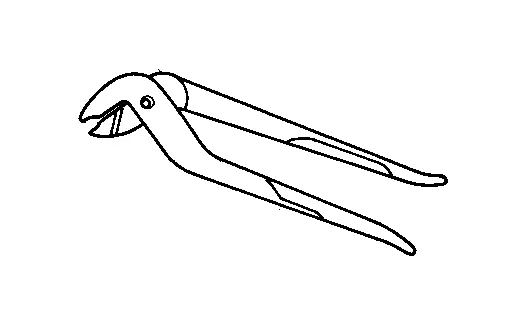

( — ) Hog ring pliers |
|
Install the hog rings |
Always Replace with New Parts
| Never Reuse These Parts | Part Code | For additional information: |
|---|---|---|
| Hog rings | — |
FRONT SEAT SEATBACK DISASSEMBLY AND ASSEMBLY FRONT SEAT CUSHION DISASSEMBLY AND ASSEMBLY SECOND ROW SEAT RH SEATBACK DISASSEMBLY AND ASSEMBLY SECOND ROW SEAT RH CUSHION DISASSEMBLY AND ASSEMBLY SECOND ROW CAPTAIN SEAT LH SEATBACK DISASSEMBLY AND ASSEMBLY SECOND ROW CAPTAIN SEAT LH CUSHION DISASSEMBLY AND ASSEMBLY SECOND ROW BENCH SEAT LH SEATBACK DISASSEMBLY AND ASSEMBLY SECOND ROW BENCH SEAT LH CUSHION DISASSEMBLY AND ASSEMBLY THIRD ROW SEAT SEATBACK DISASSEMBLY AND ASSEMBLY THIRD ROW SEAT CUSHION DISASSEMBLY AND ASSEMBLY |
Clip List (Preparation) Nissan Pathfinder R53

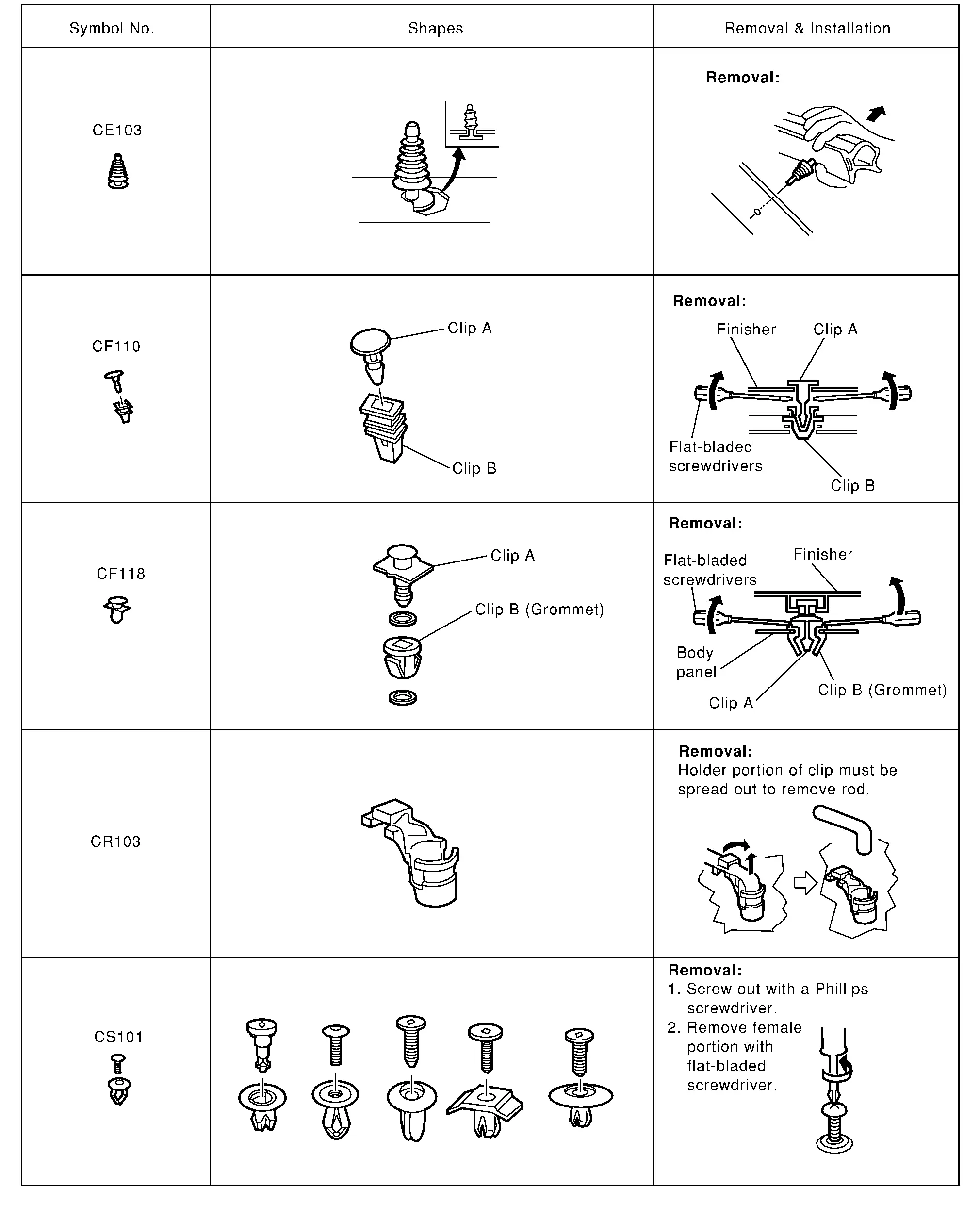

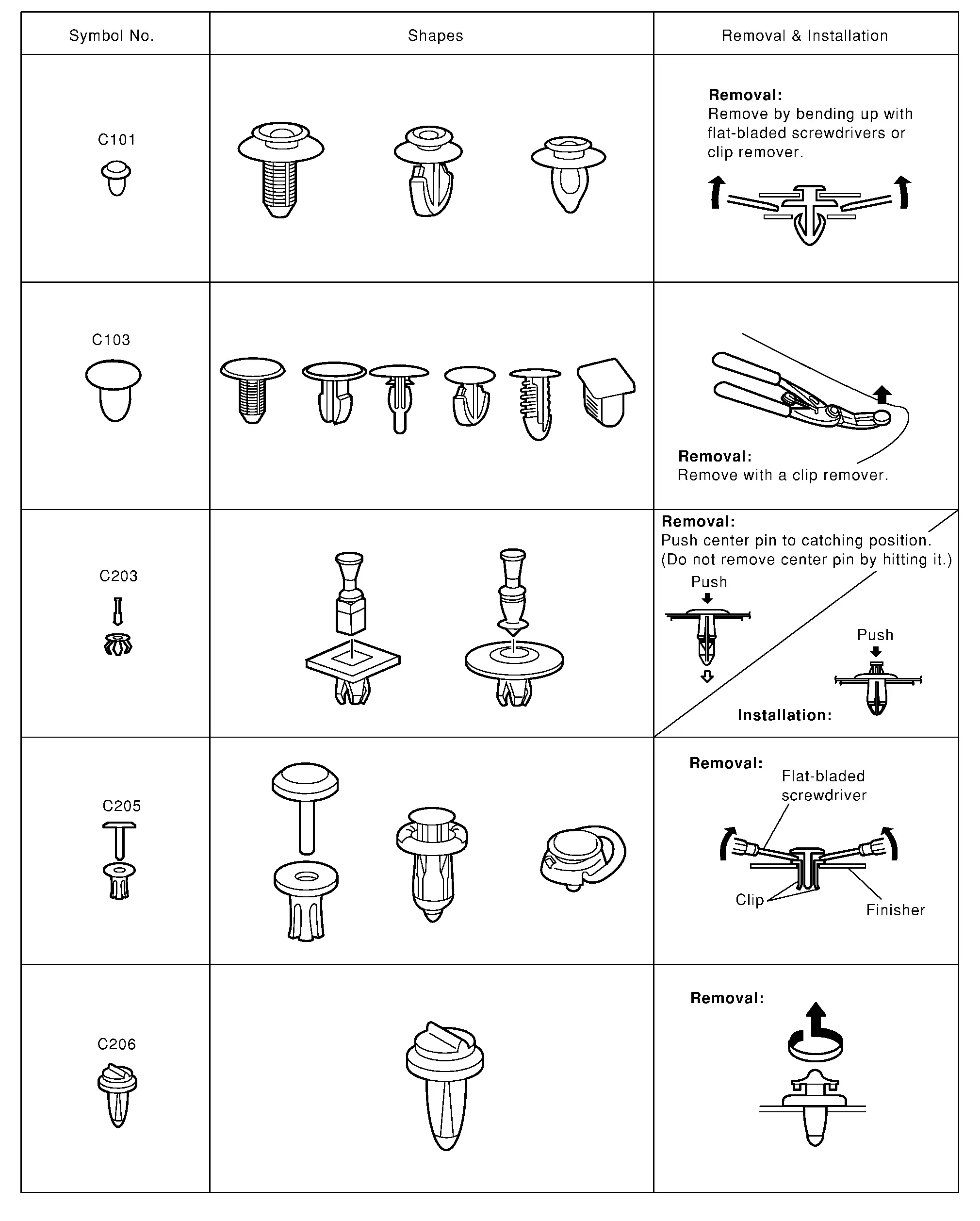

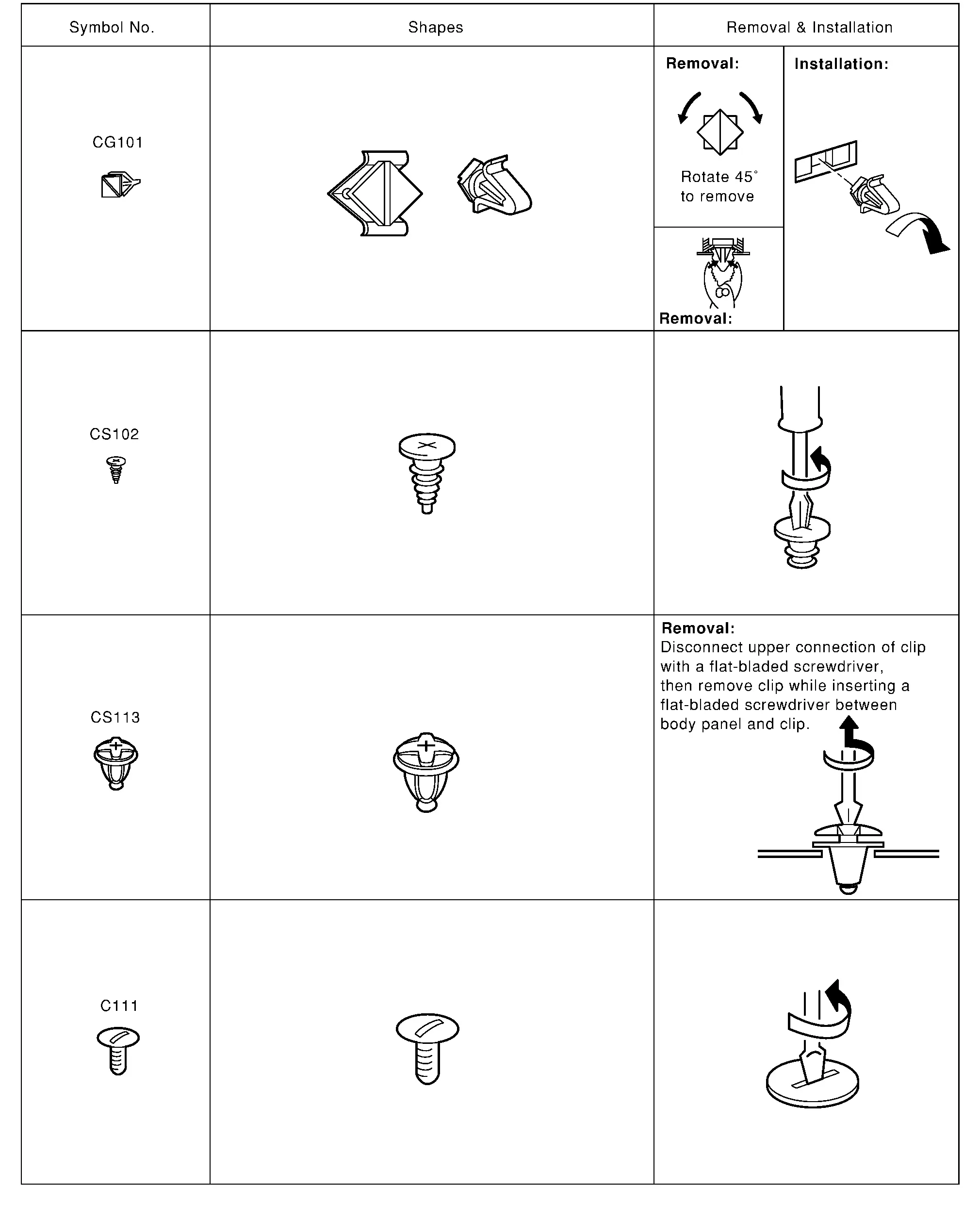

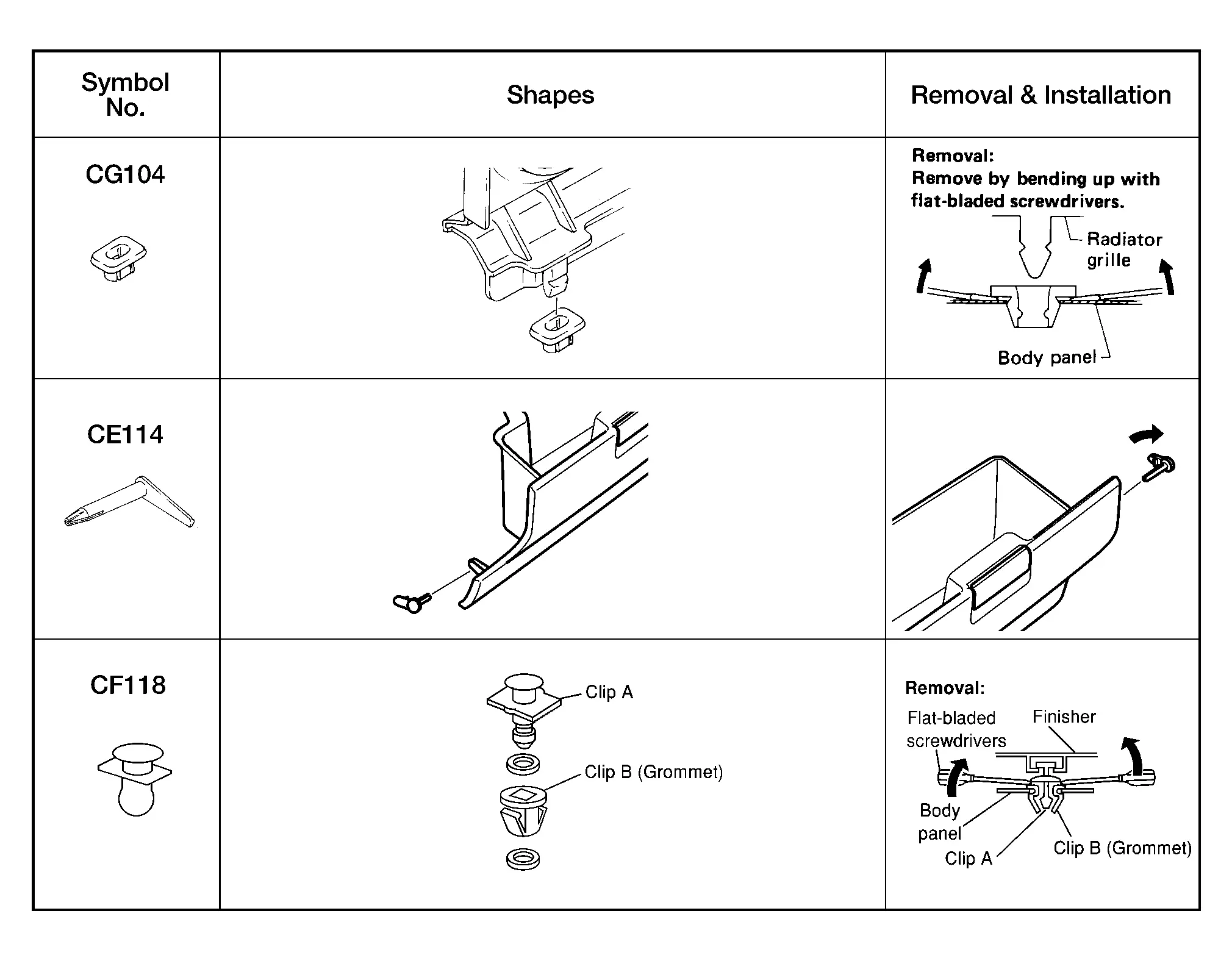

Descriptions for Clips
Replace any clips which are damaged during removal or installation.
Nissan Pathfinder (R53) 2022-2025 Service Manual
Preparation. Clip List
