Nissan Pathfinder: Vq35dd - Preparation ++
Special Service Tool
The actual shape of the tools may differ from those illustrated here.
|
Tool number (TechMate No.) Tool name | Description | |
|---|---|---|
|
— (NI-48891) Spark plug socket |
|
Removing and installing spark plug |
|
KV10111100 (NI-37228) Seal cutter |
|
Removing steel oil pan and rear timing chain case |
|

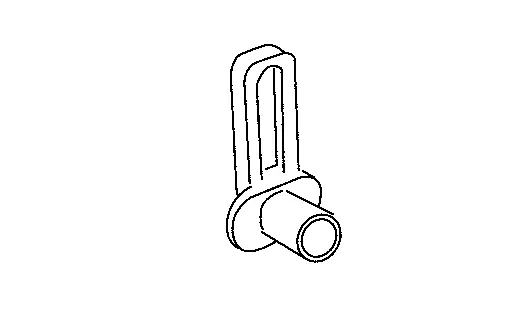

16441 6N210 (NI-45488) Quick connector release |
|
Removing fuel tube quick connectors in engine room (Available in SEC. 164 of PARTS CATALOG: Part No. 16441 6N210) |
|

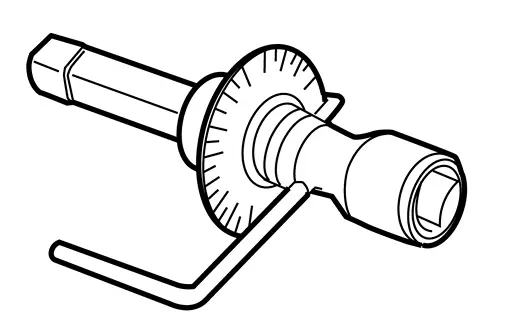

KV10112100 (BT-8653-A) Angle wrench |
|
Tightening bolts for cylinder head, main bearing cap and connecting rod cap |
|

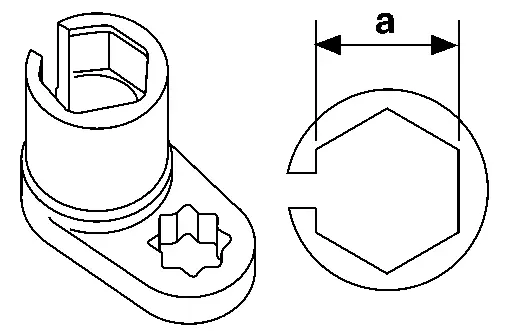

KV991J0050 (NI-44626) Air fuel sensor Socket |
|
Loosening or tightening air fuel ratio A/F sensor a: 22 mm (0.87 in) |
|

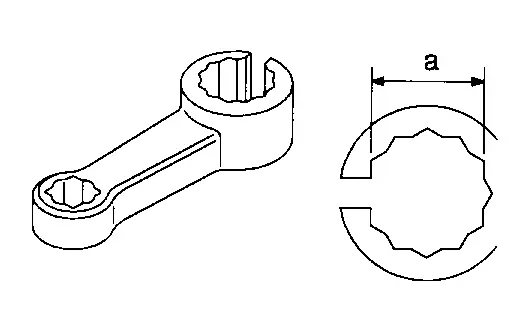

KV10114400 (NI-38365) Heated oxygen sensor wrench |
|
Loosening or tightening rear heated oxygen sensor a: 22 mm (0.87 in) |
|

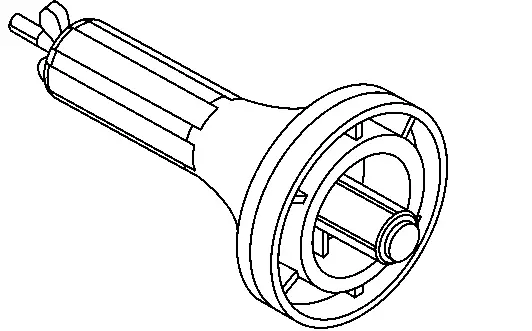

— (NI-47128) VQ rear main seal installer |
|
Installing rear main seal |
|

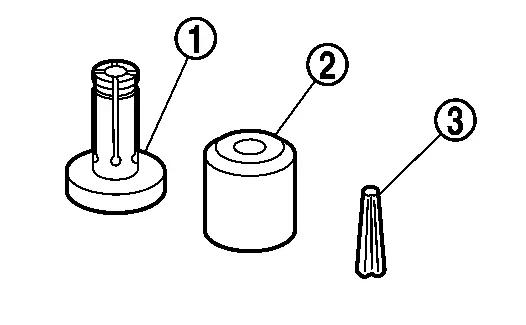

KV101197S0 (NI-50364) Direct injection seal installer kit
|
|
Installing fuel injector seal ring |
|

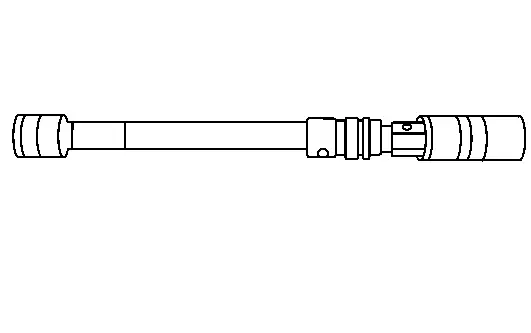

— (NI-50366) Direct injection puller |
|
Removing and installing direct injection fuel injector |
|

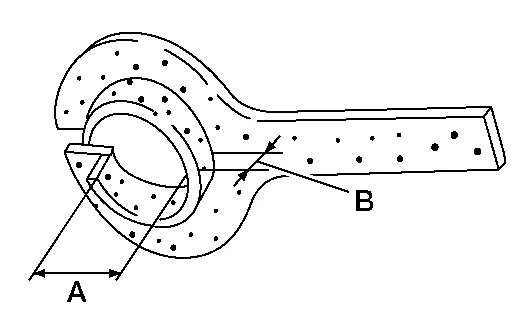

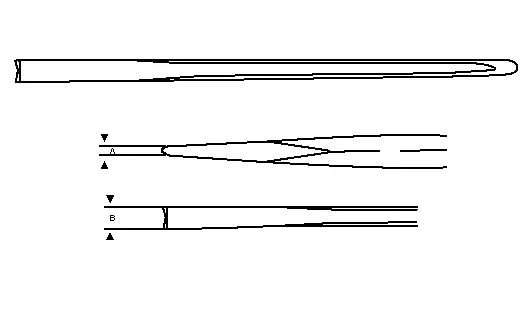

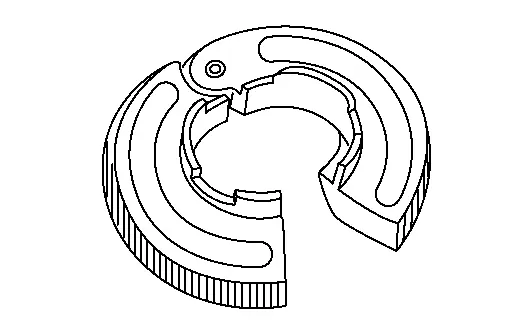

KV38107900 (NI-52469-1) Differential side oil seal protector |
|
Installing drive shaft A: 32 mm (1.26 in) dia B: Minimum 23 mm (0.91 in) |
|
— (NI-52982) Lock nut chisel (Cape chisel) |
|
Removing wheel hub lock nut |
Commercial Service Tool
|
Tool number (TechMate No.) Tool name | Description | |
|---|---|---|
|

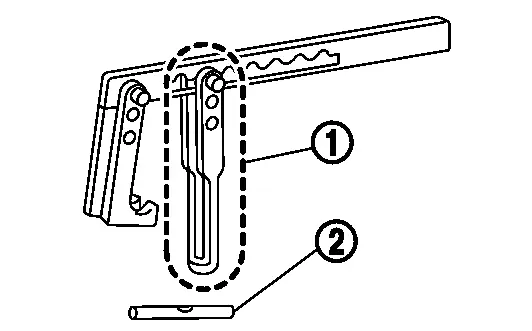

Valve spring compressor Attachment Adapter |
|
Disassembling valve mechanism Part (1) is a component of KV10116200 (NI-26336-A), but part (2) is not. |

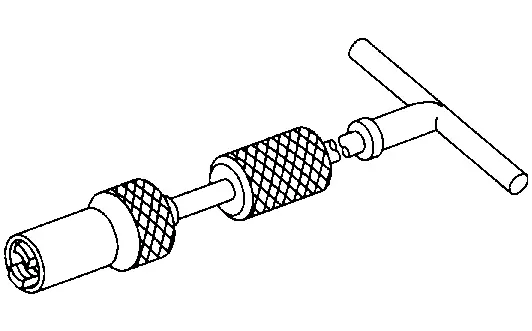

| Valve oil seal puller |
|
Removing valve oil seal |

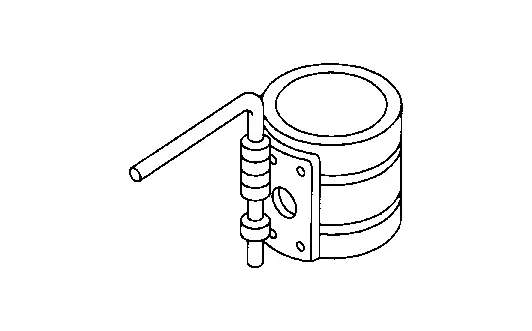

| Piston ring compressor |
|
Installing piston assembly into cylinder bore |

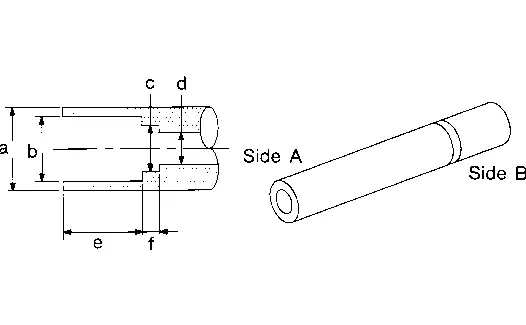

| Valve oil seal drift |
|
Installing valve oil seal Use side A. a: 20 mm (0.79 in) dia. b: 13 mm (0.51 in) dia. c: 10.3 mm (0.406 in) dia. d: 8 mm (0.31 in) dia. e: 10.7 mm (0.421 in) dia. f: 5 mm (0.20 in) dia. |

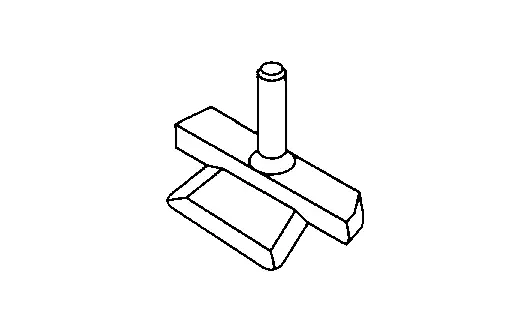

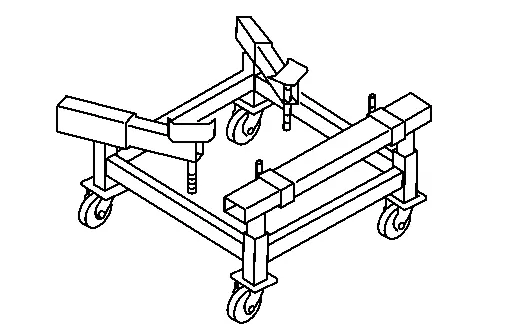

| Engine support table |
|
Removing engine and transmission assembly |

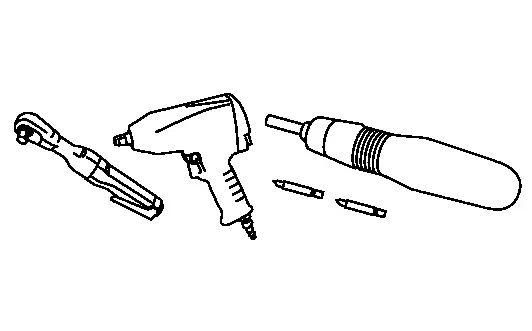

| Power tool |
|
Loosening nuts, screws and bolts |

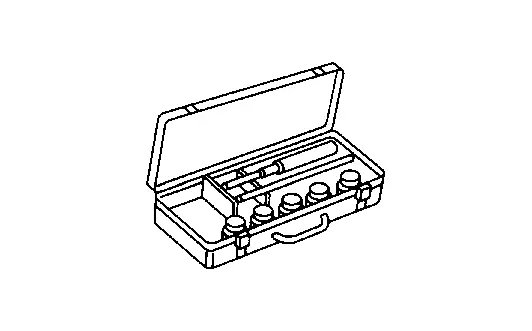

| Valve seat cutter set |
|
Finishing valve seat dimensions |

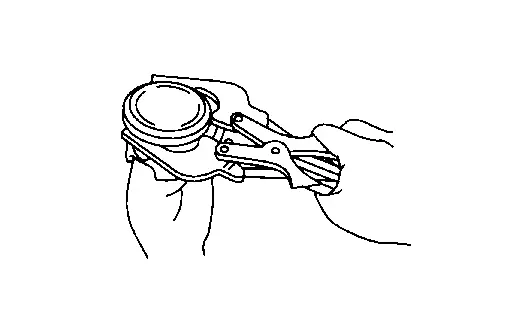

| Piston ring expander |
|
Removing and installing piston ring |

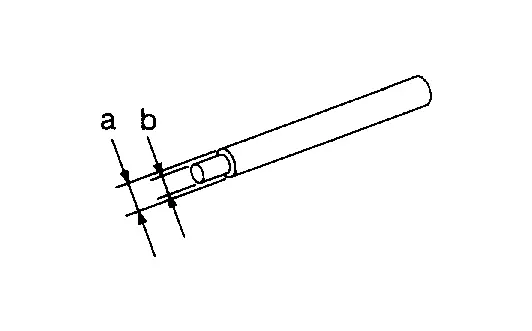

| Valve guide drift |
|
Removing and installing valve guide Intake & Exhaust: a: 9.5 mm (0.374 in) dia. b: 5.5 mm (0.217 in) dia. |

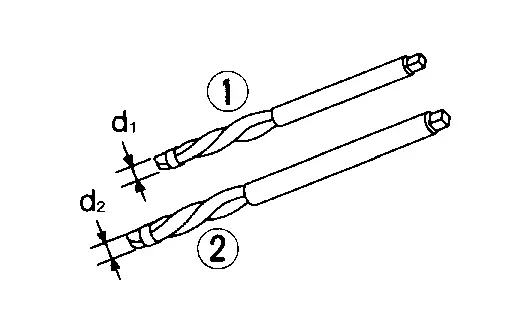

| Valve guide reamer |
|
Reaming valve guide (1) or hole for oversize valve guide (2) Intake & Exhaust: d1: 6.0 mm (0.236 in) dia. d2: 10.2 mm (0.402 in) dia. |
|

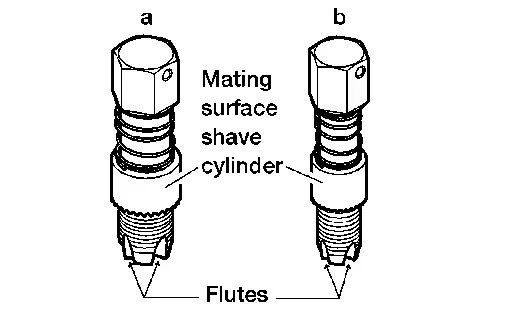

— (NI-43897-18) (NI-43897-12) Oxygen sensor thread cleaner |
|
Reconditioning the exhaust system threads before installing a new oxygen sensor (Use with anti-seize lubricant shown below.) a: NI-43897-18 (18 mm dia.) for zirconia oxygen sensor b: NI-43897-12 (12 mm dia.) for titania oxygen sensor |

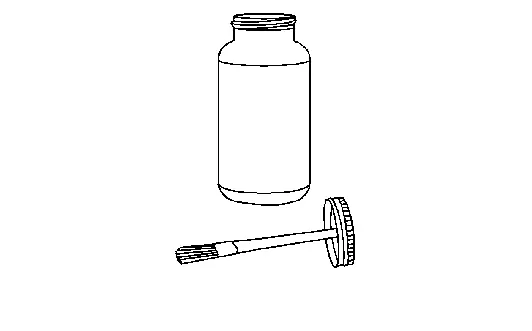

| Anti-seize lubricant (Permatex 133AR or equivalent meeting MIL specification MIL-A-907) |
|
|

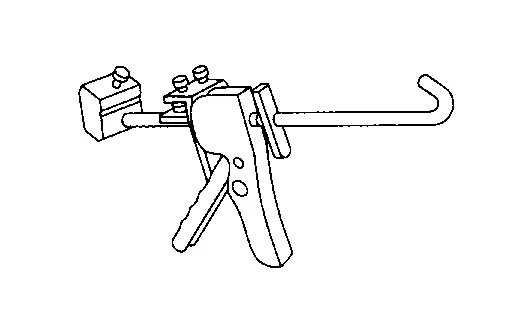

| Tube presser |
|
Pressing the tube of liquid gasket |

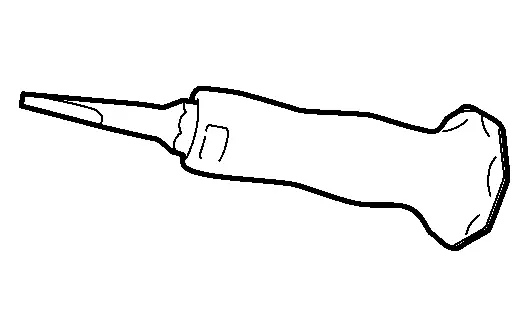

| Lock nut crimp punch (Cold chisel) |
|
Installing wheel hub lock nut a: 5 mm (0.20 in) b: 7 mm (0.28 in) |

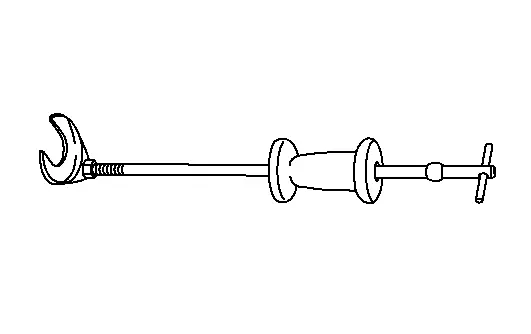

| Drive shaft joint puller |
|
Removing drive shaft |
| 5/8" Disconnect tool |
|
For removal of A/T fluid cooler hoses |
Always Replace with New Parts
| Never Reuse These Parts | Part Code | For additional information: |
|---|---|---|
| Gasket - intake manifold | 16293M | INTAKE MANIFOLD COLLECTOR EXPLODED VIEW |
| Gasket - intake adapter | 14040E | INTAKE MANIFOLD COLLECTOR EXPLODED VIEW |
| Gasket - exhaust manifold | 14036M | EXHAUST MANIFOLD AND THREE WAY CATALYST EXPLODED VIEW |
| Nut | 14004B | EXHAUST MANIFOLD AND THREE WAY CATALYST EXPLODED VIEW |
| Bolt | 14002B | EXHAUST MANIFOLD AND THREE WAY CATALYST EXPLODED VIEW |
| Seal - O-ring | 11012G | OIL PAN EXPLODED VIEW |
| Gasket - oil pan | 11121 | OIL PAN EXPLODED VIEW |
| Gasket - oil pan | 11121+A | OIL PAN EXPLODED VIEW |
| Washer - drain plug | 11128A | OIL PAN EXPLODED VIEW |
| Solenoid valve assy - oil pump control | 15031 | OIL PAN EXPLODED VIEW |
| Oil cooler assy | 21305 | OIL PAN EXPLODED VIEW |
| Ring - rubber | 21304 | OIL PAN EXPLODED VIEW |
| Gasket - intake manifold | 14035 | INTAKE MANIFOLD EXPLODED VIEW |
| Gasket - rocker cover | 13270 | ROCKER COVER GASKET EXPLODED VIEW |
| Gasket - rocker cover | 13270+A | ROCKER COVER GASKET EXPLODED VIEW |
| Gasket - rocker cover | 13270+B | ROCKER COVER GASKET EXPLODED VIEW |
| Seal - O-ring | 22100EA | ROCKER COVER GASKET EXPLODED VIEW |
| Holder - injector | 16610Q | FUEL INJECTOR AND FUEL TUBE EXPLODED VIEW |
| Seal - O-ring | 16412F | FUEL INJECTOR AND FUEL TUBE EXPLODED VIEW |
| Seal - O-ring | 16412FA | FUEL INJECTOR AND FUEL TUBE EXPLODED VIEW |
| Seal - O-ring | 16412FB | FUEL INJECTOR AND FUEL TUBE EXPLODED VIEW |
| Tube assy - fuel | 17520+A | FUEL INJECTOR AND FUEL TUBE EXPLODED VIEW |
| Fuel rail pressure sensor | 16638M | FUEL INJECTOR AND FUEL TUBE EXPLODED VIEW |
| Tube assy - fuel | 17520 | HIGH PRESSURE FUEL PUMP AND FUEL HOSE EXPLODED VIEW |
| Seal - O-ring | 16618N | HIGH PRESSURE FUEL PUMP AND FUEL HOSE EXPLODED VIEW |
| Lifter - valve | 13231+A | HIGH PRESSURE FUEL PUMP AND FUEL HOSE EXPLODED VIEW |
| Seal - O-ring | 13012J | VALVE TIMING CONTROL EXPLODED VIEW |
| Seal - O-ring | 13035HC | VALVE TIMING CONTROL EXPLODED VIEW |
| Seal - oil, camshaft | 13042N | VALVE TIMING CONTROL EXPLODED VIEW |
| Seal - oil, crankshaft front | 13042 | FRONT TIMING CHAIN CASE EXPLODED VIEW |
| Seal - O-ring | 13035HB | FRONT TIMING CHAIN CASE EXPLODED VIEW |
| Seal - O-ring | 13035H | REAR TIMING CHAIN CASE EXPLODED VIEW |
| Seal - O-ring | 13035HA | REAR TIMING CHAIN CASE EXPLODED VIEW |
| Sensor assy - oil temperature | 22630D | REAR TIMING CHAIN CASE EXPLODED VIEW |
| Gasket - cylinder head | 11044 | CYLINDER HEAD EXPLODED VIEW |
| Gasket - cylinder head | 11044+A | CYLINDER HEAD EXPLODED VIEW |
| Guide - valve, intake | 13212 | CYLINDER HEAD DISASSEMBLY AND ASSEMBLY |
| Guide - valve, exhaust | 13213 | CYLINDER HEAD DISASSEMBLY AND ASSEMBLY |
| Seat - valve, intake | 11098 | CYLINDER HEAD DISASSEMBLY AND ASSEMBLY |
| Seat - valve, exhaust | 11099 | CYLINDER HEAD DISASSEMBLY AND ASSEMBLY |
| Tube - spark plug | 11095 | CYLINDER HEAD DISASSEMBLY AND ASSEMBLY |
| Seal - oil, valve | 13207 | CYLINDER HEAD DISASSEMBLY AND ASSEMBLY |
| Retainer assy - oil seal, rear | 12296M | CYLINDER BLOCK EXPLODED VIEW |
| Ring - snap, piston pin | 12032 | CYLINDER BLOCK EXPLODED VIEW |
| Gasket - cylinder block | 11023AA | CYLINDER BLOCK DISASSEMBLY AND ASSEMBLY |
